Installation Notes for the Catalyst 2960-8TC, Catalyst 2960G-8TC, and Catalyst 3560-8PC Switches Cable Guard
December 2006
This installation note provides instructions for attaching a cable guard to the Catalyst 2960-8TC, Catalyst 2960G-8TC, and Catalyst 3560-8PC switches. These switches have their own specific cable guard.
•
The Catalyst 2960-8TC switch: cable guard part number CBLGRD-C2960-8TC=
•The Catalyst 2960G-8TC switch: cable guard part number CBLGRD-C2960G-8TC=
•The Catalyst 3560-8PC switch: cable guard part number CBLGRD-C3560-8PC=
The cable guard secures cables that are connected to the switch and provides extra security against the switch being removed after it is installed.
Contents
This document has these sections:
•"Conventions" section
•"Installation" section
•"Related Documentation" section
•"Where to Go Next" section
•"Obtaining Documentation" section
•"Documentation Feedback" section
•"Cisco Product Security Overview" section
•"Product Alerts and Field Notices" section
•"Obtaining Technical Assistance" section
•"Obtaining Additional Publications and Information" section
Conventions
This document uses these conventions and symbols for notes, cautions, and warnings:
Note Means reader take note. Notes contain helpful suggestions or references to materials not contained in this manual.
Caution
Means
reader be careful. In this situation, you might do something that could result in equipment damage or loss of data.
|
Warning |
IMPORTANT SAFETY INSTRUCTIONS This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. To see translations of the warnings that appear in this publication, refer to the translated safety warnings that accompanied this device. Note: SAVE THESE INSTRUCTIONS Note: This documentation is to be used in conjunction with the specific product installation guide that shipped with the product. Please refer to the Installation Guide, Configuration Guide, or other enclosed additional documentation for further details. |
Waarschuwing |
BELANGRIJKE VEILIGHEIDSINSTRUCTIES Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van de standaard praktijken om ongelukken te voorkomen. Voor een vertaling van de waarschuwingen die in deze publicatie verschijnen, dient u de vertaalde veiligheidswaarschuwingen te raadplegen die bij dit apparaat worden geleverd. Opmerking BEWAAR DEZE INSTRUCTIES. Opmerking Deze documentatie dient gebruikt te worden in combinatie met de installatiehandleiding voor het specifieke product die bij het product wordt geleverd. Raadpleeg de installatiehandleiding, configuratiehandleiding of andere verdere ingesloten documentatie voor meer informatie. |
Varoitus |
TÄRKEITÄ TURVALLISUUTEEN LIITTYVIÄ OHJEITA Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa, joka voi johtaa ruumiinvammaan. Ennen kuin työskentelet minkään laitteiston parissa, ota selvää sähkökytkentöihin liittyvistä vaaroista ja tavanomaisista onnettomuuksien ehkäisykeinoista. Tässä asiakirjassa esitettyjen varoitusten käännökset löydät laitteen mukana toimitetuista ohjeista. Huomautus SÄILYTÄ NÄMÄ OHJEET Huomautus Tämä asiakirja on tarkoitettu käytettäväksi yhdessä tuotteen mukana tulleen asennusoppaan kanssa. Katso lisätietoja asennusoppaasta, kokoonpano-oppaasta ja muista mukana toimitetuista asiakirjoista. |
Attention |
IMPORTANTES INFORMATIONS DE SÉCURITÉ Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant causer des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers posés par les circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions d'avertissements figurant dans cette publication, consultez les consignes de sécurité traduites qui accompagnent cet appareil. Remarque CONSERVEZ CES INFORMATIONS Remarque Cette documentation doit être utilisée avec le guide spécifique d'installation du produit qui accompagne ce dernier. Veuillez vous reporter au Guide d'installation, au Guide de configuration, ou à toute autre documentation jointe pour de plus amples renseignements. |
Warnung |
WICHTIGE SICHERHEITSANWEISUNGEN Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu einer Körperverletzung führen könnte. Bevor Sie mit der Arbeit an irgendeinem Gerät beginnen, seien Sie sich der mit elektrischen Stromkreisen verbundenen Gefahren und der Standardpraktiken zur Vermeidung von Unfällen bewusst. Übersetzungen der in dieser Veröffentlichung enthaltenen Warnhinweise sind im Lieferumfang des Geräts enthalten. Hinweis BEWAHREN SIE DIESE SICHERHEITSANWEISUNGEN AUF Hinweis Dieses Handbuch ist zum Gebrauch in Verbindung mit dem Installationshandbuch für Ihr Gerät bestimmt, das dem Gerät beiliegt. Entnehmen Sie bitte alle weiteren Informationen dem Handbuch (Installations- oder Konfigurationshandbuch o. Ä.) für Ihr spezifisches Gerät. |
Figyelem! |
FONTOS BIZTONSÁGI ELÕÍRÁSOK Ez a figyelmezetõ jel veszélyre utal. Sérülésveszélyt rejtõ helyzetben van. Mielõtt bármely berendezésen munkát végezte, legyen figyelemmel az elektromos áramkörök okozta kockázatokra, és ismerkedjen meg a szokásos balesetvédelmi eljárásokkal. A kiadványban szereplõ figyelmeztetések fordítása a készülékhez mellékelt biztonsági figyelmeztetések között található. Megjegyzés ÕRIZZE MEG EZEKET AZ UTASÍTÁSOKAT! Megjegyzés Ezt a dokumentációt a készülékhez mellékelt üzembe helyezési útmutatóval együtt kell használni. További tudnivalók a mellékelt Üzembe helyezési útmutatóban (Installation Guide), Konfigurációs útmutatóban (Configuration Guide) vagy más dokumentumban találhatók. |
Avvertenza |
IMPORTANTI ISTRUZIONI SULLA SICUREZZA Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle persone. Prima di intervenire su qualsiasi apparecchiatura, occorre essere al corrente dei pericoli relativi ai circuiti elettrici e conoscere le procedure standard per la prevenzione di incidenti. Per le traduzioni delle avvertenze riportate in questo documento, vedere le avvertenze di sicurezza che accompagnano questo dispositivo. Nota CONSERVARE QUESTE ISTRUZIONI Nota La presente documentazione va usata congiuntamente alla guida di installazione specifica spedita con il prodotto. Per maggiori informazioni, consultare la Guida all'installazione, la Guida alla configurazione o altra documentazione acclusa. |
Advarsel |
VIKTIGE SIKKERHETSINSTRUKSJONER Dette varselssymbolet betyr fare. Du befinner deg i en situasjon som kan forårsake personskade. Før du utfører arbeid med utstyret, bør du være oppmerksom på farene som er forbundet med elektriske kretssystemer, og du bør være kjent med vanlig praksis for å unngå ulykker. For å se oversettelser av advarslene i denne publikasjonen, se de oversatte sikkerhetsvarslene som følger med denne enheten. Merk TA VARE PÅ DISSE INSTRUKSJONENE Merk Denne dokumentasjonen skal brukes i forbindelse med den spesifikke installasjonsveiledningen som fulgte med produktet. Vennligst se installasjonsveiledningen, konfigureringsveiledningen eller annen vedlagt tilleggsdokumentasjon for detaljer. |
Aviso |
INSTRUÇÕES IMPORTANTES DE SEGURANÇA Este símbolo de aviso significa perigo. O utilizador encontra-se numa situação que poderá ser causadora de lesões corporais. Antes de iniciar a utilização de qualquer equipamento, tenha em atenção os perigos envolvidos no manuseamento de circuitos eléctricos e familiarize-se com as práticas habituais de prevenção de acidentes. Para ver traduções dos avisos incluídos nesta publicação, consulte os avisos de segurança traduzidos que acompanham este dispositivo. Nota GUARDE ESTAS INSTRUÇÕES Nota Esta documentação destina-se a ser utilizada em conjunto com o manual de instalação incluído com o produto específico. Consulte o manual de instalação, o manual de configuração ou outra documentação adicional inclusa, para obter mais informações. |
¡Advertencia! |
INSTRUCCIONES IMPORTANTES DE SEGURIDAD Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes de manipular cualquier equipo, considere los riesgos de la corriente eléctrica y familiarícese con los procedimientos estándar de prevención de accidentes. Vea las traducciones de las advertencias que acompañan a este dispositivo. Nota GUARDE ESTAS INSTRUCCIONES Nota Esta documentación está pensada para ser utilizada con la guía de instalación del producto que lo acompaña. Si necesita más detalles, consulte la Guía de instalación, la Guía de configuración o cualquier documentación adicional adjunta. |
Varning! |
VIKTIGA SÄKERHETSANVISNINGAR Denna varningssignal signalerar fara. Du befinner dig i en situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanliga förfaranden för att förebygga olyckor. Se översättningarna av de varningsmeddelanden som finns i denna publikation, och se de översatta säkerhetsvarningarna som medföljer denna anordning. OBS! SPARA DESSA ANVISNINGAR OBS! Denna dokumentation ska användas i samband med den specifika produktinstallationshandbok som medföljde produkten. Se installationshandboken, konfigurationshandboken eller annan bifogad ytterligare dokumentation för närmare detaljer. |
|
|
|
|
|
|
Installation
This section describes how to attach the cable guard to a switch and to mount the switch on a wall or on or under a desk.
EMC Regulatory Statements
U.S.A.
U.S. regulatory information for this product is at the back of this document.
Taiwan
|
Warning |
This is a Class A Information Product, when used in residential environment, it may cause radio frequency interference, under such circumstances, the user may be requested to take appropriate countermeasures. |
|
|
Hungary
|
Warning |
This equipment is a class A product and should be used and installed properly according to the Hungarian EMC Class A requirements (MSZEN55022). Class A equipment is designed for typical commercial establishments for which special conditions of installation and protection distance are used. |
Figyelmeztetés |
Figyelmeztetés a felhasználói kézikönyv számára: Ez a berendezés "A" osztályú termék, felhasználására és üzembe helyezésére a magyar EMC "A" osztályú követelményeknek (MSZ EN 55022) megfeleloen kerülhet sor, illetve ezen "A" osztályú berendezések csak megfelelo kereskedelmi forrásból származhatnak, amelyek biztosítják a megfelelo speciális üzembe helyezési körülményeket és biztonságos üzemelési távolságok alkalmazását.
|
Package Contents
The cable guard is shipped with these items:
•Installation Notes for the Catalyst 2960-8TC, Catalyst 2960G-8TC, and Catalyst 3560-8PC Switches Cable Guard
•One 0.25 in. (0.64 cm) number-8 Phillips pan-head screw
•Two 0.5 in. (1.27 cm) number-8 Phillips pan-head screws
•Four number-8 Phillips pan-head, self-tapping screws
Note In some installations, you also need the screw template and three number-8 Phillips pan-head screws. These are included in the accessory kit with the switch.
Installation Guidelines
Connect all cables to the switch before attaching the cable guard to it. Then mount the switch, with the cable guard attached, on a wall or on or under a desk.
Note Cables cannot be connected to the switch after the cable guard is attached. For information about connecting devices to the switch, refer to the hardware installation guide.
Note We strongly recommend that you do not wall-mount the switch with its front panel facing up. We recommend wall-mounting the switch with its front panel facing down to prevent airflow restriction and to provide easier access to the cables.
Before you begin, decide how to mount the switch by reviewing these sections:
•"Installing the Switch On a Wall (Front Panel Facing Down)" section
•"Installing the Switch On or Under a Desk" section
•"Magnet-Mounting the Switch" section
Installing the Switch On a Wall (Front Panel Facing Down)
To install the switch with the front panel facing down, follow these steps:
Step 1 Locate the screw template (included in the switch accessory kit). The template is used to align the mounting screw holes and is also used as a guide to make sure that the screws are installed in the wall with proper clearance.
Step 2 Position the screw template so that the two side-by-side slots face toward the floor, as shown in Figure 1. For the best support of a switch with an attached cable guard, secure the screws to a wall stud or to a firmly attached plywood mounting backboard.
Step 3 Peel the adhesive strip off the bottom of the screw template.
Step 4 Attach the screw template to the wall.
Step 5 Use a 0.144-in. (3.7 mm) or a #27 drill bit to drill three 1/2-in. (12.7 mm) holes in the wall, using the screw template slots for alignment.
Step 6 Insert the three number-8 Phillips pan-head screws (included in the switch accessory kit) in the slots on the screw template, and tighten until they touch the top of the screw template. See Figure 1.

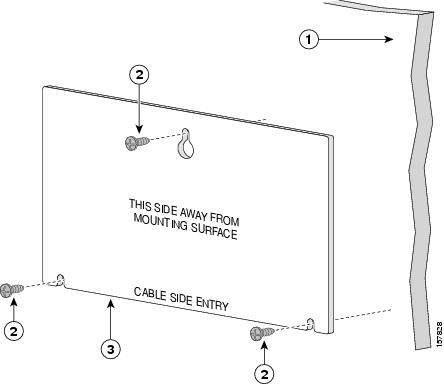

Figure 1 Installing the Mounting Screws on a Wall
|
1
|
Wall |
3 |
Screw template from switch accessory kit |
|
2
|
Screws from switch accessory kit |
|
Step 7 Remove the screw template from the wall.

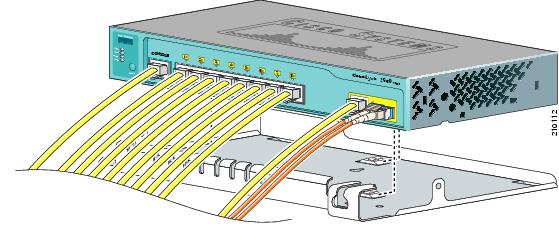

Step 8 Attach the cables to the switch, as shown in Figure 2. For information about devices that can be connected to the switch, refer to the hardware installation guide for your switch.
Figure 2 Attaching Cables to the Switch

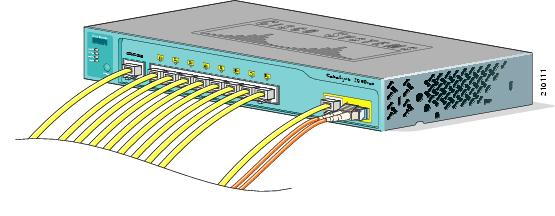

Step 9 Slide the switch into the cable guard, as shown in Figure 3. Three hooks on the top of the cable guard secure the bottom of the switch against the cable guard.
Figure 3 Sliding Switch into Cable Guard
Step 10 Guide the connected cables through the slots in the front of the cable guard, as shown in Figure 4.
Figure 4 Cables Routed Through Slots In Cable Guard

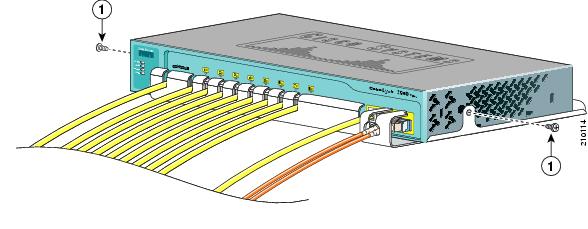

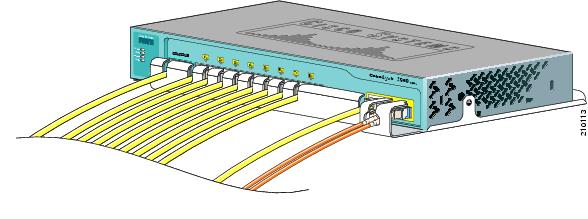

Step 11 Use the two supplied 0.5 in. (1.27 cm) number-8 Phillips pan-head screws to attach the front of the cable guard to the switch, as shown in Figure 5.
Figure 5 Attaching Front Mounting Screws to the Switch
|
1
|
Screws from cable guard kit |

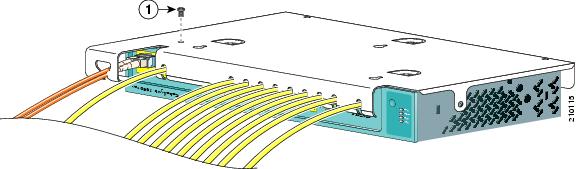

Step 12 (Optional) Use the supplied 0.25 in. (0.64 cm) number-8 Phillips pan-head screw to attach the bottom of the switch to the cable guard, as shown in Figure 6. This optional screw helps prevent the switch from being easily removed from the cable guard.
Figure 6 (Optional) Attaching Screw to Bottom of Switch
|
1
|
Screw from cable guard kit |

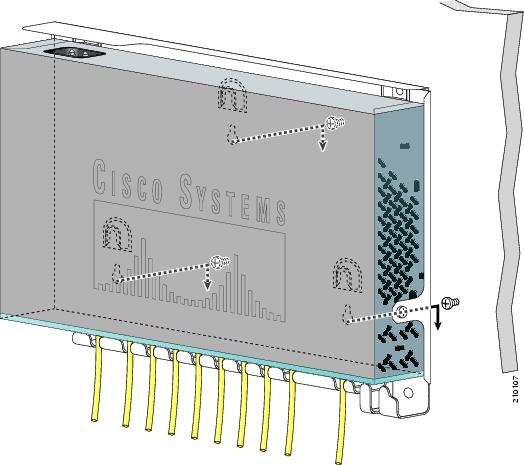

Step 13 Slide the switch with an attached cable guard onto the three mounting screws, as shown in Figure 7.
The cable guard is made of thicker material than the switch chassis. To make sure that a switch with an attached cable guard securely slides onto the screws, you might need to loosen them slightly before sliding the switch onto them.
Note We strongly recommend that you do not wall-mount the switch with its front panel facing up. We recommend wall-mounting the switch with its front panel facing down to prevent airflow restriction and to provide easier access to the cables.
Figure 7 Sliding the Switch onto the Mounting Screws

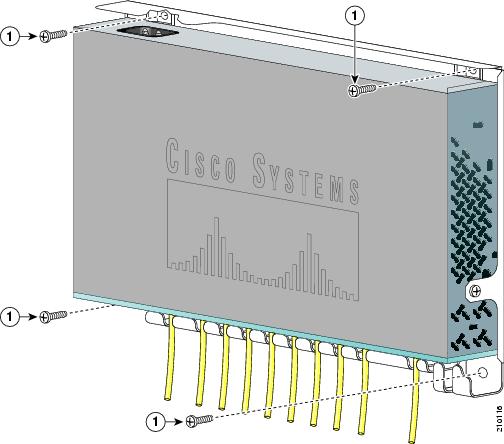

Step 14 (Optional) Use the four number-8 Phillips pan-head screws from the cable guard kit to further secure the switch on the wall, as shown in Figure 8.
Figure 8 Securing the Switch on Wall
|
1
|
Screws from cable guard kit |
Installing the Switch On or Under a Desk
You can install a switch with an attached cable guard on or under a desk. Follow the same steps in the "Installing the Switch On a Wall (Front Panel Facing Down)" section, but use the screw template to install the mounting screws on or under the desk instead of on a wall.
Magnet-Mounting the Switch
You can mount a switch with an attached cable guard by using the magnet supplied with the switch. See the switch hardware installation guide for more information.
