Configuring Fibre Channel Routing Services and Protocols
Fabric Shortest Path First (FSPF) is the standard path selection protocol used by Fibre Channel fabrics. The FSPF feature is enabled by default on all Fibre Channel switches. Except in configurations that require special consideration, you do not need to configure any FSPF services. FSPF automatically calculates the best path between any two switches in a fabric. Specifically, FSPF is used to:
•
Dynamically compute routes throughout a fabric by establishing the shortest and quickest path between any two switches.
•
This chapter provides details on Fibre Channel routing services and protocols. It includes the following sections:
About FSPF
FSPF is the protocol currently standardized by the T11 committee for routing in Fibre Channel networks. The FSPF protocol has the following characteristics and features:
•
•
•
•
•
•
•
FSPF Examples
Note
Fault Tolerant Fabric
Figure 25-1 Fault Tolerant Fabric
For example, if all links are of equal speed, the FSPF calculates two equal paths from A to C: A-D-C (green) and A-E-C (blue).
Redundant Links
To further improve on the topology in Figure 25-1, each connection between any pair of switches can be replicated; two or more links can be present between a pair of switches. Figure 25-2 shows this arrangement. Because switches in the Cisco MDS 9000 Family support PortChanneling, each pair of physical links can appear to the FSPF protocol as one single logical link.
By bundling pairs of physical links, FSPF efficiency is considerably improved by the reduced database size and the frequency of link updates. Once physical links are aggregated, failures are not attached to a single link but to the entire PortChannel. This configuration also improves the resiliency of the network. The failure of a link in a PortChannel does not trigger a route change, thereby reducing the risks of routing loops, traffic loss, or fabric downtime for route reconfiguration.
Figure 25-2 Fault Tolerant Fabric with Redundant Links
For example, if all links are of equal speed and no PortChannels exist, the FSPF calculates four equal paths from A to C: A1-E-C, A2-E-C, A3-D-C, and A4-D-C. If PortChannels exist, these paths are reduced to two.
Fail-Over Scenarios for PortChannels and FSPF Links
The SmartBits traffic generator was used to evaluate the scenarios displayed in Figure 25-3. Two links between switch 1 and switch 2 exist as either equal-cost ISLs or PortChannels. There is one flow from traffic generator 1 to traffic generator 2. The traffic was tested at 100% utilization at 1 Gbps in two scenarios:
•
•
Figure 25-3 Fail-Over Scenario Using Traffic Generators
FSPF Global Configuration
By default, FSPF is enabled on switches in the Cisco MDS 9000 Family.
Some FSPF features can be globally configured in each VSAN. By configuring a feature for the entire VSAN, you do not have to specify the VSAN number for every command. This global configuration feature also reduces the chance of typing errors or other minor configuration errors.
Note
Caution
This section includes the following topics:
•
•
About SPF Computational Hold Times
The SPF computational hold time sets the minimum time between two consecutive SPF computations on the VSAN. Setting this to a small value means that FSPF reacts faster to any fabric changes by recomputing paths on the VSAN. A small SPF computational hold time uses more switch CPU time.
About Link State Records
Each time a new switch enters the fabric, a link state record (LSR) is sent to the neighboring switches, and then flooded throughout the fabric. Table 25-3 displays the default settings for switch responses.
The LSR minimum arrival time is the period between receiving LSR updates on this VSAN. Any LSR updates that arrive before the LSR minimum arrival time are discarded.
The LSR minimum interval time is the frequency at which this switch sends LSR updates on a VSAN.
Configuring FSPF on a VSAN
To configure an FSPF feature for the entire VSAN using Fabric Manager, follow these steps:
Step 1
You see the FSPF configuration in the Information pane as shown in Figure 25-4.

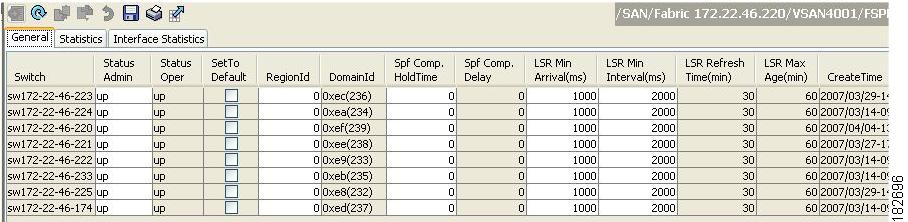

Figure 25-4 FSPF General Information
Step 2
Step 3
Resetting FSPF to the Default Configuration
To return the FSPF VSAN global configuration to its factory default using Fabric Manager, follow these steps:
Step 1
You see the FSPF configuration in the Information pane as shown in Figure 25-4.
Step 2
Step 3
Enabling or Disabling FSPF
To enable or disable FSPF using Fabric Manager, follow these steps:
Step 1
You see the FSPF configuration in the Information pane as shown in Figure 25-4.
Step 2
Step 3
FSPF Interface Configuration
Several FSPF commands are available on a per interface basis. These configuration procedures apply to an interface in a specific VSAN.
This section includes the following topics:
•
•
•
•
•
•
About FSPF Link Cost
FSPF tracks the state of links on all switches in the fabric, associates a cost with each link in its database, and then chooses the path with a minimal cost. The cost associated with an interface can be administratively changed to implement the FSPF route selection. The integer value to specify cost can range from 1 to 65,535. The default cost for 1 Gbps is 1000 and for 2 Gbps is 500.
Configuring FSPF Link Cost
To configure FSPF link cost using Fabric Manager, follow these steps:
Step 1
You see the interface configuration in the Information pane.
Step 2
You see the FSPF interface configuration in the Information pane as shown in Figure 25-5.

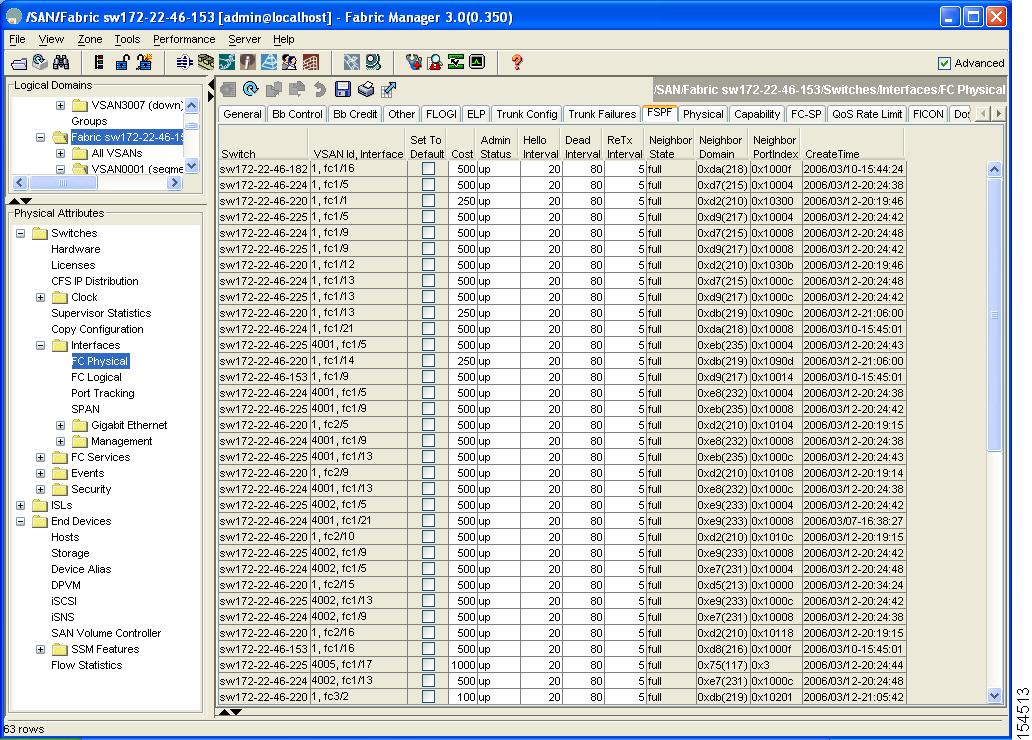

Figure 25-5 Fibre Channel Physical FSPF Interface
Step 3
Step 4
About Hello Time Intervals
You can set the FSPF Hello time interval to specify the interval between the periodic hello messages sent to verify the health of the link. The integer value can range from 1 to 65,535 seconds.
Note
Configuring Hello Time Intervals
To configure the FSPF Hello time interval using Fabric Manager, follow these steps:
Step 1
You see the interface configuration in the Information pane.
Step 2
You see the FSPF interface configuration in the Information pane as shown in Figure 25-5.
Step 3
Step 4
About Dead Time Intervals
You can set the FSPF dead time interval to specify the maximum interval for which a hello message must be received before the neighbor is considered lost and removed from the database. The integer value can range from 1 to 65,535 seconds.
Note
Caution
Configuring Dead Time Intervals
To configure the FSPF dead time interval using Fabric Manager, follow these steps:
Step 1
You see the interface configuration in the Information pane.
Step 2
You see the FSPF interface configuration in the Information pane as shown in Figure 25-5.
Step 3
Step 4
About Retransmitting Intervals
You can specify the time after which an unacknowledged link state update should be transmitted on the interface. The integer value to specify retransmit intervals can range from 1 to 65,535 seconds.
Note
Configuring Retransmitting Intervals
To configure the FSPF retransmit time interval using Fabric Manager, follow these steps:
Step 1
You see the interface configuration in the Information pane.
Step 2
You see the FSPF interface configuration in the Information pane as shown in Figure 25-5.
Step 3
Step 4
About Disabling FSPF for Specific Interfaces
You can disable the FSPF protocol for selected interfaces. By default, FSPF is enabled on all E ports and TE ports. This default can be disabled by setting the interface as passive.
Note
Disabling FSPF for Specific Interfaces
You can disable the FSPF protocol for selected interfaces. By default, FSPF is enabled on all E ports and TE ports. This default can be disabled by setting the interface as passive.
To disable FSPF for a specific interface using Fabric Manager, follow these steps:
Step 1
You see the interface configuration in the Information pane.
Step 2
You see the FSPF interface configuration in the Information pane shown in Figure 25-5.
Step 3
Step 4
You can disable the FSPF protocol for selected interfaces. By default, FSPF is enabled on all E ports and TE ports. This default can be disabled by setting the interface as passive.
Displaying the FSPF Database
The FSPF database for a specified VSAN includes the following information:
•
•
•
•
•
•
To display the FSPF database using Device Manager, follow these steps:
Step 1
You see the FSPF dialog box shown in Figure 25-6.

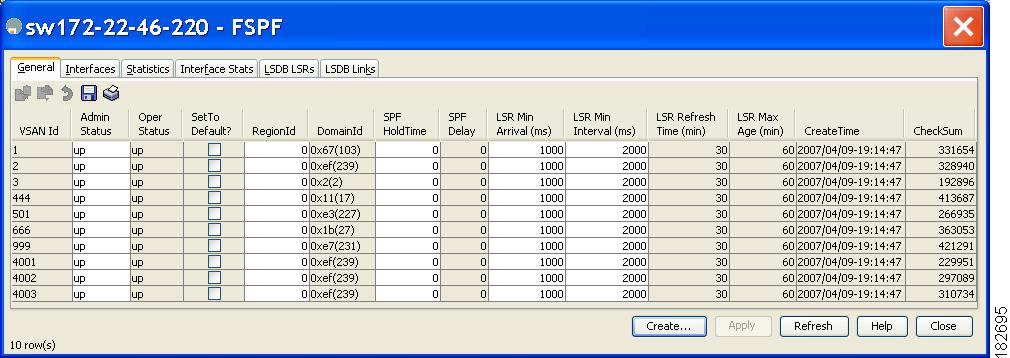

Figure 25-6 FSPF Dialog Box in Device Manager
Step 2
You see the FSPF database information shown in Figure 25-7.

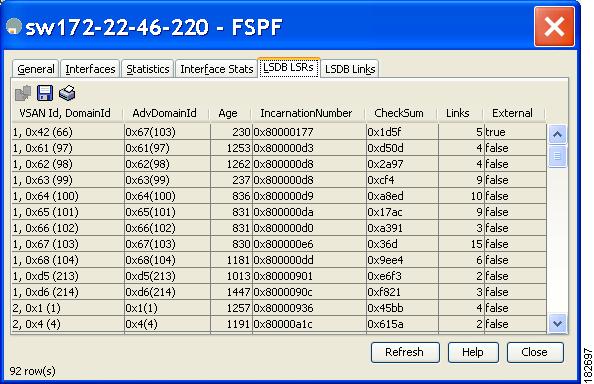

Figure 25-7 FSPF Database Information in the LSDB LSRs Tab
Step 3
Viewing FSPF Statistics
To view FSPF statistics using Fabric Manager, follow these steps:
Step 1
You see the FSPF configuration dialog box.
Step 2
You see the FSPF VSAN statistics in the Information pane (see Figure 25-8).

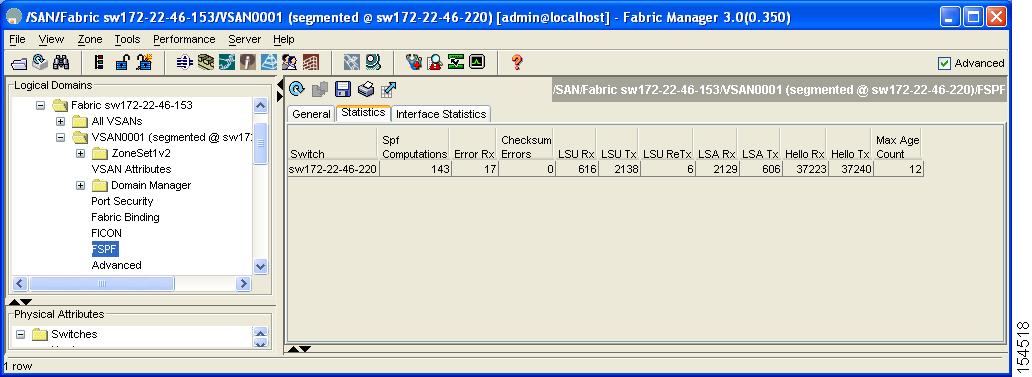

Figure 25-8 FSPF VSAN Statistics
Step 3
You see the FSPF interface statistics in the Information pane.
FSPF Routes
FSPF routes traffic across the fabric, based on entries in the FSPF database. These routes can be learned dynamically, or configured statically.
This section includes the following topics:
•
•
•
About Fibre Channel Routes
Each port implements forwarding logic, which forwards frames based on its FC ID. Using the FC ID for the specified interface and domain, you can configure the specified route (for example FC ID 111211 and domain ID 3) in the switch with domain ID 1 (see Figure 25-9).
Figure 25-9 Fibre Channel Routes
Note
Configuring Fibre Channel Routes
If you disable FSPF, you can manually configure a Fibre Channel route.
To configure a Fibre Channel route using Device Manager, follow these steps:
Step 1
You see the FC Static Route Configuration dialog box shown in Figure 25-10.

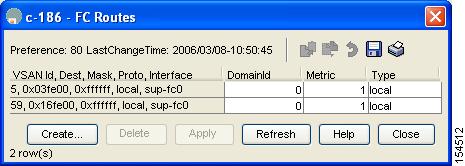

Figure 25-10 Fibre Channel Static Route Configuration Dialog Box
Step 2
You see the Create Route dialog box shown in Figure 25-11.
Figure 25-11 Create Fibre Channel Route Dialog Box
Step 3
Step 4
Step 5
Step 6
Step 7
Step 8
About Broadcast and Multicast Routing
Broadcast and multicast in a Fibre Channel fabric uses the concept of a distribution tree to reach all switches in the fabric.
FSPF provides the topology information to compute the distribution tree. Fibre Channel defines 256 multicast groups and one broadcast address for each VSAN. Switches in the Cisco MDS 9000 Family only use broadcast routing. By default, they use the principal switch as the root node to derive a loop-free distribution tree for multicast and broadcast routing in a VSAN.
Caution
To interoperate with other vendor switches (following FC-SW3 guidelines), the SAN-OS software uses the lowest domain switch as the root to compute the multicast tree in interop mode.
About Multicast Root Switch
By default, the native (non-interop) mode uses the principal switch as the root. If you change the default, be sure to configure the same mode in all switches in the fabric. Otherwise, multicast traffic could face potential loop and frame-drop problems.
Note
Setting the Multicast Root Switch
To use the lowest domain switch for the multicast tree computation using Fabric Manager, follow these steps:
Step 1
You see the advanced Fibre Channel configuration in the Information pane.
Step 2
You see the multicast root configuration in the Information pane as shown in Figure 25-12.

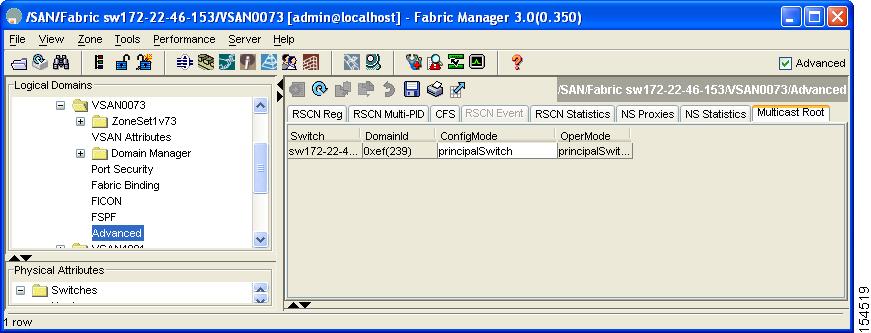

Figure 25-12 Multicast Root Configuration
Step 3
Step 4
In-Order Delivery
In-Order Delivery (IOD) of data frames guarantees frame delivery to a destination in the same order that they were sent by the originator.
Some Fibre Channel protocols or applications cannot handle out-of-order frame delivery. In these cases, switches in the Cisco MDS 9000 Family preserve frame ordering in the frame flow. The source ID (SID), destination ID (DID), and optionally the originator exchange ID (OX ID) identify the flow of the frame.
On any given switch with IOD enabled, all frames received by a specific ingress port and destined to a certain egress port are always delivered in the same order in which they were received.
Use IOD only if your environment cannot support out-of-order frame delivery.
Tip
This section includes the following topics:
•
•
•
•
•
•
About Reordering Network Frames
When you experience a route change in the network, the new selected path may be faster or less congested than the old route.
Figure 25-13 Route Change Delivery
In Figure 25-13, the new path from Switch 1 to Switch 4 is faster. In this scenario, Frame 3 and Frame 4 may be delivered before Frame 1 and Frame 2.
If the in-order guarantee feature is enabled, the frames within the network are treated as follows:
•
•
About Reordering PortChannel Frames
When a link change occurs in a PortChannel, the frames for the same exchange or the same flow can switch from one path to another faster path.
Figure 25-14 Link Congestion Delivery
In Figure 25-14, the port of the old path (red dot) is congested. In this scenario, Frame 3 and Frame 4 can be delivered before Frame 1 and Frame 2.
The the in-order delivery feature attempts to minimize the number of frames dropped during PortChannel link changes when the in-order delivery is enabled by sending a request to the remote switch on the PortChannel to flush all frames for this PortChannel.
Note
When the in-order delivery guarantee feature is enabled and a PortChannel link change occurs, the frames crossing the PortChannel are treated as follows:
•
•
Frames that cannot be delivered in order through the old path within the switch latency drop period are dropped. See the "Configuring the Drop Latency Time" section.
About Enabling In-Order Delivery
You can enable the in-order delivery feature for a specific VSAN or for the entire switch. By default, in-order delivery is disabled on switches in the Cisco MDS 9000 Family.
Tip
Enabling In-Order Delivery Globally
To ensure that the in-order delivery parameters are uniform across all VSANs on an MDS switch, enable in-order delivery globally.
Only enable in-order delivery globally if this is a requirement across your entire fabric. Otherwise, enable IOD only for the VSANs that require this feature.
Note
Enabling In-Order Delivery for a VSAN
When you create a VSAN, that VSAN automatically inherits the global in-order-guarantee value. You can override this global value by enabling or disabling in-order-guarantee for the new VSAN.
To use the lowest domain switch for the multicast tree computation using Fabric Manager, follow these steps:
Step 1
Step 2
You see the general VSAN attributes in the Information pane shown in Figure 25-15.
Figure 25-15 General VSAN Attributes
Step 3
Step 4
Configuring the Drop Latency Time
You can change the default latency time for either the entire switch or a specified VSAN in a switch.
To configure the drop latency time for a switch using Fabric Manager, follow these steps:
Step 1
You see the VSAN configuration in the Information pane.
Step 2
You see the general VSAN attributes in the Information pane shown in Figure 25-16.
Figure 25-16 General VSAN Attributes
Step 3
Step 4
Default Settings
Table 25-4 lists the default settings for FSPF features.
