Network Configuration Examples
Central Unit in an All-Wireless Network
Wireless Device Overview
Wireless devices (commonly configured as access points) provide a secure, affordable, and easy-to-use wireless LAN solution that combines mobility and flexibility with the enterprise-class features required by networking professionals. When configured as an access point, the wireless device serves as the connection point between wireless and wired networks or as the center point of a stand-alone wireless network. In large installations, wireless users within radio range can roam throughout a facility while maintaining seamless, uninterrupted access to the network.
With a management system based on Cisco IOS software, wireless devices are Wi-Fi CERTIFIED™, 802.11b-compliant, 802.11g-compliant, and 802.11n-compliant wireless LAN transceivers.
Software Modes
The access point is shipped with an autonomous image and a recovery image on the access point's flash. The default mode is autonomous; however, the access point can be upgraded to operate in Cisco Unified Wireless mode.
Each mode is described below:
–
Autonomous mode—Supports standalone network configurations, where all configuration settings are maintained locally on the wireless device. Each autonomous device can load its starting configuration independently and still operate in a cohesive fashion on the network.
–
For more information about this network architecture design, see Why Migrate to a Cisco Unified Wireless Network? on Cisco.com.
Management Options
The wireless device runs its own version of Cisco IOS software that is separate from the Cisco IOS software operating on the router. You can configure and monitor the access point with several different tools:
•
•
•
http://cisco.com/en/US/docs/wireless/access_point/12.4_10b_JA/configuration/guide/scg12410b-chap2-gui.html
Note
Note
Use the interface dot11radio global configuration CLI command to place the wireless device into the radio configuration mode.
Network Configuration Examples
Set up the access point role in any of these common wireless network configurations. The access point default configuration can either be as a root unit connected to a wired LAN or as a central unit in an all-wireless network. Access points can also be configured as bridges and workgroup bridges. These roles require specific configurations, as defined in the following examples.
•
Root Access Point

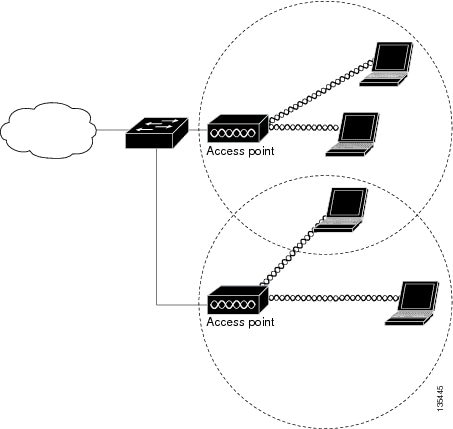

An access point connected directly to a wired LAN provides a connection point for wireless users. If more than one access point is connected to the LAN, users can roam from one area of a facility to another without losing their connection to the network. As users move out of range of one access point, they automatically connect to the network (associate) through another access point. The roaming process is seamless and transparent to the user. Figure 2-1 shows access points acting as root units on a wired LAN.
Figure 2-1 Access Point as Root Unit on a Wired LAN
Central Unit in an All-Wireless Network
In an all-wireless network, an access point acts as a stand-alone root unit. The access point is not attached to a wired LAN; it functions as a hub linking all stations together. The access point serves as the focal point for communications, increasing the communication range of wireless users. Figure 2-2 shows an access point in an all-wireless network.
Figure 2-2 Access Point as Central Unit in All-Wireless Network
