4-Port OC-3/STM-1 ATM Line Card Overview

---

This chapter describes the Cisco 10000 series 4-port OC-3/STM-1c ATM line card (referred to as the 4-port OC-3/STM-1 ATM line card), and contains the following sections:

•Line Card Summary

•Software and Hardware Compatibility

•Line Card, Router, and Processor Compatibility

•LEDs

•Physical Specifications

•Slot Locations

•Cables and Connectors

Line Card Summary

Table 1-1 4-Port OC-3/STM-1 ATM Line Card Summary

Product Number	Description	Minimum Cisco IOS Release
ESR-4OC3-ATM-SM=	4-port OC-3/STM-1 ATM line card with intermediate-reach optics	Initial Cisco IOS releases for PRE-1: 12.0(21)SX and later releases of Cisco IOS Release 12.0SX 12.0(20)ST and later releases of Cisco IOS Release 12.0ST 12.0(22)S and later releases of Cisco IOS Release 12.0S 12.2(8)BZ and later releases of Cisco IOS Release 12.2BZ Initial Cisco IOS releases for PRE-2: 12.3(7)XI and later releases of 12.3XI 12.2(15)BX and later releases of 12.2BX 12.2(28)SB and later releases of Cisco IOS Release 12.2(28)SB
ESR-4OC3-ATM-SM-LR=	4-port OC-3/STM-1 ATM line card with long-reach optics	12.2(28)SB and later releases of Cisco IOS Release 12.2(28)SB For registered Cisco.com users, use Software Advisor to determine the software releases for this line card.

The 4-port OC-3/STM-1 ATM line card is a NEBS-compliant device that performs Layer 2 Asynchronous Transfer Mode (ATM) functions. This line card receives and transmits ATM cells on each network physical interface connected to a line card port, and simultaneously transmits and receives packets from the Cisco 10000 series router backplane.

This line card can be used to:

•Provide four OC-3 trunk uplinks

•Provide IP packet routing over ATM virtual circuit connections using single-mode fiber intermediate reach and long reach LC connectors at each port

•Operate as a subscriber interface card

The 4-port OC-3/STM-1 ATM line card is an implementation of ATM over SONET switching. This line card supports the following features:

•Conforms to the ATM forum ATM UNI 3.1 155.52-Mbps physical layer specification

•Uses ATM cell header 8-bit virtual path identifiers (VPIs) and 16-bit virtual channel identifiers (VCIs)

•Provides ATM QoS (quality of service) management

•Complies with the SONET/SDH OC-3 STS-3/STM-1 framing format

•Accommodates SONET overhead bits

•Provides up to 8191 total connections

•Provides alarm processing

•Provides continuous performance monitoring

If you are a registered Cisco.com user, see Feature Navigator for supported features.

Software and Hardware Compatibility

To check the minimum software requirements of Cisco IOS software with the hardware installed on your router, Cisco maintains the Software Advisor tool on Cisco.com. This tool does not verify whether line cards within a system are compatible, but does provide the minimum Cisco IOS requirements for individual hardware line cards, modules, or options.

---

Note Access to this tool is limited to users with Cisco.com login accounts.

---

To access Software Advisor, click Login at Cisco.com, type "Software Advisor" in the SEARCH box, and click Go. Click the link for the Software Advisor tool.

Choose a product family or enter a specific product number to search for the minimum supported software release needed for your hardware.

Line Card, Router, and Processor Compatibility

Table 1-2 provides information about the router model, line card, and processor compatibility.

Table 1-2 Line Card, Router, and Processor Compatibility

Line Card	Cisco 10008	Cisco 10005	PRE-2	PRE-1	PRE
4-port OC-3/STM-1 ATM line card ESR-4OC-ATM-SM=	Yes	Yes	Yes	Yes	Yes
4-port OC-3/STM-1 ATM line card ESR-4OC-ATM-SM-LR=	Yes	No	Yes	No	No

LEDs

The 4-port OC-3/STM-1 ATM line card LEDs are described in Figure 1-1.

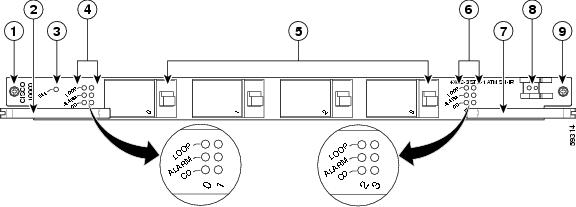

Figure 1-1 4-Port OC-3/STM-1 ATM Line Card Faceplate Description

1	Top captive screw	6	Ports 2 and 3 status LED group
2	Top ejector lever	7	Lower ejector lever
3	Yellow line card Fail LED	8	Cable management clip
4	Ports 0 and 1 Status LED group	9	Lower captive screw
5	Ports 0 to 3 RX and TX connectors

Table 1-3 provides a description of the 4-port OC-3/STM-1 ATM line card LEDs.

Table 1-3 LED Description

LED Label	Color	State	Meaning
FAIL	Yellow	Off	Off when line card is working properly. Turns on for a few seconds during line card power-on self test (POST), then turns off when the line card is working properly.
		On	On when the line card POST fails.
LOOP	Yellow	Off	Off when the line card is available for normal operation.
		On	On when some portion of the corresponding port data is in a loopback state and is not available for normal operations.
ALARM	Yellow	Off	Off when the line card is operating normally.
		On	On when an alarm condition exists at the corresponding port.
CD (carrier detected)	Green	On	On when a carrier is detected at the corresponding port.
		Off	Off when a loss of signal (LOS) is indicated.

Physical Specifications

The 4-port OC-3/STM-1 ATM line card physical specifications are shown in Table 1-4:

Table 1-4 4-Port OC-3/STM-1 ATM Line Card Physical Specifications

Description	Specifications
Physical dimensions	Height: 16.0 in. (40.64 cm) Depth: 9.97 in. (25.32 cm) Width: 1.12 in. (2.83 cm)
Shipping weight	Approximately 4.75 lb (2.16 kg)
Operating temperature	41oF to 104oF (5oC to 40oC) Short-term operating temperature is limited to 131oF (55oC) in compliance with Bellcore GR
Relative humidity	Operating—nominal: 5% to 85% Operating—short term: 5% to 90% Storage: 5% to 95%
Storage temperature	-40oF to 158oF (-40oC to 70C o)

Slot Locations

The line card slot designations are shown in this section. Figure 1-2 shows line card slot designations for the Cisco 10008 router and Figure 1-3 shows line card slot designations for the Cisco 10005 router.

Figure 1-2 Line Card Slot Designations for the Cisco 10008 Router

1	Blower module	5	PRE slot 0A
2	Primary PEM	6	PRE slot 0B
3	Redundant PEM	7	Line card slots 5 to 8
4	Line card slots 1 to 4

The 4-port OC-3/STM-1 ATM line card can be installed in line card slot 1 through slot 8.

Figure 1-3 Line Card Slot Designations for the Cisco 10005 Router

1	PRE slot A	3	Line card slots 1 (top) to 5 (bottom)
2	PRE slot B

The 4-port OC-3/STM-1 ATM line card can be installed in line card slot 1 through slot 5.

Cables and Connectors

Table 1-5 provides optical cable specifications for the line card.

Table 1-5 Optical Specifications

Transceiver Type	Transmit Power	Maximum Power to Receiver	Minimum Receiver Sensitivity	Nominal Distance Between Stations	Wavelength	Fiber Type: Single Mode
Single-mode intermediate reach	-15 dBm minimum to -8 dBm maximum	-8 dBm	-28 dBm	Up to 9 mi (15 km)	1280 nm to 1335 nm	Core size 8 to 10 microns
Single-mode long reach (LR)	-5 dBm minimum to 0 dBm maximum	-10 dBm1	-34 dBm	Up to 25 mi (40 km)	1280 nm to 1335 nm	Core size 8 to 10 microns

1 For LR, a minimum of 10 dB of total attenuation between transmitter and receiver is required. Exceeding the maximum receive power can damage the optics.

Go to Chapter 16, "Preparing for Installation" to begin the installation or replacement of the line card.

For troubleshooting information, see Chapter 18, "Troubleshooting the Installation."
