SSG L2TP Dial-Out
The SSG L2TP Dial-Out feature enhances SSG tunnel services and provides a dial-out facility to users. Many small offices/home offices (SOHOs) use the public switched telephone network (PSTN) to access their intranets. SSG L2TP provides mobile users with a way to securely connect to their SOHOs through the PSTN. SSG L2TP Dial-Out also provides a convenient way for general packet radio service (GPRS) users to connect to their SOHOs.
12.2(15)B
This feature was introduced.
12.3(4)T
This feature was integrated into Cisco IOS Release 12.3(4)T.
Feature History for the SSG L2TP Dial-Out Feature
Finding Support Information for Platforms and Cisco IOS Software Images
Use Cisco Feature Navigator to find information about platform support and Cisco IOS software image support. Access Cisco Feature Navigator at http://www.cisco.com/go/fn. You must have an account on Cisco.com. If you do not have an account or have forgotten your username or password, click Cancel at the login dialog box and follow the instructions that appear.
Contents
•
Restrictions for SSG L2TP Dial-Out
•
•
•
Restrictions for SSG L2TP Dial-Out
SSG L2TP Dial-Out does not support the following functionality:
•
•
•
•
Information About SSG L2TP Dial-Out
To configure the SSG L2TP Dial-Out feature, you should understand the following concepts:
•
•
•
•
•
•
Overview of SSG
Service Selection Gateway (SSG) is a switching solution for service providers who offer intranet, extranet, and Internet connections to subscribers using broadband access technology such as xDSL, cable modems, or wireless to allow simultaneous access to network services.
For more information about SSG, see the "Additional References" section.
SSG L2TP Dial-Out
The SSG L2TP Dial-Out feature provides mobile users with a way to securely connect to their SOHOs through the PSTN.
To provide SSG L2TP Dial-Out, SSG requires a digital number identification service (DNIS) number for the SOHO to which the user wants to connect, the address of the L2TP Access Concentrator (LAC) closest to the SOHO, and configured tunnel parameters to establish a tunnel to the LAC.
Users can access SSG L2TP Dial-Out by selecting the dial-out service using Cisco Subscriber Edge Services Manager (SESM) from the list of subscribed services or by using a structured username. The user must provide the DNIS number when using either method of connecting to the dial-out service.
Figure 1 SSG L2TP Dial-Out Network
SSG L2TP Dial-Out Service Logon Through SESM
A user can access SSG L2TP Dial-Out by selecting the dial-out tunnel service (shown as Tunnel Service) on the SESM.
Figure 2 Sample SESM Welcome Page
After a user selects the dial-out service, the SESM displays a page for the entry of the user's name and password. SSG then downloads the service profile for the dial-out service.

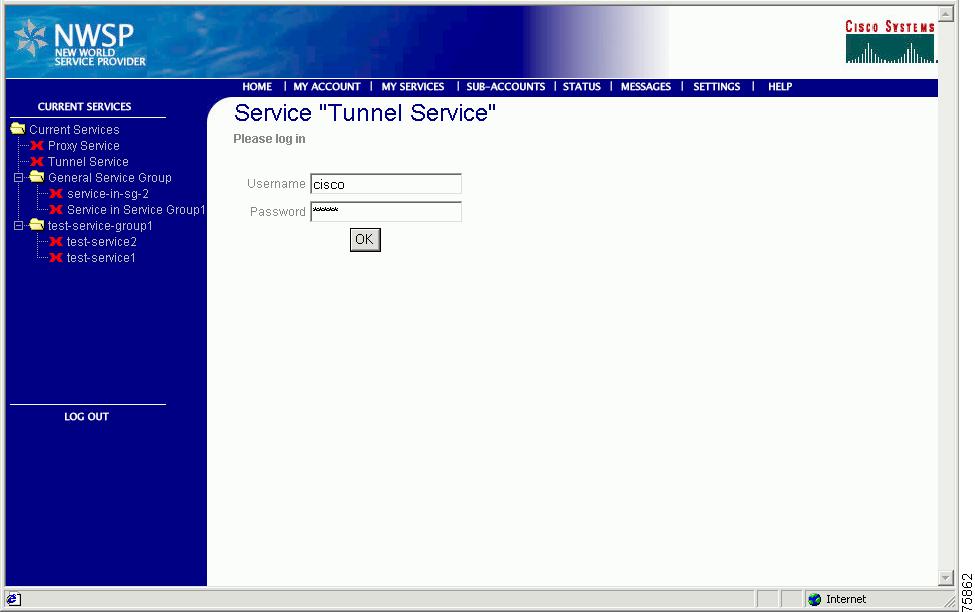

Figure 3 Sample SESM User-Logon Screen
When a user attempts to log on to a dial-out service, the username entered into the SESM must have a numerical realm that is a DNIS prefix; for example, abc@091805318090. If the DNIS prefix that the user enters is found on the DNIS exclusion list, the logon is rejected. If the entered DNIS prefix is valid, a tunnel session to the LAC is established, and SSG starts PPP negotiations with the SOHO. The user is then authenticated at the SOHO.
If you configure the X attribute in the service profile, the full username (abc@091805318090) is sent for authentication. Otherwise, only the username (abc) is authenticated.
Upon successful authentication, the SOHO assigns an IP address to the user, and Network Address Translation (NAT) for the assigned IP address is performed in SSG.
Figure 4 SSG L2TP Dial-Out Service Logon Through SESM
SSG L2TP Dial-Out Service Account Logon with Structured Username and Without SSG Autodomain
When a user attempts an account logon with a structured username and the SSG Autodomain feature is not enabled, the entered username is sent to a local authentication, authorization, and accounting (AAA) server for user authentication. If the username entered is a structured username, SSG does not interpret the full username as user and domain. If the username is entered as "user@DNIS", the full username is used for user authentication.
If a user has a dial-out tunnel service configured as an autologon service and does not specify a username and password along with the service name in the user profile, the username and password entered for account logon are used. If the username and password are given with the service name in the user profile, then that username and password are used. The username entered in either case must be "user@DNIS". The DNIS portion of the username is used as the dial string to dial from the LAC to the SOHO.
SSG L2TP Dial-Out Service Logon with Structured Username and with SSG Autodomain
To enable users to access the dial-out service at the time of account logon, you must configure a static service profile with the LAC address. When users log on as "user@DNIS", the user is connected to the SOHO via the LAC configured in the service profile.
When the SSG Autodomain feature is enabled, a full username must be entered by the user at the account logon page if the user wants to perform service selection by using the DNIS number. SSG interprets the full username as username and domain. For "user@DNIS", "user" is the username and "DNIS" is the domain. This "DNIS" domain must be a numerical value; for example, "user@3962962."
You can select the dial-out global service that is available to a user who performs an account logon with a structured username (user@DNIS) by configuring the dnis-prefix all service command.
SSG Autodomain Basic and Extended Modes
You can configure SSG Autodomain in basic or extended mode. In basic mode, the SSG Autodomain profile downloaded from the AAA server is a service profile. In extended SSG Autodomain mode, the SSG Autodomain profile downloaded from the AAA server is a "virtual-user" profile. In the virtual-user profile, the dial-out service is configured as the primary autologon service.
When SSG Autodomain is configured, SSG parses the structured username. If the domain part of the username is a DNIS prefix, the SSG Autodomain profile is downloaded. You can configure the SSG Autodomain profile by configuring the dnis-prefix all service command. If the SSG Autodomain profile has not been configured or the DNIS prefix is included in the DNIS exclusion list, the account logon is rejected.
If the account logon is successful and the configured service is a dial-out service, SSG establishes a tunnel session with the LAC. The IP address of the LAC must be configured in the SSG Autodomain profile. SSG uses the DNIS number that was entered as part of the username as the dial string to dial out to the SOHO from the LAC. When the PPP session begins successfully, the user is authenticated at the SOHO. If the X attribute is configured in the SSG Autodomain profile, the full username is sent for authentication.
SSG performs Network Address Translation (NAT) for the user's IP address for a tunnel by default. If you enter the no nat user-address command when SSG Autodomain is configured, SSG does not perform NAT on the user's IP address. The IP address assigned to the SOHO is assigned to the user.
For more information about the SSG Autodomain feature, see the "Additional References" section.
MSISDN with DNIS
You can configure the service profile to send the mobile station integrated services digital network (MSISDN) number along with the DNIS number to the SOHO. By default, only the DNIS number is sent while the dial-out tunnel is being established. When the MSISDN/DNSI vendor-specific attribute (VSA) is present in the service, the MSISDN/DNIS dial string takes the following format:
DNIS-number_delimiter MSISDN-number
The delimiter can be any regular expression character (A, B, C, D, 0-9, #, *,\, $,., ^) that is not in the DNIS or in the MSISDN number. If you do not specify a delimiter, the "@" character is the default delimiter.
If there is no MSISDN for the subscriber, only the DNIS number is sent as the dial string.
DNIS Filters
To block PSTN calls to unwanted DNIS numbers, such as free phone or international numbers, you can configure a DNIS filter. DNIS filters can be locally configured through the command line interface (CLI) or received from a AAA profile. Use the exclude dnis-prefix command in SSG dial-out configuration mode to configure a DNIS filter locally. Use the download exclude-profile (ssg dial-out) command in SSG dial-out configuration mode to download a DNIS filter from the AAA server. To configure a DNIS filte,r see the ""Configuring a DNIS Filter" section.
SSG L2TP Dial-Out As an Autologon Service
You can configure dial-out tunnel service as an autologon service. To configure a tunnel service as an autologon service, configure the username and password within the service profile, for example;
}reply_attributes={9,250="Adial-out-tunnel_service;user@DNIS;cisco"}If the username and password are not configured within the service profile, SSG uses the username and password entered during account logon for authentication.
Service Logoff
When a user logs on to a dial-out tunnel service by selecting it from the service page of SESM, and then logs off from that service, the connection to the service is removed.
If the dial-out tunnel service is an Autodomain primary service, and the user logs off from the dial-out tunnel service, the user is also logged off from all other services.
Dial-Out Service Identification
When you configure the service profile for a dial-out tunnel service, configure the same parameters that are used for dial-in tunnel service, along with the additional Cisco attribute value (AV) pair "vpdn:dout-type=2" in the user profile. The 2 represents the L2TP protocol. Only the L2TP protocol is supported for dial-out tunnels.
Overlapping IP Addresses
SSG L2TP Dial-Out supports overlapping user addresses only on routed point-to-point interfaces in host-key mode. If the Host Key feature is not enabled, SSG does not support overlapping users. Even with the Host Key featured enabled, a single user cannot connect to two overlapping services.
For more information about SSG in host-key mode, including configuration information, see the "Additional References" section.
How to Configure SSG L2TP Dial-Out
This section contains the following procedures:
•
•
•
•
Configuring a Global Dial-Out Service Profile
Perform this task to configure a global dial-out service profile.
For more information about configuring service profiles, see the "Service Profiles" section of the Service Selection Gateway new-feature document for Cisco IOS Release 12.2(8)T.
SUMMARY STEPS
1.
2.
3.
4.
5.
DETAILED STEPS
Configuring the User Service Profile
Service profiles include password, service type (outbound), type of service (tunnel), service access mode (sequential or concurrent), DNS server IP address, networks that exist in the service domain, access control lists, and other optional attributes.
To configure the service profile for users when SSG Autodomain is configured in basic mode, configure the IP address of the LAC in the user service profile.
For SSG Autodomain configured in extended mode, the service profile is a virtual-user profile with dial-out tunnel service configured as a primary service.
To configure the dial-out tunnel service to be an autologon service, the username and password must be configured with the service name attribute for tunnel service. This attribute subscribes the user to a service and automatically logs the user on to the service. The user profile attribute has the following syntax:
Account-Info = "Aservicename [;username;password]"
Each user profile can have more than one autoservice attribute.
To enable SSG L2TP Dial-Out, the service profile must contain the following attribute:
"vpdn:dout-type=2"
To send the MSISDN with DNIS while establishing the dial-out tunnel, the service profile must contain the Y attribute.
Configuring a DNIS Filter
Perform this task to configure a DNIS filter.
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
DETAILED STEPS
Verifying SSG L2TP Dial-Out
Perform this task to verify configuration of SSG L2TP Dial-Out.
SUMMARY STEPS
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
DETAILED STEPS
Step 1
Enter this command to verify that user logon is successful.
Router# show ssg host1: 60.0.0.2 !IP address of the user.### Active HostObject Count: 1Step 2
Step 3
Step 4
Enter this command to verify that the service logon is successful.
Router# show ssg service1: soho0### Total ServiceInfoObject Count: 1Step 5
Enter the show ssg connection user-ip service-name command to verify that the LAC connection to the SOHO is successful.
Router# show ssg connection 60.0.0.2 soho0------------------------ConnectionObject Content -----------------------User Name: johnOwner Host: 60.0.0.2Associated Service: soho0DNIS number = 4444007Connection State: 0 (UP)Connection Started since: *14:42:50.000 UTC Mon Mar 1 1993Connection Real IP: 5.0.0.20L2TP VIDB: Virtual-Access5User last activity at: *14:42:51.000 UTC Mon Mar 1 1993Connection Traffic Statistics:Input Bytes = 0, Input packets = 0Output Bytes = 0, Output packets = 0Session policing disabledStep 6
Send a ping from the service to the user network to verify connection.
Router# ping 60.0.0.2
Troubleshooting SSG L2TP Dial-Out
Verify that the configurations for the routers and AAA have loaded successfully by entering the show running-config command. Confirm that your output matches the configuration examples shown in the "Configuration Examples" section on page 14.
Troubleshooting User Logon Failures
•
Router# debug ssg ctrl-eventsSSG-CTL-EVN: AAA Response is bad...SSG-CTL-EVN: Failed to get user info. user=dt-user90, pwd=*****If either of the two outputs above is displayed, the user profile does not exist, the password is incorrect in AAA, or the AAA is not configured. Enable AAA by entering the aaa new-model command.
•
Router# debug ssg radiusRADIUS: No radius servers defined!The output above is displayed if the RADIUS server is not configured or is not reachable.
Configure the RADIUS server by entering the following command:
Router# radius-server host 10.0.0.0 auth-port 1645 acct-port 1646If the debug ssg radius command displays the following output, there is a RADIUS server key mismatch:
RADIUS: Response (159) failed decryptEnter the radius-server key ssg command to configure the correct key.
•
Router# debug ssg ctrl-errSSG-CTL-ERR: Unable to find SSG sub-block from ATM3/0.1The output above indicates that the ATM3/0.1 interface, where the user is coming from, is not configured as a downlink interface. SSG requires that all the interfaces to the subscribers be bound as downlink interfaces.
Enter the ssg direction downlink command in interface configuration mode to configure the interface as downlink.
Troubleshooting Service Login Failures
•
Router# debug ssg ctrl-eventsSSG-CTL-EVN: Invalid DNIS number for dialout tunnel serviceThe output above indicates that an invalid DNIS number has been configured. The DNIS number should be configured according to the E.165 standard. Valid DNIS numbers can contain the following characters: A, B, C, D, 0-9, #, *, and ., and they can start with +, and end with T .
Any issues on the LAC or SOHO side will cause the following outputs in the debug ssg ctrl-events command:
SSG-VPDN-CTL-EVN: VPDN module failed to establish tunnelorSSG-VPDN-CTL-EVN: Failed to establish call..informing SSGFollow the steps below to troubleshoot this problem:
Step 1
Step 2
Common problems are tunnel ID mismatch and destination IP not reachable.
Step 3
•
•
Step 4
For Dialer interface configuration problems, cut and paste the configuration given in the "Configuration Examples" section on page 14 again and look for any command rejections. Most problems will have to do with ISDN (Layer 2). If the ISDN status is not established, reload the LAC or SOHO.
Common problems found in the PPP debug messages are: authentication failed and IPCP negotiation failed.
Monitoring and Maintaining SSG L2TP Dial-Out
Perform this task to monitor and maintain the SSG L2TP Dial-Out feature.
SUMMARY STEPS
1.
1.
2.
3.
DETAILED STEPS
Configuration Examples for SSG L2TP Dial-Out
•
•
•
•
•
•
•
Configuring SSG L2TP Dial-Out for SSG Without SSG Autodomain Enabled: Example
The following example shows the minimum configurations needed for an SSG L2TP Dial-Out solution for an SSG with SSG Autodomain disabled, one LAC and one SOHO. Figure 5 illustrates a sample SSG L2TP Dial-Out network.
Figure 5 Sample SSG L2TP Dial-Out Network
In this configuration, the SSG user can access the SOHO in two ways, with an account logon and then a service logon or with an account logon with service configured as an autologon service.
User Profile Configurations
Use the following profile configuration when the SSG user accesses the SOHO with an account logon and then a service logon:
user=abc {radius=6510-SSG-v1.1 {check_items= {2=cisco}reply_attributes= {9,250-"Nsoho0"}}}Use the following profile configuration when the SSG user accesses the SOHO with an account logon with service configured as an autologon service:
user=abc {radius-6510-SSG-v1.1 {check_items= {2=cisco}reply_attributes= {9,250-"Asoho0;user@DNIS;cisco"}}}Service Profile Configuration
The following example shows how to configure the service profile:
user=soho0 {radius=6510-SSG-v1.1 {check_items= {2=cisco}reply_attributes= {9,251= "TT"9,251="R172.0.0.1:255.0.0.0" ! This is the service network.9,1="vpdn:ip-address=172.16.0.0"9,1="vpdn:l2tp-tunnel-password=lab:9,1=-"vpdn:tunnel-type=l2tp"9,1="vpdn:tunnel-id=lns_l2x0"9,1="vpdn:dout-type=2"SSG Configuration
hostname SSGaaa new-modelaaa authentication ppp default group radius!ip cefvpdn enable!ssg enablessg default-network 10.1.1.1 255.255.255.255ssg service-password ciscossg radius-helper auth-port 1645 acct-port 1646ssg radius-helper key ciscossg bind direction downlink ATM3/0.11interface ATM1/0.1 point-to-point ! For an IP user.ip address 172.16.0.0 255.0.0.0no ip mroute-cacheip nat insidepvc 0/33!interface ATM3/0.10 point-to-point ! For a PPP user.pvc 0/100encapsulation aal5mux ppp Virtual-Template1!interface Virtual-Template1ip unnumbered Ethernet2/2peer default ip address pool ppp_pool_1ppp authentication papip nat inside!radius-server host 10.2.36.253 auth-port 1645 acct-port 1646 timeout 5radius-server retransmit 3radius-server key ssgip local pool ppp_pool_1 10.0.0.1 10.0.0.255LAC Configuration
hostname LACvpdn enablevpdn-group 1accept-dialoutprotocol l2tpdialer 0 ! Matches rotary group and the dialer interface.terminate-from hostname lns_l2x0l2tp tunnel password 7 abcdef!idsn switch-type primary-5ess!interface Dialer0 ! All users coming to VPDN-group 0 are handled by this interface.no ip addressencapsulation pppdialer in-banddialer aaappp authentication pap!dialer-list 1 protocol ip permitSOHO Configuration
hostname soho0username john password 0 ciscousername john@1234567 password 0 cisco!controller T1 1/0framing esflinecode b8zspri-group timeslots 1-24!interface Serial1/0:23no ip addressencapsulation pppdialer rotary-group 0 ! This matches the interface Dialer0.isdn switch-type primary-5essno peer default ip addressno cdp enable!interface Dialer0ip unnumbered Loopback2encapsulation pppdialer-group 1peer default ip address pool soho_1no cdp enableppp authentication chap!ip local pool soho_1 10.0.0.20 10.0.0.40dialer-list 1 protocol ip permitConfiguring SSG L2TP Dial-Out for SSG with SSG Autodomain Enabled: Example
The following example shows the minimum configurations needed for an SSG L2TP Dial-Out solution for an SSG with SSG Autodomain enabled, one LAC and one SOHO.
In this configuration, the SSG user can access the SOHO in two ways, with an account logon and then a service logon or with an account logon with "user@dnis" as the username. In this solution, services are selected based on the SSG Autodomain configuration and the global service configured in the SSG dial-out mode.
User Profile Configuration
When SSG Autodomain is enabled and the user accesses the SOHO with an account logon and then a service logon, you do not need to configure a service profile.
Use the following profile configuration when the SSG user accesses the SOHO with an account logon with "user@dnis" as the username:
user=soho1{radius=6510-SSG-v1.1{check_items= {2=cisco}reply_attributes={9,250="Asoho0"9,250-"Npassthru1"}}}SSG Configuration
...!ssg dial-outdnis-prefix all service soho1 ! This indicates SSG Autodomain in extended mode.or
dnis-prefix all service soho0 ! This indicates SSG Autodomain in basic mode....LAC and SOHO Configurations
The LAC and SOHO configurations for SSG with SSG Autodomain configured are the same as the configuration for SSG without SSG Autodomain enabled. See the "Configuring SSG L2TP Dialout for SSG without SSG Autodomain Enabled: Example" section on page 14 for more details.
Configuring User-Specific Configurations on the SOHO: Example
The following example shows how to configure user-specific configurations on the SOHO. The user profile, service profile, SSG, and LAC configurations are the same as in the "Configuring SSG L2TP Dialout for SSG without SSG Autodomain Enabled: Example" section on page 14.
hostname soho0username john password 0 ciscousername john@4444007 password 0 ciscousername Gary password cisco!controller t1 1/0framing esflinecode b8zspri-group timeslots 1-24!interface serial1/1:23no ip addressencapsulation pppdialer pool-member 1isdn switch-type primary-5essno peer default ip addressno cdp enableppp authentication chap!interface Dialer1 ! Configures a special service policy and pool for user "john."ip unnumbered loopback1encapsulation pppdialer pool 1dialer remote-name johndialer idle-timeout 2147483dialer string 3456048dialer-group 1service-policy output SETDSCPpeer default ip address pool soho_1!interface Dialer2 ! Configures a special service policy and pool for user "gary."ip unnumbered loopback1encapsulation pppdialer pool 1dialer remote-name garydialer idle-timeout 2147483dialer-group 1peer default ip address pool soho_OLAPPpulse-time 0ppp authentication chap!ip local pool soho_1 10.0.0.20 10.0.0.40ip local pool soho_OLAP 11.0.0.10Configuring a Large-Scale SSG L2TP Dial-Out Solution: Example
The following example shows how to configure an SSG L2TP Dial-Out solution with multiple LACs and multiple SOHOs. Figure 6 shows a sample large-scale SSG L2TP Dial-Out network:
Figure 6 Sample Large-Scale SSG L2TP Dial-Out Network
User Profile Configuration
The user profile configuration is the same as that shown in the Configuring SSG L2TP Dial-Out for SSG Without SSG Autodomain Enabled: Example.
Service Profile Configuration
SSG selects the LAC to which it will create a tunnel by looking at the service profile. In the following example, the IP addresses configured in the LAC interfaces to SSG are
•
•
user = soho10{radius=6510-SSG-v1.1 {check_items= {2=cisco}reply_attributes= {9,251="TT"9,251="R170.0.0.1;255.0.0.0"9,1="vpdn:ip-addresses=172.16.0.0" ! IP address of LAC10.9,1="vpdn:l2tp-tunnel-password=lab"9,1="vpdn:tunnel-type=l2tp"9,1="vpdn:tunnel-id=lns_l2x0"9,1="vpdn:dout-type=2"}}}user = soho11{radius=6510-SSG-v1.1 {check_items= {2=cisco}reply_attributes= {9,251="TT"9,251="R170.0.0.1;255.0.0.0"9,1="vpdn:ip-addresses=172.17.0.0" ! IP address of LAC11.9,1="vpdn:l2tp-tunnel-password=lab"9,1="vpdn:tunnel-type=l2tp"9,1="vpdn:tunnel-id=lns_l2x0"9,1="vpdn:dout-type=2"}}}SSG Configuration
The SSG Configuration for a large-scale SSG L2TP Dial-Out solution is the same as that in the "Configuring SSG L2TP Dial-Out for SSG Without SSG Autodomain Enabled: Example" section.
LAC Configuration
The following example shows a sample configuration for LAC10:
hostname LAC10vpdn enable!vpdn-group 1accept-dialoutprotocol l2tpdialer 0 ! This configuration matches with rotory-group and dialer interfaces.terminate-from hostname ForSoho10 ! This tunnel ID "ForSoho10" will be terminated.l2tp tunnel password 7 060A0E23!vpdn-group 1accept-dialoutprotocol l2tpdialer 1 ! To match with rotary-group and dialer interfaces.terminate-from hostname ForSoho20 ! This tunnel ID "ForSoho20" will be terminated.l2tp tunnel password 7 060A0E23!isdn switch-type primary-5ess!controller T1 4/0framing esflinecode b8zspri-group timeslots 1-24!interface ATM2/0.1 point-to-pointip address 100.0.0.2 255.0.0.0pvc 0/100!interface Serial4/0:23no ip addressencapsulation pppdialer rotary-group 0dialer-group 1isdn switch-type primary-5ess!interface Dialer0no ip addressencapsulation pppdialer in-banddialer aaappp authentication pap!interface Serial4/1:23no ip addressencapsulation pppdialer rotary-group 1dialer-group 1isdn switch-type primary-5ess!interface Dialer1no ip addressencapsulation pppdialer in-banddialer aaappp authentication pap!dialer-list 1 protocol ip permitSOHO Configuration
The SOHO configuration for a large-scale SSG L2TP Dial-Out solution is the same that as shown in the "Configuring SSG L2TP Dial-Out for SSG Without SSG Autodomain Enabled: Example" section.
Configuring a Global Dial-Out Service Profile: Example
The following example shows how to configure a global dial-out service profile called "dialout_1":
ssg enablessg dial-outdnis-prefix all service dialout_1Configuring the Service Profiles: Examples
The following is an example of a service profile when SSG Autodomain is configured in basic mode:
user = dialout_tunnel1{member = SSG-DEVradius = 6510-SSG-v1.1 {check_items= {2 = cisco}reply_attributes= {9,251 = "TT"9,251 = "R172.16.0.0;255.255.0.0;I"9,1 = "vpdn:ip-addresses=10.0.0.1"9,1 = "vpdn:l2tp-tunnel-password=cisco"9,1 = "vpdn:tunnel-type = l2tp"9,1 = "vpdn:tunnel-id = ssg1"9,1 = "vpdn:dout-type=2"The following is an example of a virtual-user service profile when SSG Autodomain is configured in extended mode:
user = virtual_user_dout{member = SSG-DEVradius=6510-SSG-v1.1{check_items= {2 = cisco}reply_attributes= {9,251 = "Adial-out-tunnel_service"9,251 = "Nproxynat_service"9,250 = "Npassthru_service"}}The following example shows how to configure a service profile with the SSG service-info VSA to send the MSISDN number along with DNIS number while establishing the dial-out tunnel.
The attribute 9,251="Y" sends the MSISDN number with the DNIS number. The character "#" is the delimiter between the DNIS number and the MSISDN number.
user = dialout_tunnel{member=SSG-DEVradius=6510-SSG-v1.1{check_items= {2=cisco}reply_attributes= {9,251="TT"9,251="R172.16.0.0;255.255.0.0;I"9,1="vpdn:ip-addresses=10.0.0.0"9,1="vpdn:l2tp-tunnel-password=cisco"9,1="vpdn:tunnel-type=l2tp"9,1="vpdn:tunnel-id=ssg1"9,1="vpdn:dout-type:2"9,251="Y#" ! MSISDN/DNIS attributeConfiguring a DNIS Filter: Examples
The following example shows how to configure a DNIS exclude profile in AAA:
user = exclude_dnis_aaa{profile_id = 49set server current-failed-logins = 0profile_cycle = 25member = SSG-DEVradius=6510-SSG-v1.1 {check_items= {2=cisco}reply_attributes= {9,253="XD+444"9,253="XD22222T"}}}The following example shows how to add two DNIS prefixes to the exclude profile and to download a DNIS exclude profile named "profile_1" with a password of "cisco":
ssg enablessg service-search-order localssg dial-outexclude dnis-prefix 18085288110exclude dnis-prefix 18085288111download exclude-profile profile_1 ciscoAdditional References
The following sections provide references related to the SSG L2TP Dial-Out feature.
Related Documents
Standards
No new or modified standards are supported by this feature. Support for existing standards has not been modified by this feature.
—
MIBs
RFCs
No new or modified RFCs are supported by this feature. Support for existing RFCs has not been modified by this feature.
—
Technical Assistance
Command Reference
This section documents the following new and modified commands. All other commands used with this feature are documented in the Cisco IOS Release 12.3 T command reference publications.
•
•
dnis-prefix all service
To configure the dial-out global service, use the dnis-prefix all service command in SSG dial-out configuration mode. To remove a service name and prevent further connections to the specified service, use the no form of this command.
dnis-prefix all service service-name
no dnis-prefix all service [service-name]
Syntax Description
Defaults
Dial-out global service is not configured.
Command Modes
SSG dial-out configuration
Command History
12.2(15)B
This command was introduced.
12.3(4)T
This command was integrated into Cisco IOS Release 12.3(4)T.
Usage Guidelines
Use this command to configure the dial-out global service used for users who are doing account logon with a structured username (user@DNIS). The service profile is downloaded when the user connects to the dial-out service. You can specify only one dial-out global service. If you configure this command more than once and use different service names each time, the previously configured service name is removed from the configuration.
If SSG is operating in SSG Autodomain basic mode, you should configure the dial-out tunnel service profile as the dial-out global service. If SSG is operating in SSG Autodomain extended mode, you should configure the virtual-user profile as the dial-out global service and configure dial-out tunnel service as an Autologon service within SSG Autodomain extended mode.
Examples
The following example shows how to configure a global dial-out service profile named "profile1" as the global dial-out service profile:
dnis-prefix all service profile1The following example shows how to configure a global dial-out service profile when SSG is operating in SSG Autodomain basic mode:
dnis-prefix all service dialout_tunnelThe following example shows how to configure a global dial-out service profile when SSG is operating in SSG Autodomain extended mode:
dnis-prefix all service virtual-userRelated Commands
download exclude-profile (ssg dial-out)
To download the Digital Number Identification Service (DNIS) exclusion list locally or from a authentication, authorization, and accounting (AAA) server, use the download exclude-profile command in SSG dial-out configuration mode. To remove the DNIS exclusion list from the configuration, use the no form of this command.
download exclude-profile profile-name [password]
no download exclude-profile profile-name [password]
Syntax Description
profile-name
Name of the DNIS exclusion list.
password
(Optional) Password of the DNIS exclusion list.
Defaults
A DNIS exclusion list is not downloaded.
Command Modes
SSG dial-out configuration
Command History
12.2(15)B
This command was introduced.
12.3(4)T
This command was integrated into Cisco IOS Release 12.3(4)T.
Usage Guidelines
Use this command to download a DNIS exclusion list from the local profile configured in SSG or from a AAA server. If you do not specify a profile name and password, SSG attempts to download the profile with the previously configured profile name and password. If there is no previously configured profile name and password, the DNIS exclusion list is not downloaded.
You can download only one DNIS exclusion list. If you attempt to use the download exclude-profile command multiple times with different profile names, only the last profile name is downloaded and the previously downloaded profiles are removed from the configuration.
Use the no download exclude-profile command to remove the downloaded DNIS exclusion list from the configuration.
You can configure the order in which SSG searches for the DNIS exclusion list using the ssg service-search-order command.
Examples
The following example shows how to download a DNIS exclusion list with a profile name of "dnisprofile1" and a password of "abc":
download exclude-profile dnisprofile1 abcRelated Commands
exclude dnis-prefix
To configure the Digital Number Identification Service (DNIS) filter by adding a DNIS prefix to the DNIS exclusion list, use the exclude dnis-prefix command in SSG dial-out configuration mode. To remove a DNIS prefix from the DNIS exclusion list, use the no form of this command.
exclude dnis-prefix dnis-prefix
no exclude dnis-prefix dnis-prefix
Syntax Description
Defaults
No prefix is added
Command Modes
SSG dial-out configuration
Command History
12.2(15)B
This command was introduced.
12.3(4)T
This command was integrated into Cisco IOS Release 12.3(4)T.
Usage Guidelines
Use this command to add a DNIS prefix to the DNIS exclusion list. You can use this command to add multiple DNIS prefixes to the DNIS exclusion list. When a user dials with a DNIS whose prefix is in the DNIS exclusion list, the service logon for that user is rejected.
Examples
The following example adds the DNIS prefix "1122334455" to the DNIS exclusion list:
exclude dnis-prefix 1122334455Related Commands
show ssg dial-out exclude-list
To display information about the DNIS prefix profile and the DNIS exclusion list, use the show ssg dial-out exclude-list command in privileged EXEC mode.
show ssg dial-out exclude-list
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Command History
12.2(15)B
This command was introduced.
12.3(4)T
This command was integrated into Cisco IOS Release 12.3(4)T.
Usage Guidelines
Use this command to display the DNIS profile name and all DNIS entries configured via CLI or downloaded from a AAA server.
Examples
The following example shows sample output for the show ssg dial-out exclude-list command:
Router# show ssg dial-out exclude-listExclude DNIS prefixes downloaded from profile exclude_dnis_aaaRelated Commands
ssg dial-out
To enable the SSG L2TP Dial-Out feature and enter SSG dial-out configuration mode, use the ssg dial-out command in global configuration mode. To remove all SSG dial-out configurations, use the no form of this command.
ssg dial-out
no ssg dial-out
Syntax Description
This command has no arguments or keywords.
Defaults
The SSG L2TP Dial-Out feature is not enabled.
Command Modes
Global configuration
Command History
12.2(15)B
This command was introduced.
12.3(4)T
This command was integrated into Cisco IOS Release 12.3(4)T.
Usage Guidelines
Use this command to enter SSG dial-out configuration mode to configure the SSG L2TP Dial-Out feature. Use the no form of this command to remove all SSG L2TP Dial-Out configurations.
Examples
The following example shows how to enter SSG dial-out configuration mode:
Router(config)# ssg dial-outRouter(config-dial-out)#Related Commands
Appendix A
This appendix displays successful debug output for the SSG L2TP Dial-Out feature.
Successful User Logon Debug Output
Router# show debuggingPPP:PPP protocol negotiation debugging is onRadius protocol debugging is onRadius packet protocol debugging is onSSG:SSG control path errors debugging is onSSG control path events debugging is on00:40:34: SSG-CTL-EVN: Received cmd (1,john) from Host-Key 60.0.0.2:000:40:34: SSG-CTL-EVN: Add cmd=1 from Host-Key 60.0.0.2:0 into SSG control cmd queue.00:40:34: SSG-CTL-EVN: Dequeue cmd_ctx from the cmdQ and pass it to cmd handler00:40:34: SSG-CTL-EVN: Handling account logon for host 60.0.0.2:000:40:34: SSG-CTL-EVN: No auto-domain selected for user john00:40:34: SSG-CTL-EVN: Authenticating user john.00:40:34: SSG-CTL-EVN: Deleting SSGCommandContext::~SSGCommandContext00:40:34: RADIUS: Pick NAS IP for uid=9 tableid=0 cfg_addr=0.0.0.0 best_addr=9.2.33.200:40:34: RADIUS/ENCODE(00000009): acct_session_id: 1100:40:34: RADIUS(00000009): sending00:40:34: RADIUS(00000009): Send to unknown id 21645/22 9.2.36.253:1645, Access-Request, len 6600:40:35: RADIUS: authenticator 58 38 59 C1 6D 9D 83 8F - 85 A0 11 16 5D 93 00 7C00:40:35: RADIUS: User-Name [1] 10 "john"00:40:35: RADIUS: User-Password [2] 18 *00:40:35: RADIUS: NAS-Port-Type [61] 6 Virtual [5]00:40:35: RADIUS: Service-Type [6] 6 Login [1]00:40:35: RADIUS: NAS-IP-Address [4] 6 9.2.33.200:40:35: RADIUS: Received from id 21645/22 9.2.36.253:1645, Access-Accept, len 8600:40:35: RADIUS: authenticator DE D8 18 E7 E1 34 51 D2 - C2 61 A1 B3 66 C5 03 9A00:40:35: RADIUS: Vendor, Cisco [26] 1400:40:35: RADIUS: ssg-account-info [250] 8 "Nsoho0"00:40:35: RADIUS: Vendor, Cisco [26] 1800:40:35: RADIUS: ssg-account-info [250] 12 "Npassthru1"00:40:35: RADIUS: Vendor, Cisco [26] 2000:40:35: RADIUS: ssg-account-info [250] 14 "Ntunnel_l2tp"00:40:35: RADIUS: Vendor, Cisco [26] 1400:40:35: RADIUS: ssg-account-info [250] 8 "NsohoX"00:40:35: RADIUS(00000009): Received from id 21645/2200:40:35: SSG-CTL-EVN: Response is good00:40:35: SSG-CTL-EVN: Creating radius packet00:40:35: SSG-CTL-EVN: Radius packet AAA attributes: 259:6 259:10 259:12 259:600:40:35: SSG-CTL-EVN: Creating HostObject for Host-Key 60.0.0.2:000:40:35: SSG-CTL-EVN: HostObject::Reset00:40:35: SSG-CTL-EVN: HostObject::InsertServiceList Nsoho000:40:35: SSG-CTL-EVN: HostObject::InsertServiceList Npassthru100:40:35: SSG-CTL-EVN: HostObject::InsertServiceList Ntunnel_l2tp00:40:35: SSG-CTL-EVN: HostObject::InsertServiceList NsohoX00:40:35: SSG-CTL-EVN: DoAccountLogon: ProfileCache is not Set.00:40:35: SSG-CTL-EVN: Account logon is accepted [Host-Key 60.0.0.2:0, john]00:40:35: SSG-CTL-EVN: Send cmd 1 to host 60.0.0.2. dst=10.76.86.90:4350400:40:35: SSG-CTL-EVN: Activating HostObject for Host-Key 60.0.0.2:000:40:35: SSG-CTL-EVN: Resetting default host route00:40:35: SSG-CTL-EVN: Adding of default route for the host is successful00:40:35: SSG-CTL-EVN: Deleting SSGCommandContext::~SSGCommandContext00:40:35: RADIUS/ENCODE(00000009): Unsupported AAA attribute timezone00:40:35: RADIUS: Pick NAS IP for uid=9 tableid=0 cfg_addr=0.0.0.0 best_addr=9.2.33.200:40:35: RADIUS(00000009): sending00:40:35: RADIUS(00000009): Send to unknown id 21645/23 9.2.36.253:1646, Accounting-Request, len 8800:40:35: RADIUS: authenticator 4D 90 B6 A7 55 29 6D B3 - 5B 25 F9 FA 2B 0E 14 CD00:40:35: RADIUS: Acct-Session-Id [44] 10 "0000000B"00:40:35: RADIUS: Framed-IP-Address [8] 6 60.0.0.200:40:35: RADIUS: Framed-Protocol [7] 6 PPP [1]00:40:35: RADIUS: Authentic [45] 6 RADIUS [1]00:40:35: RADIUS: User-Name [1] 10 "john"00:40:35: RADIUS: Acct-Status-Type [40] 6 Start [1]00:40:35: RADIUS: NAS-Port-Type [61] 6 Virtual [5]00:40:35: RADIUS: Service-Type [6] 6 Framed [2]00:40:35: RADIUS: NAS-IP-Address [4] 6 9.2.33.200:40:35: RADIUS: Acct-Delay-Time [41] 6 000:40:35: RADIUS: Received from id 21645/23 9.2.36.253:1646, Accounting-response, len 2000:40:35: RADIUS: authenticator F3 5B 6B BF 15 E3 BC A6 - 3E 20 B4 CB 37 40 06 BASSG# show ssg host1: 60.0.0.2### Active HostObject Count: 1Successful Service Logon DebugsRouter# show debugging...00:41:15: SSG-CTL-EVN: Received cmd (11,soho0) from Host-Key 60.0.0.2:000:41:15: SSG-CTL-EVN: Add cmd=11 from Host-Key 60.0.0.2:0 into SSG control cmd queue.00:41:15: SSG-CTL-EVN: Dequeue cmd_ctx from the cmdQ and pass it to cmd handler00:41:15: SSG-CTL-EVN: Handling service logon for Host-Key 60.0.0.2:000:41:15: SSG-CTL-EVN: Locating the HostObject for Host-Key 60.0.0.2:000:41:15: SSG-CTL-EVN: Creating pseudo ServiceInfo for service: soho000:41:15: SSG-CTL-EVN: ServiceInfo: Init servQ and start new process for soho000:41:15: SSG-CTL-EVN: Profile not found locally00:41:15: SSG-CTL-EVN: Allocate aaa_req_handle for authorization for: soho000:41:15: SSG-CTL-EVN: Non-blocking AAA authorization request for soho0 sent successfully00:41:15: RADIUS: Pick NAS IP for uid=0 tableid=0 cfg_addr=0.0.0.0 best_addr=9.2.33.200:41:15: RADIUS(00000000): sending00:41:15: RADIUS(00000000): Send to unknown id 21645/24 9.2.36.253:1645, Access-Request, len 5700:41:15: RADIUS: authenticator DC 0A E1 28 83 19 49 82 - F5 05 52 E3 20 83 4F D300:41:15: RADIUS: User-Name [1] 7 "soho0"00:41:15: RADIUS: User-Password [2] 18 *00:41:15: RADIUS: Service-Type [6] 6 Outbound [5]00:41:15: RADIUS: NAS-IP-Address [4] 6 9.2.33.200:41:15: RADIUS: Received from id 21645/24 9.2.36.253:1645, Access-Accept, len 21400:41:15: RADIUS: authenticator 4C 95 80 EF D9 B0 00 B2 - 25 1C AA 6E B4 79 28 8D00:41:15: RADIUS: Vendor, Cisco [26] 1000:41:15: RADIUS: ssg-service-info [251] 4 "TT"00:41:15: RADIUS: Vendor, Cisco [26] 2800:41:15: RADIUS: ssg-service-info [251] 22 "R170.0.0.1;255.0.0.0"00:41:15: RADIUS: Vendor, Cisco [26] 3500:41:15: RADIUS: Cisco AVpair [1] 29 "vpdn:ip-addresses=100.0.0.2"00:41:15: RADIUS: Vendor, Cisco [26] 3700:41:15: RADIUS: Cisco AVpair [1] 31 "vpdn:l2tp-tunnel-password=lab"00:41:15: RADIUS: Vendor, Cisco [26] 2900:41:15: RADIUS: Cisco AVpair [1] 23 "vpdn:tunnel-type=l2tp"00:41:15: RADIUS: Vendor, Cisco [26] 3100:41:15: RADIUS: Cisco AVpair [1] 25 "vpdn:tunnel-id=lns_l2x0"00:41:15: RADIUS: Vendor, Cisco [26] 2400:41:15: RADIUS: Cisco AVpair [1] 18 "vpdn:dout-type=2"00:41:15: RADIUS(00000000): Unique id not in use00:41:15: RADIUS(00000000): Received from id 21645/2400:41:15: SSG-CTL-EVN: Response is good00:41:15: SSG-CTL-EVN: Creating radius packet00:41:15: SSG-CTL-EVN: Radius packet AAA attributes: 260:2 260:20 97:9 124:3 x239:3 229:800:41:15: SSG-CTL-EVN: Received AAA response for service(soho0) download00:41:15: SSG-CTL-EVN: The service is tunnel service, checking for SSG profile00:41:15: SSG-CTL-EVN: Assigning RADIUS attributes00:41:15: SSG-CTL-EVN: Inactive ServiceInfo. Adding MD5 hash00:41:15: SSG-CTL-EVN: ServiceProfile MD5: 8BAE-47B9-B282-A40E--3ED9-2AC1-D64C-12D900:41:15: SSG-CTL-EVN: ssg_create_tunnel_cef_tbl: Create global tunnel cef table00:41:15: SSG-CTL-EVN: Tableid for SSG's VRF 100:41:15: Service Address List :00:41:15: Addr:170.0.0.0 mask:255.0.0.000:41:15: SSG-CTL-EVN: Handling service(soho0) requests after the AAA reply, action00:41:15: SSG-CTL-EVN: ssg_pending_request: taking up the unqueued request00:41:15: SSG-CTL-EVN: User accessing dial-out service, DNIS = 444400700:41:15: SSG-CTL-EVN: Service(soho0)::AddRef(): ref after = 100:41:15: SSG-CTL-EVN: Service(soho0): Request enqueued service00:41:15: SSG-CTL-EVN: Dequeue cmd_ctx from the cmdQ and pass it to cmd handler00:41:15: SSG-CTL-EVN: Locating the HostObject for Host-Key 60.0.0.2:000:41:15: SSG-CTL-EVN: Checking service mode.00:41:15: SSG-CTL-EVN: Creating ConnectionObject (60.0.0.2:0, soho0)00:41:15: SSG-CTL-EVN: Service(soho0)::AddRef(): ref after = 200:41:15: SSG-CTL-EVN: Checking maximum service count.00:41:15: SSG-CTL-EVN: ConnectionObject: setting DNIS number to = 444400700:41:15: SSG-VPDN-CTL-EVN: Request has been issued to SSG-VPDN module00:41:15: SSG-CTL-EVN: Service(soho0)::Release(): ref before = 200:41:15: SSG-CTL-EVN: Deleting SSGCommandContext::~SSGCommandContext00:41:15: SSG-VPDN-CTL-EVN: State changed from Idle -> Authorizing on event Request Tunnel00:41:15: SSG-VPDN-CTL-EVN: State changed from Authorizing -> VPDN Connecting on event Authorization Success00:41:15: SSG-VPDN-CTL-EVN: Authorization succeeded, establishing the tunnel00:41:15: SSG-VPDN-CTL-EVN: Create/Clone vaccess to negotiate PPP00:41:15: Vi4 PPP: Phase is DOWN, Setup00:41:15: SSG-VPDN-CTL-EVN: VPDN callback to intimate call status00:41:15: SSG-VPDN-CTL-EVN: Call Status: CONNECTED00:41:15: SSG-VPDN-CTL-EVN: State changed from VPDN Connecting -> PPP Negotiating on event VPDNConnected00:41:15: SSG-VPDN-CTL-EVN: Start PPP negotiations on vaccess00:41:15: %LINK-3-UPDOWN: Interface Virtual-Access4, changed state to up00:41:15: Vi4 PPP: Treating connection as a dedicated line00:41:15: Vi4 PPP: Phase is ESTABLISHING, Active Open00:41:15: Vi4 LCP: O CONFREQ [Closed] id 1 len 1000:41:15: Vi4 LCP: MagicNumber 0x0409F842 (0x05060409F842)00:41:15: Vi4 LCP: I CONFREQ [REQsent] id 1 len 1500:41:15: Vi4 LCP: AuthProto CHAP (0x0305C22305)00:41:15: Vi4 LCP: MagicNumber 0x04382A1C (0x050604382A1C)00:41:15: Vi4 LCP: O CONFACK [REQsent] id 1 len 1500:41:15: Vi4 LCP: AuthProto CHAP (0x0305C22305)00:41:15: Vi4 LCP: MagicNumber 0x04382A1C (0x050604382A1C)00:41:15: Vi4 LCP: I CONFACK [ACKsent] id 1 len 1000:41:15: Vi4 LCP: MagicNumber 0x0409F842 (0x05060409F842)00:41:15: Vi4 LCP: State is Open00:41:15: Vi4 PPP: Phase is AUTHENTICATING, by the peer00:41:15: Vi4 CHAP: I CHALLENGE id 3 len 28 from "CLIENT1"00:41:15: RADIUS/ENCODE(00000000): sendauth, failing over00:41:15: RADIUS/ENCODE(00000000): send packet; BEGIN00:41:15: Vi4 CHAP: Using hostname from interface CHAP00:41:15: Vi4 CHAP: Using password from interface CHAP00:41:15: Vi4 CHAP: O RESPONSE id 3 len 29 from "john"00:41:15: Vi4 LCP: I CONFREQ [Open] id 1 len 1500:41:15: Vi4 LCP: AuthProto CHAP (0x0305C22305)00:41:15: Vi4 LCP: MagicNumber 0x04382A71 (0x050604382A71)00:41:15: Vi4 PPP: Phase is TERMINATING00:41:15: Vi4 PPP: Phase is ESTABLISHING00:41:15: Vi4 LCP: O CONFREQ [Open] id 2 len 1000:41:15: Vi4 LCP: MagicNumber 0x0409F89F (0x05060409F89F)00:41:15: Vi4 LCP: O CONFACK [Open] id 1 len 1500:41:15: Vi4 LCP: AuthProto CHAP (0x0305C22305)00:41:15: Vi4 LCP: MagicNumber 0x04382A71 (0x050604382A71)00:41:15: Vi4 LCP: I CONFACK [ACKsent] id 2 len 1000:41:15: Vi4 LCP: MagicNumber 0x0409F89F (0x05060409F89F)00:41:15: Vi4 LCP: State is Open00:41:15: Vi4 PPP: Phase is AUTHENTICATING, by the peer00:41:15: Vi4 CHAP: I CHALLENGE id 4 len 28 from "CLIENT1"00:41:15: RADIUS/ENCODE(00000000): sendauth, failing over00:41:15: RADIUS/ENCODE(00000000): send packet; BEGIN00:41:15: Vi4 CHAP: Using hostname from interface CHAP00:41:15: Vi4 CHAP: Using password from interface CHAP00:41:15: Vi4 CHAP: O RESPONSE id 4 len 29 from "john"00:41:15: Vi4 CHAP: I SUCCESS id 4 len 400:41:15: Vi4 PPP: Phase is FORWARDING, Attempting Forward00:41:15: SSG-CTL-EVN: SSG authorization for SSS is needed00:41:15: SSG-CTL-EVN: SSG Hook during ppp authenticated stage needed00:41:15: Vi4 PPP: Phase is ESTABLISHING, Finish LCP00:41:15: Vi4 PPP: Phase is UP00:41:15: Vi4 IPCP: O CONFREQ [Closed] id 1 len 1000:41:15: Vi4 IPCP: Address 0.0.0.0 (0x030600000000)00:41:15: Vi4 IPCP: I CONFREQ [REQsent] id 1 len 1000:41:15: Vi4 IPCP: Address 190.0.0.1 (0x0306BE000001)00:41:15: Vi4 IPCP: O CONFACK [REQsent] id 1 len 1000:41:15: Vi4 IPCP: Address 190.0.0.1 (0x0306BE000001)00:41:15: Vi4 IPCP: I CONFNAK [ACKsent] id 1 len 1000:41:15: Vi4 IPCP: Address 5.0.0.20 (0x030605000014)00:41:15: Vi4 IPCP: O CONFREQ [ACKsent] id 2 len 1000:41:15: Vi4 IPCP: Address 5.0.0.20 (0x030605000014)00:41:15: Vi4 IPCP: I CONFACK [ACKsent] id 2 len 1000:41:15: Vi4 IPCP: Address 5.0.0.20 (0x030605000014)00:41:15: Vi4 IPCP: State is Open00:41:15: Vi4 IPCP: Install negotiated IP interface address 5.0.0.2000:41:15: SSG-CTL-EVN: Processing IPCP up event from PPP (Virtual-Access4)00:41:15: SSG-CTL-EVN: Link is not a downlink interface00:41:15: SSG-VPDN-CTL-EVN: ###### PPP/IPCP success00:41:15: Vi4 IPCP: Install route to 190.0.0.100:41:15: Vi4 IPCP: Add link info for cef entry 190.0.0.100:41:15: SSG-VPDN-CTL-EVN: State changed from PPP Negotiating -> Success on event PPP Negotiated00:41:15: SSG-VPDN-CTL-EVN: PPP negotiations succeded..tunnel/session established00:41:15: SSG-CTL-EVN: ServiceLogonCallback: bringing state to UP00:41:15: SSG-CTL-EVN: Set tunnel CEF table ID (1) on vaccess Virtual-Access400:41:15: Vi4 IPCP: Remove route to 190.0.0.100:41:15: Vi4 IPCP: Install route to 190.0.0.100:41:15: SSG-CTL-EVN: Send cmd 11 to host 60.0.0.2. dst=10.76.86.90:4350900:41:15: SSG-CTL-EVN: Activating the ConnectionObject.00:41:15: SSG-CTL-ERR: Upstream route - service record unavailable00:41:15: SSG-CTL-EVN: ssg_add_upstream_route - successful00:41:15: SSG-CTL-EVN: Acct Start: local: user_name=john00:41:15: SSG-CTL-EVN: GetConnClass NULL len 000:41:15: SSG-CTL-EVN: SSG: Accounting:: AddCiscoVSA00:41:15: SSG-CTL-EVN: SSG: Accounting:: AddCiscoVSA add serviceName=soho000:41:15: SSG-CTL-EVN: AddCiscoVSA: add serviceUserName=john00:41:15: SSG-CTL-EVN: AddCiscoVSA: no adding V attr pService 64296F7400:41:15: RADIUS: Pick NAS IP for u=0x63BA3284 tableid=0 cfg_addr=0.0.0.0 best_addr=9.2.33.200:41:15: RADIUS: ustruct sharecount=100:41:15: Radius: radius_port_info() success=1 radius_nas_port=100:41:15: SSG-CTL-EVN: ServiceLogonCallback: Accept Service logon00:41:15: SSG-CTL-EVN: Deleting SSGCommandContext::~SSGCommandContext00:41:15: RADIUS(00000000): Send to id 21645/25 9.2.36.253:1646, Accounting-Request, len 8800:41:15: RADIUS: authenticator 7E 0C BF 9F 91 FA 88 62 - C9 5E 63 59 1A A0 00 0B00:41:15: RADIUS: NAS-IP-Address [4] 6 9.2.33.200:41:15: RADIUS: NAS-Port [5] 6 000:41:15: RADIUS: NAS-Port-Type [61] 6 Virtual [5]00:41:15: RADIUS: User-Name [1] 10 "john"00:41:15: RADIUS: Acct-Status-Type [40] 6 Start [1]00:41:15: RADIUS: Service-Type [6] 6 Framed [2]00:41:15: RADIUS: Acct-Session-Id [44] 10 "00000003"00:41:15: RADIUS: Framed-Protocol [7] 6 PPP [1]00:41:15: RADIUS: Framed-IP-Address [8] 6 5.0.0.2000:41:15: RADIUS: Acct-Delay-Time [41] 6 000:41:15: RADIUS: Received from id 21645/25 9.2.36.253:1646, Accounting-response, len 2000:41:15: RADIUS: authenticator E9 DB A7 F3 62 38 D6 4B - B6 EC 26 54 F3 AE 7B 0100:41:16: %LINEPROTO-5-UPDOWN: Line protocol on Interface Virtual-Access4, changed state to upSSG# show ssg service1: soho0### Total ServiceInfoObject Count: 1
Copyright © 2003 Cisco Systems, Inc. All rights reserved.
Feedback
