Configuring Basic Performance Routing
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Contents
Configuring Basic Performance RoutingLast Updated: November 18, 2011
Performance Routing (PfR) provides additional intelligence to classic routing technologies to track the performance of, or verify the quality of, a path between two devices over a Wide Area Networking (WAN) infrastructure to determine the best egress or ingress path for application traffic. Cisco Performance Routing complements classic IP routing technologies by adding intelligence to select best paths to meet application performance requirements. The first phase of Performance Routing technology intelligently optimizes application performance over enterprise WANs and to and from the Internet. This technology will evolve to help enable application performance optimization throughout the enterprise network through an end-to-end, performance-aware network. This document contains an introduction to the basic concepts and tasks required to implement Performance Routing. For more detailed concepts, see the Understanding Performance Routing module, and for more advanced concepts and configuration tasks and examples, see the Configuring Advanced Performance Routing module. Finding Feature InformationYour software release may not support all the features documented in this module. For the latest feature information and caveats, see the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the Feature Information Table at the end of this document. Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/go/cfn. An account on Cisco.com is not required. Information About Configuring Basic Performance Routing
Performance Routing OverviewPerformance Routing (PfR) is an advanced Cisco technology to allow businesses to complement classic routing technologies with additional serviceability parameters to select the best egress or ingress path. It complements these classic routing technologies with additional intelligence. PfR can select an egress or ingress WAN interface based upon parameters like reachability, delay, cost, jitter, MOS score, or it can use interface parameters like load, throughput and monetary cost. Classic routing (for example, EIGRP, OSPF, RIPv2, and BGP) generally focuses upon creating a loop-free topology based upon the shortest or least cost path. PfR gains additional intelligence using measurement instrumentation. It uses interface statistics, Cisco IP SLA for active monitoring, and NetFlow for passive monitoring. No prior knowledge or experience of IP SLA or NetFlow is required, PfR automatically enables these technologies without any manual configuration. Cisco Performance Routing selects an egress or ingress WAN path based on parameters that affect application performance, including reachability, delay, cost, jitter, and Mean Opinion Score (MOS). This technology can reduce network costs by facilitating more efficient load balancing and by increasing application performance without WAN upgrades. PfR is an integrated Cisco IOS solution that allows you to monitor IP traffic flows and then define policies and rules based on traffic class performance, link load distribution, link bandwidth monetary cost, and traffic type. PfR provides active and passive monitoring systems, dynamic failure detection, and automatic path correction. Deploying PfR enables intelligent load distribution and optimal route selection in an enterprise network. Performance Routing Versus Optimized Edge RoutingCisco Performance Routing takes advantage of the vast intelligence embedded in Cisco IOS Software to determine the optimal path based upon network and application policies. Cisco Performance Routing is an evolution of the Cisco IOS Optimized Edge Routing (OER) technology with a much broader scope. OER was originally designed to provide route control on a per destination prefix basis, but Performance Routing has expanded capabilities that facilitate intelligent route control on a per application basis. The expanded capabilities provide additional flexibility and more granular application optimization than OER. Migration from Optimized Edge Routing to Performance RoutingIf you are migrating to Performance Routing from an implementation of Optimized Edge Routing in an earlier Cisco IOS Release image, you must be aware of the following information to ensure a smooth migration path. In Cisco IOS Release 15.1(2)T, the OER syntax is still recognized. When you enter OER syntax the software changes the syntax to the new PfR syntax in the running configuration. When the running configuration is saved, the PfR version of the syntax is saved. If you need to reload an older Cisco IOS image, we recommend that you save backup copies of all configuration scripts with the OER syntax version because the new PfR syntax will not run in an older Cisco IOS software image. With CSCtr26978, the OER syntax is removed and old configuration scripts with the OER syntax will no longer run. Performance Routing Versus Classic Routing TechnologiesPfR was developed to identify and control network performance issues that traditional IP routing cannot address. In traditional IP routing, each peer device communicates its view of reachability to a prefix destination with some concept of a cost related to reaching the metric. The best path route to a prefix destination is usually determined using the least cost metric, and this route is entered into the routing information base (RIB) for the device. As a result, any route introduced into the RIB is treated as the best path to control traffic destined for the prefix destination. The cost metric is configured to reflect a statically engineered view of the network, for example, the cost metric is a reflection of either a user preference for a path or a preference for a higher bandwidth interface (inferred from the type of interface). The cost metric does not reflect the state of the network or the state of the performance of traffic traveling on that network at that time. Traditional IP routed networks are therefore adaptive to physical state changes in the network (for example, interfaces going down) but not to performance changes (degradation or improvement) in the network. Occasionally, degradation in traffic can be inferred from either the degradation in performance of the routing device or the loss of session connectivity, but these traffic degradation symptoms are not a direct measure of the performance of the traffic and cannot be used to influence decisions about best-path routing. To address performance issues for traffic within a network, PfR manages traffic classes. Traffic classes are defined as subsets of the traffic on the network, and a subset may represent the traffic associated with an application, for example. The performance of each traffic class is measured and compared against configured or default metrics defined in an PfR policy. PfR monitors the traffic class performance and selects the best entrance or exit for the traffic class. If the subsequent traffic class performance does not conform to the policy, PfR selects another entrance or exit for the traffic class. Basic Performance Routing DeploymentPfR is configured on Cisco routers using Cisco IOS command-line interface (CLI) configurations. Performance Routing comprises two components: the Master Controller (MC) and the Border Router (BR). A PfR deployment requires one MC and one or more BRs. Communication between the MC and the BR is protected by key-chain authentication. Depending on your Performance Routing deployment scenario and scaling requirements, the MC may be deployed on a dedicated router or may be deployed along with the BR on the same physical router. A PfR-managed network must have at least two egress interfaces that can carry outbound traffic and can be configured as external interfaces, see the figure below. These interfaces should connect to an ISP or WAN link (Frame-Relay, ATM) at the network edge. The router must also have one interface (reachable by the internal network) that can be configured as an internal interface for passive monitoring. There are three interface configurations required to deploy PfR: external interfaces, internal interfaces, and local interfaces. PfR Border RouterThe BR component resides within the data plane of the edge router with one or more exit links to an ISP or other participating network.The BR uses NetFlow to passively gather throughput and TCP performance information. The BR also sources all IP service-level agreement (SLA) probes used for explicit application performance monitoring. The BR is where all policy decisions and changes to routing in the network are enforced. The BR participates in prefix monitoring and route optimization by reporting prefix and exit link measurements to the master controller and then by enforcing policy changes received from the master controller. The BR enforces policy changes by injecting a preferred route to alter routing in the network. A BR process can be enabled on the same router as a master controller process. PfR Master ControllerThe MC is a single router that acts as the central processor and database for the Performance Routing system. The MC component does not reside in the forwarding plane and, when deployed in a standalone fashion, has no view of routing information contained within the BR. The master controller maintains communication and authenticates the sessions with the BRs. The role of the MC is to gather information from the BR or BRs to determine whether or not traffic classes are in or out of policy, and to instruct the BRs how to ensure that traffic classes remain in policy using route injection or dynamic PBR injection. PfR Functionality on Cisco 7600 RoutersOn Cisco 7600 series routers, due to architectural limitations with NetFlow on the hardware chip, PfR cannot determine performance (delay/loss/reachability) characteristics from passive monitoring of TCP flows; PfR can only measure passive throughput. The Cisco 7600 routers do support active IP SLA measurements and throughput-based load balancing. The PfR master controller software has been modified to handle the limited functionality supported by the Cisco 7600 series border routers. Using the Route Processor (RP), the Cisco 7600 series border routers can capture throughput statistics only for a traffic class compared to the delay, loss, unreachability, and throughput statistics collected by non-Cisco 7600 series border routers. A master controller automatically detects the limited capabilities of the Cisco 7600 series border routers and downgrades other border routers to capture only the throughput statistics for traffic classes. By ignoring other types of statistics, the master controller is presented with a uniform view of the border router functionality. PfR Component VersionWhen new PfR functionality is introduced that changes the API between the MC and the BR, the version number for the Performance Routing components, master controller and border router, is incremented. The version number of the master controller must be equal or higher to the version number for the border routers.The version numbers for both the master controller and the border routers are displayed using the show pfr master command. In the following partial output, the MC version is shown in the first paragraph and the BR versions are shown in the last column of the information for the border routers.
Router# show pfr master
OER state: ENABLED and ACTIVE
Conn Status: SUCCESS, PORT: 7777
Version: 2.0
Number of Border routers: 2
Number of Exits: 2
.
.
.
Border Status UP/DOWN AuthFail Version
1.1.1.2 ACTIVE UP 00:18:57 0 2.0
1.1.1.1 ACTIVE UP 00:18:58 0 2.0
.
.
.
The version numbers are not updated at each Cisco IOS software release for a specific release train, but if the Cisco IOS software image is the same release on the devices configured as a master controller and all the border routers, then the versions will be compatible. Key Chain Authentication for PfRCommunication between the master controller and the border router is protected by key-chain authentication. The authentication key must be configured on both the master controller and the border router before communication can be established. The key-chain configuration is defined in global configuration mode on both the master controller and the border router before key-chain authentication is enabled for master controller-to-border router communication. For more information about key management, see the "Managing Authentication Keys" section of the Configuring IP Routing Protocol-Independent Features chapter in the Cisco IOS IP Routing: Protocol Independent Configuration Guide. PfR-Managed Network InterfacesA PfR-managed network must have at least two egress interfaces that can carry outbound traffic and that can be configured as external interfaces. These interfaces should connect to an ISP or WAN link (Frame-Relay, ATM) at the network edge. The router must also have one interface (reachable by the internal network) that can be configured as an internal interface for passive monitoring. There are three interface configurations required to deploy PfR:
The following interface types can be configured as external and internal interfaces:
The following interface types can be configured as local interfaces:
Performance Routing DMVPN mGre Support

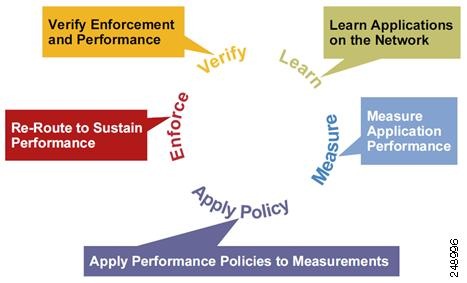

PfR Network Performance LoopEvery traditional routing protocol creates a feedback loop among devices to create a routing topology. Performance Routing infrastructure includes a performance routing protocol that is communicated in a client-server messaging mode. The routing protocol employed by PfR runs between a network controller called a master controller and performance-aware devices called border routers. This performance routing protocol creates a network performance loop in which the network profiles which traffic classes have to be optimized, measures and monitors the performance metrics of the identified traffic classes, applies policies to the traffic classes, and routes the identified traffic classes based on the best performance path. The diagram below shows the five PfR phases: profile, measure, apply policy, enforce, and verify. To understand how PfR operates in a network, you should understand and implement the five PfR phases. The PfR performance loop starts with the profile phase followed by the measure, apply policy, control, and verify phases. The flow continues after the verify phase back to the profile phase to update the traffic classes and cycle through the process. Profile PhaseIn medium to large networks there are hundreds of thousands of routes in the RIB to which a device is trying to route traffic. Because performance routing is a means of preferring some traffic over another, a subset of the total routes in the RIB has to be selected to optimize for performance routing. PfR profiles traffic in one of two ways, automatic learning or manual configuration.
Measure PhaseAfter profiling traffic classes that are to be performance routed, PfR measures the performance metrics of these individual traffic classes. There are two mechanisms--passive monitoring and active monitoring--to measure performance metrics, and one or both could be deployed in the network to accomplish this task. Monitoring is the act of measuring at periodic intervals. Passive monitoring is the act of measuring the performance metrics of the traffic flow as the flow is traversing the device in the data path. Passive monitoring uses NetFlow functionality and cannot be employed for measuring performance metrics for some traffic classes, and there are some hardware or software limitations. Active monitoring consists of generating synthetic traffic using IP Service Level Agreements (SLAs) to emulate the traffic class that is being monitored. The synthetic traffic is measured instead of the actual traffic class. The results of the synthetic traffic monitoring are applied to performance route the traffic class represented by the synthetic traffic. Both passive and active monitoring modes can be applied to the traffic classes. The passive monitoring phase may detect traffic class performance that does not conform to an PfR policy, and then active monitoring can be applied to that traffic class to find the best alternate performance path, if available. Support for NetFlow or IP SLAs configuration is enabled automatically. Apply Policy PhaseAfter collecting the performance metrics of the class of traffic to be optimized, PfR compares the results with a set of configured low and high thresholds for each metric configured as a policy. When a metric, and consequently a policy, goes out of bounds, it is an Out-of-Policy (OOP) event. The results are compared on a relative basis--a deviation from the observed mean--or on a threshold basis--the lower or upper bounds of a value--or a combination of both. There are two types of policies that can be defined in PfR: traffic class policies and link policies. Traffic class policies are defined for prefixes or for applications. Link policies are defined for exit or entrance links at the network edge. Both types of PfR policies define the criteria for determining an OOP event. The policies are applied on a global basis in which a set of policies is applied to all traffic classes, or on a more targeted basis in which a set of policies is applied to a selected (filtered) list of traffic classes. With multiple policies, many performance metric parameters, and different ways of assigning these policies to traffic classes, a method of resolving policy conflicts was created. The default arbitration method uses a default priority level given to each performance metric variable and each policy. Different priority levels can be configured to override the default arbitration for all policies, or a selected set of policies. Enforce PhaseIn the PfR enforce phase (also called the control phase) of the performance loop, the traffic is controlled to enhance the performance of the network. The technique used to control the traffic depends on the class of traffic. For traffic classes that are defined using a prefix only, the prefix reachability information used in traditional routing can be manipulated. Protocols such as Border Gateway Protocol (BGP) or RIP are used to announce or remove the prefix reachability information by introducing or deleting a route and its appropriate cost metrics. For traffic classes that are defined by an application in which a prefix and additional packet matching criteria are specified, PfR cannot employ traditional routing protocols because routing protocols communicate the reachability of the prefix only and the control becomes device specific and not network specific. This device specific control is implemented by PfR using policy-based routing (PBR) functionality. If the traffic in this scenario has to be routed out to a different device, the remote border router should be a single hop away or a tunnel interface that makes the remote border router look like a single hop. Verify PhaseDuring the PfR enforce phase if a traffic class is OOP, then PfR introduces controls to influence (optimize) the flow of the traffic for the traffic class that is OOP. A static route and a BGP route are examples of controls introduced by PfR into the network. After the controls are introduced, PfR will verify that the optimized traffic is flowing through the preferred exit or entrance links at the network edge. If the traffic class remains OOP, PfR will drop the controls that were introduced to optimize the traffic for the OOP traffic class and cycle through the network performance loop. PfR and the Enterprise NetworkEnterprise networks use multiple Internet Service Provider (ISP) or WAN connections at the network edge for reliability and load distribution. Existing reliability mechanisms depend on link state or route removal on the border router to select the best exit link for a prefix or set of prefixes. Multiple connections protect enterprise networks from catastrophic failures but do not protect the network from brownouts, or soft failures, that occur because of network congestion. Existing mechanisms can respond to catastrophic failures at the first indication of a problem. However, blackouts and brownouts can go undetected and often require the network operator to take action to resolve the problem. When a packet is transmitted between external networks (nationally or globally), the packet spends the vast majority of its life cycle on the WAN segments of the network. Optimizing WAN route selection in the enterprise network provides the end-user with the greatest performance improvement, even better than LAN speed improvements in the local network. Although many of the examples used to describe PfR deployment show ISPs as the network with which the edge devices communicate, there are other solutions. The network edge can be defined as any logical separation in a network: can be another part of the network such as a data center network within the same location, as well as WAN and ISP connections. The network, or part of the network, connected to the original network edge devices must have a separate autonomous system number when communicating using BGP. PfR is implemented as an integrated part of Cisco core routing functionality. Deploying PfR enables intelligent network traffic load distribution and dynamic failure detection for data paths at the network edge. While other routing mechanisms can provide both load distribution and failure mitigation, only PfR can make routing adjustments based on criteria other than static routing metrics, such as response time, packet loss, path availability, and traffic load distribution. Deploying PfR allows you to optimize network performance and link load utilization while minimizing bandwidth costs and reducing operational expenses. Typical Topology on Which PfR is DeployedThe figure below shows a typical PfR-managed enterprise network of a content provider. The enterprise network has three exit interfaces that are used to deliver content to customer access networks. The content provider has a separate service level agreement (SLA) with a different ISP for each exit link. The customer access network has two edge routers that connect to the Internet. Traffic is carried between the enterprise network and the customer access network over six service provider (SP) networks. PfR monitors and controls outbound traffic on the three border routers (BRs). PfR measures the packet response time and path availability from the egress interfaces on BR1, BR2 and BR3. Changes to exit link performance on the border routers are detected on a per-prefix basis. If the performance of a prefix falls below default or user-defined policy parameters, routing is altered locally in the enterprise network to optimize performance and to route around failure conditions that occur outside of the enterprise network. For example, an interface failure or network misconfiguration in the SP D network can cause outbound traffic that is carried over the BR2 exit interface to become congested or fail to reach the customer access network. Traditional routing mechanisms cannot anticipate or resolve these types of problems without intervention by the network operator. PfR can detect failure conditions and automatically alter routing inside of the network to compensate. How to Configure Basic Performance RoutingSetting Up the PfR Master ControllerPerform this task to set up the PfR master controller to manage an PfR-managed network. This task must be performed on the router designated as the PfR master controller. For an example network configuration of a master router and two border routers, see the figure below. Communication is first established between the master controller and the border routers with key-chain authentication being configured to protect the communication session between the master controller and the border routers. Internal and external border router interfaces are also specified. To disable a master controller and completely remove the process configuration from the running configuration, use theno pfr mastercommand in global configuration mode. To temporarily disable a master controller, use the shutdown (PfR) command in PfR master controller configuration mode. Entering the shutdown (PfR) command stops an active master controller process but does not remove any configuration parameters. The shutdown (PfR) command is displayed in the running configuration file when enabled. Before You Begin
SUMMARY STEPS
Interfaces must be defined and reachable by the master controller and the border routers before a PfR-managed network can be configured. To set up a PfR-managed network, you must configure static routing or a routing protocol peering or redistribution between border routers and peer routers in order for PfR to control routing. PfR must be able to find a parent route for the best path using a static route, BGP, EIGRP or RIB (using Protocol Independent Route Optimization (PIRO). DETAILED STEPS Setting Up a PFR Border RouterPerform this task to set up a PfR border router. This task must be performed at each border router in your PfR-managed network. Communication is first established between the border router and the master controller with key-chain authentication being configured to protect the communication session between the border router and the master controller. A local interface is configured as the source for communication with the master controller, and external interfaces are configured as PfR-managed exit links.
To disable a border router and completely remove the process configuration from the running configuration, use the no pfr border command in global configuration mode. To temporarily disable a border router process, use the shutdown (PfR) command in PfR border router configuration mode. Entering the shutdown (PfR) command stops an active border router process but does not remove any configuration parameters. The shutdown (PfR) command is displayed in the running configuration file when enabled.
Before You Begin
SUMMARY STEPS
DETAILED STEPS
What to Do NextIf your network is configured to use only static routing, no additional routing protocol peering or static redistribution configuration is required. The PfR-managed network should be operational, as long as valid static routes that point to external interfaces on the border routers are configured. You can proceed to the "Where to Go Next" section for information about further PfR customization. Configuration Examples for Configuring Basic Performance RoutingExample Configuring the PfR Master ControllerThe following configuration example, starting in global configuration mode, shows the minimum configuration required to configure a master controller process to manage the internal network. A key-chain configuration named PFR is defined in global configuration mode. Router(config)# key chain PFR Router(config-keychain)# key 1 Router(config-keychain-key)# key-string KEYSTRING2 Router(config-keychain-key)# end The master controller is configured to communicate with the 10.100.1.1 and 10.200.2.2 border routers. The keepalive interval is set to 10 seconds. Route control mode is enabled. Internal and external PfR-controlled border router interfaces are defined. Router(config)# pfr master Router(config-pfr-mc)# keepalive 10 Router(config-pfr-mc)# logging Router(config-pfr-mc)# border 10.100.1.1 key-chain PFR Router(config-pfr-mc-br)# interface Ethernet 0/0 external Router(config-pfr-mc-br)# interface Ethernet 0/1 internal Router(config-pfr-mc-br)# exit Router(config-pfr-mc)# border 10.200.2.2 key-chain PFR Router(config-pfr-mc-br)# interface Ethernet 0/0 external Router(config-pfr-mc-br)# interface Ethernet 0/1 internal Router(config-pfr-mc)# exit Example Configuring a PfR Border RouterThe following configuration example, starting in global configuration mode, shows the minimum required configuration to enable a border router. The key-chain configuration is defined in global configuration mode. Router(config)# key chain PFR Router(config-keychain)# key 1 Router(config-keychain-key)# key-string KEYSTRING2 Router(config-keychain-key)# end The key-chain PFR is applied to protect communication. An interface is identified to the master controller as the local interface (source) for PfR communication. Router(config)# pfr border Router(config-pfr-br)# local Ethernet 0/1 Router(config-pfr-br)# master 192.168.1.1 key-chain PFR Router(config-pfr-br)# end Where to Go NextAfter configuring the master controller and border routers, additional configuration may be required to activate the full optimization capabilities of PfR. For more details, see the "Understanding Performance Routing" module, and the "Configuring Advanced Performance Routing" module, or other references in the "Related Documents" section. Additional ReferencesRelated Documents
Technical Assistance
Feature Information for Configuring Basic Performance RoutingThe following table provides release information about the feature or features described in this module. This table lists only the software release that introduced support for a given feature in a given software release train. Unless noted otherwise, subsequent releases of that software release train also support that feature. Use Cisco Feature Navigator to find information about platform support and Cisco software image support. To access Cisco Feature Navigator, go to www.cisco.com/go/cfn. An account on Cisco.com is not required. Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R) Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional and coincidental. © 2010-2012 Cisco Systems, Inc. All rights reserved.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
