Introdução

Pré-requisitos

Requisitos

Componentes Utilizados

Conventions

Configurar

Diagrama de Rede

Configurações

Verificar

Verificação

Troubleshooting

Comandos para Troubleshooting

Debugar no LNS

Informações Relacionadas

Introdução

Este documento fornece um exemplo de configuração para o Protocolo de túneis de Camada 2 (L2TP) para chamadas dialin (entrada) e dialout (saída).

Observação: esta configuração não envolve um servidor de autenticação, autorização e contabilização (AAA).

Pré-requisitos

Requisitos

Não existem requisitos específicos para este documento.

Componentes Utilizados

As informações neste documento se baseiam no Cisco IOS® Software Release 12.1.

As informações neste documento foram criadas a partir de dispositivos em um ambiente de laboratório específico. Todos os dispositivos utilizados neste documento foram iniciados com uma configuração (padrão) inicial. Se a sua rede estiver ativa, certifique-se de que entende o impacto potencial de qualquer comando.

Conventions

Para obter mais informações sobre convenções de documento, consulte as Convenções de dicas técnicas Cisco.

Configurar

Nesta seção, você encontrará informações para configurar os recursos descritos neste documento.

Observação: para encontrar informações adicionais sobre os comandos usados neste documento, use a ferramenta Command Lookup Tool (somente clientes registrados).

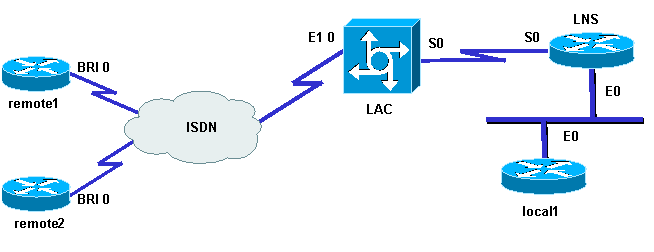

Diagrama de Rede

Este documento utiliza a seguinte configuração de rede:

Configurações

Este documento utiliza as seguintes configurações:

Roteador remoto 1:

Loopback0: 17.17.17.1/32 Nome de usuário: remote1@cisco.com Número ISDN (BRI 0): 6122
Roteador remoto2:

Loopback: 17.17.17.2/32 Nome de usuário: remote2@cisco.com Número ISDN (BRI 0): 6121
LAC do roteador:

Loopback: 18.18.18.1/32 Número ISDN (E1 0): Interface serial 8211 (S0): 18.18.18.6/30
Roteador LNS:

Loopback: interface serial 18.18.18.2/32 (S0): interface Ethernet 18.18.18.5/30 (E0): 10.200.20.24/24
Roteador local1:

Loopback: interface Ethernet 17.17.17.3/32 (E0): 10.200.20.32/24

Os roteadores remote1@cisco.com e remote2@cisco.com utilizam ISDN para acessar Concentrador de acesso L2TP (LAC, L2TP Access Concentrator). Um link serial lado a lado conecta o LAC e o Servidor de rede L2TP (LNS, L2TP Network Server) nessa instalação. O roteador local1 e o LNS compartilham o mesmo link Ethernet

Aqui está o processo:

Discagem L2TP: o cliente remote1@cisco.com deseja se comunicar com o roteador local1. O cliente gera uma chamada ISDN para o LAC, que ativa um túnel L2TP para o LNS e para a sessão L2TP. O LAC utiliza o nome de domínio para ativar o túnel com o LNS. O LNS autentica os usuários remoto localmente.
L2TP Dialout: o roteador local1 deseja se comunicar com o cliente remoto remote2@cisco.com. O LNS utiliza o túnel existente com o LAC e cria uma sessão L2TP nova.

Observação: essas configurações são truncadas para exibir as informações relevantes.

LAC
hostname LAC ! ! ip subnet-zero no ip domain-lookup ! vpdn enable no vpdn logging vpdn search-order domain !--- VPDN tunnel authorization is based on the domain only. ! vpdn-group 1 request-dialin !--- Enables the LAC to make requests to the LNS for dialin. protocol l2tp domain cisco.com accept-dialout !--- Enables the LAC to accept requests from the LNS for dialout. protocol l2tp dialer 1 !--- Specifies the dialer used to dial out. terminate-from hostname LNS initiate-to ip 18.18.18.2 local name LAC l2tp tunnel password l2tptunnel source-ip 18.18.18.1 ! isdn switch-type primary-net5 ! ! controller E1 0 clock source line primary pri-group timeslots 1-31 ! interface Loopback0 ip address 18.18.18.1 255.255.255.255 ! interface Ethernet0 ip address 10.200.20.34 255.255.255.0 no ip route-cache no ip mroute-cache no cdp enable ! ! interface Serial0 description -- Connection to the LNS ip address 18.18.18.6 255.255.255.252 no fair-queue clockrate 64000 no cdp enable ! interface Serial0:15 no ip address encapsulation ppp dialer rotary-group 1 isdn switch-type primary-net5 no cdp enable ppp authentication chap ppp chap hostname LAC ! interface Dialer1 ip unnumbered Loopback0 encapsulation ppp dialer in-band dialer aaa !--- L2TP dialout functionality requires this command even if you do not use AAA. dialer-group 1 no cdp enable ppp authentication chap ppp chap hostname LAC ppp chap password 7 1511021F0725 ! no ip http server ip classless ip route 18.18.18.2 255.255.255.255 18.18.18.5 ! dialer-list 1 protocol ip permit no cdp run

LAC

hostname LAC
!
!
ip subnet-zero
no ip domain-lookup
!
vpdn enable
no vpdn logging
vpdn search-order domain

!--- VPDN tunnel authorization is based on the domain only.

!
vpdn-group 1
request-dialin

!--- Enables the LAC to make requests to the LNS for dialin.

protocol l2tp
domain cisco.com
accept-dialout

!--- Enables the LAC to accept requests from the LNS for dialout.

protocol l2tp
dialer 1

!--- Specifies the dialer used to dial out.

terminate-from hostname LNS
initiate-to ip 18.18.18.2
local name LAC
l2tp tunnel password l2tptunnel
source-ip 18.18.18.1
!
isdn switch-type primary-net5
!
!
controller E1 0
clock source line primary
pri-group timeslots 1-31
!
interface Loopback0
ip address 18.18.18.1 255.255.255.255
!
interface Ethernet0
ip address 10.200.20.34 255.255.255.0
no ip route-cache
no ip mroute-cache
no cdp enable
!
!
interface Serial0
description -- Connection to the LNS
ip address 18.18.18.6 255.255.255.252
no fair-queue
clockrate 64000
no cdp enable
!
interface Serial0:15
no ip address
encapsulation ppp
dialer rotary-group 1
isdn switch-type primary-net5
no cdp enable
ppp authentication chap
ppp chap hostname LAC
!
interface Dialer1
ip unnumbered Loopback0
encapsulation ppp
dialer in-band
dialer aaa

!--- L2TP dialout functionality requires this command even if you do not use AAA.

dialer-group 1
no cdp enable
ppp authentication chap
ppp chap hostname LAC
ppp chap password 7 1511021F0725
!
no ip http server
ip classless
ip route 18.18.18.2 255.255.255.255 18.18.18.5
!
dialer-list 1 protocol ip permit
no cdp run

LNS
hostname LNS ! vpdn enable vpdn-group 1 accept-dialin !--- Enables the LNS to accept request from the LAC for dialin. protocol l2tp virtual-template 1 !--- For each user, a virtual-access is cloned from this virtual-template. request-dialout !--- Enables the LNS to request the LAC for dialout. protocol l2tp pool-member 1 !--- Specifies the dialer profile to be used to dial out. terminate-from hostname LAC initiate-to ip 18.18.18.1 local name LNS l2tp tunnel password l2tptunnel source-ip 18.18.18.2 ! ! interface Loopback0 ip address 18.18.18.2 255.255.255.255 ! interface Ethernet0 ip address 10.200.20.24 255.255.255.0 no ip route-cache no ip mroute-cache ! interface Virtual-Template1 ip unnumbered Loopback0 no peer default ip address ppp chap hostname LNS ! interface Serial0 description -- Connection to the LAC ip address 18.18.18.5 255.255.255.252 no ip route-cache no ip mroute-cache ! interface Dialer1 !--- For each user, a dialer profile is configured. ip unnumbered Loopback0 encapsulation ppp dialer pool 1 !--- "dialer pool 1" must match "pool-member 1" in the VPDN-group. dialer remote-name remote1@cisco.com dialer string 6122 !--- ISDN number that the LAC uses to dialout the remote client remote1@cisco.com. dialer vpdn !--- Enables the dialer profile to use L2TP dialout, and so place a VPDN call. dialer-group 1 ppp authentication chap callin ppp chap hostname LNS ! interface Dialer2 ip unnumbered Loopback0 encapsulation ppp dialer pool 1 dialer remote-name remote2@cisco.com dialer string 6121 dialer vpdn dialer-group 1 no cdp enable ppp authentication chap callin ppp chap hostname LNS ! no ip http server ip classless ip route 10.200.16.26 255.255.255.255 10.200.20.1 ip route 17.17.17.1 255.255.255.255 Dialer1 ip route 17.17.17.2 255.255.255.255 Dialer2 ip route 17.17.17.3 255.255.255.255 10.200.20.32 ip route 18.18.18.1 255.255.255.255 18.18.18.6 ! dialer-list 1 protocol ip permit no cdp run

LNS

hostname LNS
!
vpdn enable
vpdn-group 1
accept-dialin

!--- Enables the LNS to accept request from the LAC for dialin.

protocol l2tp
virtual-template 1

!--- For each user, a virtual-access is cloned from this virtual-template.

request-dialout

!--- Enables the LNS to request the LAC for dialout.

protocol l2tp
pool-member 1

!--- Specifies the dialer profile to be used to dial out.

terminate-from hostname LAC
initiate-to ip 18.18.18.1
local name LNS
l2tp tunnel password l2tptunnel
source-ip 18.18.18.2
!
!
interface Loopback0
ip address 18.18.18.2 255.255.255.255
!
interface Ethernet0
ip address 10.200.20.24 255.255.255.0
no ip route-cache
no ip mroute-cache
!
interface Virtual-Template1
ip unnumbered Loopback0
no peer default ip address
ppp chap hostname LNS
!
interface Serial0
description -- Connection to the LAC
ip address 18.18.18.5 255.255.255.252
no ip route-cache
no ip mroute-cache
!
interface Dialer1

!--- For each user, a dialer profile is configured.

ip unnumbered Loopback0
encapsulation ppp
dialer pool 1

!--- "dialer pool 1" must match "pool-member 1" in the VPDN-group.

dialer remote-name remote1@cisco.com
dialer string 6122

!--- ISDN number that the LAC uses to dialout the remote client remote1@cisco.com.

dialer vpdn

!--- Enables the dialer profile to use L2TP dialout, and so place a VPDN call.

dialer-group 1
ppp authentication chap callin
ppp chap hostname LNS
!
interface Dialer2
ip unnumbered Loopback0
encapsulation ppp
dialer pool 1
dialer remote-name remote2@cisco.com
dialer string 6121
dialer vpdn
dialer-group 1
no cdp enable
ppp authentication chap callin
ppp chap hostname LNS
!
no ip http server
ip classless
ip route 10.200.16.26 255.255.255.255 10.200.20.1
ip route 17.17.17.1 255.255.255.255 Dialer1
ip route 17.17.17.2 255.255.255.255 Dialer2
ip route 17.17.17.3 255.255.255.255 10.200.20.32
ip route 18.18.18.1 255.255.255.255 18.18.18.6
!
dialer-list 1 protocol ip permit
no cdp run

Verificar

Esta seção fornece informações que você pode usar para confirmar se sua configuração está funcionando adequadamente.

A Output Interpreter Tool (somente clientes registrados) oferece suporte a determinados comandos show, o que permite exibir uma análise da saída do comando show.

show vpdn — exibe informações sobre o túnel de protocolo L2F ativo e os identificadores de mensagem em uma VPDN (Rede Virtual Privada de Discagem).

LAC#show debug
Dial on demand:
  Dial on demand events debugging is on
VPN:
  L2X protocol events debugging is on
  VPDN events debugging is on
PPP:
  PPP authentication debugging is on
  PPP protocol negotiation debugging is on
ISDN:
  ISDN events debugging is on

  ISDN events debug DSLs. (On/Off/No DSL:1/0/-)
   DSL 0 --> 1
   1 -

LNS#show debug
Dial on demand:
  Dial on demand events debugging is on
VPN:
  L2X protocol events debugging is on
  VPDN events debugging is on
PPP:
  PPP authentication debugging is on
  PPP protocol negotiation debugging is on
VTEMPLATE:
  Virtual Template debugging is on

Verificação

Discar

O roteador remote1@cisco.com inicia uma chamada para o roteador local1.

LAC#

Uma chamada ISDN entra no LAC.

Sep 29 02:25:42.923: ISDN Se0:15: Incoming call id = 0x011B, dsl 0
Sep 29 02:25:42.927: Negotiated CCB->int_id 0 B-chan 0, req->int_id 0, B-chan 18
Sep 29 02:25:42.931: CCPRI_ReleaseChan CCB->B_Chan zero
Sep 29 02:25:42.939: ISDN Se0:15: received CALL_INCOMING call_id 0x11B
Sep 29 02:25:42.939: ISDN Se0:15: CALL_INCOMING: call type is DATA , bchan = 17
Sep 29 02:25:42.943: ISDN Se0:15: Event: Received a DATA call from 6122 on B17
 at 64 Kb/s
Sep 29 02:25:42.947: ISDN Se0:15: RM returned call_type 0 resource type 0
Sep 29 02:25:42.959: ISDN Se0:15: isdn_send_connect(): msg 74, call id 0x11B,
 ces 1 bchan 17, call type DATA
Sep 29 02:25:43.031: %LINK-3-UPDOWN: Interface Serial0:17, changed state to up
Sep 29 02:25:43.059: Se0:17 PPP: Treating connection as a callin
Sep 29 02:25:43.063: Se0:17 PPP: Phase is ESTABLISHING, Passive Open
Sep 29 02:25:43.067: Se0:17 LCP: State is Listen
Sep 29 02:25:43.127: ISDN Se0:15: received CALL_PROGRESSing call_id 0x11B
Sep 29 02:25:43.199: Se0:17 LCP: I CONFREQ [Listen] id 125 len 10
Sep 29 02:25:43.203: Se0:17 LCP: MagicNumber 0xEB818699 (0x0506EB818699)
Sep 29 02:25:43.207: Se0:17 LCP: O CONFREQ [Listen] id 7 len 15
Sep 29 02:25:43.211: Se0:17 LCP: AuthProto CHAP (0x0305C22305)
Sep 29 02:25:43.215: Se0:17 LCP: MagicNumber 0x6BDE50CC (0x05066BDE50CC)
Sep 29 02:25:43.219: Se0:17 LCP: O CONFACK [Listen] id 125 len 10
Sep 29 02:25:43.223: Se0:17 LCP: MagicNumber 0xEB818699 (0x0506EB818699)
Sep 29 02:25:43.247: Se0:17 LCP: I CONFACK [ACKsent] id 7 len 15
Sep 29 02:25:43.251: Se0:17 LCP: AuthProto CHAP (0x0305C22305)
Sep 29 02:25:43.255: Se0:17 LCP: MagicNumber 0x6BDE50CC (0x05066BDE50CC)
Sep 29 02:25:43.259: Se0:17 LCP: State is Open
Sep 29 02:25:43.259: Se0:17 PPP: Phase is AUTHENTICATING, by this end

O LAC envia uma desafio de CHAP ao cliente.

Sep 29 02:25:43.263: Se0:17 CHAP: Using alternate hostname LAC
Sep 29 02:25:43.267: Se0:17 CHAP: O CHALLENGE id 7 len 24 from "LAC"

O LAC recebe uma resposta CHAP mas não autentica o usuário. O LNS executa a autenticação.

Sep 29 02:25:43.295: Se0:17 CHAP: I RESPONSE id 7 len 38 from "remote1@cisco.com"
Sep 29 02:25:43.303: Se0:17 PPP: Phase is FORWARDING
Sep 29 02:25:43.303: Se0:17 VPDN: Got DNIS string 211

O LAC verifica se o domínio "cisco.com" existe e coleta as informações necessárias para ativar o túnel com o LNS.

Sep 29 02:25:43.307: Se0:17 VPDN: Looking for tunnel -- cisco.com --
Sep 29 02:25:43.347: Se0:17 VPDN/LAC/1: Got tunnel info for cisco.com
Sep 29 02:25:43.351: Se0:17 VPDN/LAC/1: LAC LAC
Sep 29 02:25:43.351: Se0:17 VPDN/LAC/1: source-ip 18.18.18.1
Sep 29 02:25:43.355: Se0:17 VPDN/LAC/1: l2tp-busy-disconnect yes
Sep 29 02:25:43.359: Se0:17 VPDN/LAC/1: l2tp-tunnel-password xxxxxx
Sep 29 02:25:43.359: Se0:17 VPDN/LAC/1: IP 18.18.18.2
Sep 29 02:25:43.371: Se0:17 VPDN/1: curlvl 1 Address 0: 18.18.18.2, priority 1
Sep 29 02:25:43.375: Se0:17 VPDN/1: Select non-active address 18.18.18.2, priority 1
Sep 29 02:25:43.379: Tnl 45029 L2TP: SM State idle

O LAC ativa o túnel com o LNS.

Sep 29 02:25:43.383: Tnl 45029 L2TP: O SCCRQ
Sep 29 02:25:43.391: Tnl 45029 L2TP: Tunnel state change from idle to
   wait-ctl-reply
Sep 29 02:25:43.395: Tnl 45029 L2TP: SM State wait-ctl-reply
Sep 29 02:25:43.399: Se0:17 VPDN: Find LNS process created
Sep 29 02:25:43.403: Se0:17 VPDN: Forward to address 18.18.18.2
Sep 29 02:25:43.403: Se0:17 VPDN: Pending
Sep 29 02:25:43.411: Se0:17 VPDN: Process created
Sep 29 02:25:43.463: Tnl 45029 L2TP: I SCCRP from LNS
Sep 29 02:25:43.467: Tnl 45029 L2TP: Got a challenge from remote peer, LNS
Sep 29 02:25:43.471: Tnl 45029 L2TP: Got a response from remote peer, LNS
Sep 29 02:25:43.475: Tnl 45029 L2TP: Tunnel Authentication success
Sep 29 02:25:43.479: Tnl 45029 L2TP: Tunnel state change from wait-ctl-reply
   to established
Sep 29 02:25:43.483: Tnl 45029 L2TP: O SCCCN to LNS tnlid 11407
Sep 29 02:25:43.487: Tnl 45029 L2TP: SM State established
Sep 29 02:25:43.495: Se0:17 VPDN: Forwarding...
Sep 29 02:25:43.499: Se0:17 DDR: Authenticated host remote1@cisco.com with no
   matching dialer map
Sep 29 02:25:43.503: Se0:17 VPDN: Bind interface direction=1
Sep 29 02:25:43.507: Tnl/Cl 45029/291 L2TP: Session FS enabled
Sep 29 02:25:43.511: Tnl/Cl 45029/291 L2TP: Session state change from idle to
   wait-for-tunnel
Sep 29 02:25:43.515: Se0:17 Tnl/Cl 45029/291 L2TP: Create session
Sep 29 02:25:43.519: Tnl 45029 L2TP: SM State established

O LAC ativa a sessão do usuário remote1@cisco.com.

Sep 29 02:25:43.523: Se0:17 Tnl/Cl 45029/291 L2TP: O ICRQ to LNS 11407/0
Sep 29 02:25:43.531: Se0:17 Tnl/Cl 45029/291 L2TP: Session state change from
   wait-for-tunnel to wait-reply
Sep 29 02:25:43.535: Se0:17 VPDN: remote1@cisco.com is forwarded
Sep 29 02:25:43.635: Se0:17 Tnl/Cl 45029/291 L2TP: O ICCN to LNS 11407/303
Sep 29 02:25:43.639: Se0:17 Tnl/Cl 45029/291 L2TP: Session state change from
   wait-reply to established
Sep 29 02:25:44.535: %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0:17,
   changed state to up
Sep 29 02:25:49.055: %ISDN-6-CONNECT: Interface Serial0:17 is now connected to
6122 remote1@cisco.com

LAC#show vpdn

L2TP Tunnel and Session Information Total tunnels 1 sessions 1

LocID RemID Remote Name State Remote Address Port Sessions
45029 11407 LNS est 18.18.18.2 1701 1

LocID RemID TunID Intf Username State Last Chg Fastswitch
291 303 45029 Se0:17 remote1@cisco.com est 00:00:14 enabled

% No active L2F tunnels

Dial out

O roteador local1 inicia uma chamada para o roteador remote2@cisco.com.

LAC#

O LAC recebe uma solicitação de LNS para ativar uma nova sessão para discagem.

Sep 29 02:26:19.479: Tnl 45029 L2TP: I OCRQ from LNS tnl 11407
Sep 29 02:26:19.483: Tnl/Cl 45029/292 L2TP: Session FS enabled
Sep 29 02:26:19.487: Tnl/Cl 45029/292 L2TP: New session created
Sep 29 02:26:19.491: 1D4C: Same state, 0
Sep 29 02:26:19.495: DSES 1D4C: Session create
Sep 29 02:26:19.499: L2TP: Send OCRP
Sep 29 02:26:19.503: Tnl/Cl 45029/292 L2TP: Session state change from
idle to wait-cs-answer

O LAC utiliza ISDN para chamar o número 6121.

Sep 29 02:26:19.511: DSES 0x1D4C: Building dialer map
Sep 29 02:26:19.511: Dialout 0x1D4C: Next hop name is 6121
Sep 29 02:26:19.515: Se0:15 DDR: rotor dialout [priority]
Sep 29 02:26:19.519: Se0:15 DDR: Dialing cause dialer session 0x1D4C
Sep 29 02:26:19.523: Se0:15 DDR: Attempting to dial 6121
Sep 29 02:26:19.523: ISDN Se0:15: Outgoing call id = 0x8055, dsl 0
Sep 29 02:26:19.527: ISDN Se0:15: Event: Call to 6121 at 64 Kb/s
Sep 29 02:26:19.531: ISDN Se0:15: process_pri_call(): call id 0x8055,
   number 6121, speed 64, call type DATA
Sep 29 02:26:19.539: building outgoing channel id for call nfas_int is 0 len is 0
Sep 29 02:26:19.623: ISDN Se0:15: received CALL_ACCEPT call_id 0x8055
Sep 29 02:26:19.623: ISDN Se0:15: PRI Event: CALL_ACCEPT, bchan = 30,
   call type = DATA
Sep 29 02:26:20.043: ISDN Se0:15: received CALL_CONNECT call_id 0x8055
Sep 29 02:26:20.115: %LINK-3-UPDOWN: Interface Serial0:30, changed state to up
Sep 29 02:26:20.147: Di1: Session free, 1D4C
Sep 29 02:26:20.151: : 0 packets unqueued and discarded
Sep 29 02:26:20.155: Se0:30 VPDN: Bind interface direction=1
Sep 29 02:26:20.159: Se0:30 Tnl/Cl 45029/292 L2TP: Session state change
   from wait-cs-answer to established
Sep 29 02:26:20.163: L2TP: Send OCCN

O LAC vincula a sessão ISDN se0:30 à sessão VPDN.

Sep 29 02:26:20.167: Se0:30 VPDN: bound to vpdn session
Sep 29 02:26:20.175: ISDN Se0:15: received CALL_PROGRESSing call_id 0x8055
Sep 29 02:26:26.143: %ISDN-6-CONNECT: Interface Serial0:30 is now connected to 6121
LAC#
LAC#show vpdn

L2TP Tunnel and Session Information Total tunnels 1 sessions 2

LocID RemID Remote Name State Remote Address Port Sessions
45029 11407 LNS est 18.18.18.2 1701 2

LocID RemID TunID Intf Username State Last Chg Fastswitch
291 303 45029 Se0:17 remote1@cisco.com est 00:00:57 enabled
292 304 45029 Se0:30 est 00:00:20 enabled

% No active L2F tunnels
LAC#

Troubleshooting

Esta seção fornece informações que podem ser usadas para o troubleshooting da sua configuração.

Comandos para Troubleshooting

A Output Interpreter Tool (somente clientes registrados) oferece suporte a determinados comandos show, o que permite exibir uma análise da saída do comando show.

Observação: antes de emitir comandos debug, consulte Informações importantes sobre comandos debug.

debug dialer events — exibe informações de debugação sobre os pacotes recebidos em uma interface de discador.
debug vpdn l2x-events — exibe mensagens sobre eventos que fazem parte do estabelecimento ou desligamento de túnel normal.
debug vpdn l2x-packets — exibe cada pacote de protocolo trocado. Esse comando pode resultar em um grande número de mensagens de debugação. Use esse comando apenas em um chassi de debugação com uma única sessão ativa.
debug vpdn l2x-errors — exibe erros que impedem o estabelecimento de um túnel ou erros que fazem o túnel estabelecido ser fechado.
debug ppp negotiation — faz o comando debug ppp exibir pacotes PPP transmitidos durante a inicialização PPP, em que as opções PPP são negociadas.
debug ppp authentication — faz o comando debug ppp exibir mensagens do protocolo de autenticação. As mensagens incluem trocas de pacote Challenge Handshake Authentication Protocol (CHAP) e trocas Password Authentication Protocol (PAP).
debug isdn events — exibe eventos de Rede digital de serviços integrados (ISDN, Integrated Services Digital Network) ocorridos no lado do usuário (no roteador) da interface ISDN.
debug isdn q931 — exibe informações sobre configuração de chamada e subdivisão de conexões de rede ISDN (Camada 3) entre o roteador local (lado do usuário) e a rede.
debug vtemplate — exibe informações de clonagem para uma interface de acesso virtual a partir do tempo em que elas são clonadas de um molde virtual até o tempo em que a interface de acesso virtual cai, quando a ligação termina.

Debugar no LNS

Discar

O roteador remote1@cisco.com inicia uma chamada para o roteador local1.

O LNS recebe uma solicitação do LAC para ativar um túnel.

Sep 29 02:25:44.531: L2TP: I SCCRQ from LAC tnl 45029
Sep 29 02:25:44.539: Tnl 11407 L2TP: Got a challenge in SCCRQ, LAC
Sep 29 02:25:44.543: Tnl 11407 L2TP: New tunnel created for remote LAC,
   address 18.18.18.1
Sep 29 02:25:44.547: Tnl 11407 L2TP: O SCCRP to LAC tnlid 45029
Sep 29 02:25:44.555: Tnl 11407 L2TP: Tunnel state change from idle to
   wait-ctl-reply
Sep 29 02:25:44.623: Tnl 11407 L2TP: I SCCCN from LAC tnl 45029
Sep 29 02:25:44.627: Tnl 11407 L2TP: Got a Challenge Response in SCCCN from LAC
Sep 29 02:25:44.631: Tnl 11407 L2TP: Tunnel Authentication success
Sep 29 02:25:44.635: Tnl 11407 L2TP: Tunnel state change from wait-ctl-reply
   to established
Sep 29 02:25:44.639: Tnl 11407 L2TP: SM State established

O LNS recebe uma solicitação do LAC para ativar uma sessão.

Sep 29 02:25:44.667: Tnl 11407 L2TP: I ICRQ from LAC tnl 45029
Sep 29 02:25:44.671: Tnl/Cl 11407/303 L2TP: Session FS enabled
Sep 29 02:25:44.679: Tnl/Cl 11407/303 L2TP: Session state change from idle
   to wait-connect
Sep 29 02:25:44.679: Tnl/Cl 11407/303 L2TP: New session created
Sep 29 02:25:44.683: Tnl/Cl 11407/303 L2TP: O ICRP to LAC 45029/291
Sep 29 02:25:44.791: Tnl/Cl 11407/303 L2TP: I ICCN from LAC tnl 45029, cl 291
Sep 29 02:25:44.799: Tnl/Cl 11407/303 L2TP: Session state change from wait-connect
   to established

O LNS clona o acesso virtual para o usuário remote1@cisco.com.

Sep 29 02:25:44.803: Vt1 VTEMPLATE: Unable to create and clone vaccess
Sep 29 02:25:44.803: Vi2 VTEMPLATE: Reuse Vi2, recycle queue size 1
Sep 29 02:25:44.807: Vi2 VTEMPLATE: Hardware address 0060.4780.ac23
Sep 29 02:25:44.807: Vi2 VPDN: Virtual interface created for remote1@cisco.com
Sep 29 02:25:44.811: Vi2 PPP: Phase is DOWN, Setup
Sep 29 02:25:44.815: Vi2 VPDN: Clone from Vtemplate 1 filterPPP=0 blocking
Sep 29 02:25:44.819: Vi2 VTEMPLATE: Has a new cloneblk vtemplate,
   now it has vtemplate
Sep 29 02:25:44.827: Vi2 VTEMPLATE: ********** CLONE VACCESS2 **************
Sep 29 02:25:44.827: Vi2 VTEMPLATE: Clone from Virtual-Template1 interface
Virtual-Access2
encapsulation ppp
ip unnumbered loopback 0
ppp chap hostname LNS
ppp authentication chap
end

Sep 29 02:25:46.975: %LINK-3-UPDOWN: Interface Virtual-Access2,
   changed state to up
Sep 29 02:25:46.995: Vi2 PPP: Using set call direction
Sep 29 02:25:46.999: Vi2 PPP: Treating connection as a callin
Sep 29 02:25:46.999: Vi2 PPP: Phase is ESTABLISHING, Passive Open
Sep 29 02:25:47.003: Vi2 LCP: State is Listen
Sep 29 02:25:47.007: Vi2 VPDN: Bind interface direction=2
Sep 29 02:25:47.007: Vi2 LCP: I FORCED CONFREQ len 11
Sep 29 02:25:47.011: Vi2 LCP: AuthProto CHAP (0x0305C22305)
Sep 29 02:25:47.015: Vi2 LCP: MagicNumber 0x6BDE50CC (0x05066BDE50CC)

O LNS recebe a camada LCP que o LAC negociou com o cliente remote1@cisco.com. Por isso, o LNS não renegocia o LCP com o cliente.

Sep 29 02:25:47.019: Vi2 VPDN: PPP LCP accepted rcv CONFACK
Sep 29 02:25:47.019: Vi2 VPDN: PPP LCP accepted sent CONFACK
Sep 29 02:25:47.023: Vi2 PPP: Phase is AUTHENTICATING, by this end
Sep 29 02:25:47.023: Vi2 CHAP: Using alternate hostname LNS
Sep 29 02:25:47.027: Vi2 CHAP: O CHALLENGE id 8 len 24 from "LNS"
Sep 29 02:25:47.039: Vi2 CHAP: I RESPONSE id 7 len 38 from "remote1@cisco.com"
Sep 29 02:25:47.051: Vi2 CHAP: O SUCCESS id 7 len 4
Sep 29 02:25:47.055: Vi2 PPP: Phase is UP
Sep 29 02:25:47.059: Vi2 IPCP: O CONFREQ [Not negotiated] id 1 len 10
Sep 29 02:25:47.063: Vi2 IPCP: Address 18.18.18.2 (0x030612121202)
Sep 29 02:25:47.111: Vi2 IPCP: I CONFREQ [REQsent] id 110 len 10
Sep 29 02:25:47.115: Vi2 IPCP: Address 17.17.17.1 (0x030611111101)
Sep 29 02:25:47.119: Vi2 IPCP: O CONFACK [REQsent] id 110 len 10
Sep 29 02:25:47.123: Vi2 IPCP: Address 17.17.17.1 (0x030611111101)
Sep 29 02:25:47.127: Vi2 IPCP: I CONFACK [ACKsent] id 1 len 10
Sep 29 02:25:47.131: Vi2 IPCP: Address 18.18.18.2 (0x030612121202)
Sep 29 02:25:47.135: Vi2 IPCP: State is Open
Sep 29 02:25:47.143: Vi2 IPCP: Install route to 17.17.17.1
Sep 29 02:25:48.131: %LINEPROTO-5-UPDOWN: Line protocol on
Interface Virtual-Access2, changed state to up

LNS#show vpdn

L2TP Tunnel and Session Information Total tunnels 1 sessions 1

LocID RemID Remote Name State Remote Address Port Sessions
11407 45029 LAC est 18.18.18.1 1701 1

LocID RemID TunID Intf Username State Last Chg Fastswitch
303 291 11407 Vi2 remote1@cisco.com est 00:00:22 enabled

% No active L2F tunnels

Dial out

O roteador local1 inicia uma chamada para o roteador remote2@cisco.com.

LNS#
Sep 29 02:26:20.531: Vi1 VTEMPLATE: Reuse Vi1, recycle queue size 0
Sep 29 02:26:20.531: Vi1 VTEMPLATE: Hardware address 0060.4780.ac23
Sep 29 02:26:20.535: Vi1 PPP: Phase is DOWN, Setup
Sep 29 02:26:20.543: Vi1 VTEMPLATE: Has a new cloneblk dialer, now it has dialer
Sep 29 02:26:20.547: Vi1 DDR: Dialing cause ip (s=10.200.20.32, d=17.17.17.2)
Sep 29 02:26:20.551: Vi1 DDR: Attempting to dial 6121
Sep 29 02:26:20.555: Tnl/Cl 11407/304 L2TP: Session FS enabled
Sep 29 02:26:20.559: Tnl/Cl 11407/304 L2TP: Session state change from idle
   to wait-for-tunnel
Sep 29 02:26:20.563: Tnl/Cl 11407/304 L2TP: Create dialout session
Sep 29 02:26:20.567: Tnl 11407 L2TP: SM State established

O LNS envia uma solicitação para o LAC de discagem.

Sep 29 02:26:20.571: L2TP: O OCRQ
Sep 29 02:26:20.575: Vi1 Tnl/Cl 11407/304 L2TP: Session state change from
   wait-for-tunnel to wait-reply
Sep 29 02:26:20.579: Vi1 VPDN: Bind interface direction=2
Sep 29 02:26:20.635: Vi1 Tnl/Cl 11407/304 L2TP: I OCRP from LAC tnl 45029, cl 0
Sep 29 02:26:20.639: Vi1 Tnl/Cl 11407/304 L2TP: Session state change from
   wait-reply to wait-connect
Sep 29 02:26:21.299: Vi1 Tnl/Cl 11407/304 L2TP: I OCCN from LAC tnl 45029, cl 292
Sep 29 02:26:21.303: Vi1 Tnl/Cl 11407/304 L2TP: Session state change from
   wait-connect to established
Sep 29 02:26:21.307: Vi1 VPDN: Connection is up, start LCP negotiation now
Sep 29 02:26:21.315: %LINK-3-UPDOWN: Interface Virtual-Access1, changed state to up
Sep 29 02:26:21.335: Vi1 DDR: Dialer statechange to up

O acesso virtual 1 é associado ao discador de perfil 2 em que a configuração de remote2@cisco.com está localizada.

Sep 29 02:26:21.335: %DIALER-6-BIND: Interface Vi1 bound to profile Di2
Sep 29 02:26:21.339: Vi1 DDR: Dialer call has been placed

A fase PPP começa entre o LNS e o cliente de remote2@cisco.com.

Sep 29 02:26:21.343: Vi1 PPP: Treating connection as a callout
Sep 29 02:26:21.343: Vi1 PPP: Phase is ESTABLISHING, Active Open
Sep 29 02:26:21.347: Vi1 PPP: No remote authentication for call-out
Sep 29 02:26:21.351: Vi1 LCP: O CONFREQ [Closed] id 1 len 10
Sep 29 02:26:21.355: Vi1 LCP: MagicNumber 0x6F87121F (0x05066F87121F)
Sep 29 02:26:21.427: Vi1 LCP: I CONFREQ [REQsent] id 79 len 39
Sep 29 02:26:21.431: Vi1 LCP: AuthProto CHAP (0x0305C22305)
Sep 29 02:26:21.435: Vi1 LCP: MagicNumber 0x059935DB (0x0506059935DB)
Sep 29 02:26:21.435: Vi1 LCP: MRRU 1524 (0x110405F4)
Sep 29 02:26:21.439: Vi1 LCP: EndpointDisc 1 Local
Sep 29 02:26:21.443: Vi1 LCP: (0x13140172656D6F74653240636973636F)
Sep 29 02:26:21.447: Vi1 LCP: (0x2E636F6D)
Sep 29 02:26:21.451: Vi1 LCP: O CONFREJ [REQsent] id 79 len 28
Sep 29 02:26:21.455: Vi1 LCP: MRRU 1524 (0x110405F4)
Sep 29 02:26:21.455: Vi1 LCP: EndpointDisc 1 Local
Sep 29 02:26:21.459: Vi1 LCP: (0x13140172656D6F74653240636973636F)
Sep 29 02:26:21.463: Vi1 LCP: (0x2E636F6D)
Sep 29 02:26:21.467: Vi1 LCP: I CONFACK [REQsent] id 1 len 10
Sep 29 02:26:21.471: Vi1 LCP: MagicNumber 0x6F87121F (0x05066F87121F)
Sep 29 02:26:21.559: Vi1 LCP: I CONFREQ [ACKrcvd] id 80 len 15
Sep 29 02:26:21.563: Vi1 LCP: AuthProto CHAP (0x0305C22305)
Sep 29 02:26:21.567: Vi1 LCP: MagicNumber 0x059935DB (0x0506059935DB)
Sep 29 02:26:21.571: Vi1 LCP: O CONFACK [ACKrcvd] id 80 len 15
Sep 29 02:26:21.575: Vi1 LCP: AuthProto CHAP (0x0305C22305)
Sep 29 02:26:21.579: Vi1 LCP: MagicNumber 0x059935DB (0x0506059935DB)
Sep 29 02:26:21.583: Vi1 LCP: State is Open
Sep 29 02:26:21.583: Vi1 PPP: Phase is AUTHENTICATING, by the peer
Sep 29 02:26:21.647: Vi1 CHAP: I CHALLENGE id 8 len 38 from "remote2@cisco.com"
Sep 29 02:26:21.651: Vi1 CHAP: Using alternate hostname LNS
Sep 29 02:26:21.655: Vi1 CHAP: O RESPONSE id 8 len 24 from "LNS"
Sep 29 02:26:21.699: Vi1 CHAP: I SUCCESS id 8 len 4
Sep 29 02:26:21.703: Vi1 PPP: Phase is UP
Sep 29 02:26:21.707: Vi1 IPCP: O CONFREQ [Closed] id 1 len 10
Sep 29 02:26:21.711: Vi1 IPCP: Address 18.18.18.2 (0x030612121202)
Sep 29 02:26:21.715: Vi1 IPCP: I CONFREQ [REQsent] id 40 len 10
Sep 29 02:26:21.719: Vi1 IPCP: Address 17.17.17.2 (0x030611111102)
Sep 29 02:26:21.723: Vi1 IPCP: O CONFACK [REQsent] id 40 len 10
Sep 29 02:26:21.727: Vi1 IPCP: Address 17.17.17.2 (0x030611111102)
Sep 29 02:26:21.775: Vi1 IPCP: I CONFACK [ACKsent] id 1 len 10
Sep 29 02:26:21.779: Vi1 IPCP: Address 18.18.18.2 (0x030612121202)
Sep 29 02:26:21.783: Vi1 IPCP: State is Open

Sep 29 02:26:21.791: Vi1 DDR: dialer protocol up
Sep 29 02:26:21.795: Di2 IPCP: Install route to 17.17.17.2
Sep 29 02:26:22.703: %LINEPROTO-5-UPDOWN: Line protocol on
Interface Virtual-Access1, changed state to up

LNS#show vpdn

L2TP Tunnel and Session Information Total tunnels 1 sessions 2

LocID RemID Remote Name State Remote Address Port Sessions
11407 45029 LAC est 18.18.18.1 1701 2

LocID RemID TunID Intf Username State Last Chg Fastswitch
304 292 11407 Vi1 est 00:00:16 enabled
303 291 11407 Vi2 remote1@cisco.com est 00:00:52 enabled

% No active L2F tunnels

Informações Relacionadas

Histórico de revisões

Revisão	Data de publicação	Comentários
1.0	27-Nov-2001	Versão inicial

VPDN (Rede de Discagem Privada Virtual) L2TP Básica para Recebimento e Envio de Chamadas

Opções de download

Linguagem imparcial

Sobre esta tradução

Contents

Histórico de revisões

Este documento lhe foi útil?

Contate a Cisco

Este documento se refere a estes produtos
