Introdução
Este documento descreve o procedimento para rehospedar, ou em outras palavras, o processo de transferência de licenças entre 2 Placas de Linha (LC) de um uBR1002. Neste exemplo, 2 licenças DS x 2 US do slot de placa de linha 8/1 (que originalmente tem 72x60) são transferidas para o slot de placa de linha 8/0 (que originalmente tem 60x16) na placa de linha Cisco uBR-MC3GX60V.
Contribuição de: Shawn Dashuai Zhang e Andy Lau
Editado por: Kumar Sridhar
Componentes Utilizados
Cisco uBR10012 Universal Broadband Router
Placas de linha MC3GC60V
Requisitos
Uma conta de login com Cisco.com
Acesso ao portal de licenças da Cisco https://slexui.cloudapps.cisco.com/SWIFT/LicensingUI/Quickstart#
Procedimento
A seguir estão as etapas envolvidas na rehospedagem das licenças da placa de origem, no slot 8/1 para a placa de destino, no slot 8/0:
Passo 1: Obtenha a credencial de licença do LC de origem.
Passo 2: Solicitar transferência de licença no portal de licenças.
Passo 3: Revogue a licença no LC de origem.
Passo 4: Obtenha uma nova licença para o LC de destino no portal de licenças.
Passo 5: Instale uma nova licença no LC de destino.
Passo 1: Obter a credencial do dispositivo
Usando os comandos mostrados abaixo, salve a credencial do dispositivo do LC 8/1 no disk0 como "81_cred.txt". Você pode exibir o conteúdo do arquivo usando o comando more seguido pelo nome do arquivo:
ubr10012-1#show license udi SlotID PID SN UDI -------------------------------------------------------------------------------- 7/0 UBR-MC20X20V CAT1441E0L2 UBR-MC20X20V:CAT1441E0L2 7/1 UBR-MC20X20V CAT1441E0KH UBR-MC20X20V:CAT1441E0KH 8/0 UBR-MC3GX60V CAT1616E015 UBR-MC3GX60V:CAT1616E015 8/1 UBR-MC3GX60V CAT1435E0TZ UBR-MC3GX60V:CAT1435E0TZ ubr10012-1#license save credential disk0:81_cred.txt subslot 8/1 Device credential saved ..... to disk0:81_cred.txt ubr10012-1#more disk0:81_cred.txt <?xml version="1.0" encoding="UTF-8"?><CISCO_WT_ARTIFACTS version="1.0"><CISCO_WT_REHOST_ARTIFACT version="1.0"><HEADER><ARTIFACT_TYPE>Device Credentials</ARTIFACT_TYPE><ARTIFACT_VERSION>1.0</ARTIFACT_VERSION><TRANSACTION_ID>T and I trans id</TRANSACTION_ID><UDI><PID>UBR-MC3GX60V</PID><SN>CAT1435E0TZ</SN></UDI><SOURCE>Device</SOURCE><CREATE_DATE>2013-07-04T13:25:25.307Z</CREATE_DATE><ARTIFACT_INFO>T and art info</ARTIFACT_INFO></HEADER><CONTENT><DECIPHER_INFO encoding="BASE64">AAEAAgAOAA4AhQEBgABlBM8UMnw+NZxYfVWqIFuiuq7aqRoKMf06/hOkQuoe706yxkteiCMZrEE5920+SxD6TTEHBqlf9YHxgv6yguQ9hM+JXLaSZRPh5ijSyTfHc0eATvmwtlxEv17kMmIjpxMlZ7/tKd4AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA=</DECIPHER_INFO><CORE_DATA><CIPHER_DATA encoding="BASE64">AAEAAgAPAA8DhAAPABAN/1bTrMxBGdHYqwWuzbUD5rFvGVudf1BuINdnRKipAksB00Vs96Zw5U5tYtxK0nixv11z1UTtvJhxzyK2r+lHG1UcZhn4ZPLIYWcJTMSpQpANPeI6rE324hkaT+NveeQxfdVAp+uGu3/CKesJbfA3x0qyqMcevT2mUfC2aZY2lLbga9mv8dhNlSUTKN0uDGpChaHNw+VKXfLh0Y/rGurwVb63UsRKoIglef5Iw5bDHmZ6y2RiJy+VR7LvBZMZia1AouROg7XiRwFjqGOMsahKrkTF+aMFBNBdHiOgZAyP7QnaiKNwsFHnU0Wky1EzqbCByce6CBrMMWDWLE30z68j/5roX1m2cUHYEJAmGUBmCHreBeEa44SHyQkTKQ1pv2213nhKv4PZ5cL5JIQs6xZMY6mcNj1f0uuUXIKswWrRj7TOGnQJCSB+cP9POuJIz8cQrXopc1P+McA/TdNv9K0usJOnUJZVCc2ZvS2B6XaLdAGssGbL0W3dlqyKpcushbLZ6s1F7h0vuQ4N56pScxO+PiE4VFrz4G1U9JfWgt/G1hF359yNtaBBikxml37A5uwoDT5cMfLpjLJ48kWSi/9qunQ2mvmxxgRIt+tmY3SxQtcx2GgmiPGNVTX8W1hheo1DMRiLNYxmfrMP9vK27rcpsS4fEN2bK0hkaPDfmQDzx+/MsNS/38vSrHWkWRoe9xM0cAybYJgX7jr4hYed0F0g6QD+9Uvm8Ski0UMbMCaAZJHZJcgaC8BGvhZvbnDVPBoHql+8P1tl29YSFCg8GfJ1XHAmTqRB+kxZihVcRmD5eG6o70s2h/kt9oZteqjMVraDEURxFY4SSr7WymlOa0e7WAP0rrCBUnMV18bkNW22Ju5OeytNGHvKz9mjDFeFqMzegHrQJSQeMQD0h+UrRlS9qzpls85FL1sb6J7S1HvGMFdkTq3ITuqcmxMdgukZLP3prfWYc5ZaMtZ256B/ZdGiNowePzbvaFwWUAywQsLYDBrPmT80Bfm4SVekA6ZSyexnkJevGipqW0QOm9ATZqp1m60Lfwl0NpNTBVvv3Izin8M7h4SnAsRq59Kw5E4RgsraIgGyhtbDbEn6l09MegKb/hwErFl054lz4DSfPdWUeiBrGziv9/D9fiK6NZ2/v1vOePYZTRehZlUkOJPleZWi8l7qRKZtBcHLXonc95qO1w==</CIPHER_DATA></CORE_DATA><SIGNATURE_INFO encoding="BASE64">AAEAAgALAAsAVAECAQnwYWA7F1UKowplFYRGINxVEf2ThwAAAAAAAAAAAAAAABImmNxd3wI3ESvX6TCYfl8ffm9kRCY+zaQAc3leY0iCVh5/4qa2t4Ns1iS+icrxrw==</SIGNATURE_INFO></CONTENT></CISCO_WT_REHOST_ARTIFACT></CISCO_WT_ARTIFACTS> ubr10012-1#
Passo 2: Solicitar transferência de licença no portal de licenças
Vá para o site https://slexui.cloudapps.cisco.com/SWIFT/LicensingUI/Quickstart#, selecione o dispositivo em "Dispositivos", clique no ">" azul para selecionar "Rehospedar licença..." e cole a credencial do dispositivo (da saída do comando more como na Etapa 1) para registrar e solicitar uma transferência de licença:
Se o dispositivo não estiver no seu perfil do CCO, clique em "Adicionar dispositivos" e adicione o dispositivo ao seu perfil do CCO.
Após adicionar o dispositivo, você verá a licença associada na página da Web.

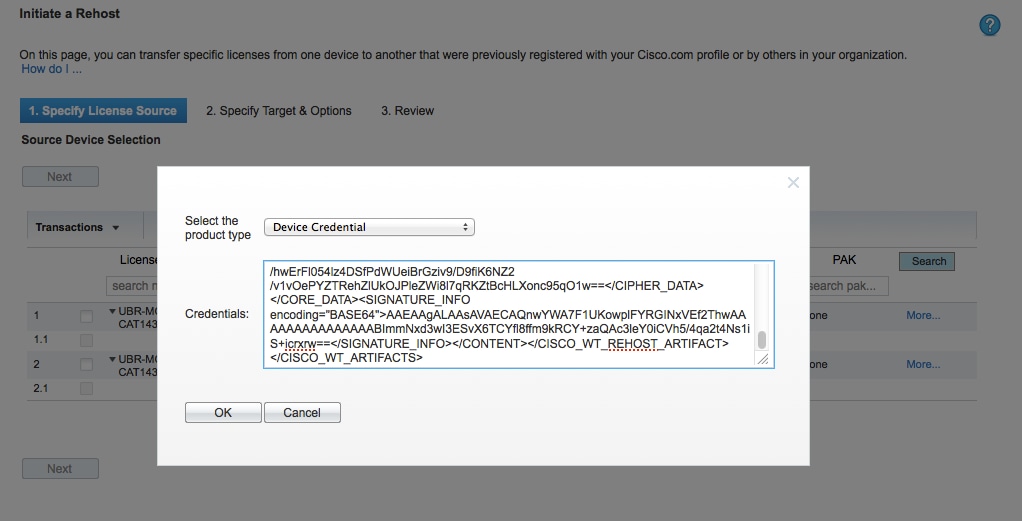

Etapa 2.1 Especificar a origem para transferência de licença
Selecione a licença que deseja transferir:

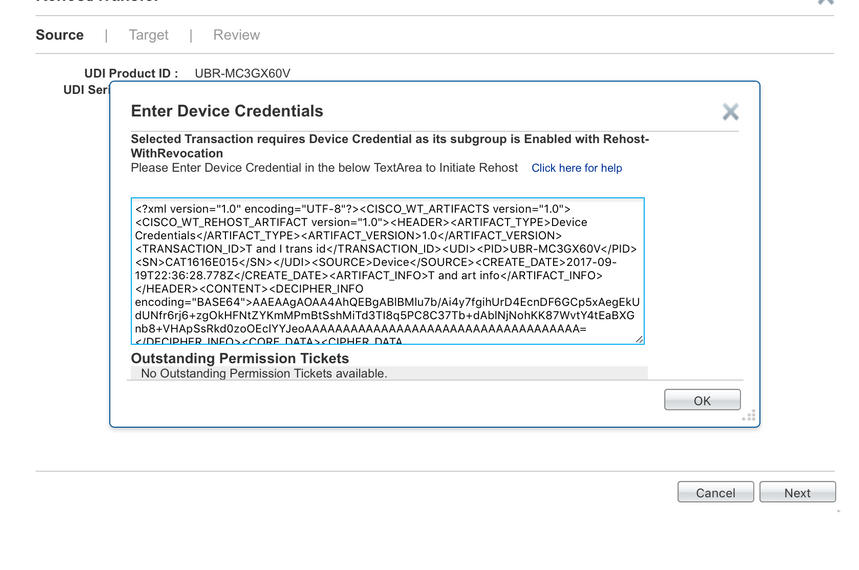

Preencha a caixa de texto com a credencial do dispositivo obtida na Etapa 2.
Clique em "Avançar"
Etapa 2.2 Especificar destino para transferência de licença
No campo "Quantidade a atribuir", preencha as contagens de licenças que deseja transferir da placa de linha de origem.
Neste exemplo, há 72licenças DSX60US para o subslot 8/1. Transferiremos licenças 2DSx2US para o subslot 8/0. Após a transferência, as licenças 70DSx58US permanecerão no subslot 8/1.
Clique em "Avançar"

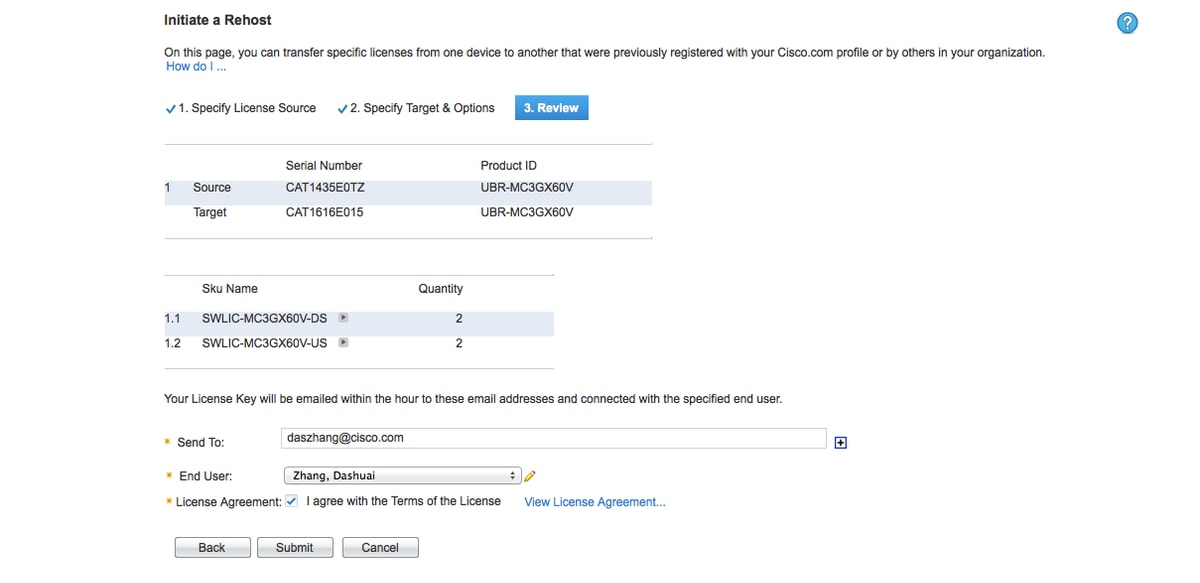

Etapa 2.3 Gerar o tíquete de permissão para transferência de licença
Uma permissão assinalada é emitida depois que você clica no botão "Enviar". Ele é enviado por e-mail para seu endereço de e-mail.
Copie o arquivo de licença do tíquete de permissão, do seu e-mail, para o CMTS usando TFTP ou qualquer outro meio disponível:
ubr10012-1#copy tftp://10.66.94.155/CAT1435E0TZ_20130704171351238.lic disk0: Destination filename [CAT1435E0TZ_20130704171351238.lic]? Accessing tftp://10.66.94.155/CAT1435E0TZ_20130704171351238.lic... Loading CAT1435E0TZ_20130704171351238.lic from 10.66.94.155 (via GigabitEthernet1/1/0): ! [OK - 8872 bytes]
Passo 3: Revogar a licença no LC de origem
Use este ticket de permissão para iniciar o processo de nova hospedagem usando os comandos do Cisco IOS.
Aplique o tíquete de permissões ao dispositivo de origem usando o comando license revoke.
O dispositivo de origem fornece então um ticket de rehost indicando prova de revogação. Uma licença com período de carência de sessenta dias também é instalada no dispositivo para permitir tempo suficiente para transferir as licenças para o dispositivo de destino.
O ticket Rehost será usado para gerar o novo arquivo de licença para o destino.
Caso você perca o ticket de rehost ("disk0:rt" neste caso), você pode repetir o procedimento acima de "revogação de licença" para obter o ticket de rehost.
ubr10012-1#license revoke disk0:CAT1435E0TZ_20130704171351238.lic disk0:rt
Following Permanent license(s) will be revoked from this device
Feature Name: DS_License : Count = 72
Feature Name: US_License : Count = 60
Following Permanent license(s) will be installed on this device
Feature Name: US_License : Count = 58
Feature Name: DS_License : Count = 70
Following Extension license(s) will be installed on this device
Feature Name: US_License : Count = 60
Feature Name: DS_License : Count = 72
PLEASE READ THE FOLLOWING TERMS CAREFULLY. INSTALLING THE LICENSE OR
LICENSE KEY PROVIDED FOR ANY CISCO PRODUCT FEATURE OR USING SUCH
PRODUCT FEATURE CONSTITUTES YOUR FULL ACCEPTANCE OF THE FOLLOWING
TERMS. YOU MUST NOT PROCEED FURTHER IF YOU ARE NOT WILLING TO BE BOUND
BY ALL THE TERMS SET FORTH HEREIN.
You hereby acknowledge and agree that the product feature license
is terminable and that the product feature enabled by such license
may be shut down or terminated by Cisco after expiration of the
applicable term of the license (e.g., 30-day trial period). Cisco
reserves the right to terminate or shut down any such product feature
electronically or by any other means available. While alerts or such
messages may be provided, it is your sole responsibility to monitor
your terminable usage of any product feature enabled by the license
and to ensure that your systems and networks are prepared for the shut
down of the product feature. You acknowledge and agree that Cisco will
not have any liability whatsoever for any damages, including, but not
limited to, direct, indirect, special, or consequential damages related
to any product feature being shutdown or terminated. By clicking the
"accept" button or typing "yes" you are indicating you have read and
agree to be bound by all the terms provided herein.
ACCEPT? (yes/[no]): yes
Rehost ticket saved ..... to disk0:rt
ubr10012-1#show license detail subslot 8/1
Index: 1 Feature: DS_License Version: 1.0
License Type: Evaluation
License State: Active, In Use
Evaluation total period: 8 weeks 4 days
Evaluation period left: 8 weeks 3 days
Expiry date: Sep 02 2013 06:41:34
License Count: 72/72/0 (Active/In-use/Violation)
License Priority: High
Store Index: 3
Store Name: Primary License Storage
Index: 2 Feature: DS_License Version: 1.0
License Type: Permanent
License State: Inactive
License Count: 70/0/0 (Active/In-use/Violation)
License Priority: Medium
Store Index: 1
Store Name: Primary License Storage
Index: 3 Feature: DS_License Version: 1.0
License Type: Evaluation
License State: Inactive
Evaluation total period: 8 weeks 4 days
Evaluation period left: 1 week 2 days
License Count: 72/0/0 (Active/In-use/Violation)
License Priority: Low
Store Index: 1
Store Name: Evaluation License Storage
Index: 4 Feature: US_License Version: 1.0
License Type: Evaluation
License State: Active, In Use
--More-- % RPC failed to slot 17 Evaluation total period: 8 weeks 4 days
Evaluation period left: 8 weeks 3 days
Expiry date: Sep 02 2013 06:46:34
License Count: 60/60/0 (Active/In-use/Violation)
License Priority: High
Store Index: 2
Store Name: Primary License Storage
Index: 5 Feature: US_License Version: 1.0
License Type: Permanent
License State: Inactive
License Count: 58/0/0 (Active/In-use/Violation)
License Priority: Medium
Store Index: 0
Store Name: Primary License Storage
Index: 6 Feature: US_License Version: 1.0
License Type: Evaluation
License State: Inactive
Evaluation total period: 8 weeks 4 days
Evaluation period left: 8 weeks 4 days
License Count: 60/0/0 (Active/In-use/Violation)
License Priority: Low
Store Index: 0
Store Name: Evaluation License Storage
ubr10012-1#
Passo 4: Obter nova licença para o LC de destino no portal de licenças

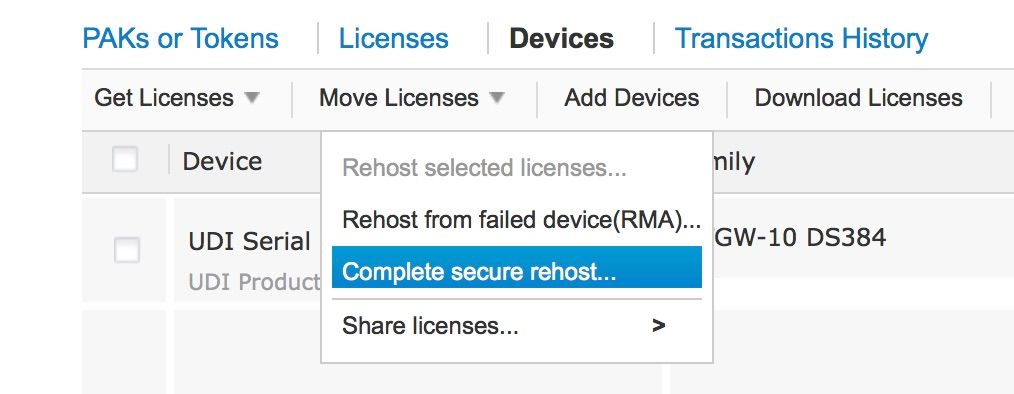

Insira o tíquete de nova hospedagem na ferramenta do portal de transferência de licenças escolhendo "Dispositivos > Mover licenças > Concluir nova hospedagem segura..." juntamente com o UDI do dispositivo de destino. Consulte a imagem abaixo:
Extraia o texto do Tíquete de hospedagem novamente:
ubr10012-1#more disk0:rt <?xml version="1.0" encoding="UTF-8"?><CISCO_WT_ARTIFACTS version="1.0"><CISCO_WT_REHOST_ARTIFACT version="1.0"><HEADER><ARTIFACT_TYPE>Rehost Artifact</ARTIFACT_TYPE><ARTIFACT_VERSION>1.0</ARTIFACT_VERSION><TRANSACTION_ID>00DD93AAAC</TRANSACTION_ID><UDI><PID>UBR-MC3GX60V</PID><SN>CAT1435E0TZ</SN></UDI><SOURCE>Device</SOURCE><CREATE_DATE>2013-07-04T13:41:34.151Z</CREATE_DATE><CISCO_REHOST_CHANGES><CISCO_REHOST_ADD><CISCO_WT_LICENSE version="1.0"><FEATURE_NAME>US_License</FEATURE_NAME><FEATURE_VERSION>1.0</FEATURE_VERSION><UDI><PID>UBR-MC3GX60V</PID><SN>CAT1435E0TZ</SN></UDI><SOURCE>Cisco HQ</SOURCE><CREATE_DATE>2013-07-05T00:13:44.000Z</CREATE_DATE><LICENSE_LINE_HASH hashAlgo="SHA1">v/mLxNULGRGMRuR/vu09b2IRd2w=</LICENSE_LINE_HASH><TYPE>EXTENSION</TYPE><EXPIRATION><DAYS>60</DAYS></EXPIRATION><EULA>YES</EULA><COUNT>60</COUNT></CISCO_WT_LICENSE></CISCO_REHOST_ADD><CISCO_REHOST_ADD><CISCO_WT_LICENSE version="1.0"><FEATURE_NAME>DS_License</FEATURE_NAME><FEATURE_VERSION>1.0</FEATURE_VERSION><UDI><PID>UBR-MC3GX60V</PID><SN>CAT1435E0TZ</SN></UDI><SOURCE>Cisco HQ</SOURCE><CREATE_DATE>2013-07-05T00:13:44.000Z</CREATE_DATE><LICENSE_LINE_HASH hashAlgo="SHA1">vXiItxKb5jUhxKsJvOsdobszcyg=</LICENSE_LINE_HASH><TYPE>EXTENSION</TYPE><EXPIRATION><DAYS>60</DAYS></EXPIRATION><EULA>YES</EULA><COUNT>72</COUNT></CISCO_WT_LICENSE></CISCO_REHOST_ADD><CISCO_REHOST_REMOVE><CISCO_WT_LICENSE version="1.0"><FEATURE_NAME>DS_License</FEATURE_NAME><FEATURE_VERSION>1.0</FEATURE_VERSION><UDI><PID>UBR-MC3GX60V</PID><SN>CAT1435E0TZ</SN></UDI><SOURCE>Cisco HQ</SOURCE><CREATE_DATE>2010-11-25T07:51:48.000Z</CREATE_DATE><LICENSE_LINE_HASH hashAlgo="SHA1">GG9Lxrd1VJd0ihBN8FxbiV+y4f0=</LICENSE_LINE_HASH><TYPE>PERMANENT</TYPE><COUNT>72</COUNT></CISCO_WT_LICENSE></CISCO_REHOST_REMOVE><CISCO_REHOST_REMOVE><CISCO_WT_LICENSE version="1.0"><FEATURE_NAME>US_License</FEATURE_NAME><FEATURE_VERSION>1.0</FEATURE_VERSION><UDI><PID>UBR-MC3GX60V</PID><SN>CAT1435E0TZ</SN></UDI><SOURCE>Cisco HQ</SOURCE><CREATE_DATE>2010-11-25T07:52:01.000Z</CREATE_DATE><LICENSE_LINE_HASH hashAlgo="SHA1">djuYPaGEO/YcP/jdZdLBIbpERW8=</LICENSE_LINE_HASH><TYPE>PERMANENT</TYPE><COUNT>60</COUNT></CISCO_WT_LICENSE></CISCO_REHOST_REMOVE><CISCO_REHOST_ADD><CISCO_WT_LICENSE version="1.0"><FEATURE_NAME>US_License</FEATURE_NAME><FEATURE_VERSION>1.0</FEATURE_VERSION><UDI><PID>UBR-MC3GX60V</PID><SN>CAT1435E0TZ</SN></UDI><SOURCE>Cisco HQ</SOURCE><CREATE_DATE>2013-07-05T00:13:44.000Z</CREATE_DATE><LICENSE_LINE_HASH hashAlgo="SHA1">Z16GLxkzY5soZX+lff80dXUd70Q=</LICENSE_LINE_HASH><TYPE>PERMANENT</TYPE><COUNT>58</COUNT></CISCO_WT_LICENSE></CISCO_REHOST_ADD><CISCO_REHOST_ADD><CISCO_WT_LICENSE version="1.0"><FEATURE_NAME>DS_License</FEATURE_NAME><FEATURE_VERSION>1.0</FEATURE_VERSION><UDI><PID>UBR-MC3GX60V</PID><SN>CAT1435E0TZ</SN></UDI><SOURCE>Cisco HQ</SOURCE><CREATE_DATE>2013-07-05T00:13:44.000Z</CREATE_DATE><LICENSE_LINE_HASH hashAlgo="SHA1">/6XdchgOaVgYv9HFcDUtsuzqMDY=</LICENSE_LINE_HASH><TYPE>PERMANENT</TYPE><COUNT>70</COUNT></CISCO_WT_LICENSE></CISCO_REHOST_ADD></CISCO_REHOST_CHANGES></HEADER><CONTENT><DECIPHER_INFO encoding="BASE64">AAEAAgAOAA4AhQEBgABlBMh/Q5r7IwMdRBaS/JAFyDQEKGwQkgLtRFWfDza1cKxv3eZF/WVGvcBUbCWkYMB5ULk/RAA0BkVdecbCoHbpE2LNaTVbI1zBAkW/B6iPNqIwIbGzfUTNsFkV3hKtVPBayWiG4boAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA=</DECIPHER_INFO><CORE_DATA><CIPHER_DATA encoding="BASE64">AAEAAgAPAA8RtAAPABAanu6WFsp4fjmEfsILXTPN3nG/7QCtE2Saa+L9N3qAiqCF5QT1orKYqN8NTkBZnYdSoDsOO3+n0Ek9c5kzTzxnbtK2Qw+qtbtAgS4L5ZwgM1WC5v8+muTuyAFEfMglgXuG6rsoosn+7vkvaf02Au2I+wLvxgTl9BYYVMxrZixyk+aZYWL32z6GHF2P013xXLQk+nPovyB9Hy7/o8xBaVDZ+zYb2hUIB8osfvyqtyJP0S4u9V4UWr22z2Vx1s+GBw528i/tf3xB1+c3DtAWQfcAaPk5WPuB+KEYbJvhs/uSXqxWaQpDKxvQow5Im5+js4od5/WhtkOcq+OBLEXDGG7euBR+raazeP+7ULUN+zSY5yCNOe0wfJvlC4n/bQaAAX8a38+KzKndJL8cI7LkyUgNxv1KUgcaQYjaDstiWxanQ7ok87eVNMCTSck2GqUxfOw4n1KWYDTW6ZOA3LzXwF+9uJZNzSTifbFrwE5rlsylnPGbtlD0AmHpfKPAzTuXadjrJoMLNWc+w52TK25dHhrRqWn4Pcfwj5ceOhovPa6+XtsiTP+x/63xRf+OBi5iihoCBAUm+mhn6xy2uhHDIiPKlAeY/no7E6Cyh7QS9gP9wfFYgBYJVq7n7qmGJGctdDZkTl9Q34RUDycvvrtrQnyf3nbOL3Nox5PxY7zOmxP2LldJ7A3+EsXFE06aw/c4Y9GgbB1g1Gfb6IAm9/HZwZh4fYWWvCLoZDLl1CiBTVWLfWIGX49WTZqp9A//EMyOxCmEBbPEBIyifID19fRvJEcVK8q39MsDY+VlR/li12idGJFtiU1hlUQnoPYRIpfpdSo4P5T+QxT6GIBSstXy55D1WLtEalcw18o9h6XLlnUySTMZBMiHMH1MzevOgKRTaXJFmlHbTKiUl1NboVDbUKclc0PPEyelY9XX19Z0LlTYNazAe4wbnxoUDbsQ99WuxYpPr8TCrD+ab8vKX3DUFxu+pyznPVzcymLTlkw2ZtsFZk4VjqU3xHBaZhhz2RbdQckwlnkBB9+9e4eZ6wVOC29pVZBrBA8mh6Bt7H3dwj1LJNMpdegeZTgnr7+dHbATppbVeFfZeO6wJ1jmM/EzRs/7/1mA01uXUd6WUSjsyzUTIeYFtMVwfb1un9uyMzoSzQbCerCz3vHQdi/dy8iQbXwGyjPKhjHbhBjiKN6+p1UXHzRGvr0rO9v/kIdTLnfkBFgXPOoCRiIUMbUZ/ULimzibTf0PfqwQ98r42dQwXgN4UPybKoR6/pQcPX287GVsB/5zpIvWR9544B+1Dvo+cCeuVA/60WJ3UFvqoCA9YNM6b+B6A4mZvBT78S+j+r+pRNfMBZhnyD9OyOOpY5JocOEJFkdMSvDT78G+acfeqzRm76Ny4N4YbKVI4kUAO6PS0fqRsvK1hHUAu00yluVnqaD3OX/SH8C97HCN1hmXUydZ9ZfabAq49jairvba7fLHyHFY56RaQUhjCK08v70CXyy+3zVWF9Ce6YmAAjeTqVIe4Q6hZqXQbvLOUbL+YHoSVaUIfQ3LaJDi9phIrDlfpL9bYaCDDDCgarbj8Xh/CT+6qit1bXikoVSMlJ/xHDEP9FFbL9oQQq0U9OI4J6Hqcn/f0SD4wjiS86Rz6+EE6kNNg0OFhVxQZQszFABsHy6PFXF4sH2lr333ILEiAxLypwUiANfkTUulf94rpdMKubQbPtjah1BnS1tCka3ANk5XOmDcmJ379K1l9zHs+s4B+I6/Dbb4kvZKUA++UPyzu/AxhlXOXGodRI419lvjtD+rr3/kIJo0FxK3b1sx5qIdxgNszmAG3ijUIxcMQmEnsJ7+/1zV7GCGfM9OO2E9BFqCVLzat0MKRKPU2aWM+LpOXvr9ybWjn0Y4hIDR/3tnAYFo85ZAHtDOOdyEHMaqx38fZuFHQ0vGKA+XZzhZy2qDG1SsAzN39VlDsDThkbgm5hM9seUhULvWin9QEsFzpebI6ENWIEz8vhlYwtfJZ5v/8KeBYdSeTvYr9lrO+02zSNfdrMmguldGl04ZQ6O358AnR7EBtN57WAYCrNJswyFySKSKQtHiZhKVLMXiboXdWjCvquT8sLjk6OiRtPtoboTRVHNCDBTardMonhHiy5ZY6DIKhg7DN/1noOAPwNY8K4BZHtPyzb3P9BGg+tAiytTzm0ulz/ktAweled7IU311RvS7wR3Wvxh7WTwiQG8e4fj+FiOTz90XBnBabl+7V53KHbcgXRC4w3wJmH8O4Gwe2UDVuyaRFE6uSbeZvf3FQitViC03h/gnGcvWtV6ghsOzwm7spxz2VNORK1KZRN+FmDPrTPBJeu6YN+VAFXVc27fJ/l0phJiRdomUW/VJgGYGXZxC0wAZOm9Mdht4W/nSsupcZQROiOB4EPP06jnj6IJ5iNOwSqjGDfQ0rIz9wTe06qvI33uunyq/jih8+g7qqwpzXncc7OgQ2hAO2Kynp4GjX5aUALbxsOOdiMjT2JUAH2aMoi7ZAqE9izK8wyYpEZwDsD1GALfIedJEfQvUDFFewZDxEA4+JxhHT0ybuKj8KCZKMTojhIOG6UgMUyR0rwlO/YAC3RSjVDCYieW2MpirnFJDS5TbQ6ua8YbVPjdJn+b4wTfsl29fV/mSPj3mZQCsF9k7M+72Jy2b29Bqz/G0ZJB6+7+hXQRYVzB8XciS9bnPBwMt3JSKugotK65dqUTVoE9c+kPkmZ/hAUkST6FukqiZRE4mJYmgbJJyXMYcHJkv5HrUaJ8xfeB8+gJT4OgbhaV2X6W2Yl22vVeV+epGPxU8VzBdQcltDoE6TU5YPqV8Pb7J/Z7KHF+QkcC1q91ZKCV7ob9H4xvuBKsSGHs0HkI3/gzgrkM8fvaxWDC3RJK7C1iqd84Y17DxToCSmaFWymKaoRvK+iYxs1E6k4FdKrVobLvDiM+jZTcfuWBD389nBuGmiDfVwIf5/DPuTJpXbppPrCjCZZwwUJF1K+ZjNjoO9HLonYOmtP49T45+0uFBfd8w63rgTtx39N3itEJkEievSRhkyB4ziL/gl6oB9ssb/OYEMJoc+BIjuxLExyIonl4qN/x1B2Vm7AcfH6uOagaT/qTm+xsEe5OZDivuv4cr2zKdbQUiVXky1kbfZGJDcOR41kh2eOeWYMKbHI9UipZ3mEgknBm+ZE6AUwYlRbZP3JrxUfNoXI73zIkCVZidzBYPVeKcBHxTRWnbXXqxz4kKn0TOigchADyhOgfsElsgWDCtRBreXHP3qT5syFSA7pydhTspK3BLMiWSuRZw9uH0bMJF8LURvnJD4hI1D1hLmFP4TDOv5bo2MjCgQmUSKaMfBu1XdB/OVawWrmdqXU/W4JIQUt96JNICl4BIZXtM2e8zWAziw4g83F8ND7v3fIFrvaReQL7K7Q+pZn7BbIpNG6A5pMSJ79zChz+Da8JxZ5hxPhxjzt+SpXZ3Tz0SLP49B6WL6dtiOcbIh854ekEDQRHzwtDUMMtaYfdIBsureERzmUDLXHT73V/+PIFMEkxwv6dDsr81qbsOyMT47DcCrcJwEvxxWDs2Px3OyuzA79FepslvmKOudhm8Ik4zXujfbDNdF00uV/P0OlEQASUiuTpllm/l/YQ/3fdOnxtm823/n+FXksa4GX0ji+9qr7GmsEDo/sxPql0p4Ha+epmoYmiTKAJW7i9r+XLMTdpMXKriVgKIx6qydBC5TGcKomeaAKVULkvHvCF80l/NyUdaSVg2cMCm7wWWarOrwHcjF7Wy/KccbXOcgirYjgzXlU2REza+RRln+xy802IQDDaNbk7ED6W1Dy9MKPknJc6vTJ+kf1bap0ag+CmOGdGesgWJVRIMEk7UBJagChpP+eLPTmk6s7du9WLmVegBRMqIttqHhVOdZTo0lJQ1HGZFdvrGndd0V4kqDB0p28C0Y+JCi/V09waVfWHXsowL0hFXerFRYNnRvToXIdxUg3uwKgVsl7QIkDWz3cKDbOCbbzR0Vl/YdewkOBWYbqxZ6dIeGCKmYnXk2KJhkxz1QkkEw5JLvpYIPcR70iLVWr/nEH+CtWCG0fRiWVRPDfuCXU2Hrmq7hBv2c9+Fi6V2TmWXWHxrMBS3CflzTo06VlbLOPt1G75b76D/ntzaCbco30/UtGkRvOZhj3pwUd/oj4exSQ9SJrpasHlYmGL9nAVzOMOoI3p34LOyL3Y165zEEDuGQcsVd0ESxHf+81+7Pws9Y6+p5V70+vi10Jp4ia0BOgtdb2gic/gpxeKqCIyK6qaRwj6kIJRoFuaoVbxBiZlU4Xmb818bBMm/zQDonWOZFHvjtYukuqKdnbf20o2CY+Sf6HV3IMcrTTOMLL9xdeJbHZjHC7Y/PU7w4JOT6boDHFHv5Yq2je90Dn5HzU/3wrXpvxmLwbixVSDhphcdCEvKE8zUZuM0YHnn5uGn0YECiiQX4r2i7dBy7elocqeMFeMQLVoOSOjt0tZgO/Is/J8hXHJv8xkRCszVUYJBTRDb22vmpv5rbR805KQ8sBfxvILHbXQaj8Clu9Th6nRKbcEqGsDR1BQ941m4/aMyZe891tqe1luuJuIs7qXfO0GKTB1+SliWW0kjzI5z8vRObFTNGzifO/7qRCjad2+xf3dyR4zswJ28GZcUee1ni3DWX/devKhPi4F1a+fTv1EquDrkrYZdTAAxvGBjjqWPZCkK/32X1GTlWcBv9xNqSHY31IVMEO2FFWg1K/519RK5WAvB0Oa0oii7QYXiUQ3S5Znp2YUVrYe7jGql2zhixzorOD9W1DzGrVLjPfmW1aQ/hhv3SnCLrJ/Z45FLYJzWk6lQDGRan21d6MYnUgzwx033+Zx4Kl59WgoGapGEfoQn56eolqE5ehaPCCWXO9pJt1gTjitRR8e47iEX/fZ7rkYUfWxqBlBYyGP14WTMv1Q7N3VqyT6UIYj2Y028/SCUDKlhhKqpRiwvJo3Hnb3jIokILNZNefu5tjFpU5quPV6Y2C1e1LfgUoHUIHTW/aP5Xlsbiu3uL1/QpmmFPmFeJjJ3axOAYVo0s7pRmIWRo9EvVyb7LFEElHnZoSyR2jIV1vx0wCCwB/tLPDDi9twcOERdoMM+WFPCAZZEeBI7LfzZYT6DjCmGbdg2C2wdoVNqENIT2P61nVzQIjTEJflKtV7rVWHBaS9CesJxlX1nc1mJU6+lgFm9+a8QhEQvYx/4U4B54EYiXH2P3dxNhQbzemdROIluMjM3mF0ZK9zbWnPTuEN87JTrQ1+UWxXHKsA/zPGROGjmCdYqIDeVm76HUDkgM7oQ0c4qD88LNKzc0UbkzbwJwTp9xymmawjX9AnUe3hOQR1WVNLm9D6p4db5JSasUwBuxbB8obn/YLwB1FiO3bVO/tWSEdy/BWG9w6N2NcX4P+I1mmVk9tOYOQv74lVbuC9YuFbNyOzaFWY6qtexCOdtmNbvuFIPCYznUbAYWeHzUbgwzAblEtW6LPwKYpElkRsorXWL4p72NDK49w5kfBsYGwRd5C+/iJvzF9nnh5mBd5bg5lZTdiNB/aLd1M7QnkzAKI+42h1wWqBR/nmTfON9cPQY4U8VepkliI2BHoZMW5IeQaRh1D1n0EpIa7hp/yloHln1eRJaBxo2NzCY8bQN61KVfXM+3/XC8D/M8bYn4zybUf3NmbQy+ES7p/AWrBwhdEhc3biHpKm0TdAdJa1kzaH8rOadqsenLWuWXVnHzIWgWbuuUca5hTWfeAz0CuJAZDme+ETTSIhYCfBIzcoMuKfrJvqMdRRLId6w/1LYCCuAogxNTXzDYqjd79ujJnR/n5Mn/D7jOZtWd+5POtDC7g1lqh64zok+hKfropP2fuzU9wUkZqahjMG7/A5/IVGhn7y5k6MLx5IZDyRkkxAzYv0lhoGEojIpmdOwkymZVml2kLHQoRmmEE+y0TMwu74YyDapxCqguA3MckE6i/PGtpIW9+JhKTwA8tgMr7IrvlSsdLIIiO2UVpa0aadEbnAtZP3y2i9YHCTbuJ8kuBlw8t4mJMYe/ayR8EOw1+9O</CIPHER_DATA></CORE_DATA><SIGNATURE_INFO encoding="BASE64">AAEAAgALAAsAVAECAQlAYiZn2ol/b/XEYyF368laOv/kIQAAAAAAAAAAAAAAAE/cnMwLdddnDg807KZDqj7n5UvftxqDacwxmHnecgM3yfHlctTmyWC0lCdm9Mtt8g==</SIGNATURE_INFO></CONTENT></CISCO_WT_REHOST_ARTIFACT></CISCO_WT_ARTIFACTS> ubr10012-1#

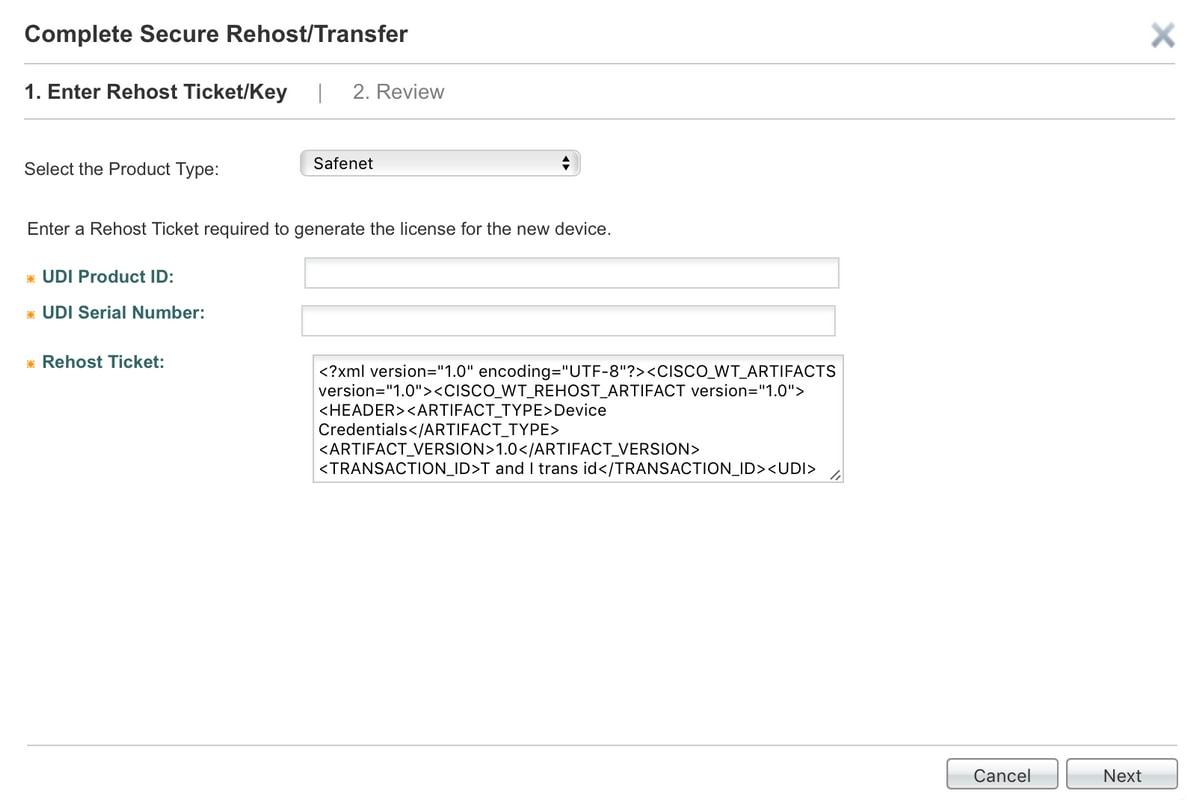

Passo 4.1: Inserir informações de nova hospedagem
Tipo de produto: "Safenet"
ID do produto UDI: <PID de destino>
Número de série UDI: <NS de Destino>
No campo "Tíquete de Rehospedagem", insira o texto extraído do Tíquete de Rehospedagem conforme descrito acima.
Em seguida, clique em "Avançar"
Passo 4.2: Gerar arquivo de licença para LC de destino
Clique em "Obter licença". Você receberá um arquivo de licença por email.
Passo 5: Instale uma nova licença no LC de destino.
Passo 5.1: copiar arquivo de licença para CMTS
Copie o arquivo de licença do seu e-mail para um servidor TFTP acessível no uBR10K.
Copie o arquivo de licença para uBR10K do servidor TFTP.
ubr10012-1#copy tftp://10.66.94.155/CAT1616E015_20130704172627009.lic disk0: Destination filename [CAT1616E015_20130704172627009.lic]? Accessing tftp://10.66.94.155/CAT1616E015_20130704172627009.lic... Loading CAT1616E015_20130704172627009.lic from 10.66.94.155 (via GigabitEthernet1/1/0): ! [OK - 2237 bytes] 2237 bytes copied in 0.556 secs (4023 bytes/sec) ubr10012-1#
Passo 5.2: Verifique o status da licença atual antes de instalar a nova licença no LC de destino
Verifique o status da licença atual no subslot 8/0 antes de aplicar o novo arquivo de licença:
ubr10012-1#show license detail subslot 8/0
Index: 1 Feature: DS_License Version: 1.0
License Type: Permanent
License State: Active, In Use
License Count: 60/60/0 (Active/In-use/Violation)
License Priority: Medium
Store Index: 0
Store Name: Primary License Storage
Index: 2 Feature: DS_License Version: 1.0
License Type: Evaluation
License State: Inactive
Evaluation total period: 8 weeks 4 days
Evaluation period left: 8 weeks 4 days
License Count: 72/0/0 (Active/In-use/Violation)
License Priority: None
Store Index: 1
Store Name: Evaluation License Storage
Index: 3 Feature: US_License Version: 1.0
License Type: Permanent
License State: Active, In Use
License Count: 16/16/0 (Active/In-use/Violation)
License Priority: Medium
Store Index: 1
Store Name: Primary License Storage
Index: 4 Feature: US_License Version: 1.0
License Type: Evaluation
License State: Inactive
Evaluation total period: 8 weeks 4 days
Evaluation period left: 8 weeks 4 days
License Count: 60/0/0 (Active/In-use/Violation)
License Priority: None
Store Index: 0
Store Name: Evaluation License Storage
ubr10012-1#
Passo 5.3: Instalar nova licença no LC de destino
Instalar a nova licença:
ubr10012-1#license install disk0:CAT1616E015_20130704172627009.lic Installing licenses from "disk0:CAT1616E015_20130704172627009.lic" Installing...Feature:US_License...Successful:Supported Installing...Feature:DS_License...Successful:Supported 2/2 licenses were successfully installed 0/2 licenses were existing licenses 0/2 licenses were failed to install
Passo 5.4: Verificar o status da licença após a instalação
Execute o comando show license detail para 8/0 depois de instalar a licença 2x2 hospedada novamente. A contagem muda para 62/18:
ubr10012-1#show license detail subslot 8/0
Index: 1 Feature: DS_License Version: 1.0
License Type: Permanent
License State: Active, In Use
License Count: 62/62/0 (Active/In-use/Violation)
License Priority: Medium
Store Index: 3
Store Name: Primary License Storage
Index: 2 Feature: DS_License Version: 1.0
License Type: Permanent
License State: Inactive
License Count: 60/0/0 (Active/In-use/Violation)
License Priority: Medium
Store Index: 0
Store Name: Primary License Storage
Index: 3 Feature: DS_License Version: 1.0
License Type: Evaluation
License State: Inactive
Evaluation total period: 8 weeks 4 days
Evaluation period left: 8 weeks 4 days
License Count: 72/0/0 (Active/In-use/Violation)
License Priority: None
Store Index: 1
Store Name: Evaluation License Storage
Index: 4 Feature: US_License Version: 1.0
License Type: Permanent
License State: Active, In Use
License Count: 18/18/0 (Active/In-use/Violation)
License Priority: Medium
Store Index: 2
Store Name: Primary License Storage
Index: 5 Feature: US_License Version: 1.0
License Type: Permanent
License State: Inactive
License Count: 16/0/0 (Active/In-use/Violation)
License Priority: Medium
Store Index: 1
Store Name: Primary License Storage
Index: 6 Feature: US_License Version: 1.0
License Type: Evaluation
License State: Inactive
Evaluation total period: 8 weeks 4 days
Evaluation period left: 8 weeks 4 days
License Count: 60/0/0 (Active/In-use/Violation)
License Priority: None
Store Index: 0
Store Name: Evaluation License Storage
ubr10012-1#
