IOS XE リリース 16.10.1 以降では、IR1101 はブート レベルのライセンスである Network-Essentials と Network-Advantage をサポートしています。これらのライセンスはどちらも universalk9
および universalk9_npe イメージで使用できます。リリース 16.10.1 以降では、Network-Advantage は Network-Essentials のスーパーセットであるため、ライセンスは相互に排他的であり、Network
Essentials はデフォルトのライセンスレベルになります。ライセンス消費とブート レベルの設定を表示すると、Network-Essentials または Network-Advantage のいずれかとなり、両方が同時に表示されることはありません。
IR1101 のライセンスについて考慮すべき重要な点が 2 つあります。
write erase を実行した場合、またはリセット ボタンを使用した場合は、ライセンスを追加する必要があります。IR1101#config term

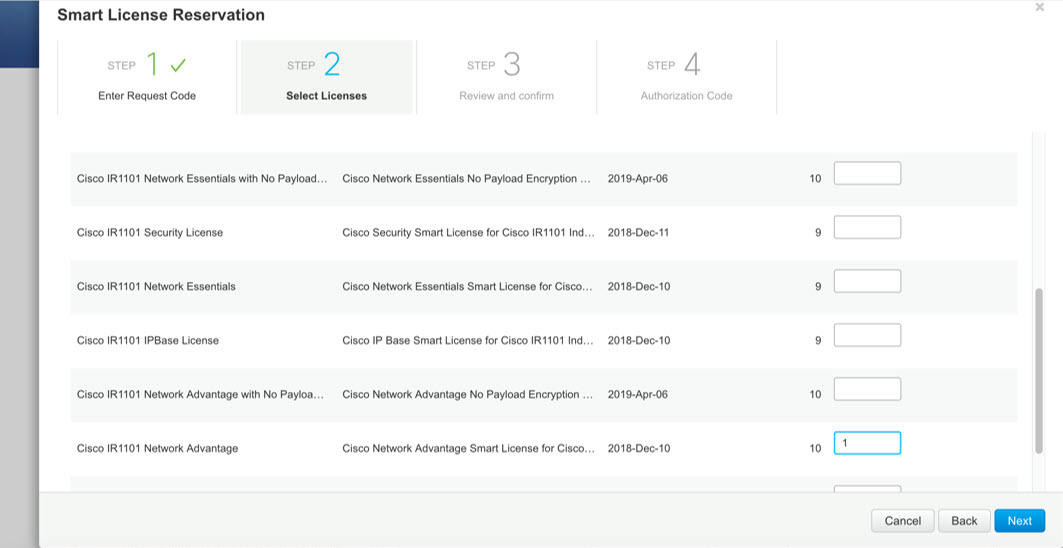

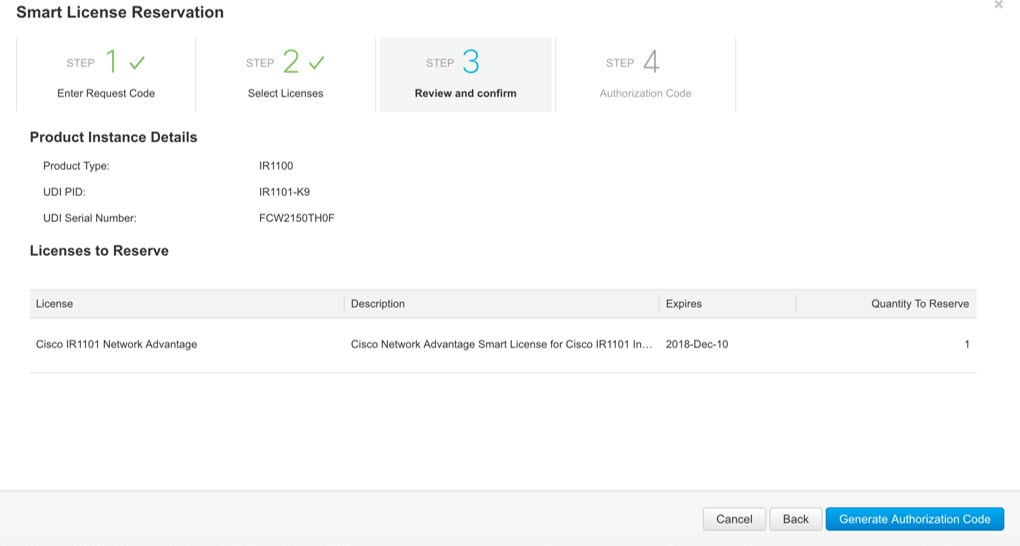

IR1101#license smart reservation
factory reset all を実行すると、ライセンスが消去され、スマート アカウントから認証ファイルを取得しない限りライセンスを回復する方法はありません。
以下はさまざまなライセンスの例を示しています。
IR1101#show license summary
Smart Licensing is ENABLED
License Reservation is ENABLED
Registration:
Status: REGISTERED - SPECIFIC LICENSE RESERVATION
Export-Controlled Functionality: Allowed
License Authorization:
Status: AUTHORIZED - RESERVED
License Usage:
License Entitlement tag Count Status
-----------------------------------------------------------------------------
Cisco IR1101 Network... (IR1101_Network_Advantage) 1 AUTHORIZED
IR1101# show license status
Smart Licensing is ENABLED
Utility:
Status: DISABLED
License Reservation is ENABLED
Data Privacy:
Sending Hostname: yes
Callhome hostname privacy: DISABLED
Smart Licensing hostname privacy: DISABLED
Version privacy: DISABLED
Transport:
Type: Callhome
Registration:
Status: REGISTERED - SPECIFIC LICENSE RESERVATION
Export-Controlled Functionality: Allowed
Initial Registration: SUCCEEDED on Nov 07 02:04:55 2018 UTC
License Authorization:
Status: AUTHORIZED - RESERVED on Nov 07 02:04:55 2018 UTC
Export Authorization Key:
Last return status: SUCCEEDED on Nov 07 02:04:55 2018 UTC
Features Authorized:
none
#
IR1101# show license all
Smart Licensing Status
======================
Smart Licensing is ENABLED
License Reservation is ENABLED
Registration:
Status: REGISTERED - SPECIFIC LICENSE RESERVATION
Export-Controlled Functionality: Allowed
Initial Registration: SUCCEEDED on Nov 07 02:04:55 2018 UTC
License Authorization:
Status: AUTHORIZED - RESERVED on Nov 07 02:04:55 2018 UTC
Export Authorization Key:
Last return status: SUCCEEDED on Nov 07 02:04:55 2018 UTC
Features Authorized:
none
Utility:
Status: DISABLED
Data Privacy:
Sending Hostname: yes
Callhome hostname privacy: DISABLED
Smart Licensing hostname privacy: DISABLED
Version privacy: DISABLED
Transport:
Type: Callhome
License Usage
==============
Cisco IR1101 Network Advantage (IR1101_Network_Advantage):
Description: Cisco Network Advantage Smart License for Cisco IR1101
Industrial Integrated Services Router
Count: 1
Version: 1.0
Status: AUTHORIZED
Export status: NOT RESTRICTED
Reservation:
Reservation status: SPECIFIC INSTALLED
Total reserved count: 1
Product Information
===================
UDI: PID:IR1101-K9,SN:FCW2150TH0F
Agent Version
=============
Smart Agent for Licensing: 4.5.5_rel/56
Component Versions: SA:(1_3_dev)1.0.15, SI:(dev22)1.2.1, CH:(rel5)1.0.3, PK:(dev18)1.0.3
Reservation Info
================
License reservation: ENABLED
Overall status:
Active: PID:IR1101-K9,SN:FCW2150TH0F
Reservation status: SPECIFIC INSTALLED on Nov 07 02:04:55 2018 UTC
Export-Controlled Functionality: Allowed
Last Confirmation code: 9765d8c5
Specified license reservations:
Cisco IR1101 Network Advantage (IR1101_Network_Advantage):
Description: Cisco Network Advantage Smart License for Cisco IR1101 Industrial Integrated Services Router
Total reserved count: 1
Term information:
Active: PID:IR1101-K9,SN:FCW2150TH0F
License type: TERM
Start Date: 2018-JUN-13 UTC
End Date: 2018-DEC-10 UTC
Term Count: 1
IR1101# show license tech support
Smart Licensing Tech Support info
Smart Licensing Status
======================
Smart Licensing is ENABLED
License Reservation is ENABLED
Registration:
Status: REGISTERED - SPECIFIC LICENSE RESERVATION
Export-Controlled Functionality: Allowed
Initial Registration: SUCCEEDED on Nov 07 02:04:55 2018 UTC
License Authorization:
Status: AUTHORIZED - RESERVED on Nov 07 02:04:55 2018 UTC
Export Authorization Key:
Last return status: SUCCEEDED on Nov 07 02:04:55 2018 UTC
Features Authorized:
<none>
Utility:
Status: DISABLED
Data Privacy:
Sending Hostname: yes
Callhome hostname privacy: DISABLED
Smart Licensing hostname privacy: DISABLED
Version privacy: DISABLED
Transport:
Type: Callhome
Evaluation Period:
Evaluation Mode: EXPIRED
Evaluation Period Remaining: Expired on Nov 05 08:27:16 2018 UTC
License Usage
=============
Handle: 1
License: Cisco IR1101 Network Advantage
Entitlement tag: regid.2018-04.com.cisco.IR1101_Network_Advantage,1.0_d2087fd8-364a-4ef3-bbaf-66111de3684b
Description: Cisco Network Advantage Smart License for Cisco IR1101
Industrial Integrated Services Router
Count: 1
Version: 1.0
Status: AUTHORIZED(3)
Status time: Nov 07 02:04:55 2018 UTC
Request Time: Nov 06 23:22:13 2018 UTC
Export status: NOT RESTRICTED
Product Information
===================
UDI: PID:IR1101-K9,SN:FCW2150TH0F
Agent Version
=============
Smart Agent for Licensing: 4.5.5_rel/56
Component Versions: SA:(1_3_dev)1.0.15, SI:(dev22)1.2.1, CH:(rel5)1.0.3, PK:(dev18)1.0.3
Upcoming Scheduled Jobs
=======================
Current time: Nov 07 02:10:15 2018 UTC
Daily: Nov 07 23:22:16 2018 UTC (21 hours, 12 minutes, 1 seconds remaining)
Init Flag Check: Not Available
Reservation request in progress warning: Not Available
Reservation configuration mismatch between nodes in HA mode: Nov 14 02:05:24 2018 UTC (6 days, 23 hours, 55 minutes, 9 seconds remaining)
License Certificates
====================
Production Cert: True
Not registered. No certificates installed
HA Info
==========
RP Role: Active
Chassis Role: Active
Behavior Role: Active
RMF: True
CF: True
CF State: Stateless
Message Flow Allowed: True
Reservation Info
================
License reservation: ENABLED
Overall status:
Active: PID:IR1101-K9,SN:FCW2150TH0F
Reservation status: SPECIFIC INSTALLED on Nov 07 02:04:55 2018 UTC
Export-Controlled Functionality: Allowed
Request code: <none>
Last return code: <none>
Last Confirmation code: 9765d8c5
Reservation authorization code: <specificPLR><authorizationCode><flag>A</flag><version>C</version><piid>928ad52c-2904-4446-8b10-7b468137c1c9</piid><timestamp>1541555965591</timestamp><entitlements><entitlement><tag>regid.2018-04.com.cisco.IR1101_Network_Advantage,1.0_d2087fd8-364a-4ef3-bbaf-66111de3684b</tag><count>1</count><startDate>2018-JUN-13 UTC</startDate><endDate>2018-DEC-10 UTC</endDate><licenseType>TERM</licenseType><displayName>Cisco IR1101 Network Advantage</displayName><tagDescription>Cisco Network Advantage Smart License for Cisco IR1101 Industrial Integrated Services Router</tagDescription><subscriptionID></subscriptionID></entitlement></entitlements></authorizationCode><signature>MEUCIE6tu5Fwxp8NajD4FxDiY6sODBUeMS7UiB4bvfDiJNMaAiEArh+lyR+SAgM9Y2qKNXVWoXRbcaGsxEQZw6f4yQ6qYzI=</signature><udi>P:IR1101-K9,S:FCW2150TH0F</udi></specificPLR>
Specified license reservations:
Cisco IR1101 Network Advantage (IR1101_Network_Advantage):
Description: Cisco Network Advantage Smart License for Cisco IR1101 Industrial Integrated Services Router
Total reserved count: 1
Term information:
Active: PID:IR1101-K9,SN:FCW2150TH0F
License type: TERM
Start Date: 2018-JUN-13 UTC
End Date: 2018-DEC-10 UTC
Term Count: 1
Subscription ID: <none>
Other Info
==========
Software ID: regid.2018-04.com.cisco.IR1101,1.0_e40b8e7c-fd51-418c-a981-a49697dd08f5
Agent State: authorized
TS enable: True
Transport: Callhome
Locale: en_US.UTF-8
Debug flags: 0x7
Privacy Send Hostname: True
Privacy Send IP: True
Build type:: Production
sizeof(char) : 1
sizeof(int) : 4
sizeof(long) : 4
sizeof(char *): 8
sizeof(time_t): 4
sizeof(size_t): 8
Endian: Big
Write Erase Occurred: False
XOS version: 0.12.0.0
Config Persist Received: True
Message Version: 1.3
connect_info.name: <empty>
connect_info.version: <empty>
connect_info.additional: <empty>
connect_info.prod: False
connect_info.capabilities: <empty>
agent.capabilities: UTILITY, DLC, AppHA, MULTITIER, EXPORT_2
SmartAgentCmReTrySend: True
SmartAgentCmClient: True
SmartAgentClientName: UnifiedClient
builtInEncryption: True
enableOnInit: True
routingReadyByEvent: True
systemInitByEvent: True
enableByDefault: False
conversionAutomatic: True
conversionAllowed: False
storageEncryptDisable: False
storageLoadUnencryptedDisable: False
TSPluginDisable: False
bypassUDICheck: False
loggingAddTStamp: False
loggingAddTid: True
platformOverrideEvent: UnknownPlatformEvent
WaitForHaRole: False
standbyIsHot: False
chkPtType: 2
delayCommInit: False
roleByEvent: True
maxTraceLength: 150
traceAlwaysOn: True
debugFlags: 0
#
IR1101# show license usage
License Authorization:
Status: EVAL MODE
Evaluation Period Remaining: 29 days, 13 hours, 48 minutes, 12 seconds
(IR1101_Network_Advantage):
Description:
Count: 1
Version: 1.0
Status: EVAL MODE
Reservation:
Reservation status: NOT INSTALLED
(IR1101_Network_Essentials):
Description:
Count: 1
Version: 1.0
Status: EVAL MODE
Reservation:
Reservation status: NOT INSTALLED
IR1101# show license reservation
License reservation: ENABLED
Overall status:
Active: PID:IR1101-K9,SN:FCW2150TH0F
Reservation status: SPECIFIC INSTALLED on Nov 07 02:04:55 2018 UTC
Export-Controlled Functionality: Allowed
Last Confirmation code: 9765d8c5
Specified license reservations:
Cisco IR1101 Network Advantage (IR1101_Network_Advantage):
Description: Cisco Network Advantage Smart License for Cisco IR1101 Industrial Integrated Services Router
Total reserved count: 1
Term information:
Active: PID:IR1101-K9,SN:FCW2150TH0F
License type: TERM
Start Date: 2018-JUN-13 UTC
End Date: 2018-DEC-10 UTC
Term Count: 1
#
IR1101# show version
Cisco IOS XE Software, Version BLD_V1612_THROTTLE_LATEST_20190604_050228_V16_12_0_134
Cisco IOS Software [Gibraltar], ISR Software (ARMV8EL_LINUX_IOSD-UNIVERSALK9-M), Experimental Version 16.12.20190604:055159 [v1612_throttle-/nobackup/mcpre/BLD-BLD_V1612_THROTTLE_LATEST_20190604_050228 226]
Copyright (c) 1986-2019 by Cisco Systems, Inc.
Compiled Tue 04-Jun-19 16:24 by mcpre
Cisco IOS-XE software, Copyright (c) 2005-2019 by cisco Systems, Inc.
All rights reserved. Certain components of Cisco IOS-XE software are
licensed under the GNU General Public License ("GPL") Version 2.0. The
software code licensed under GPL Version 2.0 is free software that comes
with ABSOLUTELY NO WARRANTY. You can redistribute and/or modify such
GPL code under the terms of GPL Version 2.0. For more details, see the
documentation or "License Notice" file accompanying the IOS-XE software,
or the applicable URL provided on the flyer accompanying the IOS-XE
software.
ROM: IOS-XE ROMMON
IR1101 uptime is 6 minutes
Uptime for this control processor is 7 minutes
System returned to ROM by Power-on at 17:11:39 GMT Tue Jun 25 2019
System image file is "usbflash0:ir1101-universalk9.BLD_V1612_THROTTLE_LATEST_20190604_050228_V16_12_0_134.SSA.bin"
Last reload reason: Power-on
This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.
A summary of U.S. laws governing Cisco cryptographic products may be found at:
http://www.cisco.com/wwl/export/crypto/tool/stqrg.html
If you require further assistance please contact us by sending email to
export@cisco.com.
Technology Package License Information:
------------------------------------------------------------------------------
Technology-package Technology-package
Current Type Next reboot
------------------------------------------------------------------------------
network-essentials Smart License network-essentials
Smart Licensing Status: UNREGISTERED/EVAL EXPIRED
cisco IR1101-K9 (ARM64) processor (revision 1.2 GHz) with 708327K/6147K bytes of memory.
Processor board ID FCW222700KS
3 Virtual Ethernet interfaces
4 FastEthernet interfaces
2 Gigabit Ethernet interfaces
1 Serial interface
1 terminal line
4 Cellular interfaces
32768K bytes of non-volatile configuration memory.
4038072K bytes of physical memory.
2766848K bytes of Bootflash at bootflash:.
15350496K bytes of USB Flash at usbflash0:.
0K bytes of WebUI ODM Files at webui:.
Configuration register is 0x1820
IR1101#
