Open Ports for Gateway Service and Sensor Connect

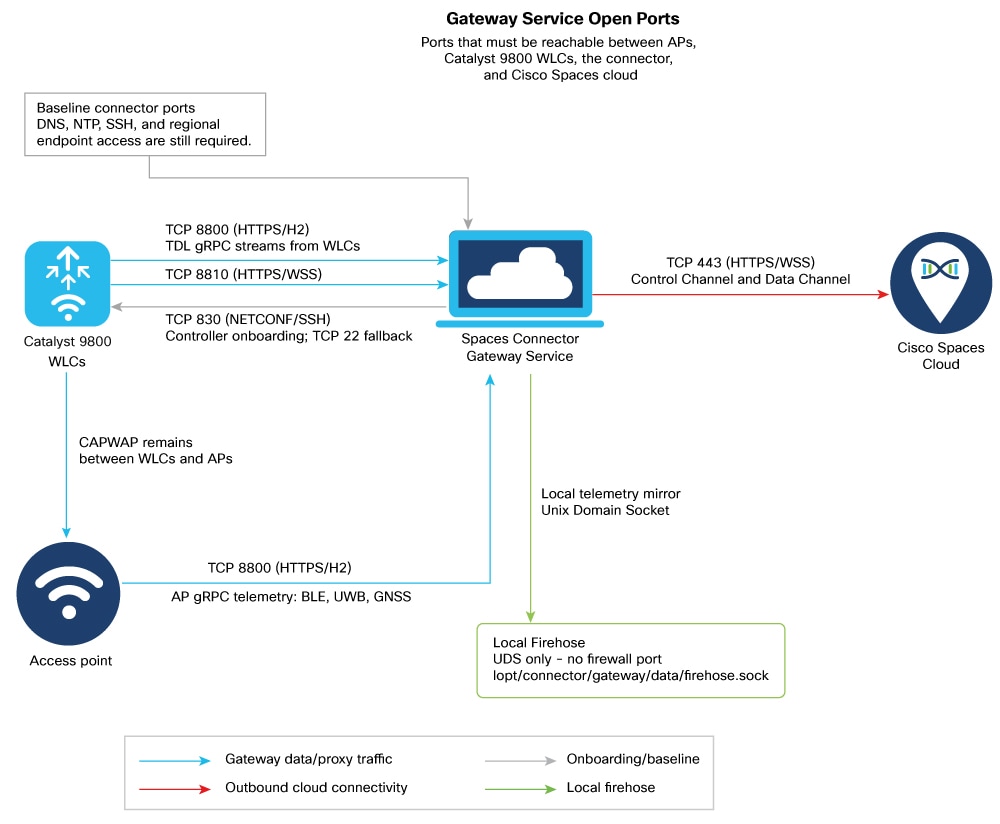

This chapter lists the connector ports required for the proper functioning of Gateway Service. Additional ports must be opened, in addition to the basic Cisco Spaces connector ports.
To verify IP address setup details for different regions, refer to Prerequisites for Configuring Connector 3.
| Source IP Address | Destination IP Address | Direction | Transport | Source Port | Destination Port | Protocol | Further Information |
|---|---|---|---|---|---|---|---|
| Access Point IP address | Connector | Unidirectional | TCP | Any | 8800 | HTTPS/HTTP/2 | gRPC telemetry streams for BLE, UWB, and GNSS data. |
| Catalyst 9800 Wireless Controller IP address | Connector | Unidirectional | TCP | Any | 8800 | HTTPS/HTTP/2 | TDL gRPC telemetry streams from Catalyst 9800 wireless controllers. |
| Catalyst 9800 Wireless Controller IP address | Connector | Unidirectional | TCP | Any | 8810 | HTTPS/HTTP/2 | WLC proxy connections for control channel. |
| Connector | Catalyst 9800 wireless controller IP address | Unidirectional | TCP | Any | 830 | NETCONF/SSH | Controller onboarding and configuration. If NETCONF uses the default SSH port, open TCP port 22 instead. |
| Connector | Cisco Spaces cloud | Unidirectional | TCP | Any | 443 | HTTPS/WSS | Control channel and data channel connectivity to Cisco Spaces. |
| Region | Control/Data Endpoint |
|---|---|
| US (legacy) | connector.dnaspaces.io |
| EU (legacy) | connector.dnaspaces.eu |
| US | connect.ciscospaces.io |
| EU | connect.ciscospaces.eu |
| Singapore | connect.ciscospaces.sg |
The Local Firehose uses a Unix Domain Socket and does not require firewall rules. The socket path is /opt/connector/gateway/data/firehose.sock.
