Manage firmware images

Updated: April 10, 2026

Want to summarize with AI?

On this page

Reload the firmware image

Load a backup image

Perform a factory reset

Upgrade the firmware image

Learn how to manage administrative tasks such as reloading images, activating backups, performing factory resets, upgrading firmware, and importing or exporting configurations to maintain and update device operations efficiently.

You can efficiently maintain and update device operations by reloading images, activating backups, performing factory resets, upgrading firmware, or importing and exporting configurations.

Reload the firmware image

This procedure describes how to reload the currently running firmware image.

You can reload the currently running firmware image to apply changes or address potential software issues.

Procedure

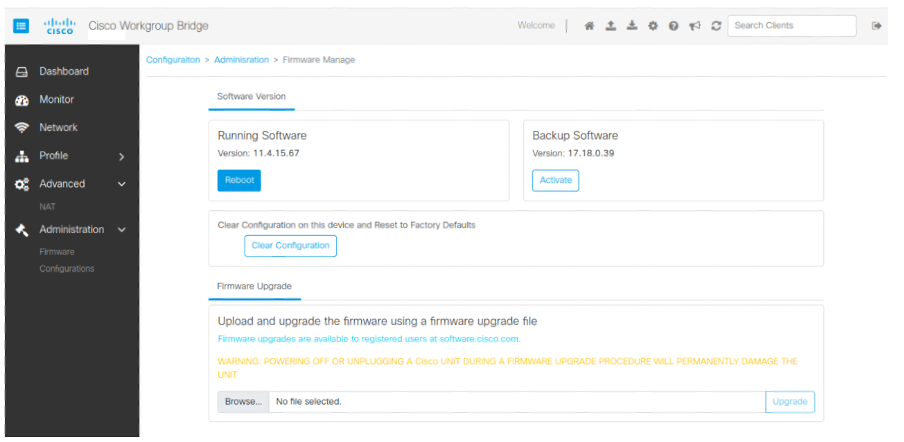

	1.	Choose Administration > Firmware .
	2.	Click Reboot in Running Software .

Load a backup image

This procedure describes how to load the back up firmware image.

You can load a backup image to restore the device to a previous stable state or recover from firmware-related issues.

Procedure

	1.	Choose Administration > Firmware .
	2.	Click Activate in Backup Software .

Perform a factory reset

This procedure describes how to factory reset the device.

You can perform a factory reset to restore the device to its default settings, clearing all configurations and customizations.

Procedure

	1.	Choose Administration > Firmware .
	2.	Click Clear Configuration . Note After selecting Clear Configuration , the WGB goes to Day 0 scenario.

Upgrade the firmware image

This procedure describes how to upgrade the currently running firmware image.

You can upgrade the firmware image to access new features, enhancements, or bug fixes for improved device performance.

Procedure

	1.	Choose Administration > Firmware > Browse .
	2.	Select the required image.
	3.	Click Upgrade and wait for 180 seconds for the image to reboot and open the Web UI.
