Cisco Catalyst IW9167E Heavy Duty Access Point Configuration Guide, Release 26.1.x

Configure WGB and uWGB radio modes

Updated: April 10, 2026

Want to summarize with AI?

Log in

Learn how to configure the radio mode on the Cisco IoT Workgroup Bridge (IW916x) to operate in either WGB or uWGB mode, depending on the network infrastructure and Root Access Point (RAP) type.

The radio mode on the Cisco IoT Workgroup Bridge (IW916x) can be configured to operate in one of two distinct modes: WGB or uWGB. The mode selection depends on the type of Root Access Point (RAP) in the network infrastructure and is designed to ensure compatibility and seamless connectivity.

  • WGB mode: Standard Workgroup Bridge operation for connecting non-wireless devices to a wireless network.

  • uWGB mode: Universal Workgroup Bridge operation for enhanced compatibility with specific network infrastructures.

Configure the radio in WGB mode

This procedure describes how to configure WGB mode.

You can optimize network configurations and improve operational efficiency by switching to WGB mode. In this mode, the WGB uses Cisco's proprietary protocol extensions for enhanced performance and features. This mode is ideal for Cisco infrastructure deployments. If the Root Access Point (RAP) is a Cisco Access Point, setting the Radio Mode to WGB enables full use of Cisco-specific enhancements.

Procedure

1.

From Cisco WGB Web UI, choose Network .

2.

Select a desired radio from the list of available Wireless Interface .

3.

Select WGB in Radio Mode > Radio Configurations .

The radio modes can be changed to any mode like WGB , uWGB , Root AP or Scan mode.

Configure uWGB mode on the radio

This procedure describes how to configure the device to operate in uWGB mode for interoperability in mixed-vendor environments and to access or manage the WebUI in uWGB mode.

You can optimize network configurations and enhance operational efficiency by switching to uWGB mode. In this mode, the WGB uses standard protocols to provide universal compatibility. This functionality allows seamless integration with non-Cisco Access Points (APs). This mode ensures interoperability in mixed-vendor environments. Setting the Radio Mode to uWGB provides universal compatibility and reliable connectivity if the Root Access Point (RAP) is a non-Cisco AP.

Once configuration is complete, use the WGB private LAN port address of the NAT wired client to access the WebUI in uWGB mode. For more details about NAPT on uWGB, refer to NAPT on uWGB .

Before you begin

To access or manage the WebUI in uWGB mode, configure the device with Network Address port translation (NAPT).

Procedure

1.

From Cisco WGB Web UI, choose Network .

2.

Select a desired radio from the list of available Wireless Interface .

3.

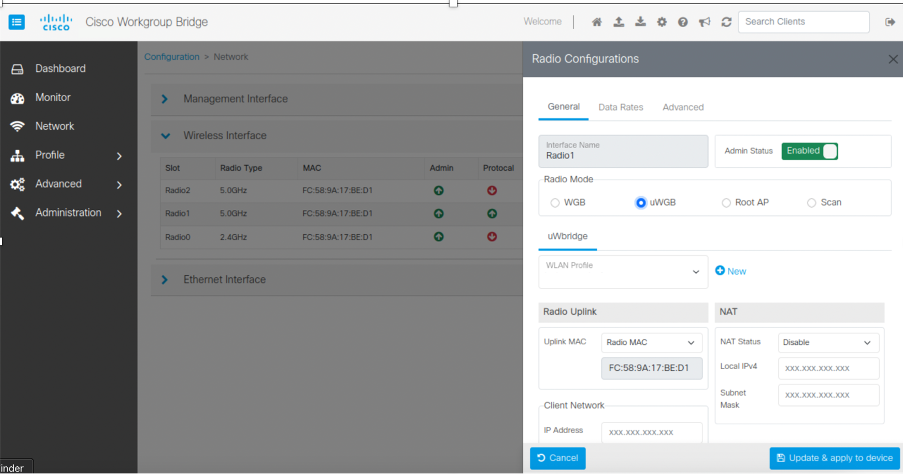

Select uWGB in Radio Mode > Radio Configurations .

The radio modes can be changed to any mode like WGB , uWGB , Root AP or Scan mode.

4.

Choose Radio MAC from drop-down.

Enter client MAC.
5.

Choose NAT Status from NAT drop-down.

6.

Enter the IP address of the NAT wired client in the Local IPv4 field to access the web UI.

7.

Click Update & apply to device .
