Setting Up a Virtual Secure Gateway Application Container

This chapter contains the following sections:

Virtual Secure Gateway Application Containers

Cisco Virtual Secure Gateway (VSG) container type is used to provide enhanced security in virtual environments. You can use Cisco UCS Director to configure a Prime Network Services Controller (PNSC) in addition to its internal firewall (Cisco Virtual Security Gateway), which is then integrated into an application container.

Cisco VSG is a virtual firewall appliance that provides trusted access to virtual data center and cloud environments. Cisco VSG enables a broad set of multi-tenant workloads that have varied security profiles to share a common compute infrastructure in a virtual data center private cloud or in a public cloud. By associating one or more virtual machines (VMs) into distinct trust zones, Cisco VSG ensures that access to trust zones is controlled and monitored through established security policies.

Cisco VSG provides the following benefits:

  • Trusted Multi-tenant Access—Granular, zone-based control and monitoring with context-aware security policies applied in a multi-tenant (scale-out) environment to strengthen regulatory compliance and simplify audits. Security policies are organized into security profile templates to simplify their management and deployment across many Cisco VSGs.

  • Dynamic operation—On-demand provisioning of security templates and trust zones during VM instantiation and mobility-transparent enforcement and monitoring as live migration of VMs occur across different physical servers.

  • Non-disruptive administration—Administrative segregation across security and server teams while enhancing collaboration, eliminating administrative errors, and simplifying audits.

Cisco VSG does the following:

  • Enhances compliance with industry regulations.

  • Simplifies audit processes in virtualized environments.

  • Reduces cost by securely deploying a broad set of virtualized workloads across multiple tenants on a shared compute infrastructure, whether in virtual data centers or private/public cloud computing environments.

Virtual Security Gateway Application Container Prerequisites

The following is the prerequisite for the VSG Container configuration:

  • When executing the Allocate Container VM Resources task, the default virtual network type is Distributed Virtual Portgroup N1K for VSG container. Ensure that you modify the primary DVSwitch name for VSG container.

Virtual Security Gateway Application Container Limitations

VSG Application Container Creation Process

Adding a PNSC Account

PNSC is a virtual appliance, based on Red Hat Enterprise Linux, that provides centralized device and security policy management of Cisco virtual services. Designed for multiple-tenant operation, the PNSC provides seamless, scalable, and automation-centric management for virtualized data center and cloud environments. The PNSC essentially provides the security component (firewall) to your VSG and application container, and separates the VMs from each other. The PNSC enables the centralized management of Cisco virtual services to be performed by an administrator through Cisco UCS Director.


Note
PNSCs are not tied to any specific pod.
    Step 1   Choose Administration > Physical Accounts.
    Step 2   On the Physical Accounts page, click Multi-Domain Managers.
    Step 3   Click Add (+).
    Step 4   On the Add Account screen, complete the following fields:
    Name Description

    Account Type field

    Choose PNSC as the account type and click Submit.

    Account Name field

    The multi-domain account name.

    Description field

    The description of the multi-domain account.

    Server Management drop-down list

    From the drop-down list, choose All Servers or Selected Servers to manage servers accordingly.

    Server Address field

    The IP address of the PNSC server.

    Use Credential Policy check box

    Check this check box if you want to use a credential policy for this account rather than enter the information manually.

    Credential Policy drop-down list

    If you checked the Use Credential Policy check box, choose the credential policy that you want to use from this drop-down list.

    This field is only displayed if you choose to use a credential policy.

    User ID field

    This field appears only when the Use Credential Policy check box is unchecked. The user ID to access the account.

    Password field

    This field appears only when the Use Credential Policy check box is unchecked. The password associated with the username.

    Shared Secret Password field

    This field appears only when the Use Credential Policy check box is unchecked. The pre-shared secret key of the account.

    Transport Type drop-down list

    This field appears only when the Use Credential Policy check box is unchecked.Choose a transport type:

    • HTTP—A standard protocol.

    • HTTPS—A standard and secure protocol.

    Port field

    This field appears only when the Use Credential Policy check box is unchecked. The port number (based on the transport type).

    Contact Email field

    The email address of the administrator or person responsible for this account.

    Location field

    The location of the device associated with the account.

    Step 5   Click Submit.

    Viewing PNSC Reports

    After creating a PNSC account, you can view related reports using Cisco UCS Director.

    The following reports are available under the Physical > Network menu.

    • Summary

    • Tenants

    • vDCs

    • vApps

    • PNSC Firewall Policies

    • VM Manager

    • Clients

    • HA ID Usage Report

      Step 1   Choose Physical > Network.
      Step 2   Expand Multi-domain Manager.

      You can view PNSC accounts that were added under the Multi-domain Manager accounts.

      Step 3   Click a PNSC entry to view the available reports.

      Integrating a VSG into an Application Container

      You can use Cisco UCS Director to configure a PNSC in addition to its internal firewall (Cisco Virtual Security Gateway), which is then integrated into an application container.

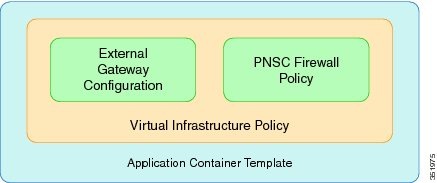

      The integration process consists of several stages:

      • Upload an OVA file into Cisco UCS Director.

      • Create a PNSC firewall policy (used to create a container with a PNSC).

      • Create a virtual infrastructure policy. This policy defines which virtual account to use and what type of containers you want to provision.
      • Create an application container template. This template uses the virtual infrastructure policy, computing policy, storage policy, and network policy as inputs into the template.

      Uploading OVA Files

      Cisco UCS Director allows an administrator, a group administrator, or an end user to upload OVA files to a predefined storage location.


      Note
      Group administrators and end users are the only types with privileges to upload OVA files.
      Before You Begin

      Ensure that you have the proper access rights.

        Step 1   Choose Administration > Integration.
        Step 2   On the Integration page, click User OVF Management.
        Step 3   Click Upload File.
        Step 4   On the Upload File screen, complete the following fields:
        Name Description
        Folder Type drop-down list

        The type of folder containing the OVA file. Choose one of the following:

        • Public—Choose this role to only reveal public files.

        • User—Choose this role if you are an end user. End users are not granted extensive privileges. The user role is well suited for first-level support, in which problem identification, remediation, and escalation are the primary goals.

        • Group—This role can deploy OVA files.

        File Name field The name of the OVA file to upload and display.
        File field Drop the OVA file or click Select a File to browse and choose the required file.
        File Description field The description of the file (if required).
        Step 5   Click Submit.

        Creating a PNSC Firewall Policy

        You use a firewall policy to enforce network traffic on a Cisco VSG. The Cisco VSG is the internal firewall used as part of PNSC. A key component of the Cisco VSG is the policy engine. The policy engine uses the policy as a configuration that filters the network traffic that is received on the Cisco VSG.


        Note

        The PNSC firewall policy supports both standalone and high availability (HA) modes.

          Step 1   Choose Physical > Network.
          Step 2   Expand PNSC accounts listed under Multi-Domain Managers.
          Step 3   Click PNSC account for which you want to create a firewall policy.
          Step 4   Click PNSC Firewall Policies.
          Step 5   Click Add.
          Step 6   On the Create Firewall Policy screen, complete the following fields:
          Name Description

          Policy Name field

          A unique name for the firewall policy.

          Policy Description field

          A description of the firewall policy.

          Step 7   Click Next.
          Step 8   Expand PNSC Zones and click Add (+) to create a zone.
          Step 9   On the Add Entry to PNSC Zones screen, complete the following fields:
          Name Description

          Zone Name field

          A unique name for the zone.

          Zone Description field

          A description of the zone.

          Zone Conditions

          Expand Zone Conditions and click Add to add the zone condition.

          Attribute Type drop-down list

          Choose Network or VM as the type of attribute.

          Attribute Name drop-down list

          Choose the attribute from the list which varies according to the attribute type.

          Operator drop-down list

          Choose a type of operator.

          Attribute Value field

          Enter the attribute value based on the chosen attribute type.

          Step 10   Click Submit.
          Step 11   Click Next.
          Step 12   Expand PNSC ACL Rules and click Add (+) to create a PNSC ACL rule entry.
          Step 13   On the Add Entry to PNSC ACL Rules screen, complete the following fields:
          Name Description

          Name field

          The name of the ACL rule. The name must be unique to the container.

          Description field

          The description of the ACL rule.

          Action drop-down list

          The type of action allowed for the rule. Choose one of the following:

          • Permit—Permits use on the matching traffic.

          • Drop—Drops use of the rule on the matching traffic.

          • Reset—Resets the rule on the matching traffic.

          Condition Match Criteria drop-down list

          Choose a condition that need to be met.

          Protocol/Service drop-down list

          Choose protocol or service from the list.

          Any Protocol check box

          If checked, the rule applies to all protocols. If unchecked, you must specify the operator ('equals', 'notequals') and protocol (for example, IP or EGP).

          Source Conditions

          Attribute Type drop-down list

          Choose the type of attribute.

          Attribute Name drop-down list

          Choose the name of the attribute from the drop-down list that vaies as per the attribute type.

          Operator drop-down list

          Choose the type of operator.

          Attribute Value field

          The attribute value.

          Destination Conditions

          Attribute Type drop-down list

          Choose the type of attribute.

          Attribute Name drop-down list

          Choose the name of the attribute from the drop-down list that vaies as per the attribute type.

          Operator drop-down list

          Choose the type of operator.

          Attribute Value field

          The attribute value.
          Step 14   Click Submit.
          Step 15   Click Next.
          Step 16   On the PNSC-VSG Configuration screen, complete the following fields:
          Name Description
          Use Unified Fabric check box

          Check the check box to use unified fabric.

          VSG OVF URL drop-down list

          Choose an OVA file from the list of OVA files that are uploaded to Cisco UCS Director.

          Admin Password for the VSG field

          The administrator password for the VSG.

          Policy agent shared secret Password field

          The policy agent shared password.

          Deployment mode drop-down list

          The type of deployment. Choose one of the following:

          • Standalone—Standalone mode.

          • HA—High availability mode.

          VSG HA Id field

          The VSG HA ID. The available range is 1-4095.

          Network Type drop-down list

          Choose the network type from the list.

          VLAN ID Range field

          The VLAN ID range (for example, 100-199).

          Use same vlan/vxlan check box

          If checked, uses the same VLAN ID or VXLAN ID for both VSG HA and Data port groups.

          Name field

          The name of the VSG.

          Primary VSG Section (HA mode only)

          Name field

          The name of the primary VSG.

          Deployment Configuration drop-down list

          The deployment configuration. Choose one of the following:

          • Deploy Small VSG

          • Deploy Medium VSG

          • Deploy Large VSG

          Disk Format drop-down list

          The format to store the virtual disk. Choose one of the following:

          • Thick Provision Lazy Zeroed

          • Thick Provision Easy Zeroed

          • Thin Provision

          Secondary VSG (HA mode only)

          Name field

          The name of the primary VSG.

          Deployment Configuration drop-down list

          The deployment configuration. Choose one of the following:

          • Deploy Small VSG

          • Deploy Medium VSG

          • Deploy Large VSG

          Disk Format drop-down list

          The format to store the virtual disk. Choose one of the following:

          • Thick Provision Lazy Zeroed

          • Thick Provision Easy Zeroed

          • Thin Provision

          Step 17   Click Submit.
          Step 18   Click OK.

          Creating a Virtual Infrastructure Policy

          The virtual infrastructure policy defines which VM to use and what type of container you want to provision. This policy also defines which PNSC account you want to tie to this particular account.


          Note
          Any gateway-related Linux based VM image parameters can be added to this policy.
            Step 1   Choose Policies > Application Containers.
            Step 2   On the Application Containers page, click Virtual Infrastructure Policies.
            Step 3   Click Add Policy (+).
            Step 4   On the Create a virtual infrastructure policy screen, complete the following fields:
            Name Description

            Policy Name field

            The unique name for the virtual infrastructure policy.

            Policy Description field

            The description of the virtual infrastructure policy.

            Container Type drop-down list

            Choose the VSG container type.

            Select Virtual Account drop-down list

            Choose a virtual account (cloud).

            Step 5   Click Next.
            Step 6   On the Virtual Infrastructure Policy - PNSC Information screen, complete the following fields:
            Name Description

            PNSC Account field

            Expand the PNSC accounts and choose a PNSC account.

            VSG Template Configuration section

            PNSC Firewall Policy drop-down list

            Choose a firewall policy.

            Step 7   Click Next.
            Step 8   On the Virtual Infrastructure Policy - Fencing Gateway screen, complete the following fields:
            Name Description

            Gateway Required check box

            Check this box if gateway is required.

            Select Gateway Policy drop-down list

            This field appears only when the Gateway Required check box is chosen. Choose a gateway policy.

            Gateway Summary

            Displays a summary of the gateway set for the virtual infrastructure policy.
            Step 9   Click Next. The Virtual Infrastructure Policy - Summary screen appears, displaying your current settings.
            Step 10   Click Submit.

            Creating an Application Template for a VSG

              Step 1   Choose Policies > Application Containers.
              Step 2   On the Application Containers page, click Application Container Templates.
              Step 3   Click Add Template. The Add Application Container Template page appears. Complete the following fields:
              Name Description

              Template Name field

              The name of the new template.

              Template Description field

              The description of the template.

              Step 4   Click Next. The Application Container Template - Select a Virtual Infrastructure policy screen appears. In this screen, you choose the cloud on which the application container is deployed. Complete the following field:
              Name Description

              Select Virtual Infrastructure Policy drop-down list

              Choose a virtual infrastructure policy to deploy to the container.

              Step 5   Click Next. The Application Container: Template - Internal Networks screen appears.
              Note    Only one network is allowed per VSG container.
              Step 6   Click Add (+) icon to add a network. The Add Entry to Networks screen appears. Complete the following fields:
              Name Description

              Network Name field

              The network name. The name should be unique within the container. You can use a maximum of 128 characters.

              Network Type drop-down list

              Choose the network type.

              Information Source drop-down list

              Choose the information source from the list.

              VLAN ID Range field

              The VLAN ID range. This value controls the number of containers that can be cloned or created.

              Network IP Address field

              The network IP address for the container.

              Network Mask field

              The network mask.

              Gateway IP Address field

              The IP address of the default gateway for the network. A NIC with this IP address is created on the GW VM.

              Note    The IP address is configured on the inside interface of the gateway.
              Step 7   Click Submit.

              Next, you can add and configure the gateway VM that will be provisioned in the application container.

              Step 8   Click OK.
              Step 9   Click Next. The Application Conatiner Template - VMs screen appears.
              Step 10   Click Add (+) to add a VM. Complete the following fields:
              Name Description

              VM field

              The name of the VM. The full name contains the container name as well as this name.

              Description field

              The description of the VM.

              Provision VM using Content Library Template check box

              Check to view and choose a VM template from the content library VM templates. If unchecked, you have to choose VM template from VM image templates.

              Content Library VM Template field

              This field appears only when the Provision VM using Content Library VM Template check box is checked. Expand the list and choose a VM template from the content library.

              VM Image drop-down list

              This field appears only when the Provision VM using Content Library Template check box is unchecked. Choose an image to be deployed.

              Number of Virtual CPUs drop-down list

              Choose the number of virtual CPUs to be allocated to the VM.

              Memory drop-down list

              Choose the amount of memory (in MB) to be allocated to the VM.

              CPU Reservation (MHz) field

              The CPU reservation for the VM in Mhz.

              Memory Reservation (MB) field

              The memory reservation for the VM.

              Disk Size (GB) field

              The custom disk size for the VM. To use the template disk size specify the value of zero. The specified disk size overrides the disk size of the selected image.

              Note    If this value is less than template size, this value is ignored.

              VM Password Sharing Option drop-down list

              Choose an option on how to share the VM's username and password with the end users. If Share after password reset or Share template credentials is chosen, the end user needs to specify a username and password for the chosen templates.

              Use Network Configuration from Image check box

              If checked, the network configuration from the image is applied to the provisioned VM.

              VM Network Interfaces field

              Expand VM Network Interafces and choose the VM network interface information. If you are adding another network interface, go to Step 11.

              Maximum Quantity field

              The maximum number of instances that can be added in this container after it is created.

              Initial Quantity field

              The number of VM instances to provision when the container is created.

              Note    Each VM will have a unique name and IP address.
              Step 11   (Optional)  Click Add (+) to add a new (multiple) VM network interface. Complete the following fields:
              Name Description

              VM Network Interface Name field

              The name of the VM network interface.

              Select the Network drop-down list

              Choose a network.

              IP Address field

              The IP address of the network.

              Step 12   Click Next.
              Step 13   Click Ok. The Application Container Template - External Gateway Security Configuration screen appears. You can specify the security configuration components, such as port mapping and outbound access control lists (ACLs).
              Step 14   Click Add (+) to add a port mapping. Complete the following fields:
              Name Description

              Protocol drop-down list

              Choose a protocol for the port mapping.

              Mapped Port drop-down list

              Choose the mapped port for the selected protocol.

              Remote IP Address field

              The IP address of the remote machine.

              Remote Port field

              The remote machine port number.

              Step 15   Click Submit.
              Step 16   Click OK.
              Step 17   Click Add (+) icon to add an Outbound ACL, in the Application Container Template - External Gateway Security Configuration screen. Complete the following fields:
              Name Description

              Protocol drop-down list

              Choose a protocol.

              Select Network drop-down list

              The network to which the rules need to apply.

              Source Address field

              The source classless inter domain routing (CIDR) IP address.

              Destination Address field

              The destination CIDR IP address.

              Action field

              The action that is applied on the matching network traffic.

              Step 18   Click Submit.
              Step 19   Click OK.
              Step 20   Click Next.
              Step 21   On the Application Container Template - Deployment Policies screen, complete the following fields:
              Name Description

              Compute Policy drop-down list

              Choose a policy to deploy all of the compute components of the virtual container.

              Storage Policy drop-down list

              Choose a policy to deploy all of the storage components of the virtual container.

              Network Policy field

              Choose a policy to deploy to the container gateway. Hosts considered to be part of the computing policy should be associated with the Cisco Nexus 1000 (used to deploy Cisco VSG).

              Note    This field is only used for the outside interface of the container gateway. Also, resource allocation should be associated with a Cisco Nexus 1000 Series switch.

              Systems Policy field

              The value used for DNS and other OS license configurations.

              Cost Model field

              Choose a cost model.

              Use common network policy check box

              Check the check box to use the common network policy defined above for the VSG management network.

              Management Network Policy drop-down list

              If the Use common network policy is unchecked, choose a network policy for the VSG management network.

              Step 22   Click Next.
              Step 23   On the Application Container Template - Options screen, complete the following fields:
              Name Description

              End User Self-Service Policy drop-down list

              Choose an end user self-service policy applicable for the application container template.

              Enable Self-Service Deletion of Containers check box

              If checked, enables self-service deletion of containers.

              Enable VNC Based Console Access check box

              If checked, enables VNC-based console access to VM.

              Technical Support Email Addresses field

              Enter the comma-separated list of email addresses of individuals who should receive emails regarding the container provisioning.

              Step 24   Click Next.
              Step 25   Choose a workflow to setup the container.
              Step 26   Expand the workflow list and select a workflow (for example, Workflow Id 431 Fenced Container Setup - VSG).
              Note    A workflow should contain allocated resources. For example, if it is a VSG workflow it should contain a Cisco Nexus 1000 Series resource.
              Step 27   Click Select.
              Step 28   Click Submit.
