Describes the main features of the N9348Y12C-SE1 switch.
Cisco N9348Y12C-SE1 is a 1RU top-of-the-rack (ToR) switch.
The switch consists of
-
12 x 40/100G QSFP28 ports
-
48 x 1/10/25/50G SFP28 ports
-
Only the bottom 16 ports can support 50G.
-
-
128GB M2 SATA SSD flash drive
-
Console port
-
Management port—one RJ45 port or one SFP port
-
2 x 650W power supply units that support 1 + 1 redundancy
-
4 x 40MM high-speed smart fan tray assemblies that support port-side intake and port-side exhaust

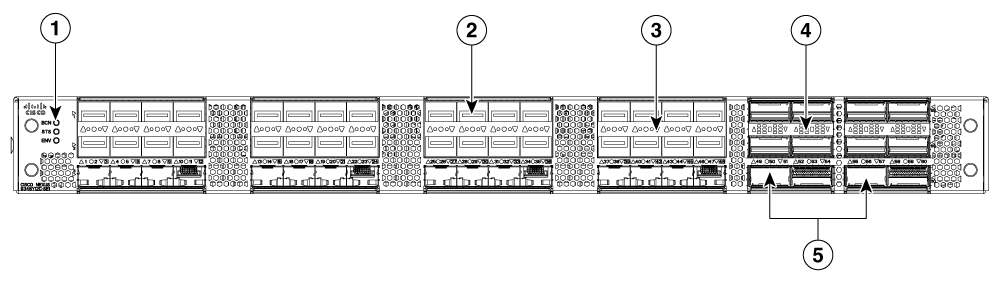

Front-Panel Components
This section describes the front-panel components of the Cisco N9348Y12C-SE1 Series Switches.
| 1 |
LEDs |
4 |
QSFP28 port LEDs |
| 2 |
SFP28 ports |
5 |
QSFP28 ports |
| 3 |
SFP28 port LEDs |

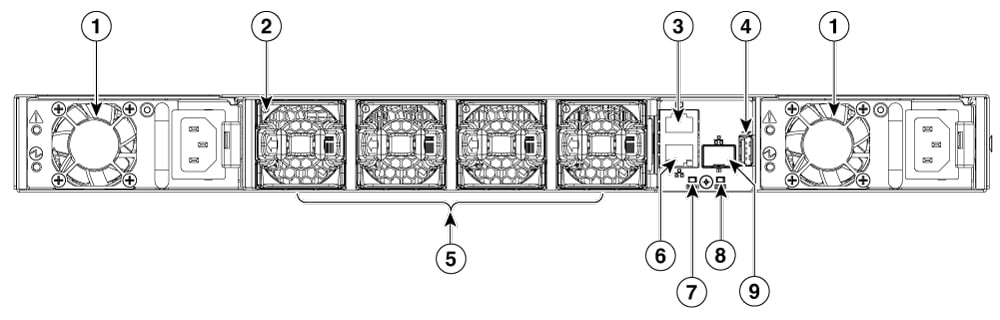

Back-Panel Components
This section describes the back-panel components of the Cisco N9348Y12C-SE1 Series Switches.
| 1 |
Power supply units |
6 |
Management port RJ-45) |
| 2 |
Fan LED |
7 |
Beacon (BCN) LED |
| 3 |
Console port |
8 |
Status (STS) LED |
| 4 |
USB port |
9 |
Management port (SFP+ port) |
| 5 |
Fan tray assembly |
You can order fans and power supply modules with either port-side intake or port-side exhaust airflow. The power supply modules you order depends on whether you plan to position the ports in a hot or cold aisle.
Fan and power supply modules must have the same direction of airflow. Otherwise, the switch can overheat and shut down. If you are installing a dual-direction power supply, that module automatically uses the same airflow direction as the other modules in the switch.
If the switch has port-side intake airflow (burgundy coloring for fan modules), locate the ports in the cold aisle. If the switch has port-side exhaust airflow (blue coloring for fan modules), locate the ports in the hot aisle. If you locate the air intake in a hot aisle, the switch can overheat and shut down.
The fan and power supply modules are field replaceable. Replace one fan module or one power supply module during operations, as long as the other installed modules are operating. If you have only one power supply that is installed, install the replacement power supply in the open slot before removing the original power supply.
