	1.	In a browser enter the Infrastructure Management IP address using the format `https://infrastructure-manager-ipaddress/admin`. The Cisco Secure Workload Infrastructure Management Setup page appears.
	2.	From the menu, choose UI Setup.

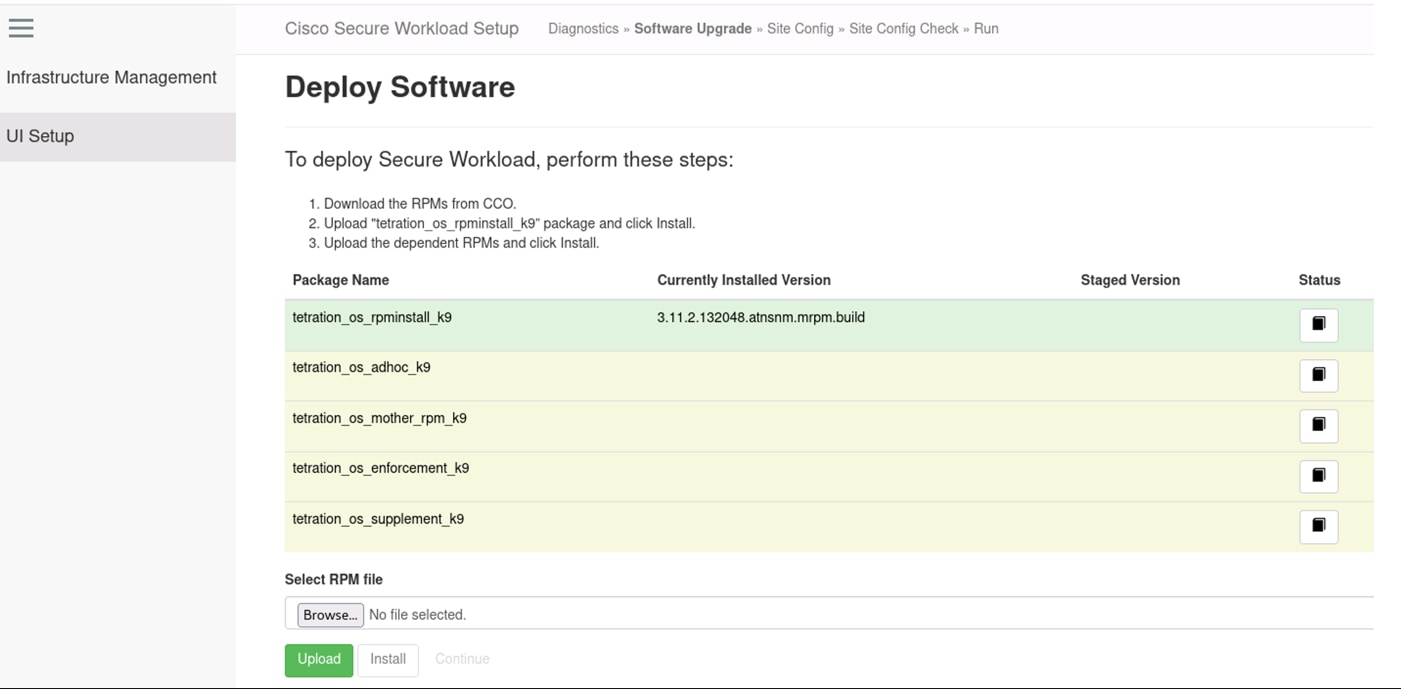

	3.	Upload the five RPMs individually. Ensure each upload completes successfully before you proceed. Click Continue after all the RPMs are uploaded and installed.

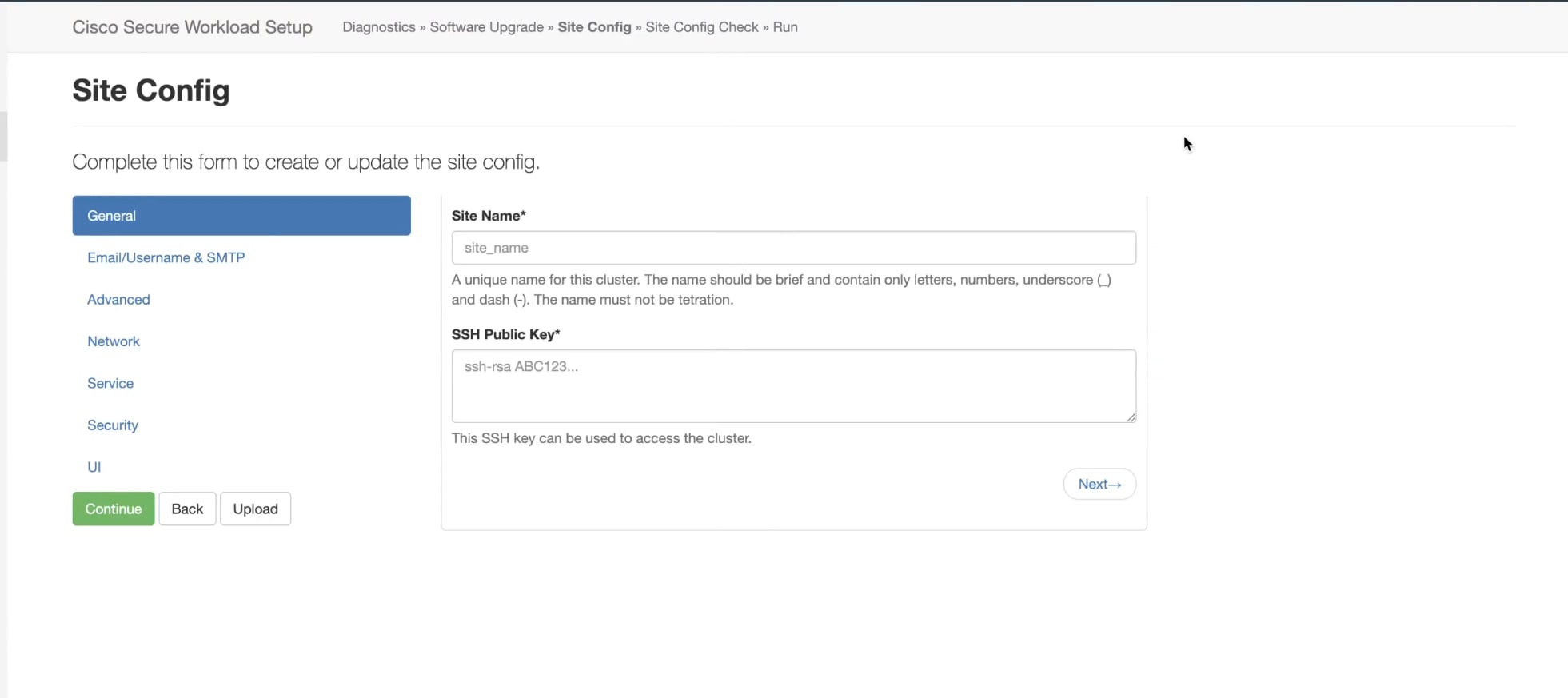

	4.	Configure the cluster site. Enter the Site Name and SSH Public Key and click Continue. Add the Email/Username & SMTP details and click Continue. Refer to the Site Information for each of the fields in the the Advanced, Network, Service, Security, and UI tabs and fill in the required cluster information. Click Continue.

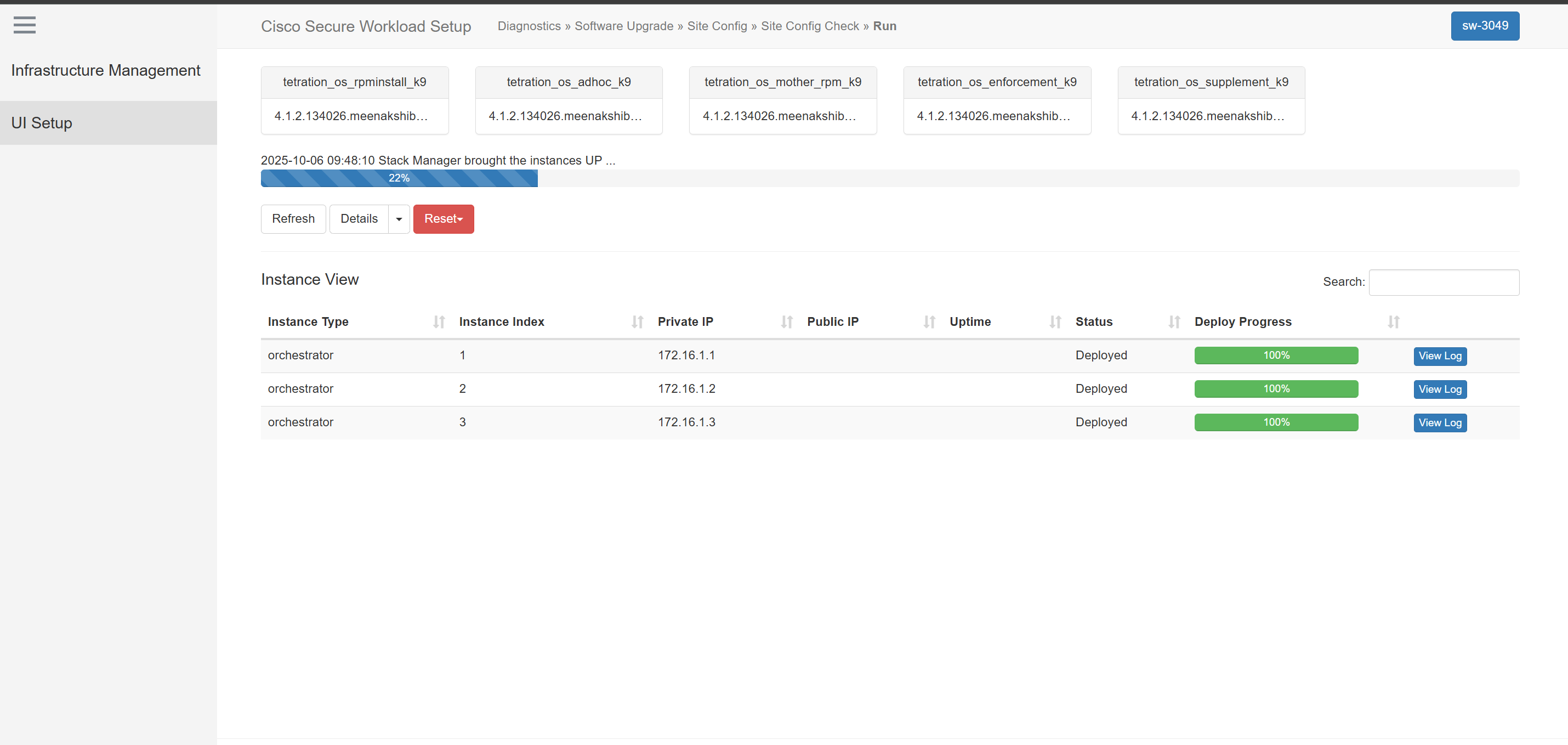

	5.	In Pre Deploy Config, the system runs a validation check. Click Continue.

Before you begin

Procedure
