Manage Zero Trust Access Posture Profiles

Want to summarize with AI?

Log in

Describes Manage Zero Trust Access Posture Profiles in Cisco Secure Access. These profiles specify end-user device requirements when connecting to private and internet resources using Zero Trust Access.


These profiles specify end-user device requirements when connecting to private and internet resources using Zero Trust Access.

There are two types of profiles to choose from:

Note
Enterprise browsers do not currently support proactive analysis functionality.

Client-based access permits more posture requirements than clientless access, so you should tailor profiles to the type of access.

ZTA Posture Timeouts

Timeouts are built into ZTA posture profiles and are expected in a healthy environment. Note that these are not applicable for mobile ZTA

Posture Refresh rate - 5 minutes.

A posture refresh rate is the status of the posture fetched by the client-based access policy. It is cached in a cookie and the cookie itself is what expires at five minutes.

Stale Posture Status - 15 minutes.

This is max amount of time before a posture is considered stale and outdated. The posture status is fetched from Duo cloud is timestamped from the end device. If that timestamp is 15 minutes or greater when it is fetched, then the posture is considered stale and is rejected.

Zero Trust Access Posture Attributes

The following

  • Supported operating systems

  • Firewall

  • Endpoint security agents

  • System password

  • Disk encryption

  • Browser


Add a Client-Based Zero Trust Access Posture Profile

Configure a client-based Zero Trust Access posture profile to define posture requirements for endpoint devices that connect to private resources. Cisco Secure Client must be installed on the endpoint device, and Secure Access checks the requirements when the device connects to the network.
Note
Each requirement is optional, and requirements can be configured in any order. However, endpoints must meet all conditions of any configured requirement.

Procedure

  1. Navigate to Secure > Profiles > Endpoint Posture Profiles.


    Endpoint Posture Profiles page with option to add posture profile
  2. For Zero Trust Connection, click Add Posture Profile and choose Client-based.

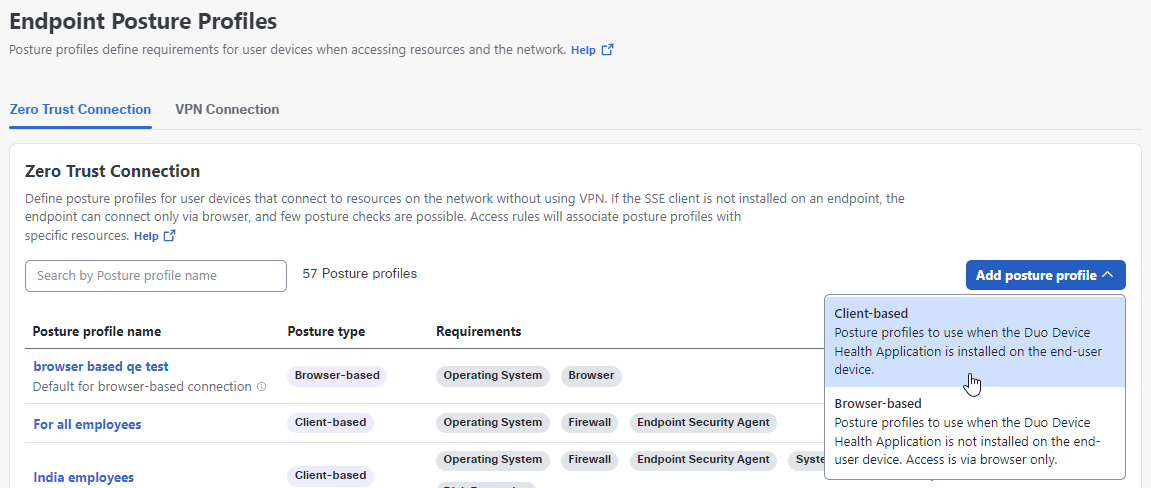

    Endpoint Posture Profiles page with option for selecting Client-based posture profile
  3. Give your posture profile a unique Name.

  4. In the Operating System window, choose the operating systems for your profile. Click Save and Exit or Next to select endpoint security agents. See Supported Operating Systems for more information.

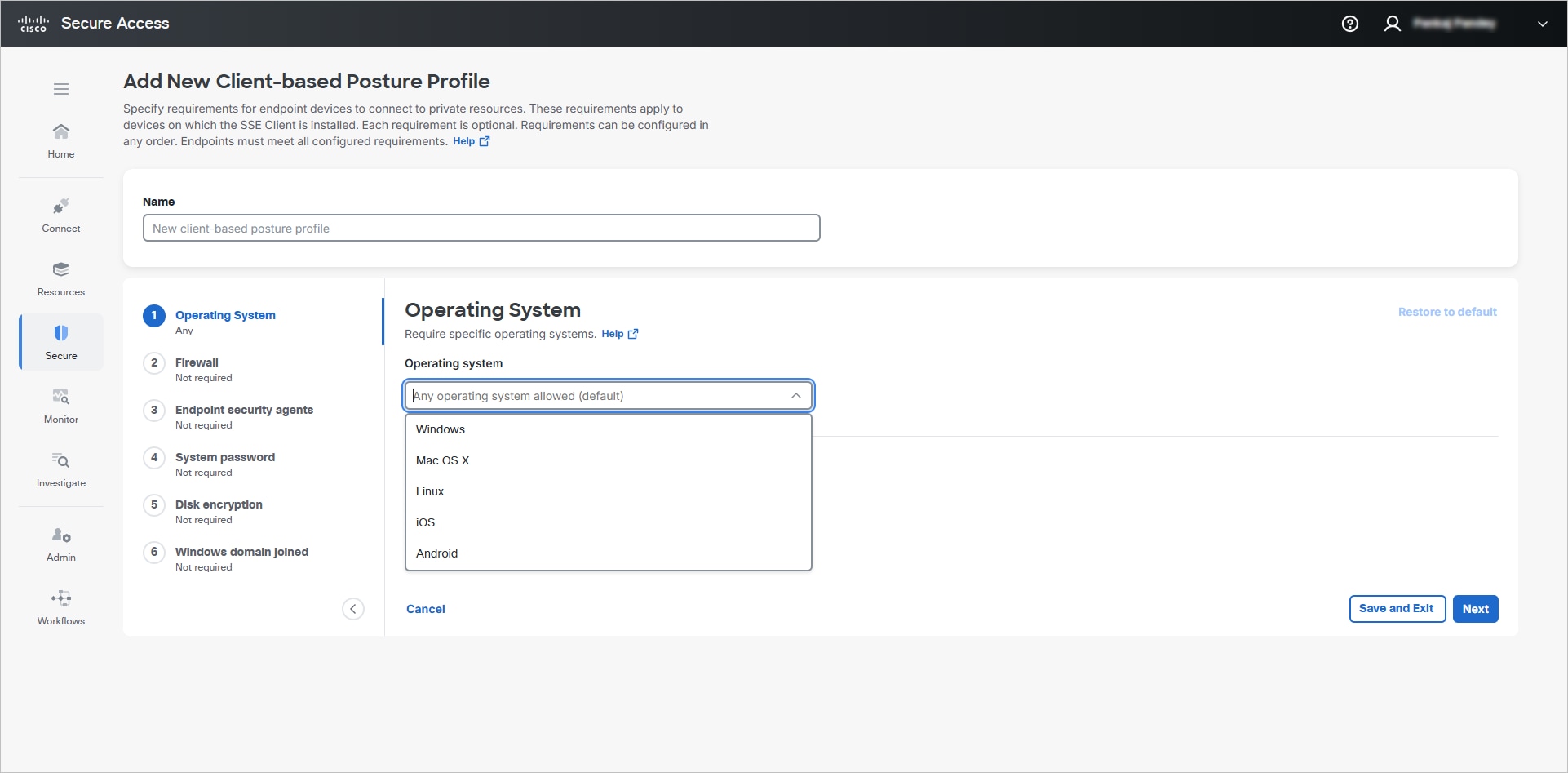

    Operating System page with option for selecting the desired operating systems for the posture profile and save the changes

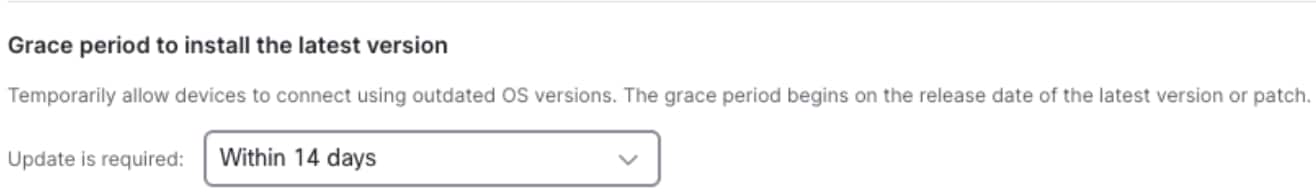

  5. In the Operating System window, select the Grace Period for your device OS version. This value determines how long the operating system version is allowed to be out of date before the device itself is no longer supported. As an admin you can specify grace periods to provide users time to update their devices' OS to comply with latest updates and OS expiry. These grace periods indicate how long after expiry the OS may still be accepted as meeting posture requirements.

    The Postureprofile Graceperiod OS Selection interface.
  6. For the Firewall option, choose the firewall for your profile. Click Save and Exit or Next to select endpoint security agents. See Firewall Requirements.

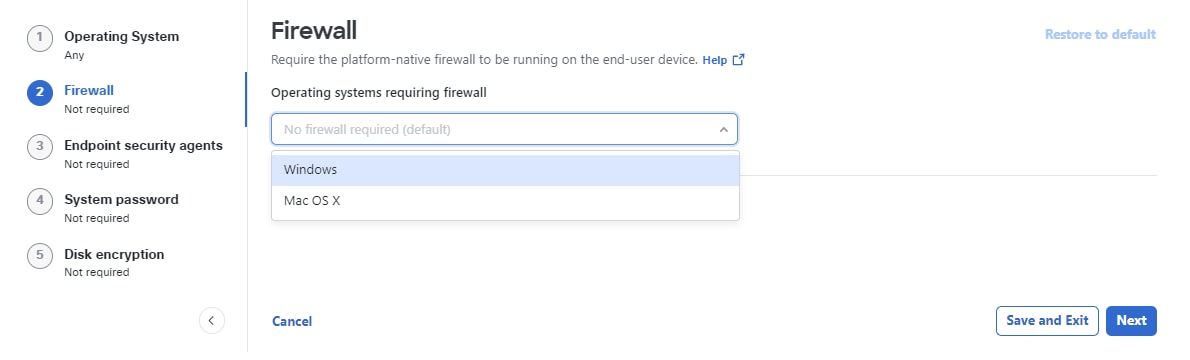

    Firewall page with option for selecting the desired firewall for the posture profile and saving the changes
  7. For the Endpoint security agents option, choose an endpoint security agent from the drop-down menu for your preferred profile. Configure what the endpoint agent action requires for action with either Any or All; when applicable, use the additional drop-down menus to select the type and version of the agent. Click Save and Exit or Next to continue. See Endpoint Security Agents.

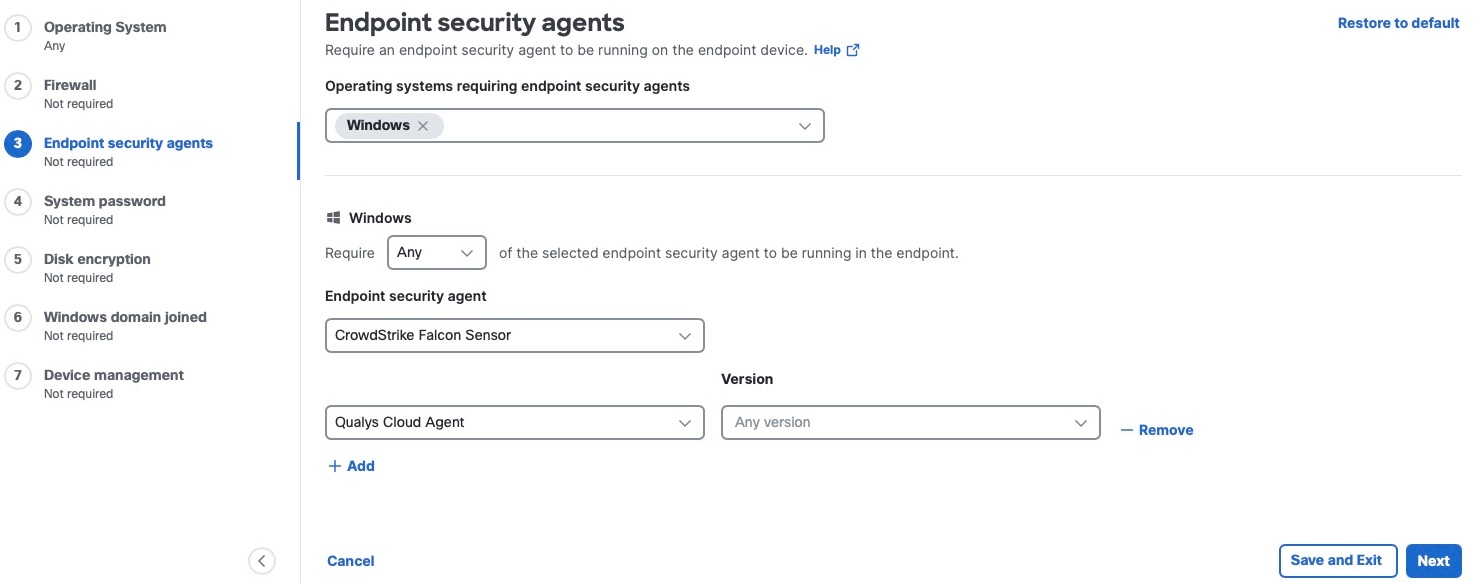

    Endpoint security agents page showing option to select endpoint security agents for posture profile and save the changes
  8. For the System password option, choose whether to enforce a system password for the endpoint. Click Save and Exit or Next to select disk encryption. See Endpoint Security Agents.

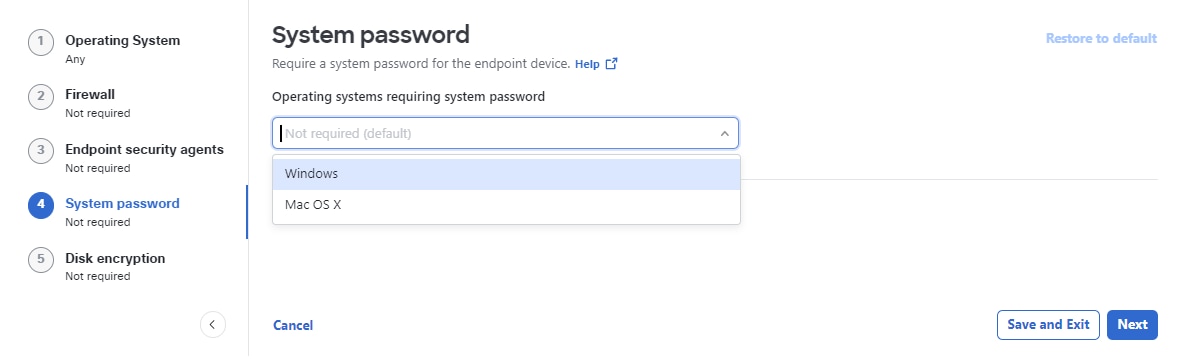

    Endpoint security agents page showing option to select system password for posture profile and save the changes
  9. For the Disk encryption option, choose the disk encryption package(s) for your profile. Click Save and Exit or Next to enforce whether the device should join a Windows domain. See Disk Encryption.

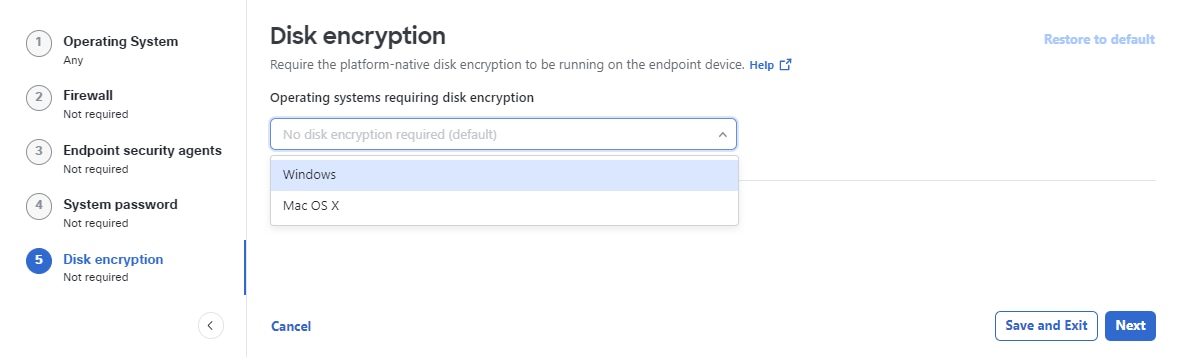

    Endpoint security agents page showing option to select disk encryption packages for posture profile and save the changes
  10. For the Windows domain joined option, check the box to enforce verification that the device has joined a domain. Click Save and Exit or Next to return to the OS requirements. See Windows Domain Join for more information. Ensure you select the device type you have, either an on-premises Active Directory or Microsoft Entra domain and enter the appropriate information for Domain Security Identifiers (SID) or Tenant IDs respectively.

    Note

    To locate the SID value, we recommend opening Powershell and executing the following command:

    get-ad-domain | select name, domainsid
    (Get-ADDomain).DomainSID.Value

    Note that the last six digits of this return is the relative identifier and is not supported as part of the SID value. SID values should be in this format: S-1-5-21-1292428093-839522115-1801674531.

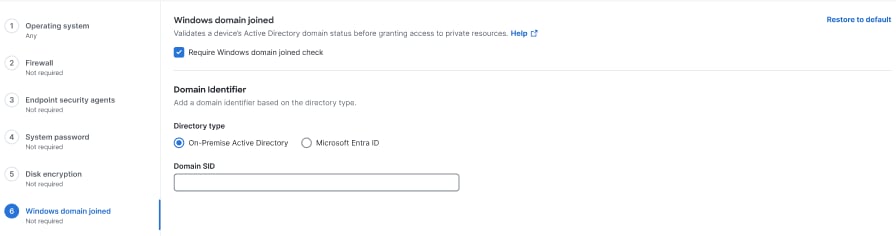

    Endpoint security agents page showing option to enforce device verification and save the changes
  11. Click Next. Alternatively, click Save and Exit to leave the profile temporarily incomplete.

What to do next

We strongly recommend assigning this posture profile to the Access policy. You can either create a new Internet Access rule or Private Access rule, or edit an existing rule.


Add a Browser-based Zero Trust Access Posture Profile

Configure a browser-based Zero Trust Access posture profile to define posture requirements for endpoint devices that connect to private resources. The Cisco Secure Client is not installed on these endpoint devices. Secure Access checks the requirements when a device connects to the network.

Note
Each requirement is optional. Requirements can be configured in any order. Endpoints must meet all conditions of any requirement that is configured.

Before you begin

  • You must have the full Admin user role. For more information, see Manage Accounts.

Procedure

  1. Navigate to Secure > Profiles > Endpoint Posture Profiles.


    Endpoint Posture Profiles page with option for adding endpoint posture profile
  2. For Zero Trust Connection, click Add posture profile, and choose Browser-based.


    Endpoint Posture Profiles page showing option to select Client-based posture profile
  3. Give your posture profile descriptive Name.

  4. Select the required operating systems from the drop-down list.

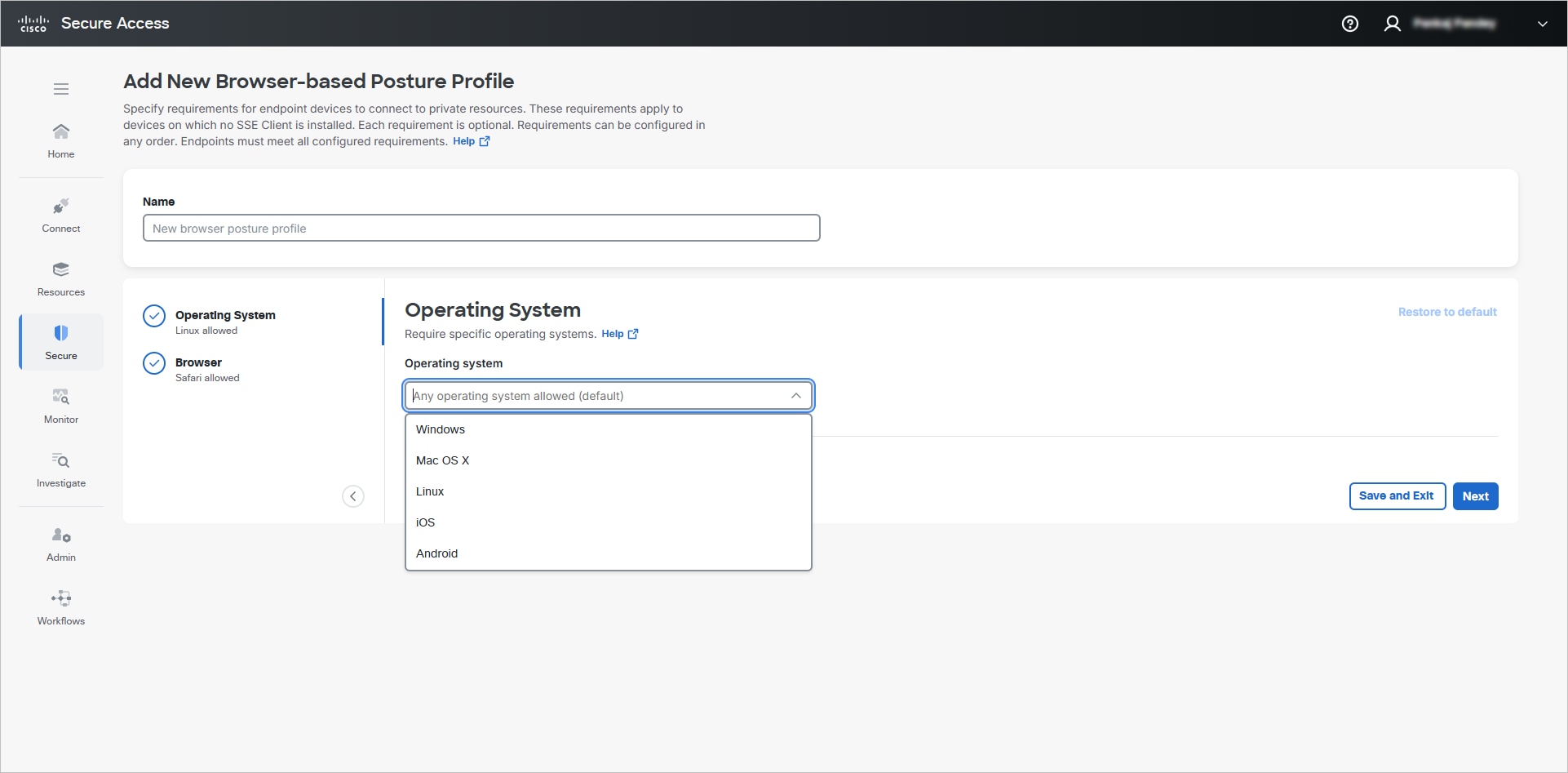

    The Browser Bases Posture Profile Os interface.
  5. Under Grace period to install the latest version, from the Update is required drop down list, select the desired grace period based on your organization policy. You can choose from available day options, such as within 14 days. ClickSave and exit or Next to select supported browsers.

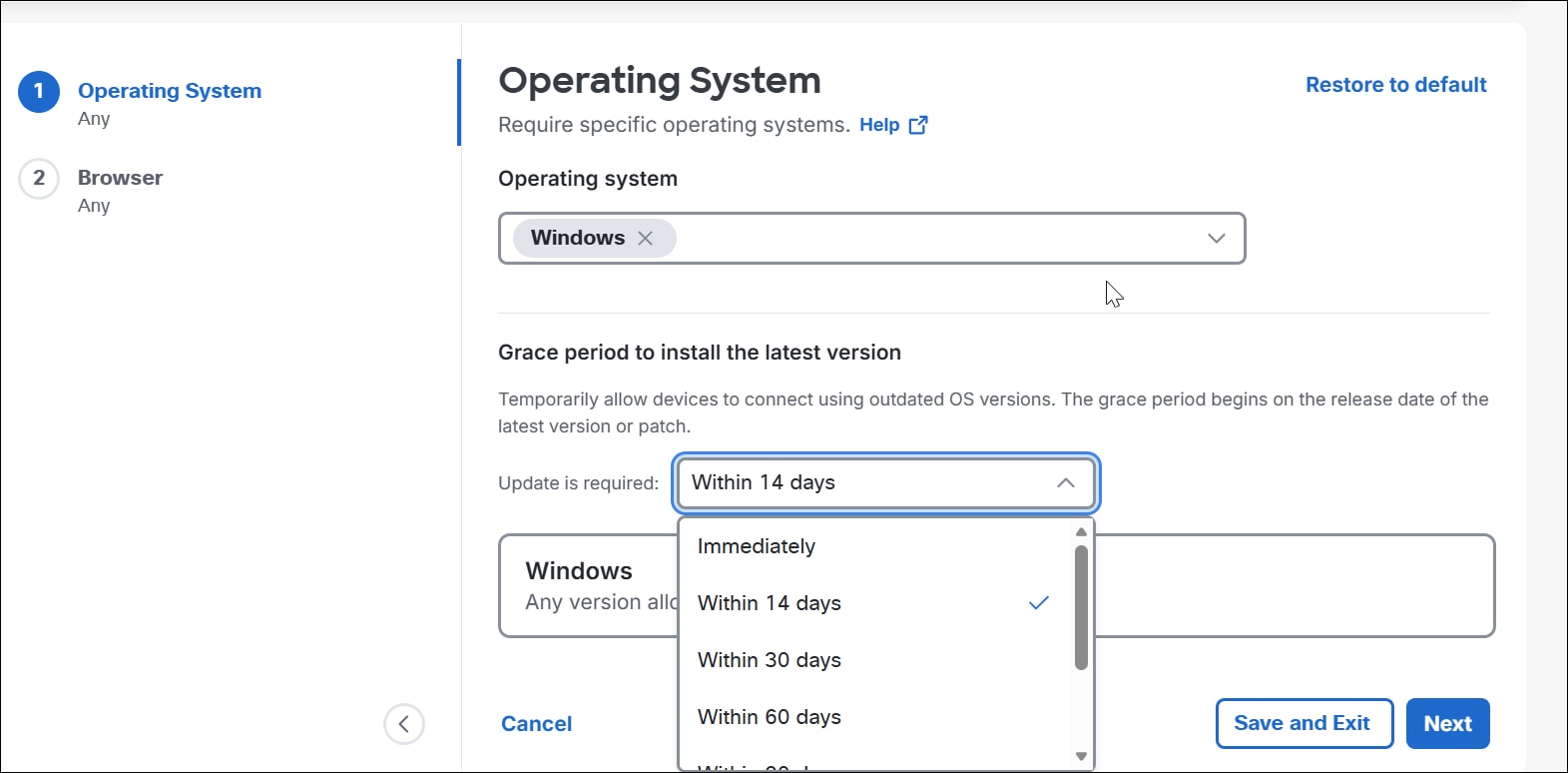

    The Operating Days interface.
  6. Add the required browsers from the drop-down list. Click Save and Exit or Next to select supported posture requirements.

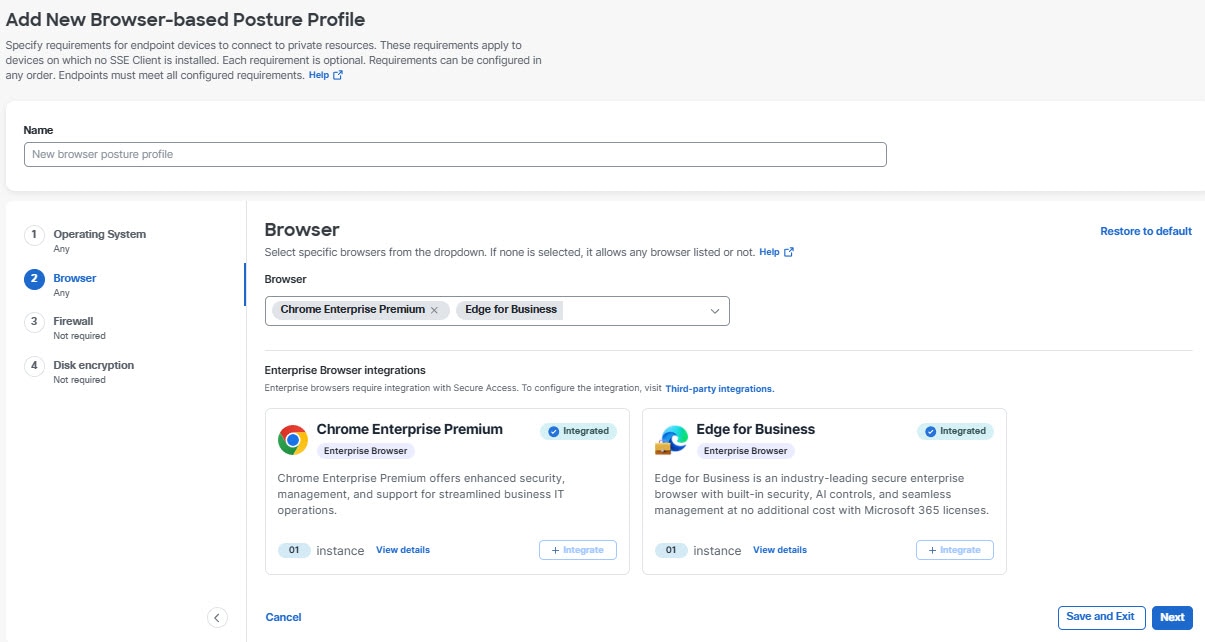

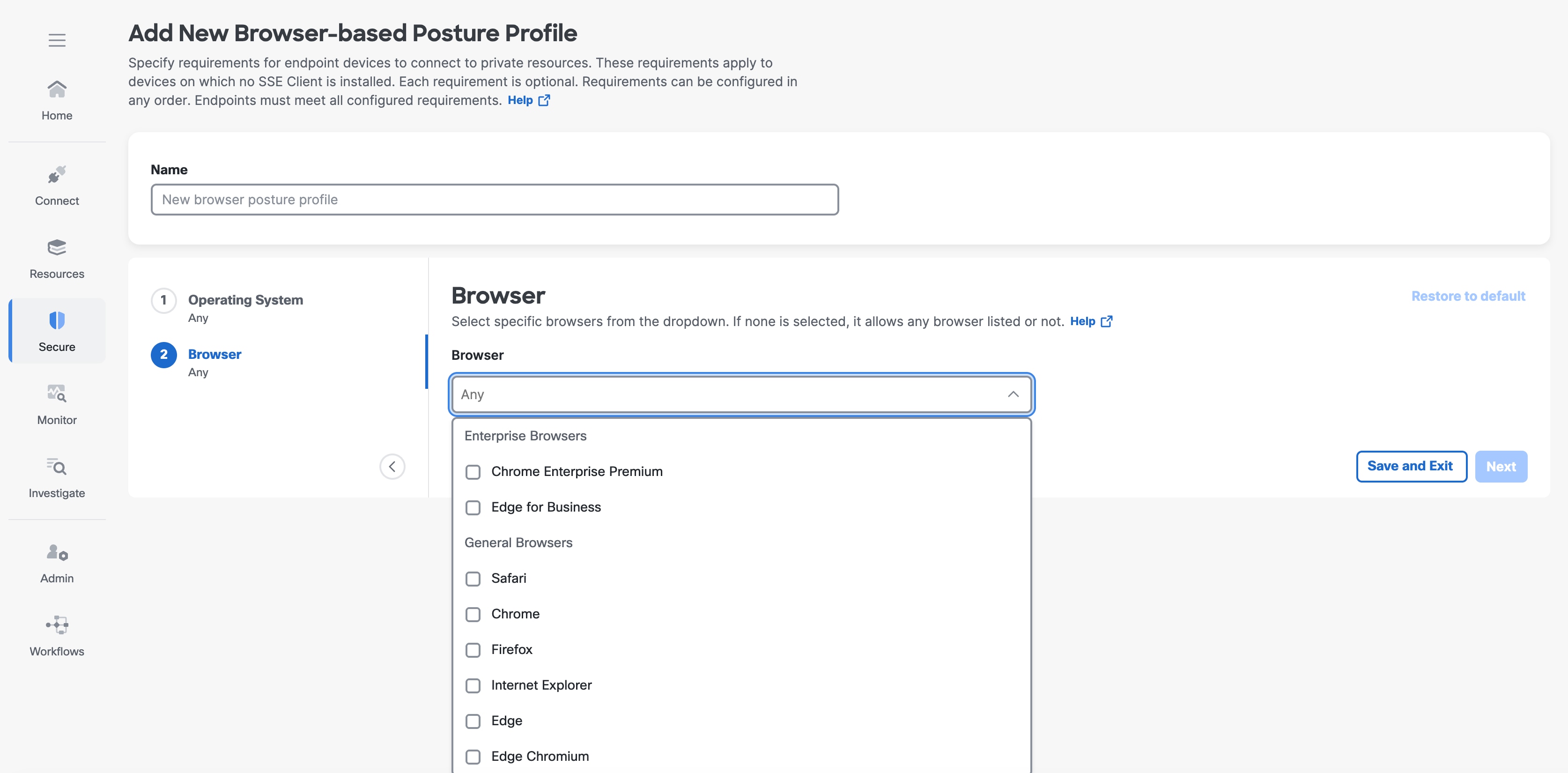

    Add New Browser-based Posture Profile page showing option to add Edge for Business and save the changesAdd New Browser-based Posture Profile page showing option to save the changes
    Note
    The browser type you select must have already been integrated with Secure Access. If you have not integrated any third-party service, then you cannot continue with this procedure. For more information see Manage Third-Party Integrations.
  7. Under Browser version requirements, from the Update is required drop down list, select the desired period based on your organization policy.

    • You can choose from the available day options, such as within 14 days.

    Note
    The Update required feature is applicable only when the "latest" clause is selected. When you choose the "latest" clause, if a user's browser is not on the latest version, access will be denied. This ensures that only browsers with the most current version are allowed to connect, enhancing security by enforcing up-to-date browser versions.

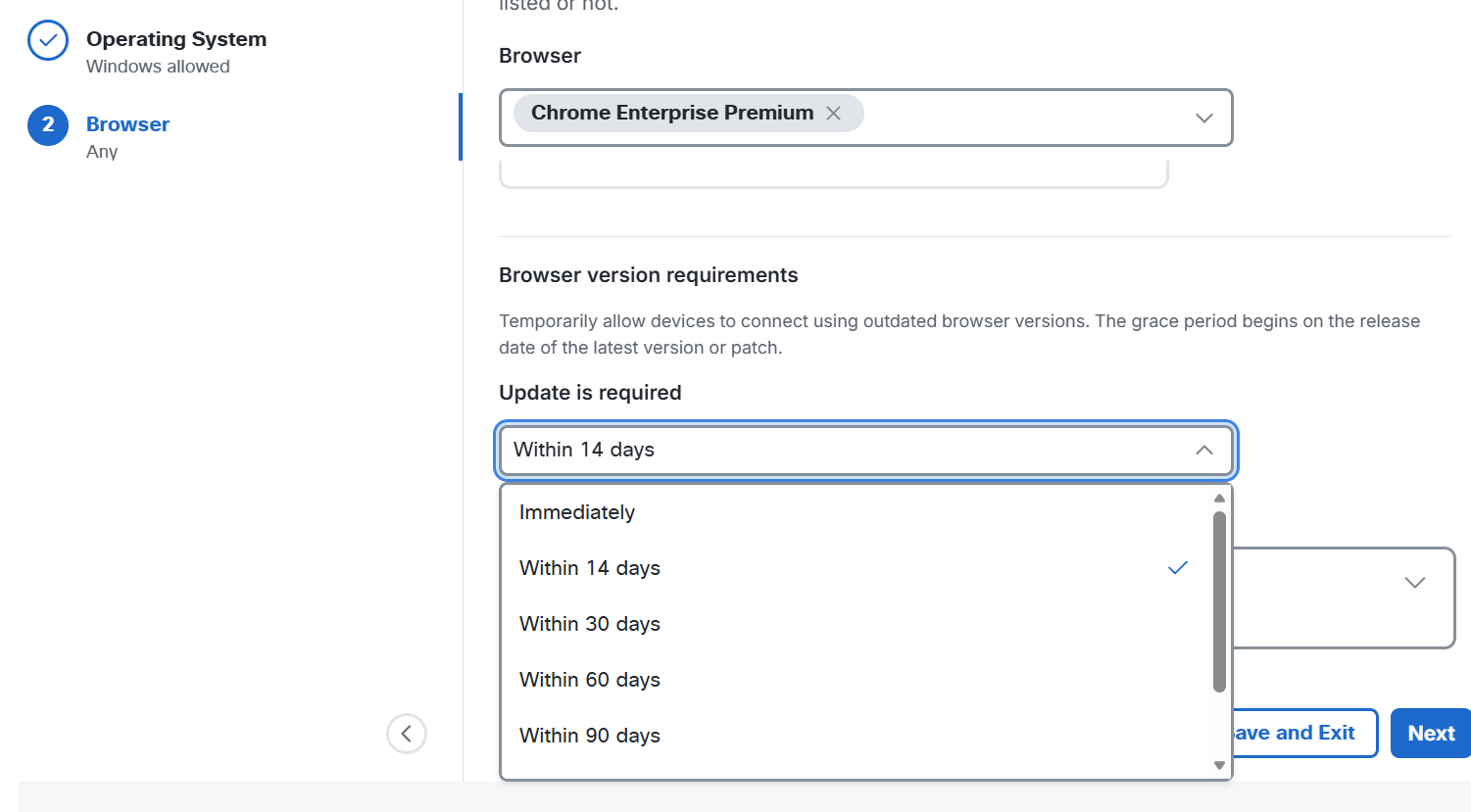

    The Days Browser interface.

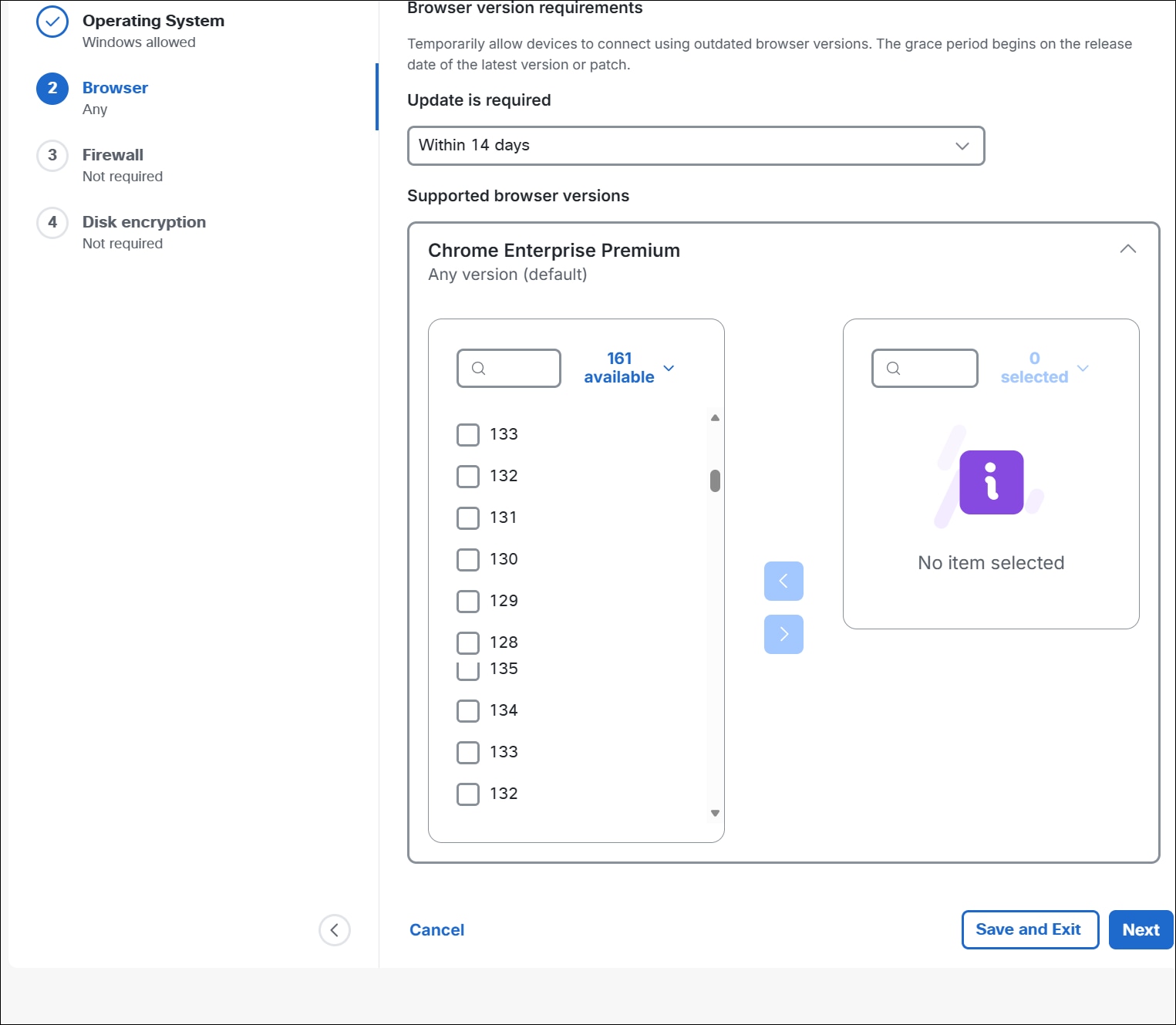

  8. Under Supported browser version, select the check box for the browser versions you want to allow from the left pane. Click the right arrow button to move the selected versions to the right pane. Click Save and exit or Next to proceed to supported posture requirements.

    • You can choose from any of the available version options (such as the latest version, current version, and previous versions).

    The Browser Versions interface.
  9. Add the posture requirements for the browser you selected:

    1. (Optional) Firewall: Specify the required platform-native firewall to run on the end-user device.

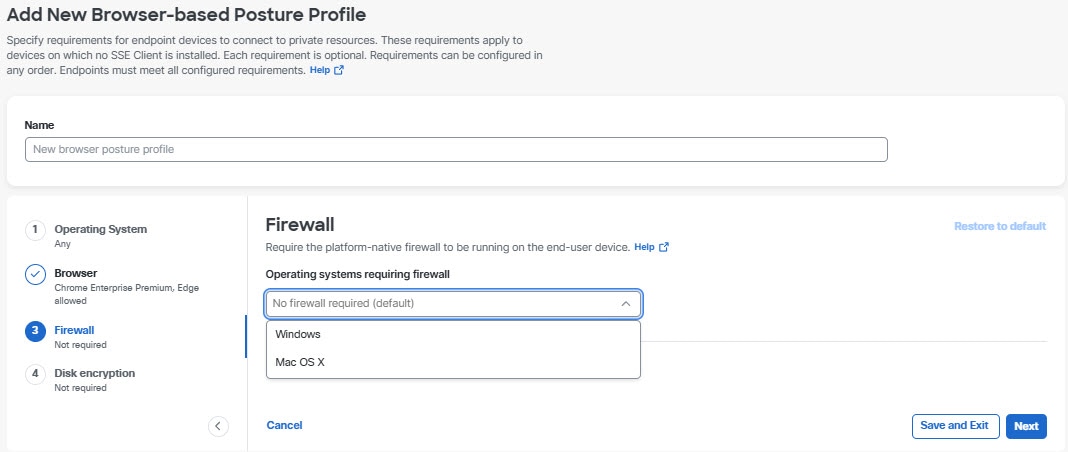

      The Add Posture Firewall interface.
    2. Disk encryption: Specify the required platform-native disk encryption to run on the end-user device.

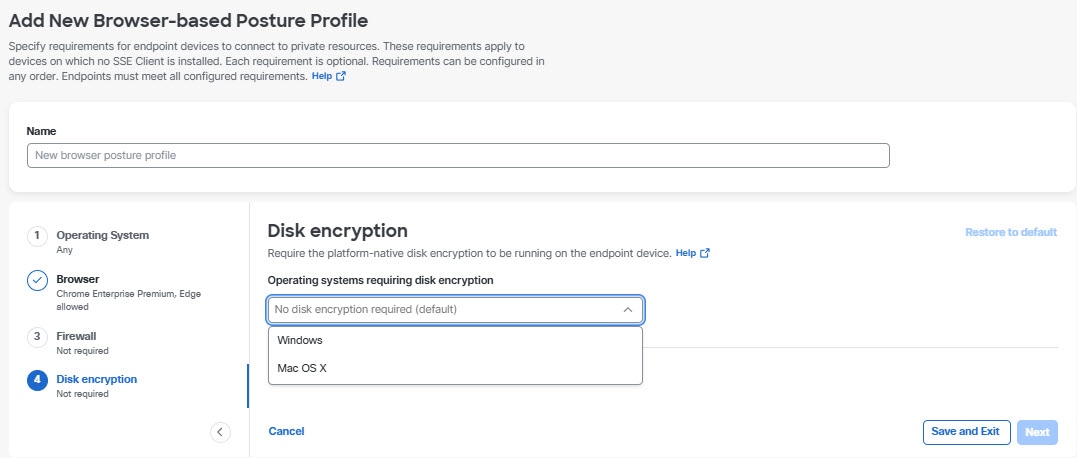

      The Add Posture Disk Encryption interface.
  10. Click Save and Exit to complete the posture profile. Optionally, click Next to modify the selected operating systems.

What to do next

We strongly recommend assigning this posture profile to the Access policy. You can create a new Internet Access rule or Private Access rule, or edit an existing rule.


View a Browser-based Zero Trust Access Posture Profile

View a browser-based Zero Trust Access posture profile to define posture requirements for endpoint devices that connect to private resources.

Note
Each requirement is optional; and requirements can be configured in any order. However, endpoints must meet all conditions of any configured requirement.

Before you begin

  • You must have the full Admin user role. For more information, see Manage Accounts.

Procedure

  1. Navigate to Secure > Profiles > Endpoint Posture Profiles.


    Endpoint Posture Profiles page with option for adding endpoint posture profile
  2. For Zero Trust Connection, click Add posture profile and choose Browser-based.


    Endpoint Posture Profiles page showing option to select Client-based posture profile
  3. On the Browser tab, navigate to supported browsers.

    The Add Browser Based Edge Chrome Card interface.
  4. Click View details.

    Navigate to the supported browsers table and click on the name of a posture profile integration to view the details about the integration.

    • Module name—The name of the posture profile integration for broswer used.

    • Integration—The type of the posture profile.

    • Type—The type of the Secure Access integration.

    • Added on—The date and time when the organization added the posture profile integration.

    • Added by—The organization ID and user account that added the posture profile integration.

    • Status—The status of the posture profile integration, either Active or Inactive.

    • App portal configuration—The status of the app portal configuration, either Enabled or Disabled.

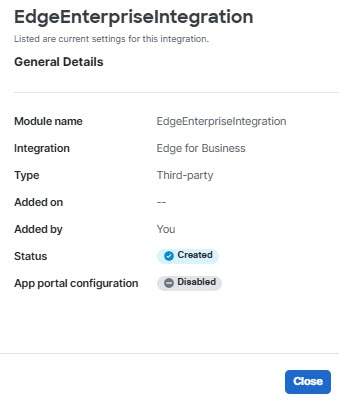

    The Posture Details interface.
