Details physical chassis layouts for Cisco 8300 Series Secure Routers, outlining slot positions, internal platform summary, and layout configurations to help users identify hardware structure and key components.
Slots on Cisco 8300 Series Secure Routers
This section contains views of the power supply and I/O sides of the Cisco 8300 Series Secure Routers, showing the locations of power and signal interfaces, module slots, status indicators, and chassis identification labels:
Cisco 8300 Series Secure Routers are available in these models:
-
C8375-E-G2
-
C8355-G2

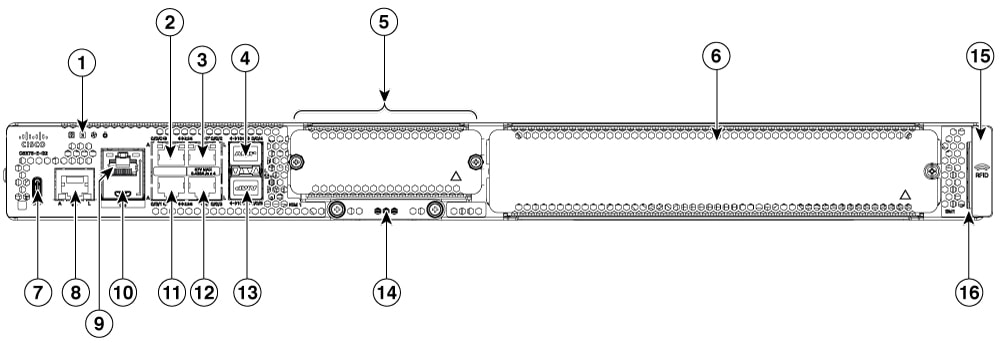

| 1 |
LED |
2 |
RJ-45 mGigabitEthernet port (2.5G 0/0/0) |
| 3 |
RJ-45 mGigabitEthernet port (2.5G 0/0/2) |
4 |
SFP+/10 Gigabit Ethernet port (10G 0/0/4) |
| 5 |
NIM Slot1 |
6 |
SM Slot1 |
| 7 |
USB Type C (3.0) (USB 0) |
8 |
RJ-45 Gigabit Ethernet management port (1G) |
| 9 |
RJ-45 Console |
10 |
Micro-USBConsole |
| 11 |
RJ-45 mGigabitEthernet port (2.5G0/0/1) |
12 |
RJ-45 mGigabitEthernet port (2.5G0/0/3) |
| 13 |
SFP+/10 Gigabit Ethernet port (10G 0/0/5) |
14 |
M.2USB/NVMe storage |
| 15 |
RFID |
16 |
Device Label Tray |

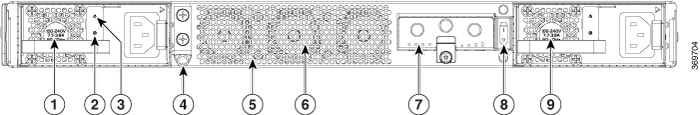

| 1 |
AC/DC power supply unit (PSU1) |
2 |
Power, Preset, OK, LED |
| 3 |
ALARM Fail LED |
4 |
Ground lug |
| 5 |
Fan tray vent |
6 |
3-Internal Fan tray |
| 7 |
PIM Slot 1 |
8 |
Power switch |
| 9 |
AC/DC Power Supply Unit (PSU0) |

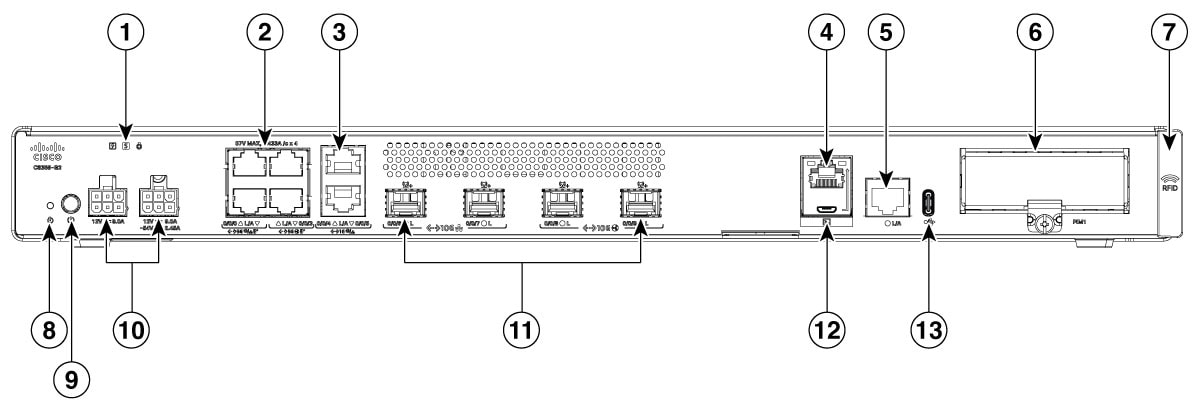

| 1 |
Status LED |
2 |
Multigigabit RJ45 Port |
| 3 |
RJ45 port |
4 |
RJ-45 Console |
| 5 |
Management port |
6 |
PIM Slot |
| 7 |
RFID |
8 |
Reset button |
| 9 |
Power button |
10 |
Power supply unit |
| 11 |
10G SFP/SFP+ Port |
12 |
Micro-USB console |
| 13 |
USB Type C |

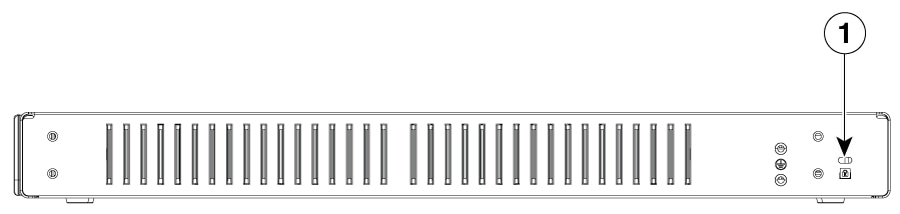

| 1 |
Kensington Lock |
Platform summary

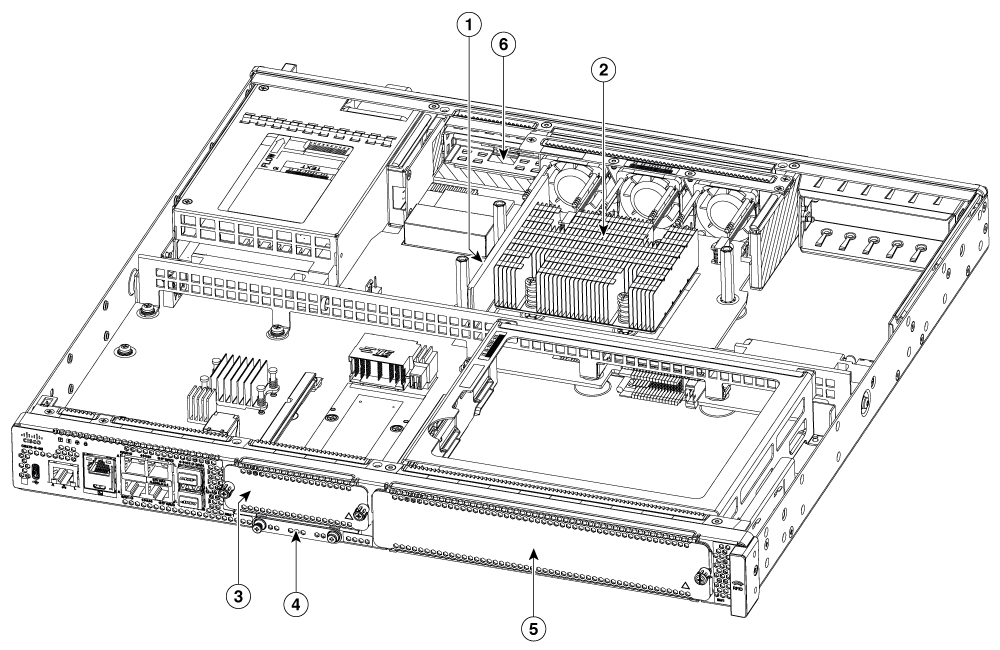

The figure shows the internal view of Cisco 8300 Series Secure Routers with components and module locations.
| 1 |
DIMM |
2 |
CPU |
| 3 |
NIM slot |
4 |
M.2 card slot |
| 5 |
SM slot |
6 |
PIM slot |

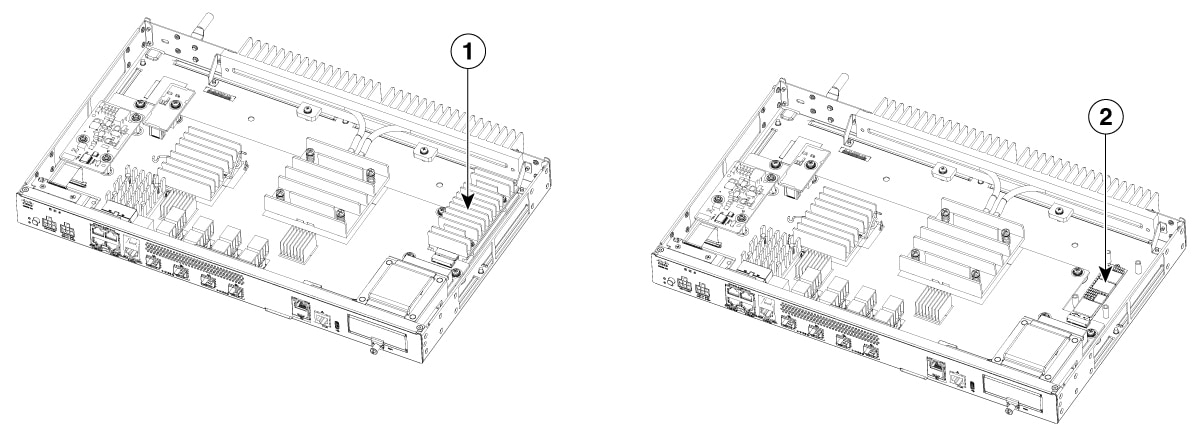

| 1 |
M.2 NVME |
| 2 |
M.2 e.USB |
Locating labels on Cisco 8300 Series Secure Routers
Use the Cisco Product Identification (CPI) tool to find labels on the platform. The tool provides detailed illustrations and descriptions of where labels are located on Cisco products. It includes these features:
-
A search option that allows browsing for models by using a tree-structured product hierarchy
-
A search field on the final results page that makes it easier to look up multiple products
-
End-of-sale products clearly identified in results lists
The tool streamlines the process of locating serial number labels and identifying products. Serial number information expedites the entitlement process and is required for access to support services.
Labels on Cisco 8300 Series Secure Routers

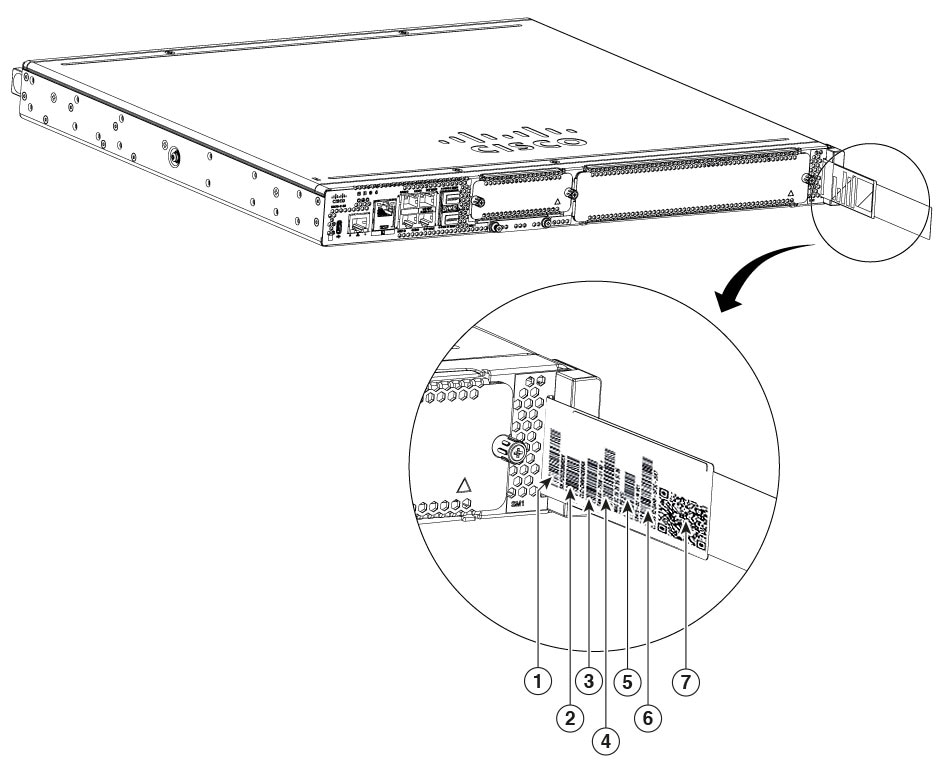

The figure shows the location of the labels on the Cisco 8300 Series Secure Routers. Labels are located at the same location on all the Cisco 8300 Series Secure Routers.
The Serial number (SN), Common language equipment identifier (CLEI), Top Assembly Number (TAN), Product ID (PID), PID version ID (VID), and Quick response (QR) code are printed on a label on the back of the platform or on a label tray located on the chassis.
The RFID tags on the devices are pre-fitted and does not come with spare RFID tags.

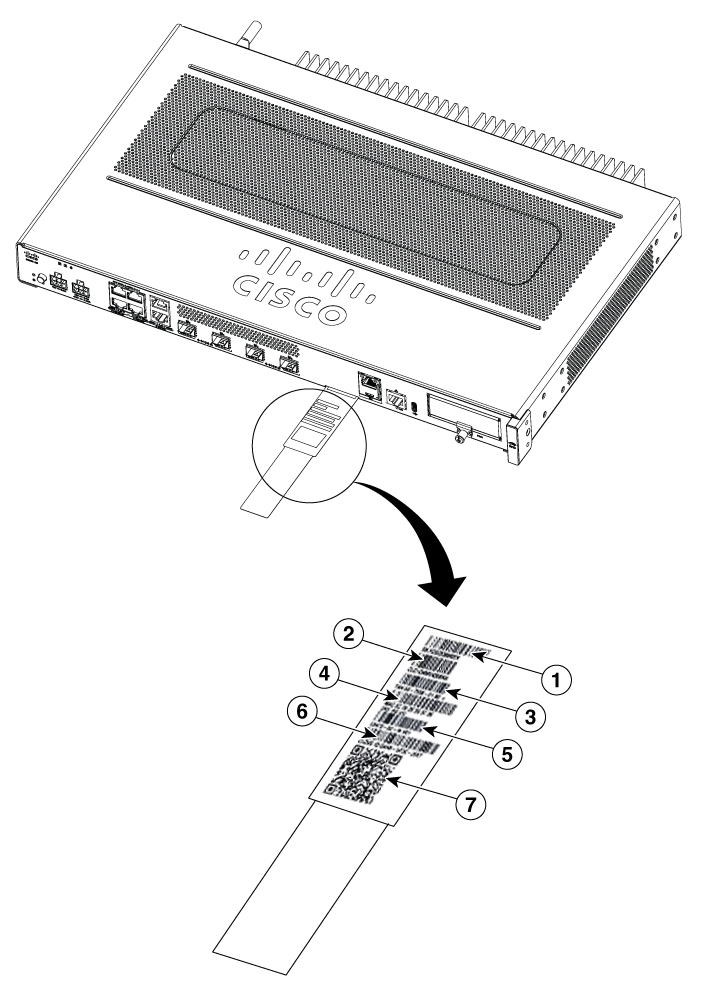

| 1 |
SN |
2 |
CLEI |
| 3 |
TAN |
4 |
MAC |
| 5 |
PIDVID |
6 |
Cloud ID |
| 7 |
QR Code |
x` |
| 1 |
SN |
2 |
CLEI |
| 3 |
TAN |
4 |
MAC |
| 5 |
PIDVID |
6 |
Cloud ID |
| 7 |
QR Code |
Locate product identification details
Software license
The serial number (SN), product ID (PID), version ID (VID), Cloud ID and Common Language Equipment Identifier (CLEI) are printed on a label on the bottom of the device or on the label tray.
To obtain a software license, you need the unique device identifier (UDI) of the device where the license is to be installed.
The UDI has two main components:
-
Product ID (PID)
-
Serial number (SN)
The UDI can be viewed using the show license udi command in privileged Exec mode in Cisco Internet Operating System (IOS) software.
For additional information on the UDI, see the Product Identification Standrad document on cisco.com.
