Configuring a Pluggable Interface Module

Want to summarize with AI?

Log in

Explains configuration procedures for Cisco Catalyst Pluggable Interface Modules, including operational adjustments, best practices, antenna attachment for reliable connectivity, and RF band mapping for P-5GS6-GL modules to ensure proper hardware integration and performance.


To insert the antenna in the Pluggable Interface Module, perform the below steps:

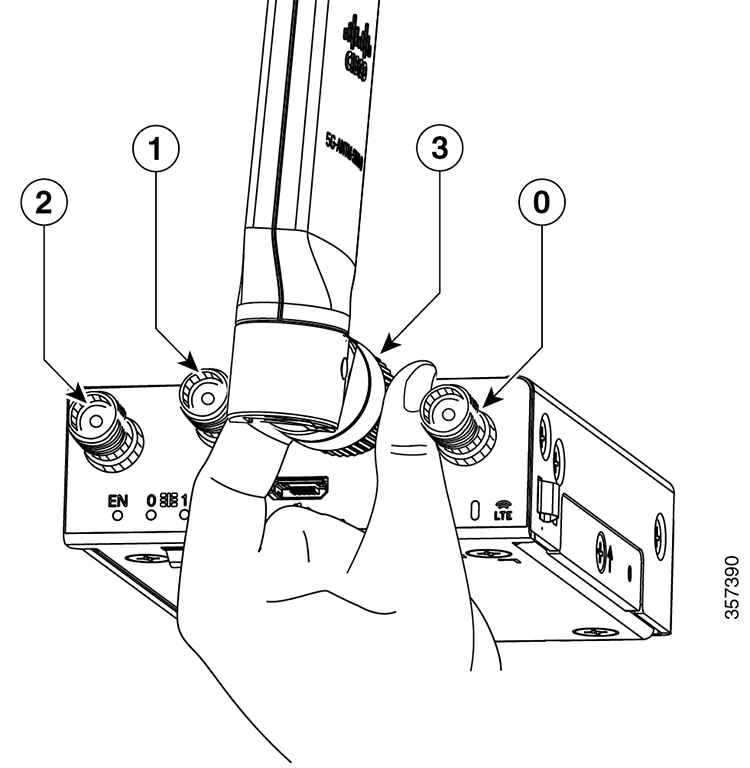

Figure 1. Attaching the antennas

Procedure

1.

Use your thumb and index finger to insert and tighten antenna 1 and antenna 3 in the middle antenna attachment slots as indicated in the figure.

Note

While installing the antennas, first install antenna 1 and antenna 3 (this instruction is for the two antenna attachments present in the middle) and secure it completely. If you install antenna 2 and antenna 0 first (this refers to the first and the last antenna attachments), there will be less space to insert your thumb and index finger and therefore you may not be able to secure antenna 1 and 3.

2.

Insert antenna 2 and antenna 0 in the first and last antenna attachment slots.

3.

After installing the antennas, adjust the antenna orientation by spacing out each of them equally until they are spread out. This is important as it helps in getting higher RF performance.


Attaching the antennas

To attach the antenna in the Pluggable Interface Module, perform the below steps:

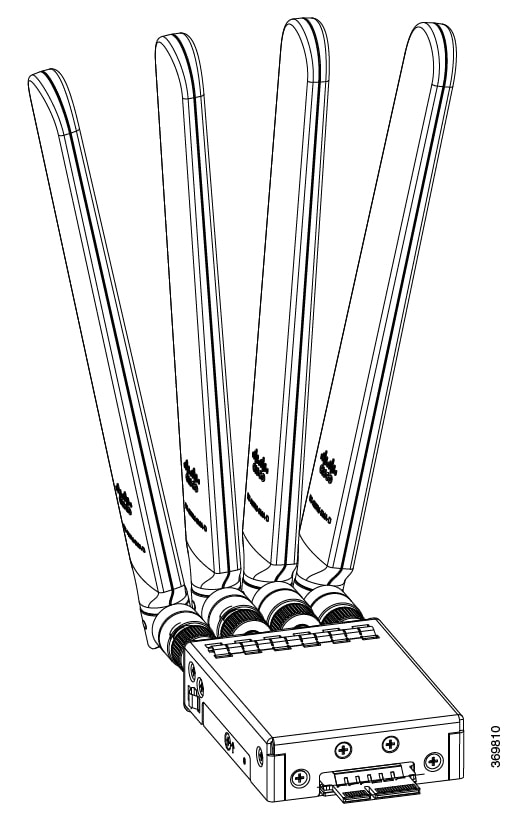

Figure 2. Attaching 5G NR Antenna (5G-ANTM-O4-B) to P-5GS6-GL PIM
Note

5G NR Antenna (5G-ANTM-04-B) is supported on both P-LTEAP18-GL and P-5GS6-GL PIMs.

  1. Attach each SMA cable to the ports as indicated in the table mappings.

  2. Ensure that you tighten and secure each SMA cable into the SMA connector on the PIM.

Table 1. Port Mappings for 5G-ANTM-0-4-B on P-5GS6-GL and P-LTEAP18-GL PIMs

5G-ANTM-O-4-B

P-LTEAP18-GL

P-5GS6-GL

MAIN 0 (LTE1)

Main 0

ANT 0

MAIN 1 (LTE3)

Main 1

ANT 1

DIV 0 (LTE2)

DIV 0

ANT 2

DIV 1 (LTE4)

DIV 1

ANT 3

GNSS

No connection

GPS

This link contains the antenna specifications and installation instructions for 5G NR (5G-ANTM-O-4-B):

https://www.cisco.com/c/en/us/td/docs/routers/connectedgrid/antennas/installing-combined/b-cisco-industrial-routers-and-industrial-wireless-access-points-antenna-guide/m-5g-antm-04b.html#Cisco_Generic_Topic.dita_e780a6fe-fa46-4a00-bd9d-1c6a98b7bcb9

RF Band Mapping for antenna ports (For P-5GS6-GL only)

The following table lists the RF band mapping for antenna ports.

RF Band mapping for antenna ports:

Antenna Port

Technology

TX

RX

ANT 0

3G WDCMA

B1, B2, B3, B4, B5, B6, B8, B9, B19

B1, B2, B3, B4, B5, B6, B8, B9, B19

LTE

B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B30, B34, B38, B39, B40, B41, B66, B71

B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71

5G NR FR1

n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71

n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79

ANT 1

3G WDCMA

-

B1, B2, B3, B4, B5, B6, B8, B9, B19

LTE

B5, B20, B42, B43, B48, B71

B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71

5G NR FR1

n5, n48, n77, n78, n79

n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79

ANT 2

3G WDCMA

-

-

LTE

B1, B2, B3, B4, B7, B41, B66

B1, B2, B3, B4, B7, B25, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66

5G NR FR1

n1, n2, n3, n7, n25, n41, n66, n77, n78, n79

n1, n2, n3, n7, n25, n38, n40, n41, n48, n66, n77, n78, n79

ANT 3

3G WDCMA

-

-

LTE

-

B1, B2, B3, B4, B7, B25, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66

5G NR FR1

-

n1, n2, n3, n7, n25, n38, n40, n41, n48, n66, n77, n78, n79
