This chapter provides procedures for using CiscoView to perform Asynchronous Transfer Mode (ATM) configuration on LightStream switches. For ATM LANE configuration information for Catalyst switches, refer to Chapter 5, "."

ATM features for the LightStream switches are described in the following sections, which contain a variety of features used for ATM configuration ():

•Managing ATM Device Features

•Managing ATM Port Features

Figure 6-1

ATM Features

Managing ATM Device Features

The ATM device features allow access to the following features:

•Resource Management (Global)

•ATM OAM

•ATM RMON

•ATM Accounting

•ATM Signaling (Global)

•ATM Signaling Diagnosis

•PNNI (Global)

•ILMI (Global)

To invoke the ATM Feature application, select ATM Features from the menu bar.

Within each ATM device feature, change the category to access different management features.

To display the information for any category, select the appropriate category from the pull-down menu by the side of the CATEGORY label.

---

Note   Where windows display "optional" fields, you can either enter a value or leave the field blank so the device automatically generates the value.

---

---

Note   For additional information regarding the fields within the windows, click Help to access the CiscoView Help screens.

---

Resource Management (Global)

The Resource Management (Global) category allows you to provide management of critical resources in an ATM network, such as buffer space and trunk bandwidth. When the Resource Management (Global) category is selected, the default window displayed is the window.

Subcategories available including the following:

•ATM RM Switch Configuration

•ATM RM Queue

•ATM RM Default UNI3 QoS

•ATM Traffic Descriptor

•ATM RM Threshold Group

•ATM RM Threshold Group Service

•ATM RM Service Class

•ATM RM Service Class on Interface

ATM RM Switch Configuration

If you select the ATM RM Switch Configuration category, the window opens. The window () allows you to display or modify available bit rate (ABR) and unspecified bit rate (UBR) configuration information. To modify the current configuration, edit the field(s) and click Modify to commit the modification. If an invalid value is entered, an error message is displayed. (See "Hints for Modifying the ATM RM Switch Configuration" for more information.)

Figure 6-2

ATM RM Switch Configuration

Hints for Modifying the ATM RM Switch Configuration

When modifying the fields, consider the following:

•When setting the Set the Over-Subscription Factor field, in general, the larger the Over-Subscription Factor value, the larger the queue size.

•When setting the ABR Mode field, consider the following:

•relative rate sets the congestion notification to be received from outside the switch.

•EFCI sets the congestion notification in the headers of forward cells, which are turned around at the destination end system and sent back to the source end system.

•both sets the congestion notification to both the relative rate and EFCI congestion notification types for ABR connections.

•The default value is 1% for the Set the Sustained Cell Rate Margin Factor field.

ATM RM Queue

If you select the ATM RM Queue category, the ATM RM Queue window () allows you to display or modify output queue traffic information. To modify the current configuration, edit the field(s) and click Modify to commit the modification. If an invalid value is entered, an error message is displayed. (See "Hint for Modifying the ATM RM Queue" for more information.)

Figure 6-3

ATM RM Queue

Hint for Modifying the ATM RM Queue

When setting the Set the Output Queue Limit field, the total output queue limit is 65,535 cells of all priorities combined.

ATM RM Default UNI3 QoS

If you select the ATM RM Default UNI3 QoS category, the ATM RM Default User-Network Interface 3 (UNI3) Quality of Service (QoS) window () allows you to display or modify the default QoS information. To modify the current configuration, edit the field(s) and click Modify to commit the modification. If an invalid value is entered, an error message is displayed. (See "Hints for Modifying the ATM RM Default UNI3 QoS" for more information.)

Figure 6-4

ATM RM Default UNI3 QoS

Hints for Modifying the ATM RM Default UNI3 QoS

When modifying the fields, consider the following:

•When setting the Set the Default QoS Max Cell Transfer Delay value, the value is entered in microseconds.

•When setting the Set the Default QoS Cell Loss Ratio for CLP01 value, the value is entered in negative powers of 10.

ATM Traffic Descriptor

If you select the ATM Traffic Descriptor category, the ATM Traffic Descriptor window () lists traffic descriptor information. To create a new traffic descriptor, click Create and assign values to the fields. After values are entered, click Apply to commit to set configuration to the switch. (See "Hints for Creating an ATM Traffic Descriptor" for more information.)

Figure 6-5

ATM Traffic Descriptor

Hints for Creating an ATM Traffic Descriptor

When defining the fields, consider the following:

•When setting the Set the Descriptor Index value, enter a unique number to identify this row in the ATM Traffic Descriptor parameter table.

•When setting the Set the Peak Cell Rate (PCR) value, the value is entered in kbps.

ATM RM Threshold Group

If you select the ATM RM Threshold Group category, the ATM RM Threshold Group window () allows you to display or modify the threshold group information. To modify the current configuration, edit the field(s) and click Modify to commit the modification. If an invalid value is entered, an error message is displayed. (See "Hints for Modifying the ATM RM Threshold Group" for more information.)

Figure 6-6

ATM RM Threshold Group

Hints for Modifying the ATM RM Threshold Group

When defining the fields, consider the following:

•When setting the Set the Max Size value, the largest allowable value is 65535.

•When setting the Set the Max Queue Size value, valid values are 32 to 16368. The value entered cannot be smaller than the Queue Minimum Size.

•When setting the Set the Min Queue Size value, valid values are 32 to 16368. The value entered cannot be larger than the Queue Maximum Size.

•When setting the Set the CLP/EPD Threshold (%) value, the value is entered as a percentage of capacity. Setting this value to 100 effectively turns off the threshold.

•When setting the Set the EFCI/ABR-RR Mark Threshold value, the value is entered as a percentage of capacity. Setting this value to 100 effectively turns off the threshold.

ATM RM Threshold Group Service

If you select the ATM RM Threshold Group Service category, the window () allows you to display or change the threshold group to which VC/VP queues specified by this service are assigned. To modify the current configuration, edit the field(s) and click Modify to commit the modification. If an invalid value is entered, an error message is displayed.

Figure 6-7

ATM RM Threshold Group Service

ATM RM Service Class

If you select the ATM RM Service Class category, the window () displays service class information on this interface.

Figure 6-8

ATM Service Class

ATM RM Service Class on Interface

If you select the ATM RM Service Class on Interface category, the window () displays the service classes and interface index values on this interface.

Figure 6-9

ATM Service Class on Interface

ATM OAM

The ATM OAM category displays OAM Loopback Ping table information for end-to-end or segment connections. When the ATM OAM category is selected, the default window displayed is the window.

Subcategories available including the following:

•OAM Ping (end2end)

•OAM Ping (segment)

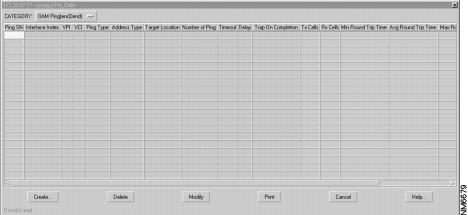

OAM Ping (end2end)

If you select the ATM OAM category, the default window     () displays OAM Loopback Ping table information for end-to-end connections.

The action buttons are as follows:

•Create—To create a new OAM Loopback Ping(end2end) entry, click Create and assign values to the fields. After values are entered, click Apply to set configuration to the switch. (See "Hint for Creating/Modifying an OAM Ping(end2end) Entry" for more information.)

•Modify—To modify the current configuration, edit the field(s) and click Modify to commit the modification. If an invalid value is entered, an error message is displayed. (See "Hint for Creating/Modifying an OAM Ping(end2end) Entry" for more information.)

Figure 6-10

OAM Ping(end2end)

Hint for Creating/Modifying an OAM Ping(end2end) Entry

When setting the Ping SN value, enter a unique identifier for this entry in the OAM Loopback Ping Table.

OAM Ping (segment)

If you select the OAM Ping (segment) category, the default window () displays OAM Loopback Ping table information for segment connections.

Figure 6-11

OAM Ping(segment)

The action buttons are as follows:

•Create—To create a new OAM Loopback Ping(segment) entry, click Create and assign values to the fields. After values are entered, click Apply to set configuration to the switch. (See "Hints for Creating/Modifying an OAM Ping(segment) Entry" for more information.)

•Modify—To modify the current configuration, edit the field(s) and click Modify to commit the modification. If an invalid value is entered, an error message is displayed. (See "Hints for Creating/Modifying an OAM Ping(segment) Entry" for more information.)

Hints for Creating/Modifying an OAM Ping(segment) Entry

When defining the fields, consider the following:

•When setting the Ping SN value, enter a unique identifier for this entry in the OAM Loopback Ping Table.

•When setting the Row Status value, the value set is for the row status of the selected table entry.

ATM RMON

The ATM RMON category allows you to provide management of high-level per-host and per-conversation statistics in a standards-track MIB, similar to the existing RMON-1 and RMON-2 MIBs. When the ATM RMON category is selected, the default window displayed is the window.

Subcategories available including the following:

•Data Collection Group

•Data Collection Group on Interface

•Enable/Disable ATM RMON

•Total Traffic

•In HostTraffic

•Out Host Traffic

•Source Matrix Traffic

•Destination Matrix Traffic

Data Collection Group

If you select the ATM RMON category, the window opens. The Data Collection Group window () displays the ATM RMON collection group information defined on the device.

Figure 6-12

Data Collection Group

The action buttons are as follows:

•Create—To create a new Data Collection Group entry, click Create and assign values to the fields. After values are entered, click Apply to set configuration to the switch. (See "Hints for Creating/Modifying a Data Group Collection Entry" for more information.)

•Modify—To modify the current configuration, edit the field(s) and click Modify to commit the modification. If an invalid value is entered, an error message is displayed. (See "Hints for Creating/Modifying a Data Group Collection Entry" for more information.)

Hints for Creating/Modifying a Data Group Collection Entry

When defining the fields, consider the following:

•When setting the Group ID value, enter a unique index number for this collection group.

•When setting the Max Host Entries value, if this field is left blank, this indicates that as many entries as possible will be created.

•When setting the Max Matrix Entries value, if this field is left blank, this indicates that as many entries as possible will be created.

•When setting the Matrix Priority value, the values are: 1 (low), 2 (normal), or 3 (high); 2 (normal) is the default.

•When setting the Matrix Address Scope value, the values are: 1 (match prefix), 2 (match prefix and ESI), or 3 (entire 20-byte address).

Data Collection Group on Interface

If you select the Data Collection Group on Interface category, the window opens. The window () displays the ATM RMON collection group information defined on each port.

The action buttons are as follows:

•Create—To create a new Data Collection Group on Interface entry, click Create and assign values to the fields. After values are entered, click Apply to set configuration to the switch. (See "Hint for Creating/Modifying a Data Collection Group on Interface Entry" for more information.)

•Modify—To modify the current configuration, edit the field(s) and click Modify to commit the modification. If an invalid value is entered, an error message is displayed. (See "Hint for Creating/Modifying a Data Collection Group on Interface Entry" for more information.)

Figure 6-13

Data Collection Group on Interface

Hint for Creating/Modifying a Data Collection Group on Interface Entry

When setting the Group ID value, enter a unique index number for this collection group.

Enable/Disable ATM RMON

If you select the Enable/Disable ATM RMON category, the window opens. The window () allows you to enable or disable the ATM RMON feature by specifying Enable ATM RMON active or inactive. To modify the current configuration, edit the field(s) and click Modify to commit the modification. If an invalid value is entered, an error message is displayed.

Figure 6-14

Enable/Disable ATM RMON

Total Traffic

If you select the Total Traffic category, the window opens. The window () displays the total traffic statistics information for each ATM RMON group.

Figure 6-15

Total Traffic

In HostTraffic

If you select the In HostTraffic category, the window opens. The window () displays the incoming host traffic statistics information for each ATM RMON group.

Figure 6-16

In Host Traffic

Out Host Traffic

If you select the Out Host Traffic category, the window opens. The window () displays the outgoing host traffic statistics information for each ATM RMON group.

Figure 6-17

Out Host Traffic

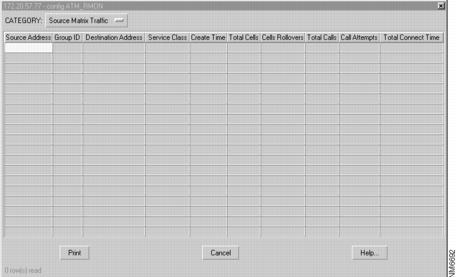

Source Matrix Traffic

If you select the Source Matrix Traffic category, the window opens. The window () displays the traffic statistics information for each ATM RMON group, sorted by source address.

Figure 6-18

Source Matrix Traffic

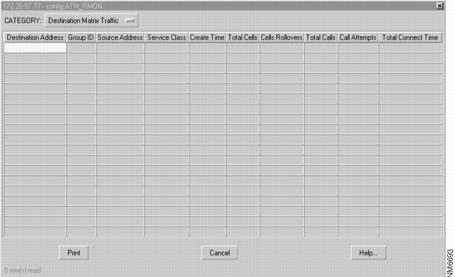

Destination Matrix Traffic

If you select the Destination Matrix Traffic category, the window opens. The window () displays the traffic statistics information for each ATM RMON group, sorted by destination address.

Figure 6-19

Destination Matrix Traffic

ATM Accounting

The ATM Accounting category allows you to access ATM accounting functions. When the ATM Accounting category is selected, the default window displayed is the window.

Subcategories available including the following:

•Data Collection

•Data File

•Enable/Disable ATM Accounting

•Enable/Disable ATM Accounting Trap

•Enable/Disable Data Collection on Interface

•Other ATM Accounting Commands

Data Collection

If you select the ATM Accounting category, the Data Collection window opens. The Data Collection window allows you to define the accounting data to be collected.

The action buttons are as follows:

•Select Collection Data—To select the type(s) of data to be collected, click Select Collection Data. (See "Hints for Selecting Collection Data" for more information.)

•Select Connection Type—To select the type(s) of data to be collected, click Select Collection Type. (See "Hints for Selecting Connection Type" for more information.)

Hints for Selecting Collection Data

When defining the fields, consider the following:

•Collection data is listed by MIB value. For definitions of the MIB values, refer to the online Help screen.

•Click Select All to select all listed values.

•Click Deselect All to deselect all values.

Hints for Selecting Connection Type

When defining the fields, consider the following:

•Connection type(s) are listed by MIB value. For definitions of the MIB values, refer to the online Help screen.

•Click Select All to select all listed values.

•Click Deselect All to deselect all values.

Data File

If you select the Data File category, the window opens. The window () allows you to display or modify the accounting data file parameters. To modify the current configuration, edit the field(s) and click Modify to commit the modification. If an invalid value is entered, an error message is displayed.

Figure 6-20

Data File

Enable/Disable ATM Accounting

If you select the Enable/Disable ATM Accounting category, the window opens. The window () allows you to enable or disable the ATM Accounting feature. To modify the current configuration, edit the field(s) and click Modify to commit the modification. If an invalid value is entered, an error message is displayed.

Figure 6-21

Enable/Disable ATM Accounting

Enable/Disable ATM Accounting Trap

If you select the Enable/Disable ATM Accounting Trap category, the window opens. The window () allows you to define whether accounting traps are generated on the device and at what percentage of the data file size will generate the trap. To modify the current configuration, edit the field(s) and click Modify to commit the modification. If an invalid value is entered, an error message is displayed.

Figure 6-22

Enable/Disable ATM Accounting Trap

Enable/Disable Data Collection on Interface

If you select the Enable/Disable Data Collection on Interface category, the window opens. The window () allows you to define which ports have data collection. To modify the current configuration, edit the field(s) and click Modify to commit the modification. If an invalid value is entered, an error message is displayed.

Figure 6-23

Enable/Disable Data Collection on Interface

Other ATM Accounting Commands

If you select the Other ATM Accounting Commands category, the window opens. The window (see   ) allows you to define which ports have data collection.

The action buttons are as follows:

•File Command—provides the following commands:

•idle indicates data collection is idle

•cmdInProgress indicates a command is in progress

•collectNow begins data collection

•swapToNewFile closes the current data file and begins collecting in a new file

•Modify—To modify the current configuration, edit the field(s) and click Modify to commit the modification. If an invalid value is entered, an error message is displayed.

Figure 6-24

Other ATM Accounting Commands
