For consume event kind, CWM connects to a Kafka broker and listens for a specific event type on a topic. Once an event of the specific type registers to the right topic, CWM retrieves the event data and forwards it to the running workflow. Then, the workflow executes actions defined inside the Event State and/or runs another workflow execution (if selected).

For produce event kind, a running workflow produces a single event or a set of events which CWM then forwards to the broker and they get published in the right topic.

The Kafka broker will accept every event message format supported by the language-specific SDK as long as a valid content-type is sent. The list of supported formats is here: https://github.com/cloudevents/spec?tab=readme-ov-file.

For consume event kind, CWM connects to an AMQP broker and listens for a specific event type on a queue. Similarly to the Kafka broker, when an event of the specific type registers to the right queue, CWM retrieves the event data and forwards it to the running workflow. Then, the workflow executes actions defined inside the Event State and/or runs another workflow execution (if selected).

For produce event kind, a running workflow produces a single event or a set of events which CWM then forwards to the broker and they get published in the right queue.

AMQP brokers will accept every event message format supported by the specific SDK as long as a valid content-type is sent. The list of supported formats is here: https://github.com/cloudevents/spec?tab=readme-ov-file.

For consume event kind, CWM exposes an HTTP endpoint that listens for any incoming events. If an event of specific type comes, it is forwarded to the running workflow that waits for this event type.

Note	When events are consumed, CWM functions as the destination HTTP server. Therefore, the URL of the CWM server is what you effectively provide as the resource for the given HTTP event type.

Event messages need to be HTTP POST requests, and message body needs to be in JSON format representing a Cloud Event:

Note	Example: { "specversion": "1.0", "id": "2763482-4-324-32-4", "type": "com.github.pull_request.opened", "source": "/sensors/tn-1234567/alerts", "datacontenttype": "text/xml", "data": "<test=\"xml\"/>", "contextAttrName": "contextAttrValue" }

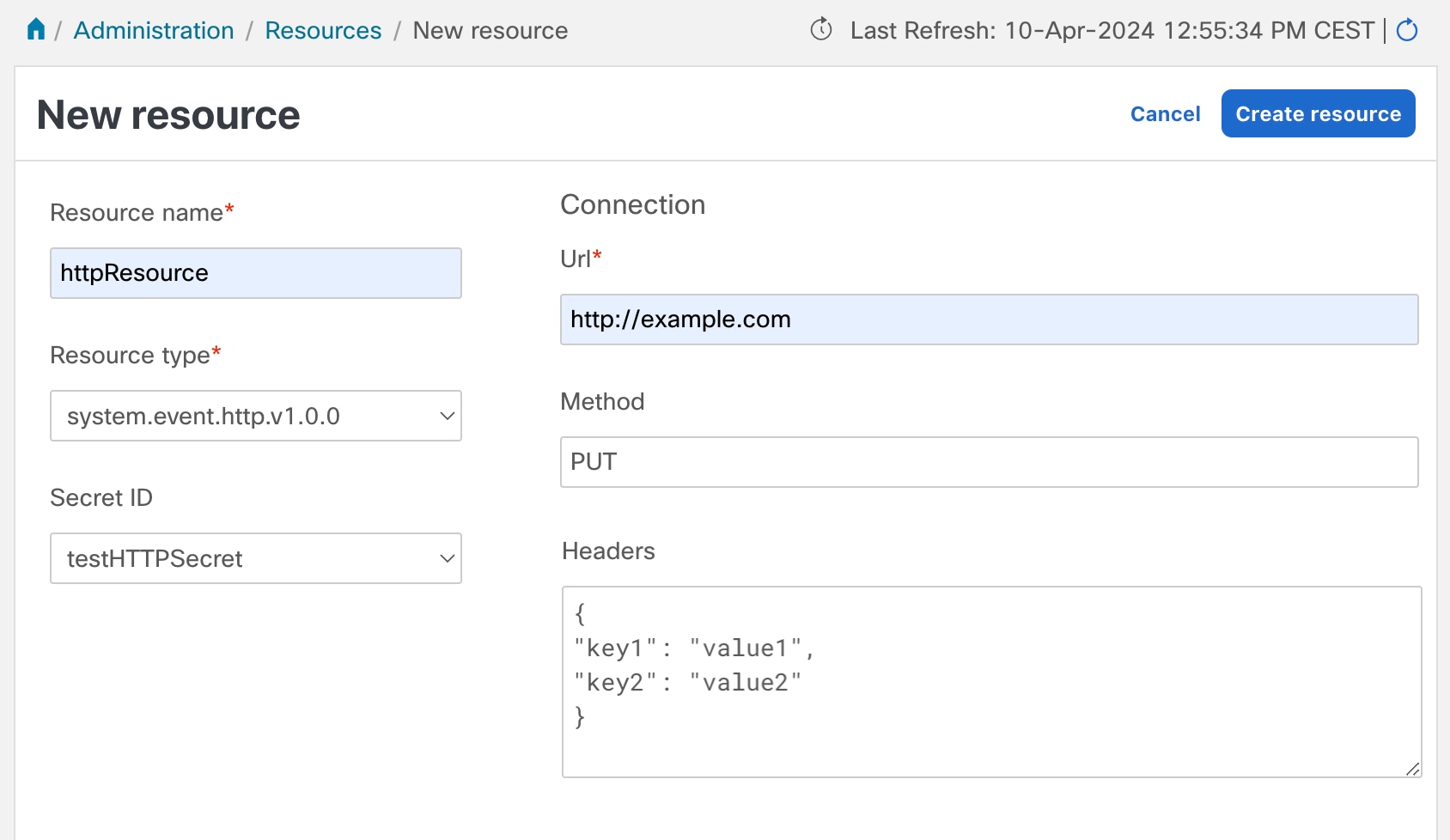

For produce kind events, a workflow produces an event in the Cloud Event format and CWM forwards it as an HTTP POST request to an HTTP endpoint exposed by an external system. The HTTP endpoint address is a concatenation of the host URL defined in the Resource configuration in CWM and the End point field of the Event definition inside the workflow definition. Inside the resource configuration, you can change the request method to PUT or other, and add key and value pairs as header (in JSON format):

In event configuration, secrets store credentials needed to enable connection to a broker or endpoint exposed by a third party service that sends or receives events. This includes basic authentication: username and password. The Secret ID that you provide when creating a secret will be referenced when creating a resource, so you need to add a secret beforehand. To learn how to do it, see the section on adding secrets.

The resource is where you provide all the connection details (including the secret) needed to reach an event broker or endpoint exposed by a third party service. Depending on the broker/protocol you want to use, you can choose among three default event resource types:

• system.event.amqp.v1.0.0

• system.event.kafka.v1.0.0

• system.event.http.v1.0.0

Notice that there is a different set of configuration fields for each of them:

• For AMQP, provide the ServerDSN in the following format: amqp://localhost:5723.

• For Kafka:

  • KafkaVersion: provide your Kafka version. The standard way to check Kafka version is to run bin/kafka-topics.sh --version in a terminal.

  • Brokers: provide your Kafka broker addresses in the following format: ["localhost:9092", "192.168.10.9:9092"].

  • OtherSettings: an editable list with default Kafka setting values. You can modify the values if needed.

• For HTTP:

  • Produce event kind: fill in the URL field and optionally, Method and Headers (for example, Client-ID header name and value as a JSON object).

    Note	Note that URL needs to be the address of destination HTTP server, but without the URL path. You will provide the URL path as End point when configuring the event type.

  • Consume event kind: fill in the URL field with the server URL of your CWM instance, for example, 192.168.10.9:9092.

    Note	Remember to provide the URL of your CWM instance without the URL path (/event/http). You will later use the URL path as the End point when configuring the event type.

Note	To create a new event type, you need to have a resource and secret added to CWM.

The following fields are available when adding an event type:

• Event type name: the name of your event type. It's later referred to inside the workflow definition.

• Resource: a list of resources previously added to CWM.

  • Event source: a fully user-defined entry that will be referenced in the workflow definition. Required for produce event kind.

  • End point: the name of Kafka topic (event stream), AMQP endpoint (terminus), or HTTP URL (Host) path.

    Note	For HTTP consume event kind, provide /event/http as your End point.

  • Select kind: a list consisting of two options: consume or produce event kind.

    Note	The both option is not yet supported for {{ version.CWM }}.

  • Start listener (only for consume kind): check it to start listening for the defined event type.

  • Run job (only for consume kind): tick this checkbox if you want to trigger a workflow upon receiving the event. Then select the desired workflow from the list.

Event messages need to follow the Cloud Events specification format. Minimum viable event message contains the following parameters:

{
  "specversion": "1.0",
  "id": "00001",
  "type": "com.github.pull_request.opened",
  "source": "/sensors/tn-1234567/alerts"
}

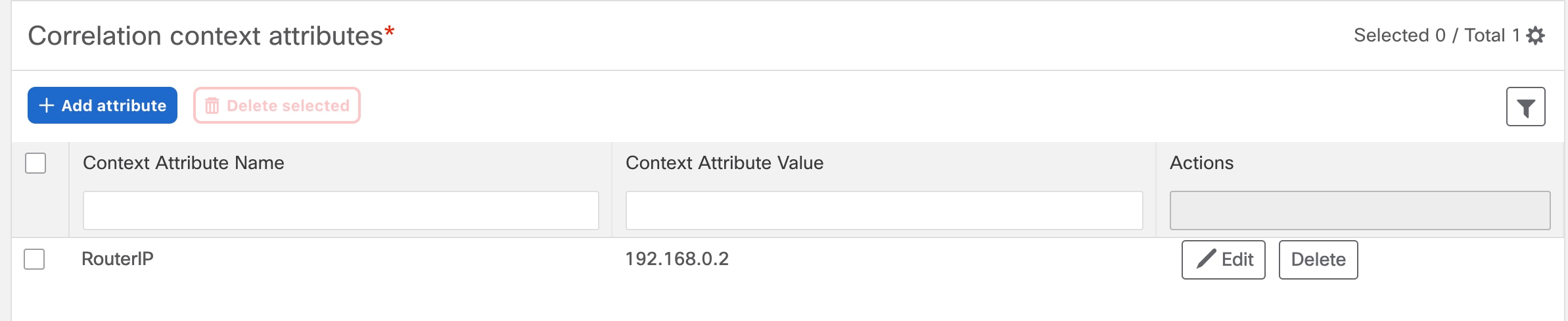

The message can carry additional parameters like "datacontenttype", "data", and correlation context attribute name (contextAttrName in this example) :

  {
  "specversion": "1.0",
  "id": "2763482-4-324-32-4",
  "type": "com.github.pull_request.opened",
  "source": "/sensors/tn-1234567/alerts",
  "datacontenttype": "text/xml",
  "data": "<test data=\"xml\"/>",
  "contextAttrName": "contextAttrValue"
}

In the workflow definition, there are two major syntactical elements that you use to handle the events that the workflow will be waiting on. These are:

• Event definition: used to define the event type and its properties:

{
   "name": "applicant-info",
   "type": "org.application.info",
   "source": "applicationssource",
   "correlation": [
    {
      "contextAttrName": "applicantId"
    }
   ]
}

• Event state: used to define actions to be taken when the event occurs:

{
"name": "MonitorVitals",
"type": "event",
"onEvents": [
        {
          "actions": [
            {
              "functionRef": {
                "refName": "uppercase",
                "arguments": {
                  "input": {
                    "in": "patient ${ .patient } has high temperature"
                  }
                }
              }
            }
          ],
          "eventRefs": [
            "HighBodyTemperature"
          ]
        }
      ]
}
