1. Click on the Container Groups tab.

2. Under the Create Container Groups tab, click on Create Container Group and complete the following fields:

   Field	Description
   Container Name	Name of the Container Group.
   Total Container across all nodes field	The number of containers you need to run. (Minimum 1)
   Disk size/container (GB) field	The size assigned to each container.
   Distribute Container Equally	Containers are deloyed equally across all nodes.
   HX Cluster Type Credentials
   Hx Connect IP Address	The HX Connect IP Address.
   Hx Connect username	The HX Connect username.
   Hx Connect password	The HX Connect password.
   vSphere Cluster Type Credentials
   vCenter Connect DNS/IP	The vCenter Ip Address.
   vCenter Connect Username	The vCenter username.
   vCenter Connect Password	The vCenter password.
   Storage Class
   Existing	If you want to use existing storage class, then click existing and select the storage class from Storage Class Names
   New	If you want to create new storage class, then click on new and select the datastore. Note  If you want to create a new storage class you must select a datastore.
   Datastore (Required for a new Storage class)
   Existing	If you want to go with existing datastore, then click existing -> Fetch Datastore and select the data store from dropdown list.
   New	If you want to create new Datastore, then click on new and enter the datastore name and size (HX support only). Note  vSphere does not support creating a new datastore.

3. Click Save.

Container Group Deletion

To delete a container group from the groups page perform the following steps:

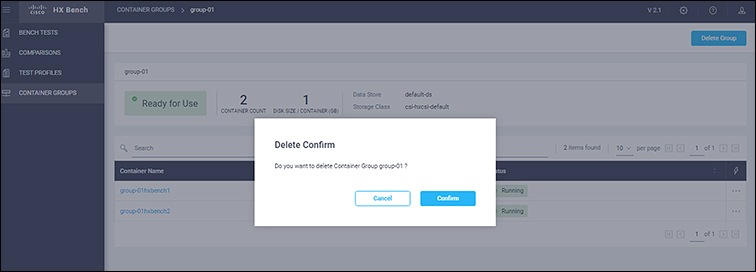

1. Click Delete Group. The Delete Confirm window appears.

2. Click Confirm to complete the action.

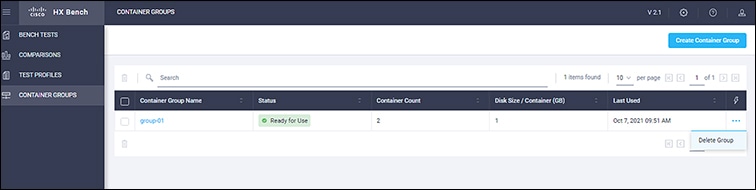

To delete a container group from the (…) menu, perform the following steps:

1. Container groups > container group name > … > Delete Group.

2. Confirm the action.
