Cisco Nexus Fabric Manager Walkthrough

This document provides a walkthrough of deploying a VXLAN fabric underlay using the Cisco Network Fabric Manager.

Author: Garry Lemasa, Technical Marketing Engineer, Cisco Network Fabric Manager, with contributions by Salvatore Ventura and Tom Nosella.

v1.1

June 13, 2017



Table of Contents

A New Way of Building and Managing VXLAN Spine/Leaf Fabrics. 3

Scope. 3

Assumptions. 4

User Interface Overview.. 4

Stage one – deploy switch software. 5

Auto-Fabric Provisioning or Discovery Import. 6

Upload an NXOS image when Discovery Import is used. 7

Stage two – create a switch profile. 7

Stage three – configure switchpool settings. 9

Stage four - import switches. 11

Option #1 - Auto Fabric Provisioning. 11

Option #2 - Discovery Import. 13

Stage five - upgrade NXOS software. 15

Create an upgrade group. 15

Start the NXOS software upgrade. 16

Stage six – set switches to managed mode. 17

Other considerations. 18

A fully managed and automated VXLAN underlay. 19



A New Way of Building and Managing VXLAN Spine/Leaf Fabrics

Building a VXLAN/EVPN infrastructure can be challenging. Administrators and network engineers can invest days with the switch command line and scripts configuring many switches in different roles. This manual process is inefficient, tends to be error prone and requires extensive knowledge of CLI commands and protocols. Off the shelf network management options can assist in this process, but they tend to be element based, implementing commands on a switch-by-switch basis and still require extensive knowledge of CLI protocols.

Enter the Cisco Nexus Fabric Manager (NFM). NFM is a Data Center fabric manager that simplifies and automates the creation and management of VXLAN/EVPN spine/leaf environments. Built to be fabric aware, NFM actively builds and manages both the underlay, as well as overlay connectivity. The simple user interface enables administrators to focus on how they want to design their fabric, while NFM determines and pushes the required configurations down to any Nexus 9000 switch. NFM has also been designed to assist in all phases of a fabric lifecycle, simplifying and automating tasks such as adding hosts and switches, building layer 2 and 3 connectivity, troubleshooting issues and reporting on network health.

Even better, NFM actively manages the VXLAN underlay entirely on its own, with no user involvement necessary.

Scope

The objective of this document is to provide an example walkthrough of building a new VXLAN spine/leaf underlay with the Cisco NFM, resulting in a fabric that is ready to have hosts attached and overlays created.

There are six stages of building a VXLAN spine/leaf underlay with the Cisco Nexus Fabric Manager, including:

·         Deciding on NXOS software

·         Building switch profiles

·         Modifying switchpool settings

·         Import switches into the switchpool

·         Upgrading the NXOS software image

·         Setting switches to managed mode - building the underlay

We will use the topology in Figure 1 below that is a simple spine/leaf architecture with two Nexus 9372 switches as spines and two Nexus 9372 switches as leafs.

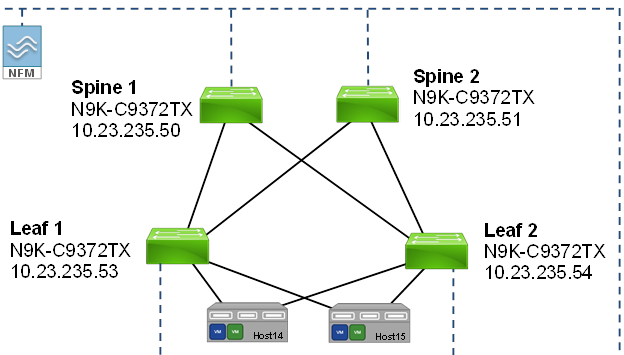

Figure 1 –VXLAN spine/leaf topology

Assumptions

Note the following assumptions:

·         All four switches are racked, cabled and powered on.

·         The NFM appliance is installed and configured according to the Cisco Nexus Fabric Manager Quick Start guide. Also, the mgmt0 interface on the switches and the appliance are able to communicate with each other on the same management network.

·         We are using NFM version 1.2(x) for this document. If you are using an earlier version we recommend that you upgrade before building your VXLAN fabric.

User Interface Overview

To enter NFM, type the appliance management IP address into a web browser (both Chrome and Firefox are supported), and enter the appropriate login credentials.

Upon logging in, NFM displays the home screen illustrated below.

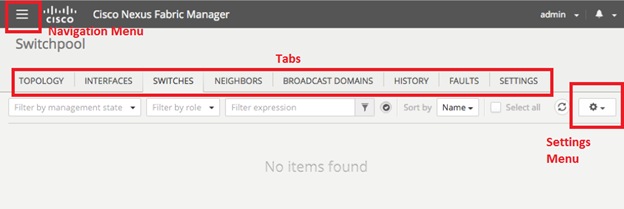

Figure 2 – Nexus Fabric Manager Home Screen

Most of the procedures in this document start from this screen. Key features of the home screen include the following:

·         Navigation Menu button in the upper left

·         Settings Menu in the upper right

·         Tabs across the middle of the screen such as INTERFACES, SWITCHES, SETTINGS, etc.

Clicking the Navigation Menu button in the upper left and selecting Home from the menu dropdown options returns to this home screen.

Stage one – deploy switch software

Before beginning the underlay build, administrators should determine which version of NXOS switch software they want to deploy. Note that while any supported image listed in the Nexus Fabric Manger release notes can be used, we recommend selecting the latest version in the release train to take advantage of updates and fixes. NXOS images can be uploaded to NFM from a laptop or server (after an authorized user downloads it from the cisco.com website).

Note: Once the switches have been imported into NFM, it automatically loads the NXOS image already installed on a Nexus 9000 into the NFM image catalog, This is helpful when a new switch is added and administrator wants to upgrade the fabric to the newer switch image.

Auto-Fabric Provisioning or Discovery Import

Administrators use one of the following two methods to import switches into the NFM switchpool, which will then deploy the chosen version of the NXOS software:

·         Auto-Fabric Provisioning (AFP) – Choose AFP to import out-of-the-box, powered on switches all at once. For AFP, the NFM Image Catalog must contain the image of NXOS that it will deploy, according to the NFM profile (discussed in stage 2). The AFP method applies the same NXOS image to all switches.

NFM uses built in Power On Auto Provisioning (POAP) server capabilities to push an initial configuration file to new switches, automatically adding them to the switchpool in “monitored” (read-only) mode or “managed” mode depending on the AFP configuration.

When using NFM version 1.2(3) or lower, the if0 interface on the appliance must be configured with an IP address in the same subnet as the switches you would like to import. In NFM version 1.3(1) or later, AFP functionality only requires a mgmt0 interface. For instructions on how to configure either interface, please refer to the NFM Quick Start guide. To add switches to the fabric, administrators will also want to have a list of switch serial numbers and desired management IP addresses for each switch in the fabric, that they will use to add switches to the fabric.

·         Discovery Import – This option enables administrators to import switches without making changes to the NXOS image on existing devices. Administrators who prefer to power on switches and apply initial configuration information or “kick the tires” before use can use the Discovery Import process.

When an administrator initially configures switches with a management IP address and username/password using the CLI and/or the NXOS setup utility, Discovery Import begins by manually adding an initial switch to the switchpool. Then, NFM reaches out to neighboring switches through the Cisco Discovery Protocol (CDP) and the Link Layer Discovery protocol (LLDP), attempting to reach every connected manageable switch.

Discovery import is useful for administrators who prefer to run the initial startup routine on new switches for verification purposes. Unlike the AFP process, NXOS is not updated through the profile selection (see Stage Two). This enables administrators to import switches into the switchpool without changing the image. With Discovery import, the NXOS image is updated later in the process via an upgrade group (see Stage five below).

Both approaches are equally valid for initial switch import into NFM.

Upload an NXOS image when Discovery Import is used

The following process details how to manually upload an image of NXOS into the NFM image catalog. The upload process steps are also used for upgrade groups that are discussed in stage five.

Because NXOS image files are large, use a local or fast broadband connection. Propagation delay from long distances and deep packet scanning can also significantly slow down a large file transfer.

Once uploaded, the image resides in the image catalog where NFM can use it to upgrade switches during AFP import or for the creation of upgrade objects.

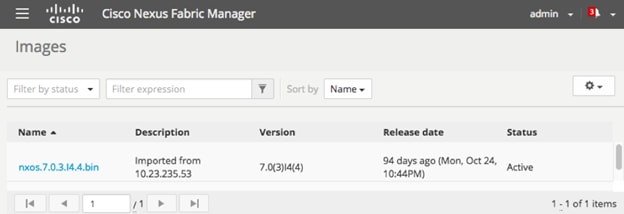

Figure 3 - NFM NXOS image catalog

Complete the steps below to upload a NXOS image into the NFM image catolog:

1.      From the Navigation menu, choose Images, click Settings, and, from the drop-down list, choose Upload new image.

2.      Click CHOOSE FILES, browse for the correct NXOS image file then click Open, and click UPLOAD.

Note: The upload steps are also used for upgrade groups, discussed in Stage six below.

Stage two – create a switch profile

Profiles simplify the configuration of multiple switches or switch interfaces, enabling administrators to configure a variety of features, and propagate those features to all of the profile members. Changes to a profile are automatically propagated to the objects they are linked to. Profiles can be assigned to either switches or interfaces based on their role as configured in the switchpool settings.

Before building the underlay, assess whether all of your switches use the same credentials.

If all switches share the same credentials, create one switch profile titled all_switches (or something else appropriate) and enter the credentials. This prevents the need to enter credentials manually for each switch.

Note: As a best practice, the NFM configuration guide recommends creating a separate user account on the switch (for example: nfmservice) with the role “network-admin" and use the account when adding a switch.

When fabrics have switches with differing credentials, administrators should consider ways to consolidate those switches into easily remembered groups and assign a profile to each. For example, leaf_switches and spine_switches could be separate profiles with separate credentials for each.

The profile can designate the initial NXOS switch image that NFM pushes to the switches in the fabric as part of the initial build.

Note: If Auto Fabric Provisioning is chosen for initial switch import, NFM automatically applies the designated image. Switches that are imported into NFM through discovery can be upgraded as part of an upgrade group.

Each switch can only reference one switch profile while a switch profile can be referenced by multiple switches. Many features can be enabled within profiles using the “+/-” button next to each feature option. A “-” indicates that the feature is enabled and is no longer grayed out.

Refer to the Profile Management chapter of the configuration guide for more information regarding profiles.

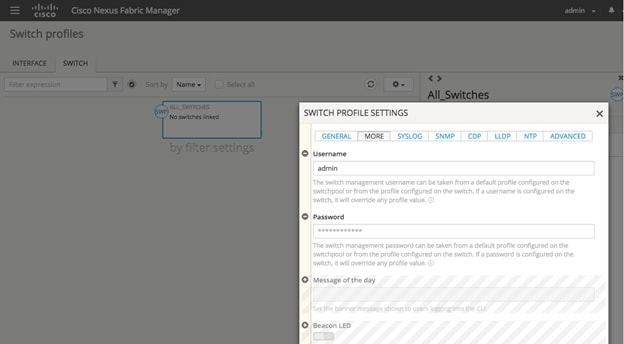

Figure 4 – NFM Switch Profiles settings for the ALL_SWITCHES profile

Complete the steps below to create a switch profile:

1.      From the Navigation menu drop-down list, choose Profiles, and click the SWITCH tab.

2.      From the Settings drop-down list, choose Create new switch profile.

3.      Select the GENERAL tab and enter “all switches” in the Name box.

4.      Select the MORE tab, and click the “+” icon next to the image feature and select the image uploaded in the first stage – in our case nxos.7.0.3.I4.4.bin. Note that this step is optional if AFP is not used.

5.      Enter in the appropriate switch credentials in the Username and Password box.

6.      Click the blue SAVE CHANGES button in the lower right.

Stage three – configure switchpool settings

The switchpool is simply a logical container of network objects that NFM manages. Any device that cannot be managed by NFM is considered foreign and will have a grayed-out icon in the user interface.

Before building the fabric, make these two changes to the switchpool settings: the auto-import of switches and assigning the all_switches profile we created earlier to leafs and spines. Both of these options are accessed from the SWITCHPOOL SETTINGS menu.

Complete the steps below to update the switchpool settings:

1.      From the Navigation menu drop-down list, choose Home, and click the SETTINGS tab. The switchpool pane appears on the right.

2.      Click the EDIT button on the switchpool pane. The SWITCHPOOL SETTINGS menu opens.

3.      Click on the Auto-Import switches button and enable it as in Figure 5. The button appears blue.

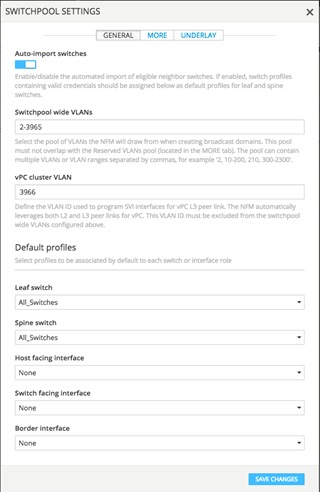

Figure 5 – The NFM SWITCHPOOL SETTINGS window.

Auto-import switches – Since we want NFM to automatically import neighbor switches discovered through CDP and LLDP, enable this feature. This feature automatically imports switches but leaves them in monitored or “read-only” mode. In the case where customers have switches in the fabric that NFM is not intended to manage, those devices can be left in monitored mode or administrators can disable the auto-import switch feature and manually add the switches as needed at a later time.

Default profiles for leaf and spine switches – Assign the all_switches profile created earlier to both leaf and spine switches, eliminating the need to manually enter user id and passwords for each switch.

In the Default Profiles section of the SWITCHPOOL SETTINGS window, complete the steps below:

4.      Click on the drop-down menu under Leaf switch and select all_switches

5.      Click on the drop-down menu under Spine switch and select all_switches

Now, the SWITCHPOOL SETTINGS window should match the changes shown in figure 4.

6.      Click the blue SAVE CHANGES button in the lower right.

Stage four - import switches

As discussed earlier, switches need to be imported either through Auto Fabric Provisioning or the Discovery import process.

Note: During switch import, a number of red errors display until the switches are fully imported. This is normal and the error messages turn blue as the process completes.

Option #1 - Auto Fabric Provisioning

First let’s walk through the Auto Fabric Provisioning process. In our example, there are four switches with the following serial numbers and the mgmt0 IP addresses we want to assign:

Switch             Mgmt0                    Serial Number

Spine 1            10.23.235.50           SAL1924GQTC

Spine 2            10.23.235.51           SAL19048JKY

Leaf 1              10.23.235.53           SAL1913C6YF

Leaf 2              10.23.235.54           SAL1924GQXP

Table 1 – Auto-Fabric Provisioning information



To import the spine switches with AFP:

If all spines in the fabric are Nexus 9500 switches, the NFM will automatically detect the model number and assign these models the roles of spines. However, if a spine switch is a Nexus model 9300 or 9200 switch then the spine role will need to be assigned manually. Since we are using Nexus 9372TX switches, we will be assigning Spine1 and Spine2 the role of spine in Step 6 below.

Complete the steps below to import spine switches with AFP:

1.      From the Navigation menu, choose Home and click the SWITCHES tab.

2.      From the Settings menu, choose Import new switch. The ADD SWITCH dialog box appears with the following tabs: GENERAL and MORE.

3.      Click in the field under Management address and enter the Spine 1 IP address, in our case 10.23.235.50

4.      Click in the field under Serial number and enter the Spine 1 Serial number, in our case SAL1924GQTC

5.      Click the MORE tab, and in the field under Name enter Spine1

6.      In the field under Role, select Spine from the dropdown menu.

7.      Click the blue SAVE CHANGES button in the lower right.

NFM initiates the process of importing Spine1.

Repeat the above process for Spine2, entering the appropriate IP address, serial number and Spine2 as a name.

There is no need to wait for the importing of a switch to finish before entering new information. NFM tracks and manage actions as they are entered into the user interface.

To import the leaf switches with AFP:

The procedure for importing the leaf switches is a step shorter since we do not have to designate their role. NFM automatically designates switches other than Nexus 9500’s as leafs.

Complete the steps below to import leaf switches with AFP:

1.      From the Navigation drop-down list, choose Home, and click the SWITCHES tab.

2.      From the Settings menu, choose Import new switch. The ADD SWITCH dialog box appears with the following tabs: GENERAL and MORE.

3.      Click in the field under Management address and enter the Leaf 1 IP address, in our case 10.23.235.53

4.      Click in the field under Serial number and enter the Leaf 1 Serial number, in our case SAL1913C6YF

5.      Click the MORE tab, and in the field under Name enter Leaf1

6.      Click the blue SAVE CHANGES button in the lower right.

Repeat the above process for Leaf2, entering the appropriate IP address, serial number and name.

Note: As mentioned, if your fabric includes Nexus 9500’s, the NFM will automatically identify these switches as spines. In this case, administrators would only have to follow the process of importing leaf switches. Since our example fabric uses Nexus 9372’s for spines, we import spines and leafs as separate processes.

It is also possible for switches to be imported directly into a managed state from the Import new switch dialog box (Step – 3 above), in the Management state dropdown menu, selecting Managed as an option. In this document, we are importing switches as a separate stage to illustrate the process for new users.

Option #2 - Discovery Import

When importing switches via Discovery Import, it is assumed that all switches have been minimally configured with credentials identical to those in the switch profile, and a management IP address.  A manually assigned switch name created during the CLI bring up is also helpful.

Importing through Discovery differs from Auto-Fabric Provisioning. In this process, we will import all of the switches first, and then assign roles as a spine or leaf if required.

To import the initial switch, complete the steps below:

1.      From the Navigation drop-down list, choose Home, and click the SWITCHES tab.

2.      From the Settings drop-down list, choose Import new switch. The ADD SWITCH dialog box appears with the following tabs: GENERAL and MORE.

3.      Under the GENERAL tab, enter the mgmt0 IP address in the Management address field. In our case, we will use leaf1 or 10.23.235.53

Optional step - enter the switch serial number in the Serial number field – this is helpful in large configurations to verify admins are using the correct switch but not required

4.      If you assigned a switch name in the initial NXOS switch startup configuration, skip this step. If not, click on the MORE tab and enter a name in the Name field. By default, NFM uses the existing name on a switch if one is not entered here.

5.      Click the SAVE CHANGES button.

At this point NFM communicates with, identifies and imports the initial switch into the switchpool in monitored mode. Once the initial switch has been imported and its interfaces identified, NFM leverages the Cisco Discovery Protocol (CDP) and Link Layer Discovery Protocol (LLDP) to identify neighboring devices and import them into the switchpool. Once those switches have been imported and identified, the process repeats on the next layer of neighboring switches until all manageable devices have been discovered.

When the import process completes, all four Nexus 9372 switches are located in the switchpool but the spine roles need to be assigned. Again, if customers are using Nexus 9500 switches for spines, they are automatically assigned the spine role based on model number.

To assign roles to the spine switches, complete the steps below:

1.      From the Navigation menu, choose Home, and click the SWITCHES tab.

2.      Click the checkbox in the appropriate switch tiles to select all spine switches, in our case spine1 & spine2.

3.      From the Settings drop-down list, choose Edit selected.

4.      From the Role drop-down menu on the GENERAL tab select spine, and click the SAVE button.

The selected switches are configured as spines. Now that the spines have their roles correctly set we are ready to move to the next stage.



Stage five - upgrade NXOS software

Note: Skip this stage if Auto Fabric Provisioning was used for the initial switch import as the switches will already have been updated to the correct version of NXOS.

If Discovery import was used instead of AFP, the NXOS switch image can be upgraded by creating a switch upgrade group. This procedure can also be used to upgrade switches at a later time.

Create an upgrade group

Upgrades can consist of one upgrade group for all switches or more than one group, each containing a subset of switches in the fabric. For example, you can divide the fabric into a Side A and a Side B group. Both are equally valid approaches - choose the methodology that best suits your environment.

Note: For future upgrades, switches can be in monitored or managed mode and still have their NXOS image updated.



Figure 6 - All switches upgrade pending

For simplicity sake, we are using one upgrade group named “upgrade-all” in our example.

To create the upgrade group, complete the steps below:

1.      From the Navigation Menu, choose Home, and click the SWITCHES tab.

2.      Click the Select all check box to select all switches. (If you are only selecting a subset of switches for your upgrade group, you will need to click the check box in the bottom right corner of the switch tiles you want to upgrade.)

3.      From the Settings drop-down list, choose Add to new Upgrade.

4.      Add a name for the upgrade group/object – in our case named “upgrade-all” and, if desired, add an description.

5.      From the image drop-down menu choose the desired NXOS image for the upgrade – in our case 7.0(3)I4(4)

6.      Click the Save changes button.

        Note: The upgrade is now pending as a task, but the task still needs to be started.

Start the NXOS software upgrade

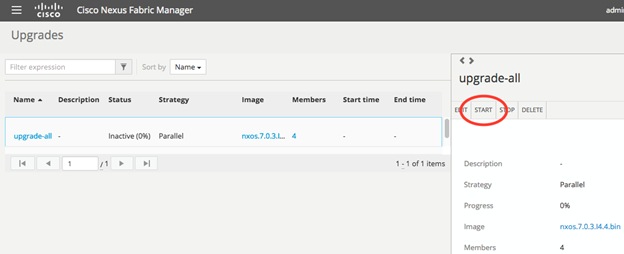

Figure 7 - Starting the upgrade

To start the upgrade, complete the steps below:

1.      Click the Navigation menu, and choose Upgrades from the drop-down list. The Upgrades window appears listing your created upgrade objects.

2.      Click the upgrade you want to start. An upgrade-specific window appears with an Upgrade summary pane on the right.
Verify that the image being uploaded to each switch is correct, in our case 7.0(3)I4(4). The upgrade-specific details window displays the image information in the Switches section.

3.      Click START.

NFM initiates the upgrade task for all switches in the group. By default, NFM upgrades up to ten switches in parallel. If the group contains more than 10 switches. The remaining switches are upgraded as switches complete the upgrade process.

To learn more about upgrade objects and upgrading switch NXOS images after initial import, please refer to the Switch Software Management chapter of the NFM Configuration Guide.

Stage six – set switches to managed mode

At this point, all four of our Nexus 9372 switches have been added to the Nexus Fabric Manager switchpool. The next step is to switch them to managed mode, which will create the underlay VXLAN configuration.

NFM creates the VXLAN fabric underlay based on the actions taken. NFM calculates all of the configuration necessary and pushes those commands down to the spines and leafs, communicating with each switch and building the necessary configuration to enable their role in the fabric.

This process can take a bit of time. As a reference point, one customer using AFP with NXOS previously updated, built a VXLAN underlay with twelve leafs and two spines in approximately twenty-five minutes. When compared to building the VXLAN fabric via the CLI and scripts, this results in a huge time savings overall.

Once a switch is in managed mode, we recommend it not be changed to monitored mode unless the administrator plans on leaving the device unmanaged.

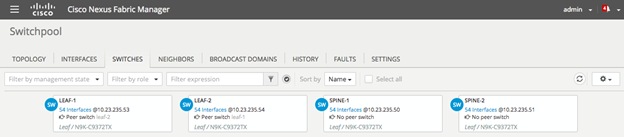

Figure 8 – All four switches in the switchpool in managed mode

Complete the steps below to set the switches to managed mode:

1.      From the Navigation, choose Home, and click the SWITCHES tab.

2.      In the toolbar under the SWITCHES tab, check the “Select all” checkbox.

3.      From the Settings menu drop-down list, choose Edit Selected.

4.      From the Management State dropdown menu select managed.

5.      Click the blue SAVE CHANGES button in the lower right.

Other considerations

·         The NFM interface is simple to use but it is important to remember that the tool is managing entire fabrics. It makes sense that some workflows will be faster than others and those with large files such as switch software upgrades will take longer to execute. Slow VPN connections or deep packet scanning can also add additional time to complete tasks. Long file transfer times can significantly increase the time required for workflows using large files.

·         Whenever large file transfers are involved, store them on a host or server local to the Nexus Fabric Manager. If this is not possible, the workflows should be done over high bandwidth connection.

·         Allow a reasonable amount of time for NFM actions to take place. The initiation of each additional action, such as repeated refreshes or adding/deleting devices, adds additional time for tasks to complete overall.

·         NFM actively manages the underlay. Administrators should NOT attempt to make changes to the VXLAN underlay configuration through the CLI. By design, NFM automatically overwrites these CLI commands.

·         Currently NFM is for greenfield opportunities only. All switches MUST be write erased or out-of-the-box new before being added to an NFM Fabric. If AFP is not used for the initial import of switches, the mgmt0 management IP address, a management gateway, switch names and user credentials are acceptable/required configuration items.



A fully managed and automated VXLAN underlay

Once all switches are in managed mode and the NFM has finished pushing the appropriate configuration to each device, the VXLAN underlay is fully configured and actively managed by the NFM. Our underlay fabric is now ready for hosts to be added, and the building of layer 2 and layer 3 connectivity between devices across the fabric.

For more information on the Nexus Fabric Manager and information on additional features and capabilities, please visit us at www.cisco.com/go/nexusfabricmanager or head straight to our configuration guide
