Check the LEDs

Want to summarize with AI?

Log in

Describes what the LEDs on a Catalyst Center appliance indicate.


After you have powered up the appliance, check the state of the front-panel and rear-panel LEDs and buttons to ensure it is functioning.

The following illustrations show the LEDs for a functional appliance after physical installation and first power-up and before configuration.

Figure 1. 44 and 56-core appliance front panel LEDs
LED Desired Status Indicator

1

  • Drive Fault LEDs: Off

  • Drive Activity LEDs: Green

2

Power Status: Green

3

Unit identification: Off

4

System Status: Green

5

Power Supply Status: Green

6

Fan Status: Green

7

Network Link Activity: Off

8

Temperature Status: Green

Figure 2. 112-core appliance front panel LEDs
LED Desired Status Indicator

1

Power Status: Green

2

Unit identification: Off

3

System Status: Green

4

Fan Status: Green

5

Temperature Status: Green

6

Power Supply Status: Green

7

Network Link Activity: Off

8

Drive Fault LEDs: Off

9

Drive Activity LEDs: Green

10

CPU module power status: Green

11

CPU module fault: Off

Figure 3. 44 and 56-core appliance rear panel LEDs
LED Desired Status Indicator

1

After initial power-up, all the ports should have their Link Status and Link Speed LEDs showing as off.

After network settings are configured and tested using either the Maglev Configuration wizard (see Configure the primary node using the Maglev wizard and Configure add-on nodes using the Maglev wizard) or browser-based configuration wizard (see Configure the primary node using the Advanced Install configuration wizard and Configure a secondary node using the Advanced Install configuration wizard), the Link Status and Link Speed LEDs for all cabled ports should be green. The LED for all uncabled ports should remain unchanged.

2

AC Power Supply Status LEDs: Green

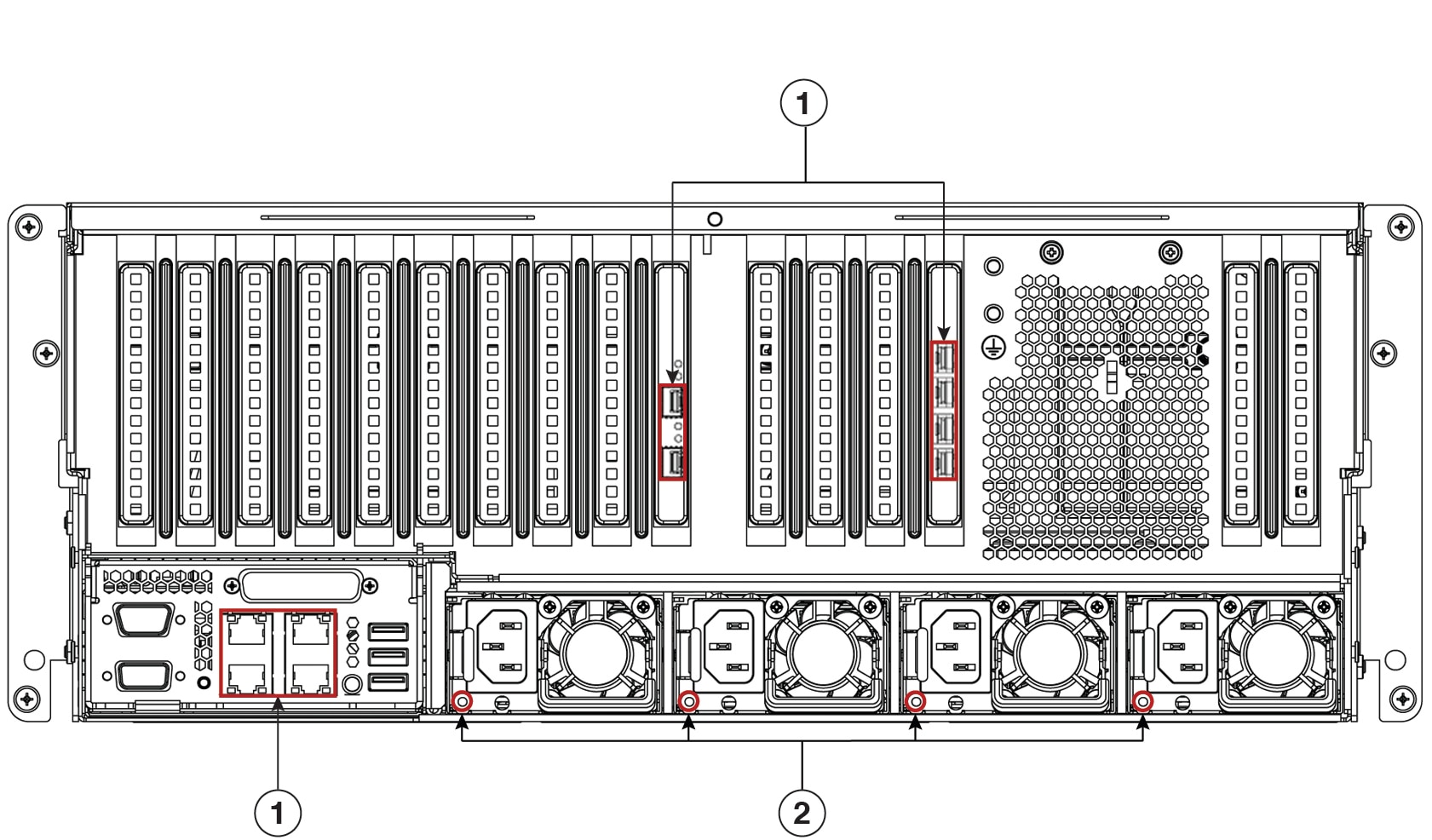

Figure 4. 112-core appliance rear panel LEDs
LED Desired Status Indicator

1

After initial power-up, all the ports should have their Link Status and Link Speed LEDs showing as off.

After network settings are configured and tested using either the Maglev Configuration wizard (see Configure the primary node using the Maglev wizard and Configure a secondary node using the Maglev wizard) or browser-based configuration wizard (see Configure the primary node using the Advanced Install configuration wizard and Configure a secondary node using the Advanced Install configuration wizard), the Link Status and Link Speed LEDs for all cabled ports should be green. All uncabled port LEDs should be unchanged.

2

AC Power Supply Status LEDs: Green

If you see LEDs with colors other than those shown above, you may have a problem condition. See Front and rear panels for details on the likely causes of the status. Be sure to correct any problem conditions before proceeding to configure the appliance.
