Cisco Intercloud Fabric offers two product configurations that address the following business needs:
This document describes how to install, configure, and start working with Cisco Intercloud Fabric for Provider. For information about Cisco Intercloud Fabric for Business, see the Cisco Intercloud Fabric documentation on Cisco.com.
Cisco Intercloud Fabric for Provider (ICFP) simplifies the complexity involved in working with a variety of public cloud APIs, and enables cloud API support for service providers who currently do not have API support. Cisco ICFP provides an extensible adapter framework that allows integration with a variety of provider cloud infrastructure management platforms, such as OpenStack, CloudStack, VMware vCloud Director, and any other API that can be integrated through a software development kit (SDK) provided by Cisco.
Currently, service providers have their own proprietary cloud APIs—such as Amazon EC2 and Windows Azure—that give customers limited choices and do not provide an easy method for moving from one provider to another. Cisco ICFP abstracts this complexity and translates Cisco Intercloud Fabric cloud API calls to cloud platform APIs of different provider infrastructure platforms, giving customers the option of moving their workloads regardless of the cloud API used by the service provider.
Many service providers do not provide cloud APIs that Cisco Intercloud Fabric can use to deploy customers' workloads. One option for these providers is to provide direct access to the virtual machine (VM) manager's SDK or API, such as VMware vCenter or Microsoft System Center. However, this option exposes the provider environment and is not preferred by service providers because of security concerns. Cisco ICFP, as the first point of authentication for the customer cloud when requesting cloud resources, enforces highly secure access to the provider environment. In addition, Cisco ICFP provides the cloud APIs that are required for service providers to be part of the provider ecosystem for Cisco Intercloud Fabric.
As the interface between Cisco Intercloud Fabric from customer cloud environments and provider clouds (public and virtual private clouds), Cisco ICFP provides the following benefits:
Standardizes and brings uniformity to cloud APIs, making it easier for Cisco Intercloud Fabric to consume cloud services from service providers that are a part of the Cisco Intercloud Fabric ecosystem.
Helps secure access to a service provider's underlying cloud platform.
Limits the utilization rate per customer or tenant environment.
Provides northbound APIs for service providers for integration with existing management platforms.
Supports multitenancy.
Monitors resource usage for each tenant.
Meters resource usage for each tenant.
To access a service provider's cloud resources, Cisco Intercloud Fabric must access the Cisco ICFP virtual appliance from the public network. To do this, the network interface of the appliance must be deployed on a provider network that is exposed to the service provider's edge router. The network interface of the appliance must also connect to the private provider network that accesses the service provider cloud platform, such as OpenStack or CloudStack.

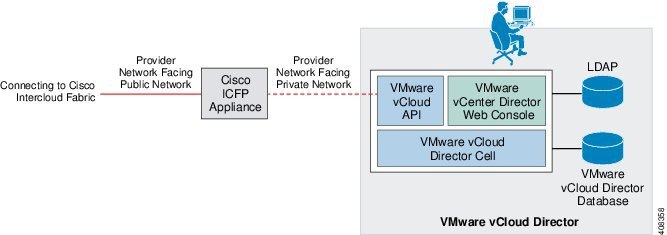

The Cisco ICFP deployment topology varies for different service providers and cloud platforms. The following figure shows a standalone deployment with a VMware vCloud Director environment in the service provider. For deployment in a multiple-node cluster, a load balancer in the service provider environment is required to support the cluster configuration.
The Cisco ICFP virtual appliance uses HTTPS connections to communicate with Cisco Intercloud Fabric and the service provider cloud platform. A firewall is not required in the network path between Cisco Intercloud Fabric and Cisco ICFP, or between the Cisco ICFP virtual appliance and cloud platform endpoints, but can be used to reinforce the expected traffic flows to and from Cisco ICFP.
The Cisco ICFP operational model consists of two main operational stages:
Service provider operations—Operations performed in the service provider data center by a service provider administrator. These operations primarily involve installing and configuring Cisco ICFP and provisioning tenant-related information to Cisco ICFP.
Business operations—Operations performed in a private data center environment by a Cisco Intercloud Fabric administrator and end users of the Cisco Intercloud Fabric solution. These operations are usually performed after Cisco ICFP has been deployed and activated in the service provider data center. For example, queries related to metering and usage are considered to be business operations.

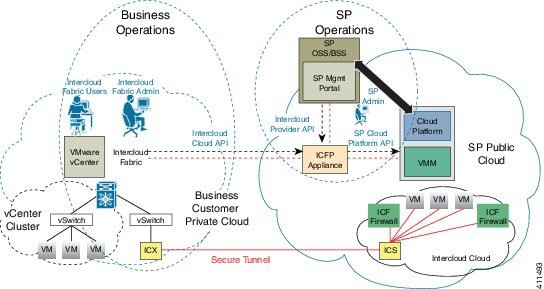

The following figure illustrates the Cisco ICFP operational model and stages.
The following sections summarize the operations that constitute these two stages.
The Cisco ICFP virtual appliance is deployed in the service provider data center as part of the service provider cloud platform. The service provider administrator configures the virtual appliance with the following information:
Appliance IP addresses
SSL server and client configurations
Initial administrator user credentials and privileges
Next, the service provider administrator adds instances of the cloud platform with which Cisco ICFP will interface. These cloud platform instances can be assigned to tenants during tenant on-boarding. The following information is required for each cloud platform instance:
Cisco ICFP supports multiple tenants concurrently. To enable a tenant on Cisco ICFP, the service provider administrator must provide the following tenant-specific information on the virtual appliance:
The cloud platform instance that is assigned to the tenant.
The resources domain (a predefined set of resources) that is assigned to the tenant.
Tenant account username, which is used to identify the tenant-specific record.
Tenant credentials, such as an API key, which are used by Cisco ICFP to sign a tenant onto the service provider cloud platform. Tenant credentials can be generated by the service provider management portal when the tenant is registered to a cloud account.
The same process is used for adding new tenants and updating existing tenants in Cisco ICFP. After the Cisco ICFP virtual appliance is deployed and tenants are provisioned, the service provider administrator must ensure that the Cisco ICFP virtual appliance DNS information is published to the enterprise customer's portal so that the tenants can reach Cisco ICFP through the Internet.
With the Cisco ICFP virtual appliance DNS information and tenant credentials, the Cisco Intercloud Fabric administrator can sign on with Cisco ICFP to start an Cisco Intercloud Fabric-to-ICFP management session. Before customer end users can use the Cisco Intercloud Fabric self-service portal, the Cisco Intercloud Fabric administrator must set up a Secure Cloud Extension to extend tenant on-premises networks to the service provider cloud.
With an established Cisco Intercloud Fabric-to-ICFP management session, the Cisco Intercloud Fabric administrator can issue Intercloud Cloud Orchestration APIs to set up the Secure Cloud Extension to extend the tenant's enterprise network and demanded service appliances, such as a virtual firewall and virtual routing services. The Secure Cloud Extension provides Cisco Intercloud Fabric end users with a hybrid infrastructure, which allows the preservation of workload network identities and ensures that the workload security policy is persisted across private and public clouds.
The Secure Cloud Extension has several virtual appliance components that run in the provider cloud. These components consist of the Intercloud Fabric Switch (ICS), Intercloud Fabric Router (CSR), and Intercloud Fabric Firewall (also known as Virtual Security Gateway). As a part of the Secure Cloud Extension deployment, Cisco Intercloud Fabric works with Cisco ICFP to upload the appliance images to the public cloud, instantiate appliance instances, and bring up the entire Cisco Intercloud Fabric infrastructure.
When a Secure Cloud Extension instance is established, Cisco Intercloud Fabric provides different portals for Cisco Intercloud Fabric administrators and end users. Administrators and users can use their respective portals to provision or migrate workloads to public clouds and manage workloads with virtual machine life-cycle management interfaces that are provided by the portals.
In addition to supporting cloud orchestration API requests that are issued by Cisco Intercloud Fabric, Cisco ICFP meters tenant resource usage and monitors tenant resources so that service providers can manage hybrid cloud services.
For more information, see the available data sheets and white papers on cisco.com at http://www.cisco.com/c/en/us/products/cloud-systems-management/intercloud-fabric/white-paper-listing.html.
