How to Install Cisco Smart PHY

The task below describes how to install the Cisco Smart PHY application:

Installation Overview

The Cisco Smart PHY application is based on next generation architecture including Kubernetes and Docker containers. It includes a platform that is extensible and scalable.

The Cisco Smart PHY installation is deployed as a self-contained package. The upgrade packages are also self-contained and will be made available periodically.

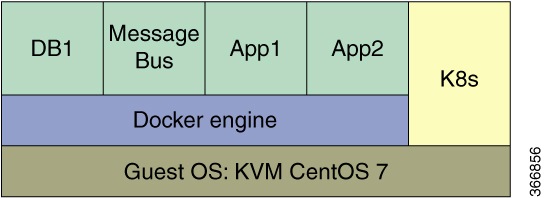

After the Cisco Smart PHY application is installated, it would include a KVM-based Guest OS running CentOS7 that runs Docker images orchestrated by Kubernetes.

The Cisco Smart PHY application is supported on both a bare metal server with a CentOS 7 host OS and an ESXi VM with VM-in-VM configuration.


Note

You should have access to the Internet for installing the Cisco SmartPHY application. If necessary, use a proxy server.


Note

If you have installed Cisco Smart PHY version 1.2.16 or earlier, you must upgrade to Cisco Smart PHY 1.2.16 SP1.

System Requirements

Table 1. System Requirements for Cisco Smart PHY Application

Requirement

Description

Operating system

CentOS Linux 7 (core; English distributions only)

CPE OS name

cpe:/o:centos:centos:7

Kernel

Linux 3.10.0-514.6.1.el7.x86_64

Architecture

x86-64

Host version

The Cisco Crosswork Network Automation VM runs on a CentOS 7.2 host

Ubuntu 14.04 LTS is also supported

Nested virtualization is not supported

Memory

80 GB

Swap space

4 GB

Disk space

600 GB

CPU

4 cores (16 CPUs)

Interface

Two physical interfaces:

  • One interface for management traffic

  • One interface for data traffic

Processor speed

2.10 GHz or higher

L1 cache

32 K

L2 cache

256 K

L3 cache

30720 K

Open Ports for Cisco Smart PHY

The following table lists the open ports that Cisco Smart PHY application uses to listen for connection requests from devices. For security hardening, this table also specifies whether it is safe to disable the port without any adverse effects to the product.

Disbale the ports that are not needed and are not secure.

Table 2. Open Ports for Cisco Smart PHY

Port

Protocol

Usage

Safe to Disable?

Procedure to Disable

22

TCP

To initiate SSH connections with the server, and to copy files to the Cisco Smart PHY server using SCP or SFTP.

Depends

This might be still needed by older managed devices that only supports TFTP and not SFTP or SCP.

8162

UDP

To receive SNMP traps from network devices.

No

-

30604

TCP

For browser access to the Cisco Smart PHY server via HTTPS.

No

-

8514

UDP

To receive syslog messages from network devices.

No

-

8190

TCP

To receive GCP messages from the RPD

No

-

How to Deploy Cisco Smart PHY OVF Template through VMWare vCenter Server

Procedure

Step 1

From the vCenter Server WebUI, navigate to Hosts and Clusters.

Step 2

Right click on the ESXi host where the VM is deployed and select Deploy OVF Template.

Step 3

Click Local File, then click Browse and navigate to the local folder containing the OVF files.

Step 4

Select SmartPHY-Deployment.ovf, SmartPHY-Deployment-1.vmdk, and SmartPHY-Deployment.mf files and click Open.

Step 5

Update the name of the Virtual Machine if needed and click Next.

Step 6

Select the ESXi Host for deployment and click Next.

Step 7

Review details and click Next.

Step 8

Select the Disk Format. Choose Thick Provision Eager Zeroed and the Datastore and click Next.

Step 9

Select Networks. Lab Network should map to the Destination Network associated with the Management Interface and the VM Network should map to the RPHY/CIN Interface.

Step 10

Fill in the network information for the Primary Interface (Management), Secondary Interface (RPHY/CIN), and DNS Server.
Step 11

Review the settings and select Finish.

Step 12

Monitor the OVF deployment in the Recent Tasks pane.

Step 13

After the OVF deployment task completes successfully, power on the new virtual machine. Right click on the VM and select Power and then Power On.

Step 14

Install the Cisco Smart PHY application on the VM.

Credentials for deploying:

Login: spadmin

Password: spadmin

How to Deploy Cisco Smart PHY OVF Template through ESXi Host

Procedure

Step 1

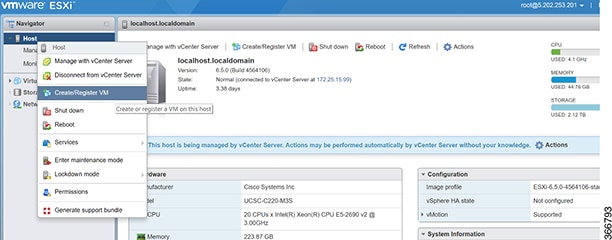

From the ESXi host WebUI, right click on Host in the Navigator pane and select Create/Register VM.

Step 2

Select Deploy a Virtual Machine from an OVF or OVA file in the Select Creation Type window and click Next.

Step 3

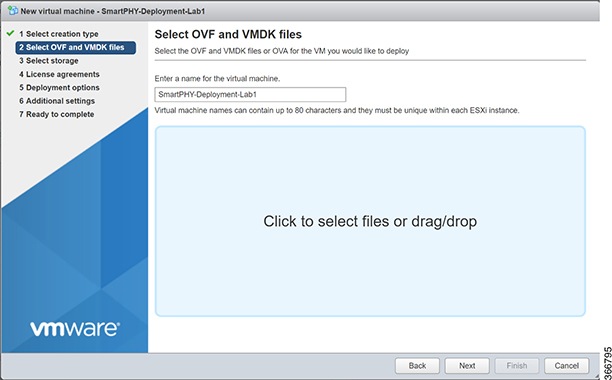

Enter the name of the new virtual machine. For example, "SmartPHY-Deployment-Lab1" and click on the Click to Select Files or drag/drop box.

Step 4

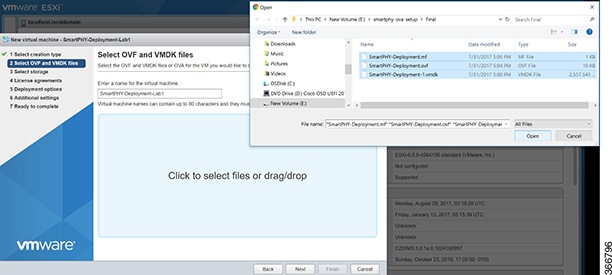

Navigate to the folder containing the OVF files on the local system. Select SmartPHY-Deployment.ovf, SmartPHY-Deployment-1.vmdk, and SmartPHY-Deployment.mf files. Click Open, then click Next.

Note

Only the .ovf and .vmdk files may display after selection.
Step 5

Select the Datastore for the VM.

Step 6

Select Networks and Storage Type. Lab Network should map to the Destination Network associated with the Management Interface and the VM Network should map to the RPHY/CIN Interface. Select Thick for Disk Provisioning and click Next.

Step 7

In the Additional Settings configuration box, fill in the network information for the Primary Interface (Management), Secondary Interface (RPHY/CIN), and DNS Server and click Next.

Step 8

Review the settings and select Finish.

Step 9

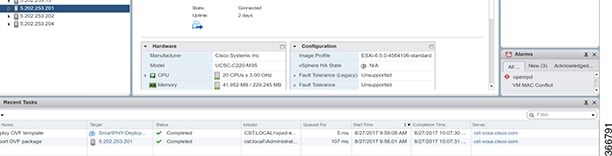

Monitor the OVF deployment in the Recent Tasks pane.

Step 10

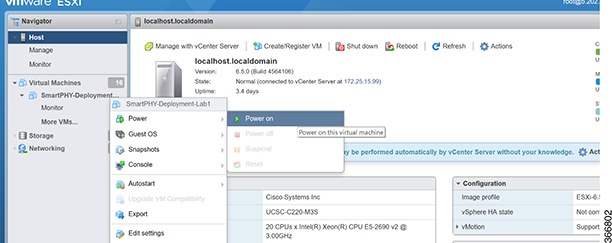

The new Virtual Machine should power on automatically. However, if it does not, expand the Virtual Machines list in the Navigator pane and right click on the VM. Select Power and then Power On to start it.

Step 11

Install the Cisco Smart PHY application on the VM.

Credentials for deploying:

Login: spadmin

Password: spadmin

How to Install VMware Tools

Procedure

Step 1

CentOS / Fedora based Installation

yum clean all
yum install -y epel-release
yum install -y open-vm-tools
Step 2

Debian and Ubuntu based Installation

sudo aptitude install -y open-vm-tools
Note

You MUST make sure that the vCPU entry in the smartphy.xml file is <= the number of CPUs allocated to the ESXi VM. By default there are 16 CPUs allocated.

How to Install the Cisco Smart PHY

Before you begin

You must install CentOS7 on bare metal server. This ensures that the installation script spins a VM-based KVM and the required containers.

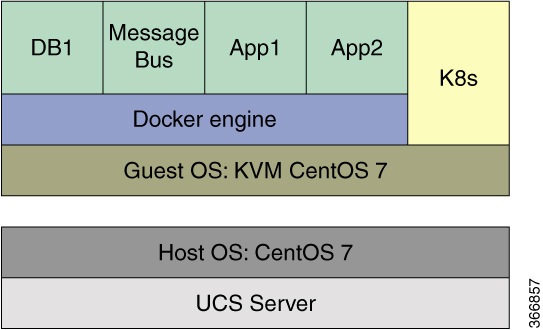

Bare Metal Solution

EXSi Solution

At a minimum, it is recommended that the server has the following attributes:

  • 48 GB RAM

  • 16 virtual CPU Cores

  • 250 GB of Disk


Note

Make sure that your VM has more than 30 GB (31457280) free memory.

Procedure

Step 1

Download the Cisco Smart PHY release image tarball (which is about 28 GB) from Cisco Software Central.

Step 2

Unzip and untar the file:


tar -xvf smartphy-v1.2.16.SP1.18090718-k8s.tar
Step 3

Run the installer.

./install.sh <mysmartphy>

The installer will automatically add a DNS entry in /etc/hosts to identify the new VM.

Step 4

Add routes to the VM for both management and CIN network if applicable. Then, run the iptables.sh script individually for the management and CIN network as applicable.

./iptables.sh <HostOS_IP> <GuestOS_IP>
Note

The IP address of the VM is displayed during the install process. To get the MAC and IP address of the VM, do the following:

MAC Address:

sudo virsh domiflist vmname | grep robot-br1

IP Address:

sudo virsh net-dhcp-leases robot-br1 | grep MAC

How to Install the Mobile Application

You can install the Cisco Smart PHY application on iOS and Android hand-held devices.

Minimum required versions:

  • iOS version 10

  • Android version 5

Procedure

Step 1

Download the iOS version of the Cisco Smart PHY application from the App Store. Search for Cisco Smart PHY.

Or
Step 2

Download the Android version (apk file) of the Cisco Smart PHY application from Cisco Software Central.

Note

Disable download from unknown sources in Security (Settings -> Security -> Enable unknown sources).

How to Upgrade Cisco Smart PHY


Note

Upgrade to Cisco Smart PHY 1.2.16 SP1, if you have Cisco Smart PHY version 1.2.16 running on your system. If your system has an earlier version of Smart PHY other than 1.2.16, install Cisco Smart PHY 1.2.16 SP1.

The Cisco Smart PHY application will be upgraded periodically with newer features. To upgrade an existing installation:

Procedure

Step 1

Download the upgrade image from Cisco Software Central.

Step 2

Unzip and untar the file:


tar -xvf smartphy-v1.2.16.180613143000-to-v1.2.16.SP1.18090718-upgrade.tar

Or


tar jxvf smartphy-v1.2.16.180613143000-to-v1.2.16.SP1.18090718-upgrade.tar
Step 3

Run the upgrade script.


./upgrade.sh <mysereno>

Specific components of the Cisco Smart PHY guest OS will be updated.

How to Uninstall the Cisco Smart PHY


Note

Be aware that this procedure removes all of your Cisco Smart PHY data.

Procedure

Step 1

(Recommended) Back up your current data. Uninstalling the Cisco Smart PHY application will permanently delete all data on the bare metal server.

Step 2

On the bare metal server, enter the following commands to remove the VM:

sudo virsh destroy VM_name
sudo virsh undefine VM_name
Step 3

To remove the VM network, enter the following commands:

sudo virsh destroy VM_name
sudo virsh undefine VM_name
