Unified Communications Case Study: How Cisco Built a Medianet to Handle Bandwidth-Intensive Traffic


By planning for bandwidth and QoS, Cisco IT is ready for more video traffic on the corporate medianet.
CHALLENGE

From video downloads on an Internet site to company broadcasts to live meetings, video traffic is increasing on many corporate networks. Cisco has long transported many varieties of video traffic, along with data and voice, across its converged IP network.

In the mid-1990s, Cisco began broadcasting company meetings and executive announcements to global employees. These live IPTV broadcasts originated from studios at Cisco headquarters in San Jose, California, and were streamed across the Cisco IP WAN using multicast to Cisco offices worldwide. Cisco began to use more video for employee training, sending large video files from servers at Cisco headquarters over the WAN to local sites, where the files were stored on content servers for faster access by employees. Cisco transported these early video applications on its IP data network, which had a client/server architecture.

Cisco also transported most of its intersite voice traffic between private branch exchanges (PBXs) across the IP WAN by converting the analog voice signal into IP before transport. However, in the late 1990s, much of the voice traffic that did not travel between major Cisco sites was sent over the Public Switched Telephone Network (PSTN). In addition, Cisco used digital switched services over the PSTN to support ISDN videoconferencing and transported security camera video within campus LANs across separate, dedicated fiber paths.

By 2001, the costs of supporting these separate networks were increasing as traffic volumes grew. Also, the potential of IP telephony and the collaborative potential of shared desktops and video conferencing encouraged Cisco IT to consider consolidating these separate networks. Clearly, the traditional client/server WAN architecture was no longer adequate to serve Cisco’s communications needs.

"Because we designed a Medianet, we do not need to rearchitect the Cisco WAN when we deploy high-demand applications such as TelePresence."

Craig Huegen
IT Director and Chief Network Architect, Cisco

In 2001, the original hub-and-spoke design of the Cisco WAN across North America had grown in size but was no longer adequate to support voice, video, or other collaborative, peer-to-peer services because the design was optimized for client/server applications. All Cisco data traffic from PCs and other clients in North and South America needed transport to and from Cisco’s San Jose data center, so the network was designed with the shortest possible path from more than 100 locations to the one hub site (Figure 1).

Figure 1. US/Canada Cisco WAN in 2001: A Client-Server Architecture Based on SONET with Servers in San Jose and Clients at Branch Offices.

Click on Image to Enlarge popup

The average site-to-hub-and-back circuit length for any traffic across the WAN was 1800 miles. This was an excellent design for client/server applications but a poor design for the new peer-to-peer applications such as voice and video, where an IP data connection would be needed between any two or more people in any location. With the previous WAN architecture, all peer-to-peer connections had to travel through San Jose, which increased the delay for voice and video traffic to unacceptable levels.

Cisco network managers needed a new architecture to converge voice, video, and data onto a single IP network. The new architecture would also benefit video and unified communications, because voice and video traffic have many of the same characteristics and network requirements: low-latency paths, sufficient bandwidth, multicast support for large streaming broadcasts, and quality of service (QoS) protection for all voice and video traffic to avoid delayed or dropped packets.

SOLUTION

The new WAN architecture in North America, built in 2002, met Cisco IT requirements (Figure 2). This peer-to-peer network architecture is similar to that of a small service provider network with a SONET-based ring backbone and access links that connect each Cisco location to the nearest hub site. The backbone architecture follows underlying fiber paths and helps maintain low latency

Figure 2. US/Canada Cisco WAN in 2008: Peer-to-Peer Architecture Based on SONET (data endpoints can be added at any Cisco location).

Click on Image to Enlarge popup

The backbone was first built with OC-12 fiber connectivity, which offers four times more bandwidth than the OC-3 circuits previously available in the WAN. Since initial deployment, Cisco has increased the backbone speed to OC-48.

In Cisco’s European and Middle Eastern regions, a Multiprotocol Label Switching (MPLS) VPN supports the new peer-to-peer network (Figure 3). This service is supplied by a Tier 1 service provider and runs on the provider’s larger backbone network, taking low-latency paths that are made possible by the service provider’s size and guaranteed by contractual service level agreements (SLAs). Cisco offices connect to the nearest hub sites on the MPLS VPN.

For both the US/Canada and European networks, connectivity to most smaller Cisco offices is typically provided through dual dedicated circuits that terminate on dual gateway routers at the nearest regional hub location. Globally, a high-bandwidth core network interconnects Cisco’s regional hubs in the Americas, Asia, Europe, and the Middle East (Figure 4).

Dual routers and dedicated circuits, on physically diverse paths when possible, provide redundancy throughout the Cisco network. In some instances, VPN connections have been added to the WAN to provide backup in case of cable failures.

Defining QoS for a Medianet

After implementing the new WAN architectures in the Americas and Europe, the Cisco network initially provided the low-latency paths and sufficient new capacity to support basic video communications. IP multicast support was continued, but the new network did not provide the levels of QoS needed for appropriate support of voice and video traffic.

Figure 3. Europe Cisco WAN in 2008: Peer-to-Peer Architecture Based on MPLS VPN.

Click on Image to Enlarge popup

The earlier WAN supported some levels of QoS for PBX-to-PBX voice traffic between major hub sites, as well as for some backup data. However, this QoS was applied within the affected few network nodes using access control lists in network routers. Because of this approach, the QoS mechanisms could not securely and accurately classify traffic from more than 70,000, IP phones, more than 1200 H.323 video conferencing units, and more than 240 TelePresence sites deployed within Cisco, as well as streaming and surveillance video traffic.

As real-time, interactive media applications such as voice over IP (VoIP) and IP video conferencing (IPVC) increased, Cisco IT needed to create a more rigorous QoS scheme for traffic classification that would be applied at the network edge. With the addition of TelePresence, with its significantly higher bandwidth requirements, special network treatment was necessary to protect TelePresence traffic and avoid interference with other video traffic. This QoS capability, and its ability to change as new media are added, is vital for creating a medianet.

QoS mechanisms define traffic identification, policing, queuing, shaping, and congestion avoidance to help deliver voice and video with appropriate performance levels. Understanding the distinctive characteristics of voice and video traffic is critical because both applications are sensitive to packet loss, latency, and jitter (variable latency).

Without proper QoS policies, the perceived quality of voice or video drops whenever other application traffic creates delays for latency-sensitive voice or video content. Voice traffic consists of small packets that, without proper QoS handling, can be lost behind large data packets, causing voice quality problems. Video traffic is even more sensitive to packet loss, because the human eye can detect problems with video much more quickly than the human ear can detect problems with audio.

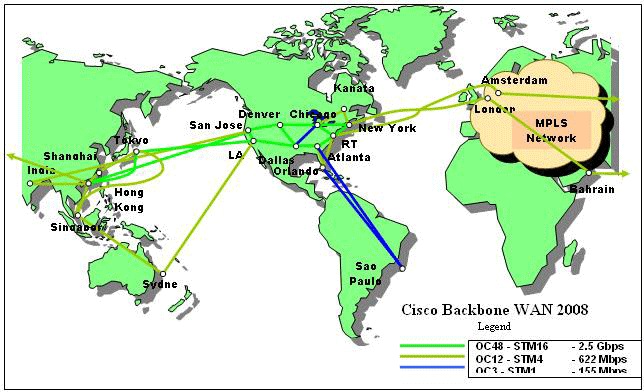

Figure 4. Cisco Global Backbone Network in 2008

Click on Image to Enlarge popup

“By 2003, we needed to consolidate QoS across the LAN and WAN, because managing the access control lists on the edge routers was becoming such a big task. There was also a lot of inconsistency in QoS definitions among different sites, meaning packets could be marked in one way from site A but interpreted differently at site B,” says Tom Wojciaczyk, a Cisco IT network engineer.

QoS is critical for interactive media such as voice and video conferencing. Voice packets are usually small, and risk getting delayed and dropped if they are trapped behind larger data or video packets. To avoid this risk, Cisco uses low-latency queuing (LLQ), which puts voice packets at the top of the queue when they arrive at each network hop.

Cisco IT also uses QoS to protect other video streams from the high bandwidth demands of TelePresence. By creating one QoS class for TelePresence and another QoS class for all other video, the Cisco network delivers appropriate service levels for applications such as room-based IP video conferencing and personal conferencing with Cisco Unified Video Advantage (Cisco UVA).

All other media described in this case study are considered noninteractive. These media, such as streaming IPTV and video-on-demand (VoD) downloads, closed-circuit TV (CCTV) surveillance camera traffic, and WebEx® and MeetingPlace® desktop sharing, are handled in the same QoS class as normal IP traffic. Moderate amounts of latency or jitter are handled by the router buffers and the application, so quality remains high without special handling.

Table 1 shows the classes of service defined for the Cisco network (as of mid-2008), covering all voice, video, and data traffic. Cisco IT configures routers with LLQ to prioritize sending real-time voice traffic from a local WAN interface, Class-Based Weighted Fair Queuing (CBWFQ) to provide a minimum bandwidth guarantee, and Flow- Based Weighted Fair Queuing (FBWFQ) to handle low-priority, “best-effort” traffic.

Table 1. Classes of Service Defined for the Cisco Network
QoS Class Description IPP* DSCP** Queuing Technique Sample Applications
6 Network control/routing traffic 6 & 7 48-63 CBWFQ
5 Voice bearer traffic 5 46 LLQ IP voice from hardware phones or Cisco IP Personal Communicator software phones
4 High-priority video 4 32-39 CBWFQ TelePresence
3 Signaling/high-priority data 3 24-31 CBWFQ
2 Medium-priority video 2 16-23 CBWFQ IP video, Cisco Unified Video Advantage
1 Batch/scavenger traffic 1 8-15 CBWFQ
0 Default/best effort 0 0 FBWFQ Shared desktop, noninteractive video such as CCTV surveillance cameras, IPTV, VoD downloads

*IPP = IP Precedence (or Type of Service) bits, the leading three bits of the Differentiated Service Code Point (DSCP), which summarize QoS classes. IPP bits are helpful when transporting QoS information across vendor network services, such as MPLS, that have limited service classes.

**DSCP = Differentiated Service Code Point, 6 bits (including the 3 IPP bits) used by Cisco at the trusted edge to mark different data streams and to control packet handling (which affects service quality during congestion) at each network hop.

Although QoS parameters determine the priority of different traffic types on the WAN, bandwidth allocations determine the maximum amount of bandwidth reserved for different traffic types during times of serious WAN congestion. For example, voice traffic might be allowed up to 10 percent of all bandwidth on the majority of WAN links, while video (a much larger consumer of WAN bandwidth) is allocated as much as 55 percent. Table 2 lists the bandwidth policies defined for each circuit type in the Cisco network WAN backbone. For more information on Cisco IT deployment of QoS, see the Cisco IT case study “QoS for Voice and Video” at http://www.cisco.com/web/about/ciscoitatwork/network_systems/qos_for_ip_voice_and_video.html.

Table 2. Bandwidth Allocation Percentages for Circuits in the Cisco Global WAN
Traffic Type (%)/Circuit Type DS3 OC3 OC12 OC48 OC192
Control 1 1 1 1 1
Voice 10 10 10 5 5
High-bandwidth video 30 30 40 30 30
Signaling/high-priority data 2 2 2 2 2
Low-bandwidth video 25 15 12 17 15
Scavenger 1 1 1 1 1
Default 31 41 34 44 46
Total 100 100 100 100 100
WAN Requirements for a Medianet

Although video and voice traffic has grown quickly, these traffic types still account for only a small percentage of the total traffic on the Cisco WAN. TelePresence, with its larger bandwidth requirements, represents more than 8 percent of WAN traffic, a portion that is rising as more TelePresence systems are installed in more company sites (Table 3).

Table 3. Sample Monthly Voice and Video Traffic Volumes on the Cisco Global Network (April 2008)
Traffic Type Volume Percent of Total Traffic
TelePresence 328 TB 8.5%t
VoIP 168 TB 4.4%
Other video 3 TB .1%

Note: Other media traffic is not tracked separately from other IP data streams.

In addition to providing adequate bandwidth, the IP WAN must meet four design criteria to be considered a medianet:

  • Minimize latency, no matter what transport technology is used (Cisco IT uses SONET and MPLS VPN).
  • Provide the bandwidth needed to carry all offered traffic and allow scalability to meet all future traffic needs.
  • Support multicast for one-way streaming media, such as IPTV and IP telephony “music on hold,” to reduce the load on the WAN and the originating servers.
  • Support a well-planned set of QoS policies deployed in the same manner across all LAN and WAN links to protect latency-sensitive voice and video traffic.

Whether voice or video, a recorded stream or a real-time interaction, each media application also has its own network requirements. Table 4a and 4b compare the network requirements of media applications used by Cisco; each application is discussed in more detail following the table.

Table 4a. Comparison of WAN Requirements for Video Applications Used at Cisco
  Streaming and Noninteractive Media
  Video Surveillance Security Cameras IPTV Video on Demand Cisco WebEx and Cisco MeetingPlace
Business use Real-time and stored security video One-way streaming for company meetings, training One-to-many downloads for training and meetings Voice and video conferencing with desktop sharing
Type of transmission Multipoint to Point, Security system only Point to Multipoint, IPTV Only Point to Multipoint, VoD Only Point to Multipoint
Endpoints (June 2008) 2400 cameras, 4 Security Operations Centers 4 studios to 70,000 PCs 4 studios to 70,000 PCs 70,000 PCs within Cisco
Bandwidth required per endpoint 1-4 Mbps 128Kbps – 1.5Mbps 128Kbps – 1.5Mbps Varies
Quality of Service (QoS) Default Data CBWFQ

Yes – Low-Bandwidth Video

CBWFQ
Default Data CBWFQ Default Data CBWFQ
Multicast No Yes No No
Underlying network IP LAN and WAN IP LAN and WAN IP LAN and WAN IP LAN and WAN

Table 4b. Comparison of WAN Requirements for Video Applications Used at Cisco
  Interactive Media
  ISDN Video (H.320) IP Telephony IP Video (H.323) Cisco Unified Video Advantage Cisco TelePresence
Business use Cisco-to-customer video connections Internal and external voice connections Cisco-to-Cisco video connections Video telephony calls within Cisco Internal and external virtual meeting
Type of transmission H.320 to H.323 gateways used for Point to Point Point to Point or Point to Multipoint Point to Point or Point to Multipoint Point to Point (with either Cisco Unified Video Advantage or  H.323) Point to Point or Point to Multipoint
Endpoints (June 2008) 1200 endpoints configured; average 850 active 75,000 IP Phones 1200 endpoints configured; average 850 active 30,000 web cameras 350+ Cisco TelePresence units at 240+ sites (and growing rapidly)
Bandwidth required per endpoint 384 Kbps 70-80 Kbps 384 Kbps + 20% overhead 384 Kbps + 20% overhead Cisco TelePresence 3000: average 15 Mbps

Cisco TelePresence 1000: average 5 Mbps
Quality of Service (QoS) N/A Yes – Voice LLQ Yes – Low-Bandwidth Video

CBWFQ
Yes – Low-Bandwidth Video

CBWFQ
Yes – High-Bandwidth Video

CBWFQ
Multicast No No No No No
Underlying network ISDN over PSTN IP LAN and WAN IP LAN and WAN IP LAN and WAN IP LAN and WAN
Deployment Considerations for Specific Video Solutions

Different video technologies have different requirements for amounts of WAN bandwidth, QoS handling, and other network services.

Streaming Media

Streaming media communicates information from one location, one-way, to another site. This information can support a wide range of functions. At Cisco it supports building and personnel security, corporate communications, or training. Each of these functions uses the global reach of the Cisco corporate IP WAN (and in some cases the connected Internet) to bring information to people regardless of location, creating more options for where and how Cisco employees work.

Physical Security Monitoring

The first form of video used in Cisco was CCTV cameras for surveillance and physical security at its facilities worldwide. The video streams from more than 2600 building security cameras are sent to recorders within each site (in the building or at a data center on the campus LAN). Security personnel at centralized security operations centers can access the stored or real-time surveillance video for any location over the Cisco WAN and, when needed, send it in real-time to local police and fire officials.

Accessing security camera information remotely has reduced the number of false alarms by 90 percent and allowed Cisco to centralize its security functions and perform global security investigations over the WAN. Using the IP WAN for transport has eliminated the need to dedicate dark fiber in the campus metropolitan-area network (MAN) to security applications, which freed scarce fiber resources for other traffic.

Before deploying the CCTV-over-IP solution companywide, Cisco IT estimated the amount of LAN and WAN traffic that the surveillance video streams would generate in order to reduce the traffic’s impact on the data center LAN links for video storage and the WAN when video streams are retrieved. For more information about this deployment, see the Cisco IT Case Study CCTV on IP Network at http://www.cisco.com/web/about/ciscoitatwork/security/cctv_on_ip_network.html.

Cisco IPTV

Cisco began using IPTV in 1997 to broadcast corporate meetings and training events from centralized studios to employees worldwide. Using IPTV added to the need for more efficient global video content distribution. It was immediately apparent that the local video servers, as well as the WAN links near the video server studios, would not be able to support the enormous number (sometimes tens of thousands) of unicast streams necessary to allow all Cisco employees to see the same live event at the same time.

Cisco broadcasts the same IPTV content at varying bit rates (typically 100, 500, and 700 Kbps). These streams are controlled via established "scopes" that help ensure only streams of an appropriate bit rate for a site's WAN bandwidth are delivered to that site. Support for multicast does not require new WAN equipment; instead it is activated within Cisco IOSÒ software.

As of 2008, Cisco supports 40-50 IPTV events every month, which are multicast across the LAN and WAN to avoid overloading the origin server and WAN links. For more information about this deployment, see the Cisco IT case study “Video for Companywide Broadcasts” at http://www.cisco.com/web/about/ciscoitatwork/unified_comm/ip_video_for_companywide_broadcasts.html.

Video on Demand

Employees can view recordings of previously streamed company meetings by downloading large video files across the WAN. Over time, this service was used to record and send training videos to Cisco employees, a solution that has almost entirely replaced expensive live training courses and associated travel costs.

By 2008, approximately 85,000 video files were downloaded every month across the WAN (about 60,000 internally, 20,000 externally, and 5000 as flash video downloads from blogs). These video files are sent in the same way as any other large IP file, without multicast or QoS. Although these file transfers can be handled without special equipment on the network, significant amounts of WAN bandwidth are saved by caching content in or near local Cisco offices worldwide. For details about how the Cisco network distributes broadcast and recorded video, see the Cisco IT case study “Enterprise Content Networking System” at http://www.cisco.com/web/about/ciscoitatwork/data_center/enterprise_content_networking_system.html.

Interactive Media

Cisco employees need to communicate in real time to solve problems and work collaboratively. Although the WAN can easily carry email and instant messaging, other forms of real-time collaboration require more network capabilities and bandwidth.

IP (H.323) and ISDN (H.320) Video Conferencing

Cisco uses more than 1200 H.323 video-conferencing systems that are installed in company buildings worldwide. This deployment is supported by a distributed environment of gateways and gatekeepers that are located in global regions, plus a single multipoint control unit (MCU) to support multipoint conferencing.

MCUs are required to support multipoint video-conferencing sessions. The MCU and meeting rooms are reserved by Cisco employees through a Microsoft Outlook calendar application.

When these video-conferencing systems are used between Cisco locations, the traffic remains in the original H.323 IP streams. Gateways, which translate H.323 IP video streams to H.320 ISDN, are needed when Cisco employees connect to external customer locations. These calls are translated by globally installed H.320 gateways, then sent over the PSTN. Cisco IT uses WAN routers (with the appropriate Cisco IOS feature activated) as gatekeepers to support the video-conferencing dial plan and route video calls between different video zones on the network.

H.323 video streams use a default bandwidth setting of 384 Kbps and QoS enabled on all WAN connections. Total bandwidth required on the WAN for H.323 video connections is 384 Kbps plus about 20 percent for transport protocol overhead, or about 470 Kbps per call. Cisco IT is considering doubling the size of the some of these video streams in the future to provide greater video resolution, which will help to improve employee satisfaction when this service is interconnected with Cisco TelePresence.

Several Cisco TelePresence multipoint switches support multipoint TelePresence conferences from major hub locations on the Cisco WAN. “When placing the TelePresence multipoint switches or MCUs, it is vital to remember the total bandwidth usage, latency within WAN links, and geography,” says Keith Brumbaugh, a member of the technical staff in the Cisco network implementation group. “For example, it may be more effective to place an MCU in a distant location where higher capacity WAN links are available to maintain high video quality.” Cisco IT’s MCU for IP video conferencing is connected to the backbone WAN by a pair of OC-48 (622 Mbps) links, which can support all IP video traffic offered.

For more information on multipoint video conferencing within Cisco, see the Cisco IT case study “IP Video Conferencing for Business Continuity” at http://www.cisco.com/web/about/ciscoitatwork/unified_comm/ip_videoconferencing_for_business_continuity.html.

Desktop Video Conferencing

Cisco Unified Video Advantage (Cisco UVA) provides video telephony functionality to Cisco 7900 Series Unified IP phones through a USB camera connected to a PC. With Cisco UVA, users make and receive point-to-point video calls, hearing the audio through a phone while the video stream is displayed on the PC. Employees find Cisco UVA very useful for unscheduled video conferencing, because this application does not require reserving a MCU or video conference room. They also use these cameras to create low-cost videos for blogs and other internal communications.

No new network equipment was added to support Cisco UVA. Instead, Cisco IT upgraded the Cisco Unified Communications Manager to support the service and updated the H.323 gatekeepers to support interaction with IP video-conferencing equipment. Like the H.323 video streams, Cisco UVA calls require 384 Kbps, plus about 20 percent extra bandwidth for transport protocol overhead (about 470 Kbps per call).

Although nearly 30,000 Cisco UVA cameras were initially deployed to users in 50 major Cisco offices worldwide, this application has not added a significant traffic demand on the Cisco network. For a description of this implementation, see the Cisco IT case study “Cisco Unified Video Advantage” at http://www.cisco.com/web/about/ciscoitatwork/unified_comm/cisco_unified_video_advantage.html.

Cisco TelePresence

Cisco’s internal deployment of Cisco TelePresence systems represents the largest demand for WAN bandwidth among all video applications. Although the rearchitecture of the Cisco network to support voice also served well for previous video traffic, TelePresence requires bandwidth upgrades and QoS refinements to deliver a high-quality user experience.

Video transmission is bursty, even by data standards, and very sensitive to dropped packets. Packet sizes and rates vary with the amount of motion in the video image, a factor that is amplified in a TelePresence session. When transmitting, Cisco TelePresence requires between 5 to 15-Mbps bandwidth into each meeting room, depending on the number of sites, plasma screens, and pixels per screen. For best performance, Cisco TelePresence requires one-way latency end to end of no more than 150 ms. Jitter cannot exceed 10 ms, and the target for packet loss is 0.05 percent.

Cisco chose to implement 1080p (ultra high-definition) resolution in all sites, and the initial tests indicated that local circuit bandwidth of 8–10 Mbps would be necessary. In some locations, upgrades to WAN circuit bandwidth were required, typically from a DS-3 to an OC-3 circuit or from multiple T1 circuits to a DS-3 or E3 circuit. To deliver the target performance levels for TelePresence sessions, Cisco IT also refined QoS policies to prioritize the bandwidth allocations to TelePresence traffic (Table 2).

Along with the WAN circuit upgrade, most local Cisco offices received Cisco 3845 Integrated Services Routers (ISRs) to handle the expected increase in network traffic of all types. For a discussion of Cisco IT practices for upgrading equipment on the Cisco network, see the Cisco IT case study “Network Infrastructure Program” at http://www.cisco.com/web/about/ciscoitatwork/network_systems/network_infrastructure_upgrade_program.html.

“Because we designed a medianet, we don’t need to rearchitect the Cisco WAN when we deploy high-demand applications such as TelePresence,” says Craig Huegen, Cisco IT director and chief network architect.

For details about Cisco’s internal TelePresence deployment, see the Cisco IT case study “TelePresence Virtual Meetings” at http://www.cisco.com/web/about/ciscoitatwork/telepresence/telepresence_virtual_meetings.html.
