The Internet Protocol Journal, Volume 14, No. 3

Introduction to TRILL

Radia Perlman, Intel Labs, and Donald Eastlake, Huawei Technologies

TRansparent Interconnection of Lots of Links (TRILL) [1] is an Internet Engineering Task Force (IETF) protocol standard that uses Layer 3 routing techniques to create a large cloud of links that appear to IP nodes to be a single IP subnet. It allows a fairly large Layer 2 cloud to be created, with a flat address space, so that nodes can move within the cloud without changing their IP addresses, while using all the Layer 3 routing techniques that have evolved over the years, including shortest paths and multipathing. An early problem and applicability statement for TRILL can be found in [6]. Additionally, TRILL supports Layer 2 features such as Virtual Local-Area Networks (VLANs), the ability to autoconfigure (while allowing manual configuration if so desired), and multicast/broadcast with no additional protocol.

Additionally, TRILL is evolutionary in the sense that an existing Ethernet deployment, where the links are connected with bridges, can be converted into a TRILL cloud by replacing any subset of the bridges with devices implementing TRILL. Devices implementing TRILL are called Routing Bridges, or RBridges. As bridges are replaced, nothing changes for the IP nodes connected to the cloud except that the cloud becomes more stable and uses available bandwidth more effectively.

To understand why TRILL was needed, it is helpful to explore the history of Ethernet and IP.

Network protocols are usually described in terms of layers. The description usually quoted in textbooks is the Open Systems Interconnection (OSI) Reference Model, which describes seven protocol layers [4]. It is important to realize that the layers are useful primarily as a way to think about networking, but actual network protocols are far more complex. Layers get subdivided or combined, and often a technology usually thought of as belonging to a lower layer (for example, Layer 2) can be layered on top of a higher layer (for example, Layer 3). Most descriptions of network layers agree on the bottom four layers, and vary according to details such as whether syntax (for example, Extensible Markup Language [XML] [7]), which would be a Presentation Layer in the OSI model, is a layer or not. Such descriptive choices do not affect how protocols are built, and luckily, for understanding of TRILL, the relevant layers to focus on are just the bottom three:

Layer 1, Physical Layer: Physical, electrical, and optical specification for connectors, bit signaling, etc.

Layer 2, Data Link Layer: The protocol that lets neighbor nodes on a link exchange packets

Layer 3, Network Layer: The protocol that provides routing to create a path from a source node to a destination node

TRILL, as we will see, is a Layer 2 and ½ protocol: It glues links together so that IP nodes see the cloud as a single link. Therefore, TRILL is below Layer 3; but, it is above Layer 2 because it terminates traditional Ethernet clouds, just like IP routers would do.

It is definitely time to be confused. Why are there multiple links at Layer 2? Isn't that the job of Layer 3?

Evolution of Layer 2 from Point-to-Point Links to LANs

In the beginning (the 1970s or so for the purposes of this article), Layer 2 really was a direct link between neighbor nodes. Most links were point-to-point, and Layer 2 protocols primarily created framing—a way to signal the beginning and end of packets within the bit stream provided by Layer 1—and checksums on packets [11]. For links with high error rates, Layer 2 protocols such as High-Level Data Link Control (HDLC) [12] provided message numbering, acknowledgements, and retransmissions, so the Layer 2 protocol resembled, in some ways, a reliable protocol such as TCP. HDLC and other Layer 2 technologies sometimes provided an ability to have multiple nodes share a link in a master/slave manner, with one node controlling which node transmits through techniques such as polling.

Then the concept of Local-Area Networks (LANs) evolved, the most notable example being Ethernet. Ethernet technology enabled interconnection of (typically) hundreds of nodes on a single link in a peer-to-peer rather than master/slave relationship. Ethernet was based on CSMA/CD, where CS = Carrier Sense (listen before talking so you don't interrupt); MA = Multiple Access; and CD = Collision Detect (listen while you are talking to see if someone starts talking while you are so you are both interfering with each other). Interestingly, although IP had a 4-byte address and was the basis of addressing for the entire Internet, Ethernet had a larger 6-byte address, with aspirations for connecting only a small number of nodes in a fairly small region such as a single building.

The reason for the larger address space for Ethernet was to avoid the need to configure addresses when plugging nodes into a network. Instead, manufacturers of equipment would purchase blocks of Ethernet addresses and embed a unique address for each device in their hardware (the "MAC address"), and an Ethernet node would then be able to use that address in any Ethernet without fear of address collision.

Evolution of Ethernet to Spanning Tree

LANs came onto the scene with such fanfare that people came to be-lieve that LAN technology was a replacement of traditional Layer 3 protocols such as IP. People built applications that were implemented directly on Layer 2 and had no Layer 3. This situation meant that the application would be limited by the artifacts of the Layer 2 technology, because a Layer 3 router cannot forward packets that do not contain the Layer 3 header implemented by the router.

In the case of the original Ethernet, it meant the application would work only within a maximum distance of perhaps a kilometer.

When people using technologies built directly on a LAN realized they wanted networks larger (in distance and total number of nodes) than the LAN technology allowed, the industry invented the concept of "bridges"—packet-forwarding devices that forwarded Layer 2 packets.

Forwarding Ethernet packets might seem easy because the Ethernet header looks similar to a Layer 3 header. It has a source and destination address, and the addresses are actually larger than IP addresses. But Ethernet was not designed to be forwarded. Most notably absent from the Ethernet header is a hop count (also sometimes referred to as a "time to live," or TTL) to detect and discard looping packets. But other features of a typical Layer 3 protocol were also missing in Ethernet, such as an address that reflects where a node is in the topology, node discovery protocols, and routing algorithms. These features were not in Ethernet because the intention of the Ethernet design was that it be a Layer 2 protocol, confined to operation on a single link.

The transparent bridge was invented as a mechanism to forward Ethernet packets emitted by end nodes that did not implement Layer 3. Ethernet at the time had a hard packet size limit, so bridges could not modify the packet in any way.

The transparent bridge design, which met those constraints, consisted of having bridges listen promiscuously, remember the source addresses seen on each port, and forward based on the learned location of the destination address. If the destination was unknown, the packet would be forwarded onto all ports except the one that it was received on.

This simple method worked only if there was only one path between any pair of nodes. So the concept was enhanced with a protocol known as the Spanning Tree Algorithm. [8] The physical topology could be an arbitrary mesh, but bridges, using the spanning-tree algorithm, would prune the topology into a loop-free (tree) topology on which data packets were forwarded. ("Spanning" means that packets can reach all the nodes.)

As Figure 1 shows, the spanning-tree concept is that an arbitrary topology could be built using Ethernet links (horizontal lines) and bridges (circles). Bridges running the spanning-tree algorithm determine a loop-free subset of the topology, and put some ports into standby (the ones that are shown in Figure 2 as dotted lines). Data packets flow on the ports that spanning tree determines should be active. This model does not yield optimal routes, as indicated in Figure 3, where packets between A and X go through the path of bridges 11, 7, 6, 2, 14, 4, and 3.

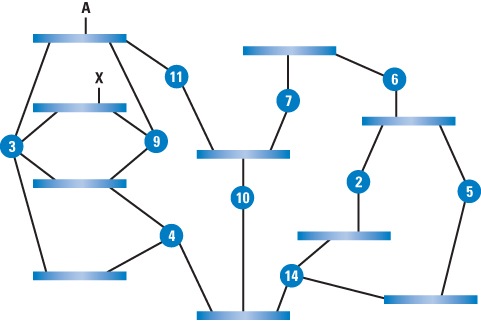

Figure 1: A Bridged Network

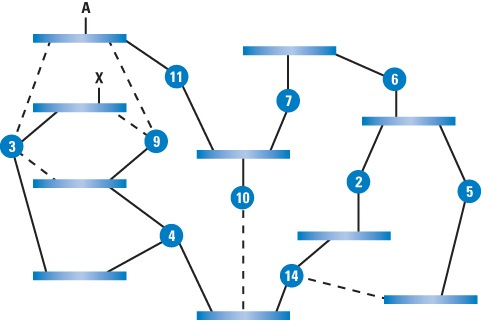

Figure 2: Bridged Network with Spanning Tree

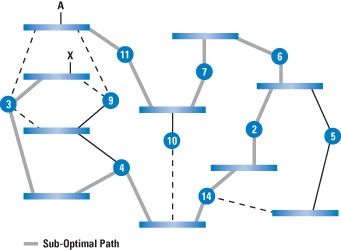

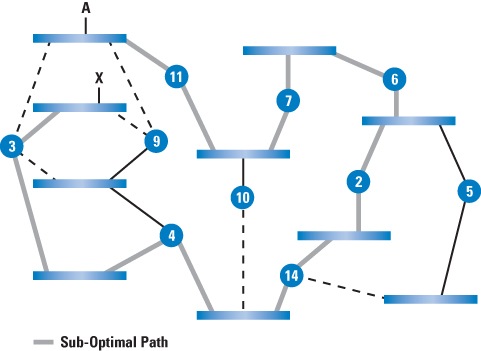

Figure 3: A Sub-Optimal Path

The spanning-tree algorithm is also inherently unstable. It requires bridges to be engineered to be able to examine every incoming packet at wire speed, to determine if the packet is a spanning-tree message, and if so, process it. The spanning-tree algorithm requires a bridge to forward unless there is a "more qualified" neighbor bridge on the link. Details of the spanning-tree algorithm, fascinating as they are, are beyond the scope of this article. If a bridge loses enough spanning-tree messages from its "more qualified" neighbor bridge because congestion overwhelms its ability to process incoming messages, the bridge will conclude that it does not have a more qualified neighbor, and therefore should start forwarding onto the link. This situation is extremely dangerous without a hop count, a field that would naturally be included in a protocol designed to be Layer 3 and forwardable.

The originally invented Ethernet, CSMA/CD, is pretty much non- existent. Almost all Ethernet today consists of bridges connected with point-to-point links. The header still looks like Ethernet, but new fields have been added, such as VLANs discussed later in this article.

Characteristics of IP

bridging was necessitated by a quirk of history, in that applications were being built without Layer 3. But today, applications are almost universally built on top of IP. So why not replace all bridges with IP routers?

The reason is an idiosyncrasy of IP. In IP, routing is directed to a link, not a node. Each link has its own block of addresses. A node connected to multiple links will have multiple IP addresses, and if the node moves from one link to another, it must acquire a new IP address within the block for that link.

This property is not an inherent property of Layer 3, just a characteristic of IP. An alternative technology, proposed in 1992 as a replacement to IPv4, was Connectionless-mode Network Protocol (CLNP), an ISO packet format that had 20-byte addresses (actually, variable length). Its address, like IP, was hierarchical, routing to the longest matching address prefix in the forwarding table that matched the destination address. But in IP, the bottom level of routing was to a single link. In CLNP, the bottom level of routing consisted of routing to a cloud known as an "area," that included lots of links (typically hundreds). Within the area, end nodes announced themselves and routers routed directly to the end node. An end node could move within an area without changing its Layer 3 address. Routers within an area would not need to be configured.

In contrast, with IP, a block of IP addresses needs to be carved up to assign a unique block to each link, IP routers need to be configured with the address block for each of their ports, and nodes that move from one link to another have to change their Layer 3 addresses. Therefore, it is still popular to create large bridged Ethernets, because a bridged set of links looks to IP like a single link.

TRILL: Best of Both Worlds

TRILL allows the ease of configuration of Ethernet while benefitting from the routing techniques provided at Layer 3. It also coexists with existing bridges; it is not necessary to replace all the bridges in an Ethernet, but the more bridges replaced by RBridges, the better the bandwidth usage and the more stable the cloud becomes (because the spanning trees get smaller and smaller, and ultimately disappear if all bridges are replaced by RBridges).

Figure 4 shows the basic concepts in TRILL handling a unicast packet where the location of the destination is known:

  • RBridges run a link state routing protocol, which gives each of them knowledge of the topology consisting of all the RBridges and all the links between RBridges. Using this protocol, each RBridge calculates shortest paths from itself to each other RBridge, as well as trees for delivering multidestination traffic.
  • When an RBridge, R1, receives an Ethernet frame from an end node S, addressed to Ethernet destination D, R1 encapsulates the frame in a TRILL header, addressing the packet to the RBridge R2, to which D is attached. The TRILL header contains an "ingress RBridge" field (R1), an "egress RBridge" field (R2), and a hop count.
  • When R2 receives the encapsulated packet, R2 removes the TRILL header and forwards the Ethernet packet on to D.

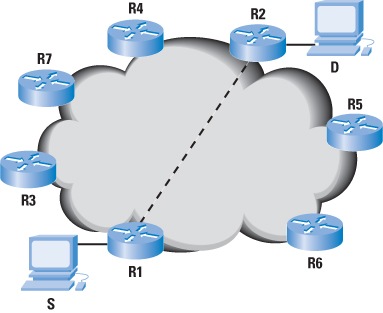

Figure 4: RBridging

What the TRILL header looks like, how R1 knows that R2 is the correct "egress RBridge," and some of the concepts in the link state protocol Intermediate System-to-Intermediate System (IS-IS) are described in the next section. We also explain how TRILL handles multidestination frames, VLANs, and IP Multicast.

The TRILL Header

The main fields in the TRILL header are: ingress RBridge nickname (16 bits), egress RBridge nickname (16 bits), hop count (6 bits), and a multidestination flag bit (1 bit). A typical Layer 3 header would contain a source, a destination, and a hop count. So TRILL is basically an encapsulation header with flat 16-bit addresses. How RBridges obtain "nicknames" is described later in this article.

This header is very simple for core RBridges to forward, compared with either an IP or an Ethernet header. The destination field is just 16 bits, so it can be a simple table lookup to find the entry in the output port, as opposed to the Ethernet 6-byte destination, which typically requires content-addressable memory or hashing, or the longest prefix matching of IP.

Learning End-Node Locations

How does R1 know that R2 is the correct egress RBridge for some destination D? The default mechanism is learning the correspondence between (ingress RBridge, source MAC address) when the egress RBridge decapsulates a packet. If R1 does not know where the destination MAC is located, R1 encapsulates the packet in a TRILL header with the multidestination flag set, indicating that it should be transmitted through a tree to all the RBridges.

An additional mechanism, which is optional, is known as End-Station Address Distribution Information (ESADI). ESADI allows R1 to announce some or all of the end nodes that are attached to R1. Both announcing to and listening to ESADI are optional. This mechanism has advantages over flooding and learning from data packets:

  • ESADI packets can have cryptographic protection.
  • R1 might have a more definite reason to know that S is attached to R1 than simply seeing a packet with the S address in the header. For instance, R1 might have been configured to lock down a port to the S MAC address. Or there might be a cryptographically protected enrollment protocol when S attaches to R1.
  • R1 might be able to have tighter timers on verifying the location of local end nodes; for instance, if they are IP nodes, R1 might be able to ping them.

It is also possible to have a directory that lists not only (RBridge nickname, {set of attached end-node MAC addresses}) but also {(end-node IP address, end-node MAC address)} pairs. The first RBridge, or a hypervisor, or the end-node process itself, might query the directory about the destination, and encapsulate packets, rather than flooding, and thus also be able to bypass the IPv4 Address Resolution Protocol (ARP) and the IPv6 Neighbor Discovery (ND) protocols.

Link State Protocols

A link state protocol is a routing protocol in which each router R determines who its neighbors are, and broadcasts (to the other routers) a packet, known as a Link State Packet (LSP), that consists of information such as "I am R," and "My neighbor routers are X (with a link cost of c1), Y (cost c2), and Z (cost c3)." The commonly deployed link state protocols are Intermediate System-to-Intermediate System (IS-IS) [2] [9] and Open Shortest Path First (OSPF) [10]. IS-IS, designed in the 1980s to route DECnet, was adopted by the International Organization for Standardization (ISO). IS-IS can route IP traffic and is used by many Internet Service Providers (ISPs) to route IP. IS-IS was a natural choice for TRILL because its encoding easily allows additional fields, and IS-IS runs directly on Layer 2, so that it can autoconfigure, whereas OSPF runs on top of IP and requires all the routers to have IP addresses.

Figure 5 shows a small network (at the top), consisting of 7 routers. In the bottom half of the figure, the LSP database is shown; all the routers have the same LSP database because they all receive and store the most recently generated LSP from each other router. The LSP database gives all the information necessary to compute paths. It also gives enough information for all the routers to calculate the same tree, without needing a separate spanning-tree algorithm. As we will see, TRILL requires a tree (at least one tree) for distribution of multidestination packets.

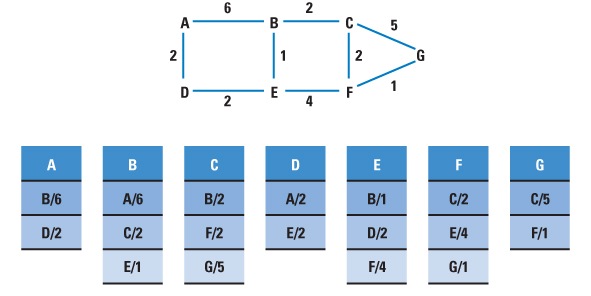

Figure 5: Router Network and Link State

Acquiring Nicknames

Given that the most recently generated link state packet of each RBridge is broadcast to, and stored by, each other RBridge, it is possible to spread other information through the link state packets, such as a protocol for acquiring a unique nickname. Each RBridge chooses a nickname at random, avoiding nicknames already acquired by other RBridges (as discovered by examining the LSP database).

If two RBridges choose the same nickname, there is a tie-breaker, based on configured priority and 6-byte system ID. One of the RBridges gets to keep the nickname and the other RBridge has to choose another nickname that appears not to be in use.

It is possible to configure RBridges with nicknames, in which case a configured nickname takes priority over one that was randomly chosen. And in the case of misconfiguration, where two RBridges have been configured with the same nickname, again, ID and priority choose a winner, and the other one has to choose a different nickname.

Mixing RBridges with Bridges

TRILL is designed so that any subset of bridges in an Ethernet can be replaced by RBridges. A set of links connected by bridges will be perceived by RBridges as a single shared link connecting the RBridges on that link. The bridges inside that link will behave as ordinary bridges, forming a spanning tree and forwarding packets along that tree. Figure 6 illustrates an Ethernet connected by several bridges, with one port (indicated by the dashed line) selected by the spanning tree as being in backup.

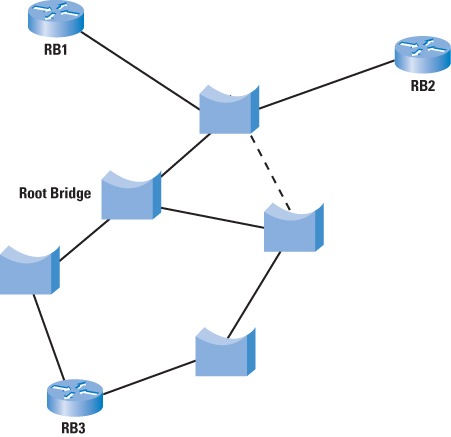

Figure 6: RBridges Connected by Bridged LAN

The RBridges RB1, RB2, and RB3 perceive the link as in Figure 7, a single shared link, on which RB3 has two ports.

Introducing RBridges into a bridged Ethernet partitions the spanning trees into smaller spanning trees. RBridges operate on a topology consisting of the RBridges themselves, connected with "links" that are either bridged Ethernets or point-to-point links.

Figure 7: Figure 6 as Perceived by RBridges: a Single Shared Link Where RB3 Has 2 Ports onto the Same Link

Link Types and the Hop-by-hop Header

In addition to the TRILL header, when RBridge R1 is forwarding a TRILL-encapsulated frame to neighbor RBridge R2, there is an additional header that is specific to the type of link connecting R1 and R2. Although TRILL carries Ethernet inside, a link between two or more RBridges could be an arbitrary type of link; for example, besides Ethernet, it could be a Point-to-Point Protocol (PPP) link [13], an IP or IP Security (IPsec) tunnel, Multiprotocol Label Switching (MPLS) path, etc.

If the link is an Ethernet link, the "outer" header is an Ethernet header. If it is a PPP link, the outer header is a PPP header. The outer Ethernet header (on an Ethernet link) serves two purposes:

  • If there are bridges on the link, they will perceive the packet as a normal Ethernet packet, and forward it through the spanning tree. The learning tables of the bridges on the link will see only the addresses of the RBridges on that link.
  • It allows R1, when forwarding onto a link with multiple neighbors (say R2 and R3), to specify which of R2 or R3 is chosen by R1 to forward the packet by unicasting the packet to the chosen next-hop RBridge. For example, it could be that both R2 and R3 are equal costs to the destination, so R1 would need to specify which of them should forward the packet. Otherwise, both might forward the packet, and the packet would be duplicated.

So, as illustrated in Figure 8, a TRILL-encapsulated packet might have three headers:

  • The outer header, or hop-by-hop header, which is stripped off at each hop, is specific to the type of link connecting neighbor RBridges, and, when forwarded between R1 and R2, it specifies R1 as source and R2 as destination
  • The TRILL header, which similarly to a Layer 3 header remains in place as the packet travels from the first RBridge to the last RBridge, specifying the first RBridge (the one that encapsulated the packet with a TRILL header) as the ingress RBridge, and the last RBridge (the one that will decapsulate the packet) as the egress RBridge
  • The inner Ethernet header, which specifies the communicating end-node pair as source and destination

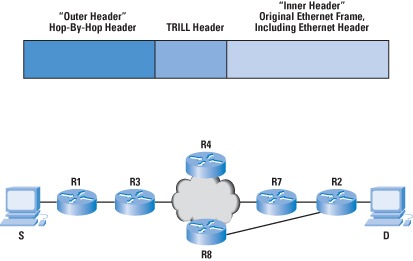

Figure 8: TRILL Packet Headers

Again referring to Figure 8, assume S transmits an Ethernet packet to D. In the inner Ethernet header, Source = S, Destination = D.

R1 encapsulates it with a TRILL header, where ingress RBridge = R1 and egress RBridge = R2. R1 forwards it to R3, putting on a link header appropriate to the link. If the link is an Ethernet link, the outer Ethernet header will indicate S = R1, D = R3. When R3 forwards to R7, R3 leaves the TRILL header as is (other than decrementing the hop count), strips the outer header, and puts in a new outer header indicating S = R3, D = R7. Likewise, R7 forwards to R2. If it is a PPP link, there is no source or destination. When R2 forwards to D, R2 strips off the TRILL header and D sees the Ethernet packet exactly as transmitted by S.

VLANs

Ethernet has a concept known as a Virtual LAN (VLAN), which partitions communities of end nodes sharing the same infrastructure (links and bridges), such that end nodes in the same set can talk directly to each other (using Ethernet), whereas those in different VLANs have to communicate through a router. IP nodes, although generally unaware of Ethernet VLAN tags, perceive different VLANs to be different IP subnets.

Typically, a bridge is configured with a VLAN for each port, and the bridge adds a tag to the Ethernet header that indicates which VLAN the packet belongs to. A bridge with a port that is configured to be VLAN x will deliver only packets tagged as VLAN x to that port, and will usually strip the VLAN tag before forwarding.

The original Ethernet did not have a VLAN concept. In today's Ethernet standard, each packet must be associated with a VLAN. A bridge might be configured with a default VLAN for a port, meaning that if no VLAN tag is in the packet, the bridge will treat it as if it is that default VLAN. A bridge B might be configured in various ways that make VLANs more complex:

  • B might be configured to drop a set of VLANs rather than forward them onto a particular port, even though the port is a transit port.
  • B might be configured to modify the VLAN tag to a different value when forwarding from one port to another.
  • B might be configured to remove the VLAN tag when forwarding onto a particular port.

Appointed Forwarders

If there are multiple RBridges on the same link, together with end nodes, it is important that only one of them encapsulate a packet from an end node. As illustrated in Figure 9, if both R1 and R2 were to encapsulate a unicast packet from S, two copies would be delivered to the destination. However, if S were to transmit a multidestination packet (such as a multicast, or an unknown destination), then the copy that R1 encapsulates would be forwarded through the campus, received by R2 (which likely would not know that the packet originated on its port to R1), and R2 would decapsulate it. Then R1 would see a native packet from S, exactly as the first copy, and again encapsulate it and send it into the campus.

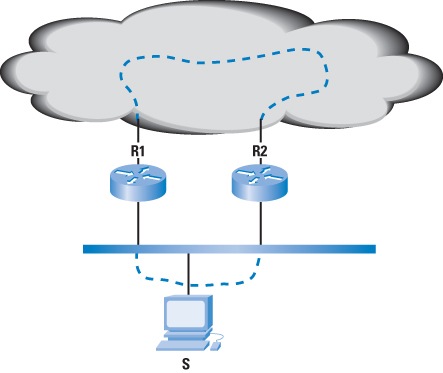

Figure 9: Link with Multiple RBridges.
Note: No Hop Count Protection on Native Frame.

The hop count in the TRILL header would not solve this loop, because the hop count does not exist while the packet is not encapsulated with a TRILL header.

IS-IS has an election protocol in which one of the RBridges is elected as the Designated RBridge (DRB). In order to allow load-splitting the task of encapsulating and decapsulating traffic, the DRB may delegate the job of encapsulation/decapsulation based on VLAN. In other words, if R1 is DRB, R1 can delegate to R2 the task of encapsulating/decapsulating traffic for a set of VLANs, say VLANs x, y, and z, and delegate to R3 a different set of VLANs, and R1 might handle the rest.

Implications of VLANs on TRILL

TRILL treats VLANs strictly as a way of partitioning the end nodes, in contrast with IEEE, which allows bridges to drop transit traffic based on VLAN. Consequently, an Ethernet link connecting TRILL RBridges R1 and R2 might be able to deliver packets tagged with VLAN x, but not deliver packets tagged with VLAN y.

It is important, as shown in Figure 9, that all the RBridges on a link know about each other; otherwise they might both encapsulate a packet.

The IS-IS election is done through Hello messages, whereby RBridges announce themselves. Unfortunately, possible configuration of bridges, whether intentional or by mistake, can partition a link for traffic marked as VLAN y, but have the link be connected for traffic marked as VLAN x. This situation complicates the IS-IS election. When transmitting a Hello message onto an Ethernet link, an RBridge R1 must assign it to a VLAN. If R1 chooses VLAN y, its neighbor R2 might not see the Hello message. And then, unaware that there were multiple RBridges on the link, both R1 and R2 might encapsulate a VLAN x packet.

TRILL handles this situation by having the DRB (by default) transmit Hello messages on all the VLANs for which it is enabled on the port. The DRB chooses a VLAN, say VLAN A, for inter-RBridge communication on the link, and informs the other RBridges on the link that they should use VLAN A. The other RBridges transmit IS-IS messages (including Hello messages and LSPs) and encapsulated TRILL packets, putting VLAN A in the outer header. The VLAN tag in the inner header is the one that represents the community that the end node belongs to. The VLAN tag in the outer header is only for the purpose of traversing an Ethernet hop between RBridges.

Additionally, (by default), an RBridge that is Appointed Forwarder for a VLAN, transmits Hello messages on that VLAN.

If it is known that there are no bridges, the RBridges (including the DRB) can be configured to send Hello messages only on the single VLAN specified by the DRB.

Modified Hello Protocol

IS-IS has an election protocol in which routers (or RBridges in the case of TRILL) send Hello messages. Not only does the Hello message transmitted by R1 announce R1 to its neighbors, but the R1 Hello message contains a list of neighbors that R1 has heard Hello messages from. R2 will not consider R1 to be a neighbor unless R2 sees itself listed in the Hello messages of R1, indicating connectivity is two-way. When choosing a DRB, R2 ignores any routers for which connectivity to R2 is not two-way. Therefore, if there were a shared link with strange connectivity properties, the routers on the link might partition into cliques, each with its own DRB, each clique representing a separate link to the rest of the routers.

A surprising aspect of the use of IS-IS for TRILL was that the Hello protocol had to be modified slightly. In Layer 3 IS-IS, Hello messages are padded to the maximum size, because a possible hardware failure mode was that a link between R1 and R2 might be able to transmit small packets, but not large packets. In Layer 3, the IS-IS assumption was that R1 and R2 would rather not see that they were potential neighbors than use a flaky link. In IS-IS, LSP packets can be fragmented only by the source R1. All routers agree upon the maximum size of an LSP fragment that is guaranteed to be able to traverse all the links. Links that cannot forward packets of that size are not reported in the topology, and indeed, in Layer 3 IS-IS, would not even be discovered in the topology, because the Hello message (padded to that size) would not be seen by the neighbor router.

But with TRILL, it is important that only a single RBridge be elected DRB, because the DRB determines which RBridge will encapsulate/decapsulate packets for each VLAN. One of the first implementations of TRILL wound up forming a loop, where two RBridges, R1 and R2, both performed encapsulation/decapsulation. This situation resulted because neighbors R1 and R2 did not see each other’s Hello messages, because the R1 Hello, padded to classic Ethernet maximum size by R1, became too large to forward when a VLAN tag was added, so did not reach R2.

To ensure that only a single RBridge on a link would be elected DRB, TRILL modified the Hello protocol as follows:

  • Limit the size of Hello messages and do not pad them (in order to remove artificial impediments to receipt by neighbors).
  • Elect a DRB based solely on priority (not two-way connectivity as in Layer 3 IS-IS). In other words, defer to a higher-priority RBridge R1 even if R1 does not list you as a neighbor.
  • Have a separate mechanism for probing, using packets of different sizes, to see what size packets can be forwarded on the link.

In addition to solving the multiple-DRB problem, this design enables TRILL to discover which links can handle jumbo-grams, so that paths can be engineered that can forward jumbo-grams.

If the link between R1 and R2 is not acceptable because it cannot handle the assumed LSP fragment size, or because connectivity is not two-way, the link is not reported in LSPs. The capability of a link to handle larger sizes can be reported in LSPs.

There was enough confusion about this minor change to the Hello protocol, and skepticism that the Hello mechanism, which has worked correctly for Layer 3 for decades, would need to be modified for TRILL, that an additional RFC was written [3] to specifically explain the TRILL Hello mechanism.

Multidestination Frames

Multiple Trees

The original design for TRILL had the RBridges compute a single, shared tree, based on the LSP database, and all multidestination traffic was forwarded along that tree. But, to be able to load-split the use of links for multidestination traffic, a facility for using multiple trees was added early in the development of the TRILL standard.

In TRILL, the RBridge with the highest priority to be a TREE root announces to the other RBridges (through its LSP) how many trees, and which trees, should be calculated. A tree is calculated as a tree of shortest paths from a given Root, with a deterministic tie-breaker so that all RBridges calculate the same tree. The Root can be an RBridge or a pseudonode. In some cases, a Root is particularly well-situated in the topology such that its tree forms good paths for all pairs of nodes, but it is desirable to have multiple different trees, choosing different tie-breaker links, calculated from the same Root. TRILL accomplishes this setup by having that Root acquire multiple nicknames, one for each tree, and using the tree number in the tie-breaker algorithm, so that although all the trees from that Root will still be shortest-path trees, different links will be chosen in the different trees.

When R1 encapsulates a multidestination frame, R1 sets the "multidestination" flag and specifies the tree Root nickname in the "egress RBridge" field in the TRILL header.

Filtering

A multidestination frame will be tagged with a VLAN (in the inner header). The frame need not be delivered to all RBridges—just those that are connected to a port with end nodes in that VLAN. So RBridges announce, in their LSPs, which VLANs they are attached to, where "attached to," means that they are acting as Appointed Forwarder.

Additionally, TRILL provides for filtering based on Layer 2 MAC addresses derived from IP Multicast groups. RBridges announce the set of such MAC addresses they wish to receive. The first RBridge that accepts an IP Multicast control message, such as Internet Group Management Protocol (IGMP), snoops on it [5] and learns what multicast listeners or multicast router is attached. This snooping is used so R1 can report in its LSP the IP Multicast groups it wishes to receive (or all groups if a multicast router is attached).

One other refinement to multidestination is the Reverse Path For- warding (RPF) check. To safeguard against loops, when R is calculating which subset of its ports belong to a particular tree, R also calculates, for each port, the set of ingress RBridges whose traffic on that tree should arrive on that port.

So, the processing of a multidestination frame received by R, with TRILL header indicating Ingress = R1 and Egress/tree Root = R2, is as follows:

  • If the port on which R receives the packet is not included in the tree "R2," discard the packet.
  • If the port on which R receives the packet is in tree R2 but R1 is not listed in the RPF information for that port for tree R2, discard the packet.
  • For each other port in R2, if the specified VLAN is reachable through that port and the IP Multicast address is requested by an RBridge along the path through that port, forward the packet on that port.

IS-IS Pseudonodes

If there is a link with N RBridges, rather than modeling the link as having on the order of N2 links to be reported in LSPs, IS-IS has the DRB model the link as a pseudonode. The DRB gives the pseudonode a name, and the RBridges on the link report connectivity just to the pseudonode. The DRB generates an LSP on behalf of itself, reporting connectivity to the pseudonode, but additionally generates an LSP on behalf of the pseudonode, reporting connectivity to all the RBridges on the link. This portion of IS-IS is as designed from the beginning (from its origin as Phase V DECnet routing).

When IS-IS was originally designed, Ethernets tended to be very large shared links. But today, most Ethernets are simply point-to-point links (unless there are bridges making them appear to be shared links). So it would be wasteful for RBridges to always create a pseudonode for each Ethernet link. In Layer 3 it is not as unreasonable to always treat an Ethernet as a large shared link because an "Ethernet" link, as perceived by Layer 3, is likely to be a large collection of point-to-point links glued together with either bridges or RBridges.

But RBridges are likely to often see Ethernet links with just a single neighbor, especially in a topology with no bridges. So TRILL has the ability for the DRB to specify to its neighbor RBridges whether to report the link as a pseudonode or to report connectivity to all the RBridge neighbors as separate links. By default, the DRB R sets a flag known as the "bypass pseudonode" flag in its Hello message on the link, unless at some point since R rebooted R has seen two simultaneous neighbor RBridges on that link. With this mechanism, true point-to-point Ethernet links will be reported as a link between R1 and R2 rather than a pseudonode P, with links R1‐P, R2–P, and P–R1 and P–R2 reported.

TRILL Implementations

TRILL is being widely implemented. TRILL fast-path hardware is included in chips available from all major merchant silicon manufacturers. A successful interoperability test was held at the University of New Hampshire InterOperability Laboratory in late 2010, and TRILL products are announced and shipping.

Future Potential TRILL Enhancements

  • Here are just three enhancements to TRILL being considered: Data centers require more VLANs than can be specified in 12 bits with a single VLAN tag. A TRILL extension to optionally include the ability to encode 24 bits of VLAN-like labeling in TRILL data frames is being considered.
  • By optionally giving a pseudonode a nickname and having the appointed forwarder use that nickname in the ingress RBridge field, if the appointed forwarder changes, the end-node learning cache of distant RBridges will still be correct.
  • A proposal is being made allowing IS-IS to be hierarchical in a TRILL campus. IS-IS hierarchy partitions the LSP database so that any single RBridge LSP database will be smaller, its path computation will be less computation-intensive, and it will lower the amount of LSP traffic. In particular, it shields the effects of a link that is cycling quickly from most of the campus, because only the RBridges in the region with the link will see reports of the state of that link.

Summary

The TRILL standard creates a cloud with a flat Ethernet address, so that nodes can move around within the cloud and not need to change their IP address. Although nodes attached to the cloud perceive the cloud as an Ethernet while the packet is traversing the cloud, it is encapsulated with a TRILL header, which like a Layer 3 technology, contains a source (ingress RBridge), destination (egress RBridge), and hop count. The addresses in the TRILL header are 16 bits, enabling a TRILL campus to support 64,000 RBridges. Transit RBridges do not learn about location of end nodes—only the existence of, and path to—other RBridges.

TRILL can use all the Layer 3 techniques, including shortest paths, Equal Cost Multipath (ECMP), and traffic engineering. It also supports VLANs and multicast. TRILL can calculate multiple trees, so that multidestination traffic can be split across links. Multi-destination frames can be filtered based on VLAN and IP (v4 or v6) Multicast groups.

TRILL is compatible with existing Ethernet bridges (switches), so a bridged Ethernet can be gradually upgraded by replacing any subset of the bridges with RBridges. The more that are upgraded, the better the bandwidth usage, and the more stable the network becomes.

References

[1] Perlman, R., Eastlake 3rd, D., Dutt, D., Gai, S., and A. Ghanwani, “Routing Bridges (RBridges): Base Protocol Specification,” RFC 6325, July 2011.

[2] "Information technology—Telecommunications and information exchange between systems—Intermediate System to Inter-mediate System intra-domain routing information exchange protocol for use in conjunction with the protocol for providing the connectionless-mode network service (ISO 8473)," ISO/IEC 10589:2002.

[3] Eastlake 3rd, D., Perlman, R., Ghanwani, A., Dutt, D., and V. Manral, "Routing Bridges (RBridges): Adjacency," RFC 6327, July 2011.

[4] ITU-T, "X.200: Information technology—Open Systems Inter-connection—Basic Reference Model: The basic model,' July 1994.

[5] Christensen, M., Kimball, K., and F. Solensky, "Considerations for Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) Snooping Switches," RFC 4541, May 2006.

[6] Touch, J. and R. Perlman, "Transparent Interconnection of Lots of Links (TRILL): Problem and Applicability Statement," RFC 5556, May 2009.

[7] W3C, "XML Base (Second Edition)," W3C Recommendation 28 January 2009, http://www.w3.org/TR/2009/REC-xmlbase-20090128/

[8] Perlman, R., "A Protocol for Distributed Computation of a Spanning Tree in an Extended LAN," 9th Data Communications Symposium, Vancouver, 1985.

[9] Callon, R., "Use of OSI IS-IS for routing in TCP/IP and dual environments," RFC 1195, December 1990.

[10] Moy, J., "OSPF Version 2," RFC 2328, April 1998.

[11] Simpson, W., "The Point-to-Point Protocol (PPP)," RFC 1661, July 1994.

[12] http://www.interfacebus.com/HDLC_Protocol_Description.html

[13] Carlson, J. and Eastlake 3rd, D., "PPP Transparent Interconnection of Lots of Links (TRILL) Protocol Control Protocol," RFC 6361, August 2011.

RADIA PERLMAN is a Fellow at Intel Labs, working on the design of various network routing and security protocols. She is the inventor of the Spanning Tree Algorithm, the designer of IS-IS, and the original concept for TRILL. She is the author of the textbook Interconnections: Bridges, Routers, Switches, and Internetworking Protocols. She is an IEEE Fellow and holds a Ph.D. from MIT. E-mail: radiaperlman@gmail.com

DONALD EASTLAKE 3rd is Co-Chair of the IETF TRILL Working Group and a voting member of IEEE 802.1. He is the author of 56 IETF RFCs and a Principal Engineer with Huawei Technologies working on advanced network product research. Previously, he was a Principal Engineer at Cisco Systems and before that a Distinguished Member of Technical Staff at Motorola Laboratories, working on network protocols, security, and mesh networking. E-mail: d3e3e3@gmail.com
