Part 2: Infrastructure and Implementation Topics
by T. Sridhar
Cloud computing is an emerging area that affects IT infrastructure, network services, and applications. In Part 1  of this two-part article, we introduced various aspects of cloud computing, including the rationale, underlying models, and infrastructures. In Part 2 we discuss specific infrastructure aspects of cloud computing in detail, specifically:
In addition, we will provide some perspective on select topics in cloud computing that have garnered interest. Remember that cloud computing is an emerging area where approaches to some of these topics are still evolving. In addition, although cloud computing is not intrinsically dependent upon virtualization, there is common agreement that virtualization (specifically, server virtualization) will be an integral part of cloud-computing solutions of the future. Consider the discussion in the following sections in this context.

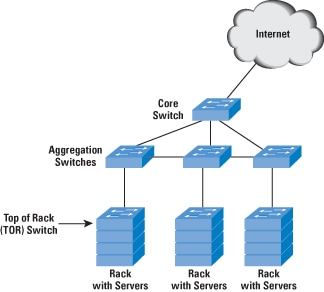

In a limited sense, the cloud can be treated as a large data center run by an external entity providing the capability for elasticity, on-demand resources, and per-usage billing. Data-center architecture often follows the common three-layer network topology of access, aggregation, and core networks with enabling networking elements (switches and routers). Consider the topology shown in Figure 4 of Part 1, reproduced here as Figure 0. The servers can be connected through a 1-Gbps link to a Top of Rack (TOR) switch, which in turn is connected through one or more 10-Gbps links to an aggregation End of Row (EOR) switch. The EOR switch is used for interserver connectivity across racks. The aggregation switches themselves are connected to core switches for connectivity outside the data center.

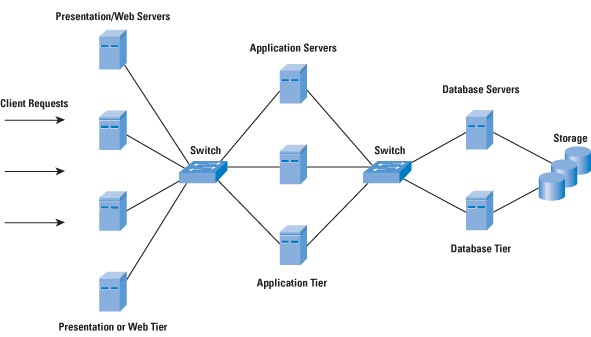

From a functional perspective, data-center server organization has often adopted a three-tier architecture (a specific case of an N-tier architecture). The three-tier functional architecture has a web or Presentation Tier on the front end, an Application Tier to perform the application and business-processing logic, and finally a Database Tier (to run the database management system), which is accessed by the Application Tier for its tasks (refer to Figure 1 on page 4).
Although it is not necessary for each tier to be represented by its own physical servers (for example, you could have the Application and Database functions mapped into a single physical server), it is a common representation. The reason for this multitiered design is to control the connections and interactions, as well as for scaling and security. It is not uncommon for the Presentation Tier to be in a Demilitarized Zone (DMZ) while the other tiers are located deep inside the data center. Although all tiers could connect to storage for performing their functions, the Database Tier is the one with the maximum storage bandwidth requirements.
It follows that the server connectivity and the network topology for the cloud data centers might follow a similar organization. If you are an enterprise, you can perform the same business functions as before, but by using the external cloud. The choice of servers, software loads, and their interconnection will depend upon what you need to accomplish. In the following sections, we discuss how this design is handled in Infrastructure as a Service (IaaS), Platform as a Service (PaaS), and Software as a Service (SaaS).
Data-Center Infrastructure Extension—IaaS
If the cloud is thus seen as an extension of the existing data center, IaaS as outlined in Part 1 is a natural fit. Here, you would specify the number of servers in each tier, load the appropriate server image (web, business logic, or database manager), and "connect" them (through a menu or Application Programming Interface [API] provided by the IaaS provider) by specifying the links between them. You can also specify the network connectivity at this time (more on this later). For an enterprise IT administrator, this model provides the greatest degree of control and, to an extent, a familiar operating topology. The cloud provider handles the elasticity by ensuring that the number of servers and switches is adequate for you to configure and connect in the specified topology. Per-use billing and on-demand resource addition and removal are also provided by the cloud provider. Note that if you have complete control, you also are responsible for security, application usage, and resource management.
PaaS and SaaS Infrastructure
In the case of PaaS, you transfer more control to your cloud service provider. The platform used to build the service you require can scale transparently without any of your involvement other than at the time of configuration. You do not need to understand the tier connectivity, bandwidth requirements, or how it all functions under the hood.
Cloud service providers can realize this function—often with a three-tier topology similar to that for traditional data centers. However, some of them have innovated to perform parts of the function differently. For example, the database functions may rely upon a model of scaling out (splitting the database across multiple servers) instead of scaling up (increasing the capability of the machine running the database servers). Their claim is that with clouds involving large amounts of data that you can partition and work on, it is easier to scale out than scale up. According to some cloud service providers, traditional relational databases are not suitable candidates for scale out. Hence, some cloud vendors have provided their own database models and implementations—a common one being the type known as the Key-Value database.
SaaS vendors have the highest degree of control among the three models. The realization of the network topology can be similar to existing data centers and scale up or down according to the number of users that are added. However, because they offer a specific set of applications to the cloud users, their server and network topology is quite straightforward.
For the following discussions, we will use IaaS as the representative cloud service model, with a primary consideration being "cloud bursting"—how an existing IT infrastructure can take advantage of the power of the cloud when it needs additional resources. Note that some of the discussion might also be relevant for internal clouds. In addition, we will assume a virtualized server infrastructure for the IaaS cloud because this infrastructure provides a greater degree of flexibility for cloud service providers (Amazon being a key example).
Virtualization and Its Demands on Switching
In Part 1, we provided the context for a virtual switch within a physical server containing multiple virtual machines. There are some addressing and control factors to consider in this model. Consider a data center with 100 servers, each with 16 virtual machines but with one physical 10-Gbps Ethernet connection to the external switch from each physical machine. If we were to carry forward the model where each physical server is replaced with its virtual equivalent but still needs to be addressable (through a Media Access Control [MAC] layer address and an IP address), you would need 16 MAC and IP addresses for the virtual servers that now reside "on top" of the single physical link, for a total of 1600 addresses across all servers. This problem is exacerbated when you increase the number of VMs per server. Switching between MAC addresses belonging to the virtual machines is done by the virtual switch inside the server.

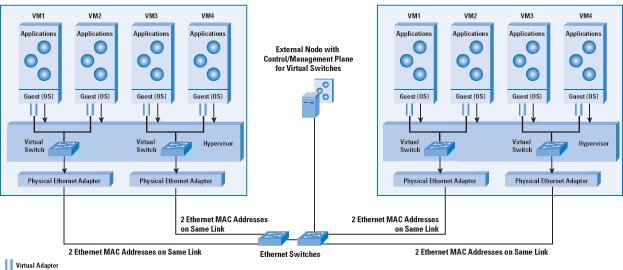

Consider the topology in Figure 2. The virtual switch treats the physical link as an uplink to the external physical switch. This intramachine Virtual Machine (VM) switch with an uplink to the external switch is completely in line with access and aggregation switch topologies where the access layer is subsumed inside the server. Note that each physical host can have more than one virtual switch to support greater logical segmentation. In such cases, it is common for each of the virtual switches to have its own physical uplink to the external Ethernet switch.
The virtual switch does not need to learn MAC addresses like a traditional switch—it assumes that all destination-unknown frames should be forwarded over the physical link (or uplink to the physical switch). In addition, it switches traffic between the intramachine VMs according to policy. For example, you could prohibit two VMs on the same machine from communicating with each other by configuring an access control list on the virtual switch. The VMs may all be on the same or on different VLANs. Broadcasts and intra-VLAN traffic are forwarded according to the rules for each VLAN. In effect, the virtual switch is a simple function that is used for aggregation and access control within a physical server containing VMs.
Management of these virtual switches can follow an aggregation model—where multiple virtual switches are managed through an external node (physical machine or VM), as shown in Figure 2. This external node provides the management view on behalf of the switches. Often, the external node can run control-plane protocols for Layer 2/3 functions, in effect appearing like a control or management plane with multiple data-plane instances (the virtual switches). When VMs need to be migrated to other physical servers, this separation of control- or management-plane functions permits easier migration of policy and access lists.
Virtual switches do have some disadvantages. Inter-VM traffic within the same machine is not visible to the network and cannot be subject to appropriate monitoring by network administrators. The IEEE is discussing approaches to providing external network switches the visibility into the intra-VM traffic. The options include "hair pinning," where inter-VM traffic would still be carried over to an external switch and brought back to the same physical server.
IaaS Private Clouds

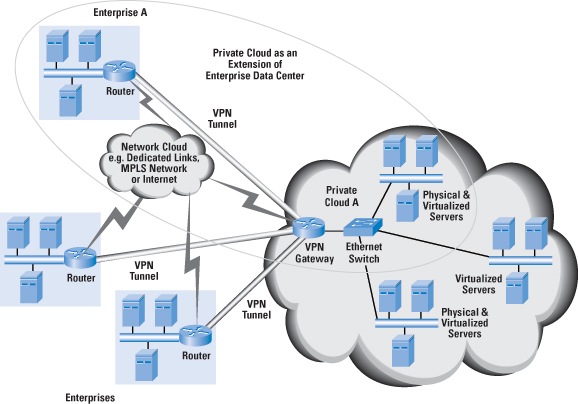

Consider an IaaS cloud to which an enterprise connects to augment its server capacity for a limited period of time. Assume that the enterprise uses a 10.x.x.x private addressing scheme for all its servers because they are internal to the enterprise. It would be ideal if the additional servers provided by the IaaS cloud were part of the same addressing scheme (the 10.x.x.x scheme). As shown in Figure 3, the IaaS cloud service provider has partitioned a portion of its public cloud to realize a private cloud for enterprise A. The private cloud is reachable as a LAN extension to the servers in enterprise A's data center.
How is this reachability realized? A secure Virtual Private Network (VPN) tunnel is first established between the enterprise data center and the public cloud. This tunnel uses public IP addresses to establish the site-to-site VPN connection. The VPN gateway on the cloud service provider side uses multiple contexts—each context corresponding to a specific private cloud. Traffic from enterprise A is decrypted and forwarded over to an Ethernet switch to the private cloud for enterprise A. A server on enterprise A's internal data center sees a server on private cloud A to be on the same network.
In practice, data-center servers might be segmented into their own VLANs or IP networks according to policy and applications. The configuration and forwarding policies on the private cloud end would reflect this segmentation as well.
The following are some possible evolution scenarios for this scheme:
CloudNet is an example of a framework being developed by AT&T Labs and the University of Massachusetts at Amherst to address the latter two scenarios.
Layer 2 versus Layer 3 Connectivity for Cloud Networks
Enterprises and vendors follow some guidelines regarding where to use Layer 2 (switching) and Layer 3 (routing) in the network. Layer 2 is the simpler mode, where the Ethernet MAC address and Virtual LAN (VLAN) information are used for forwarding. The disadvantage of Layer 2 networks is scalability. When we use Layer 2 addressing and connectivity in the manner specified previously for IaaS clouds, we end up with a flat topology, which is not ideal when there are a large number of nodes. The option is to use routing and subnets—to provide segmentation for the appropriate functions at the cost of forwarding performance and network complexity.
VM migration introduces its own set of problems. The most common scenario is when a VM is migrated to a different host on the same Layer 2 topology (with the appropriate VLAN configuration). Consider the case where a VM with open Transmission Control Protocol (TCP) connections is migrated. If live migration is used, TCP connections will not see any downtime except for a short "hiccup." However, after the migration, IP and TCP packets destined for the VM will need to be resolved to a different MAC address or the same MAC address but now connected to a different physical switch in the network so that the connections can be continued without disruption. Proposed solutions include an unsolicited Address Resolution Protocol (ARP) request from the migrated VM so that the switch tables can be updated, a pseudo-MAC address for the VM that is externally managed (defined in research work being done at the University of California at San Diego), and so on.
With VPLS and similar Layer 2 approaches, VM migration can proceed as before—across the same Layer 2 network. Alternatively, it may be less complex to "freeze" the VM and move it across either a Layer 2 or Layer 3 network with the TCP connections having to be torn down by the counterpart(s) communicating with the VM. This scenario is not a desired one from an application availability consideration, but it can lower complexity.
Thus far we have considered the situation of data centers that are owned or run by the same cloud services provider. Connectivity between the data centers to provide the vision of "one cloud" is completely within the control of the cloud service provider.
There may be situations where an organization or enterprise needs to be able to work with multiple cloud providers because of migration from one cloud service to another, merger of companies working with different cloud providers, cloud providers who provide best-of-class services, and so on. Cloud interoperability and the ability to share various types of information between clouds become important in such scenarios. Although cloud service providers might see less urgency for any interoperability, enterprise customers will see a need to push them in that direction.
This broad area of cloud interoperability is sometimes known as cloud federation. One definition of cloud federation as proposed by Reuven Cohen of Enomaly follows:
"Cloud federation manages consistency and access controls when two or more independent geographically distributed clouds share either authentication, files, computing resources, command and control, or access to storage resources."
The following are some of the considerations in cloud federation:
Cloud federation is a relatively new area in cloud computing. It is likely that standards bodies will first need to agree upon a set of requirements before the service interfaces can be defined and subsequently realized. Provider and vendor innovation will also significantly affect this area—in fact, cloud service operators are likely to establish peering relationships and start addressing this area even before the standards bodies.
As indicated in Part 1, the biggest deterrent for IT managers from venturing into cloud computing is the problem of security and loss of control. Before considering a move to a cloud service provider, enterprises need to consider some of the following security topics:
Virtualization and Security
Two options are under discussion for security in the context of virtualization. Both are useful in building out security-enabled cloud infrastructures. One option involves plug-ins to the hypervisor so that packets destined to the VMs are captured and processed by the security plug-ins. This setup enables application of security functions to the packet before it gets to the VMs. A second option is to make a specific VM handle the security functions without changing or adding to the hypervisor. The hypervisor plug-in option has the advantage of performance and initial isolation, whereas the separate VM option has the advantage of keeping the hypervisor simple and extrapolating the model that exists in physical server infrastructure. Note that these options are not mutually exclusive.
VM migration is another area where security is an important consideration. The hypervisor is responsible for the two-way communication, with the hypervisor on the destination physical machine to accomplish the migration. It is important that the connection between the source and destination hypervisors is authenticated and encrypted during the course of this migration. In addition, VM migration introduces the possibility of a DoS attack because a rogue hypervisor could overwhelm a destination machine by migrating a large number of VMs to the destination machine. Policies and logic are required at the hypervisor level to ensure that these vulnerabilities are addressed. In addition, network-based throttling might be required so that live migration does not cause congestion, which might happen if a large number of VMs need to be migrated to a destination machine at the same time.
Standards Bodies Involved in Cloud Computing
Numerous standards bodies are involved in cloud computing, addressing aspects of interoperability, virtualization migration formats, and security. Some of the organizations involved have established liaisons with the other Standards Development Organizations (SDOs) so that there is no duplication of effort.
The Desktop Management Task Force (DMTF) has specified a portable format for packaging the software to run as a VM. Known as the Open Virtualization Format (OVF), this package format is seeing increased use. The VM can be written onto a disk or external storage and can be moved from one physical machine to another. The DMTF has also formed a group called the Open Cloud Standards Incubator, which focuses on standardizing the interactions between cloud environments, including the development of resource management, packaging formats, and security.
The Cloud Security Alliance (CSA) is a new group formed to address security aspects of cloud computing with a focus on security assessment and management. The initial part of the effort is on developing an Audit, Assertion, Assessment and Assurance (API) set (A6).
The Organization for the Advancement of Structured Information Standards (OASIS) sees cloud computing as an extension of the Service-Oriented Architecture (SOA) used today in IT environments. The areas for standardization include security and policy, content format control, registry and directory standards, as well other SOA methods.
The Storage Networking Industries Association (SNIA) has a Cloud Storage Technical Working Group (TWG) that works on storage-related problems related to implementation in a cloud. The TWG has developed an interface known as the Cloud Data Management Interface (CDMI), which clients will use for control and configuration of the cloud.
Some Perspectives on Cloud Computing
In this section we outline and provide some perspective on cloud-computing topics that have seen interest (and some heated discussion). This list is not intended to be comprehensive but to provide a quick snapshot. Though this section has a degree of subjectivity, it is directed only to providing a broader perspective.
This article has served as a vendor-neutral primer to the area of cloud computing. In Part 1, we provided an introduction to the still-evolving area of cloud computing, including the technologies and some deployment concerns. In Part 2, we provided a more detailed look at the networking factors in the cloud, security aspects, and cloud federation. We also highlighted some areas that are seeing increased attention with cloud-computing proponents and vendors.
The area of cloud computing is very dynamic and offers scope for innovative technologies and business models. Ongoing work with respect to solutions is substantial, in the vendor research labs and product development organizations as well as in academia. It is clear that cloud computing will see significant advances and innovation in the next few years.
