CISCO AIRONET ANTENNAS Hardware View

Every wireless Local Area Network (LAN) deployment is different. When engineering an in-building solution, varying facility sizes, construction materials, and interior divisions raise a host of transmission and multipath considerations. When implementing a building-to-building solution, distance, physical obstructions between facilities, and number of transmission points involved must be accounted for. Cisco is committed to providing not only the best access points, client adapters, and bridges in the industry--it is also committed to providing a complete solution for any wireless LAN deployment. That`s why Cisco has the widest range of antennas, cable, and accessories available from any wireless manufacturer. With directional and omnidirectional antennas, low-loss cable, mounting hardware, and other accessories, installers can customize a wireless solution that meets the requirements of even the most challenging applications.

Client Adapter Antennas

AIR-ANT3351
AIR-ANT3342

Access Point Antennas

AIR-ANT3194
AIR-ANT2561
AIR-ANT5959
AIR-ANT3195
AIR-ANT2012
AIR-ANT3213
AIR-ANT1728
AIR-ANT4941
AIR-ANT3549
AIR-ANT1729

Bridge Antennas

AIR-ANT2506
AIR-ANT4121
AIR-ANT1949
AIR-ANT3338
AIR-ANT24120
AIR-ANT58G9VOA-N
AIR-ANT58G10SSA-N

AIR-ANT3351

2.2 dBi POS Diversity Dipole Antenna. Indoor diversity antenna to extend the range of Cisco Aironet LMC client adapters.

AIR-ANT3342 - End Of Sale

2.2 dBi Diversity 'Rabbit Ear' External Antenna. Use to extend the range on the Aironet client adaptors.

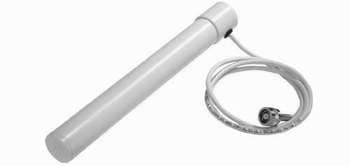

AIR-ANT3194 - End Of Sale

2.2 dBi Omni Ceiling Mount Antenna. Indoor short range antenna typically hung from crossbars of drop ceilings.

AIR-ANT2561- End Of Sale

5.2 dBi Omnidirectional Ground Plane Antenna. Flat Circular medium-range indoor antenna.

AIR-ANT5959

Two separate 2dBi omnidirectional elements. Minimum gain 2.0. Maximum 2.35 gain. Diversity omni-directional indoor ceiling mount.

AIR-ANT3195 - End Of Sale

3 dBi Patch Wall Mount Antenna. Indoor/Outdoor directional antenna.

AIR-ANT2012

6.5 dBi with two radiating elements diversity patch wall mount Indoor/Outdoor, unobtrusive medium range antenna.

AIR-ANT3213

5.2 dBi Pillar-Mount Diversity Omni Antenna. Indoor, unobtrusive medium range antenna.

AIR-ANT1728

5.2 dBi Omni Ceiling Mount Antenna. Indoor medium range antenna typically hung from crossbars of drop ceiling.

AIR-ANT4941

2.2 dBi dipole antenna. Indoor omni-directional coverage.

AIR-ANT3549

8.5 dBi Hemispherical Patch Antenna. Indoor, unobtrusive long-range antenna (may also be used as a medium-range bridge antenna)

AIR-ANT1729

6 dBi Patch Wall Mount Antenna. Indoor, unobtrusive long-range antenna (may also be used as a medium-range bridge antenna)

AIR-ANT2506

5.2 dBi Omnidirectional Mast Mount Antenna. Outdoor short-range point-to-multipoint applications.

AIR-ANT4121

12 dBi Omnidirectional Mast Mount Antenna. Outdoor short-range point-to-multipoint applications.

AIR-ANT1949

13.5 dBi Yagi Mast Mount Antenna. Outdoor medium-range directional connections.

AIR-ANT3338

21 dBi Solid Dish Antenna.Outdoor long-range directional connections.

AIR-ANT24120

12-dBi high gain omnidirectional antenna. This antenna is designed for use with Cisco Aironet access points and bridges but can be used with any 2.4-GHz Cisco Aironet radio device that uses a reverse-polarity threaded naval connector (RP-TNC).

AIR-ANT58G9VOA-N

9.0 dBi Omni-directional mast mount antenna. This antenna is designed for use with 1400 series bridges with an appropriate N-Type connection. For outdoor short-range point-to-multipoint applications.

AIR-ANT58G10SSA-N

9.5 dBi Sectorl mast mount antenna. This antenna is designed for use with 1400 series bridges with an appropriate N-Type connection.For outdoor medium-range point-to-point and point-to-multipoint applications .
