CISCO 800 Series Router Hardware View

Cisco 800 Series of Secure Routers are ideal for providing secure Internet and corporate network connectivity to small remote offices and teleworkers. The Cisco 800 Series of Secure Routers provide a wide range of rich integrated security services, advanced Quality of Service (QoS) features for high quality voice, video and data applications, and easy deployment and remote management features with Cisco IOS software. It connects users to the Internet or to a corporate LAN via one ADSL, ADSL2/2+, G.SHDSL, ISDN, or serial connection (up to 512 Kbps), or with an Ethernet WAN port connected to an external broadband modem.

CISCO801




One Ethernet 10BASE-T (RJ-45) and One ISDN BRI S/T (RJ-45 connector).

Return to Top

CISCO803 End Of Sale




4-port Ethernet hub (10BASE-T - RJ-45), 1-port ISDN BRI S/T (RJ-45 connector) and 2 analog ports (RJ-11 connector).

Return to Top

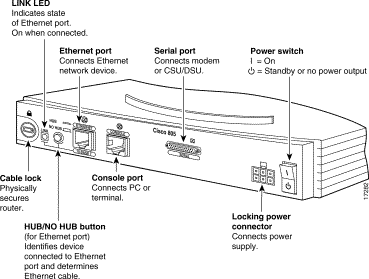

CISCO805




One 10BASE-T (RJ-45), 1-port Serial (Up to 512 KBPS Sync and up to 115.2KBPS ASync, The port use a Smart Serial cable).

Return to Top

CISCO806 End Of Sale




4-port Ethernet hub (10BASE-T - RJ-45) and One port WAN Ethernet 10BASE-T (RJ-45).

Return to Top

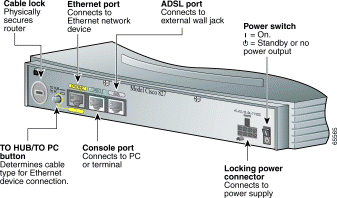

CISCO827 End Of Sale




ADSL router with One 10BASE-T (RJ-45) ethernet port, and one port ADSL.

Return to Top

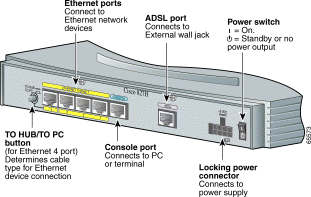

CISCO827H End Of Sale




ADSL router with 4-port Ethernet hub (10BASE-T - RJ-45) and 1-port ADSL.

Return to Top

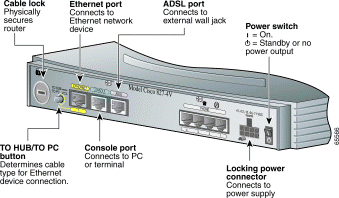

CISCO827-4VEnd Of Sale




ADSL router with One 10BASE-T (RJ-45) ethernet , 1-port ADSL and 4 Voice Ports (FXS).

Return to Top

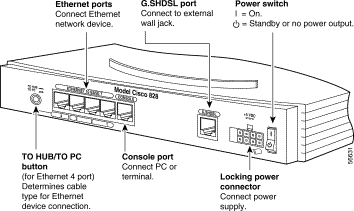

CISCO828 End Of Sale




G.SHDSL router with 4-port Ethernet hub (10BASE-T - RJ-45) and 1-port G.SHDSL (RJ-11)

Return to Top

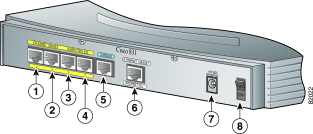

CISCO831




  1. Ethernet port 4 connects to Ethernet network devices
  2. Ethernet port 3 connects to Ethernet network devices
  3. Ethernet port 2 connects to Ethernet network devices
  4. Ethernet port 1 connects to Ethernet network devices
  5. Console port connects to PC or terminal
  6. WAN port(10 BASE-T RJ-45) connects to Internet or switch
  7. Input jack connects to power supply
  8. Power on/off button
Return to Top

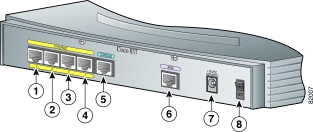

CISCO837




  1. Ethernet port 4 connects to Ethernet network devices
  2. Ethernet port 3 connects to Ethernet network devices
  3. Ethernet port 2 connects to Ethernet network devices
  4. Ethernet port 1 connects to Ethernet network devices
  5. Console port connects to PC or terminal
  6. ADSL port connects to external wall jack
  7. Input jack connects to power supply
  8. Power on/off button
Return to Top

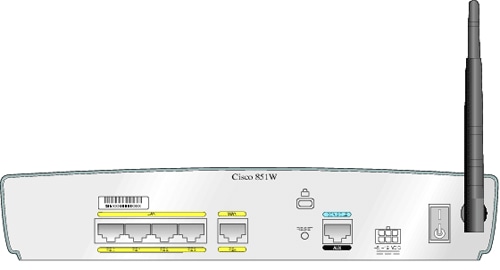

CISCO851 / CISCO851W


Front


Rear



Router Ports on the Cisco 851 (wireless model pictured):

  • Four 10/100BASE-T RJ-45 Fast Ethernet LAN ports with a built-in switch
  • One 10/100BASE-T RJ-45 WAN Fast Ethernet port
  • One RJ-45 console port

Notes:

  • The Cisco 851W wireless model has a fixed 2.2dbi antenna.
  • Wireless is 802.11b/g only.
Return to Top

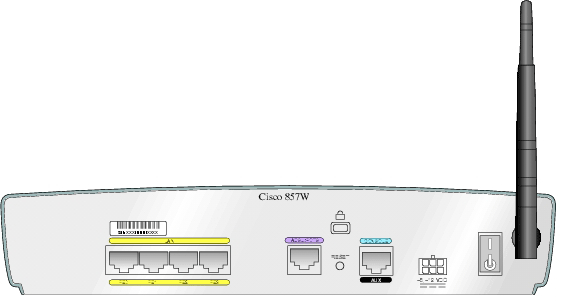

CISCO857 / CISCO857W


Front


Rear



Router Ports on the Cisco 857 (wireless model pictured):

  • Four 10/100BASE-T RJ-45 Fast Ethernet LAN ports with a built-in switch
  • One ADSL-over-POTS port
  • One RJ-45 console port

Notes:

  • The Cisco 857W wireless model has a fixed 2.2dbi antenna.
  • Wireless is 802.11b/g only.

ADSL2/2+ support from IOS release 12.4(4)T and onwards

Return to Top

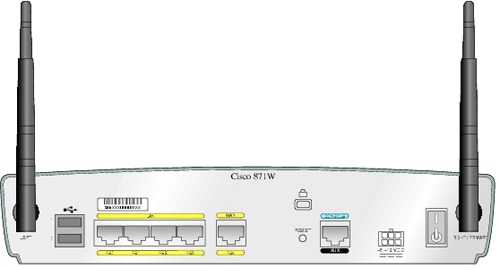

CISCO871 / CISCO871W


Front


Rear



Router Ports on the Cisco 871 (wireless model pictured):

  • Four 10/100BASE-T RJ-45 Fast Ethernet LAN ports with a built-in switch
  • One 10/100BASE-T RJ-45 WAN Fast Ethernet port
  • One RJ-45 console port
  • Two USB ports

Notes:

  • The Cisco 871W wireless model comes with two RP-TNC connected 2.2dbi antennas for diversity.
  • Wireless is 802.11b/g only.
Return to Top

CISCO876 / CISCO876W

Front


Rear



Router Ports on the Cisco 876 (wireless model pictured):

  • Four 10/100BASE-T RJ-45 Fast Ethernet LAN ports with a built-in switch
  • One ADSL-over-ISDN port
  • One ISDN S/T port
  • One RJ-45 console port

Notes:

  • The Cisco 876W wireless model comes with two RP-TNC connected 2.2dbi antennas for diversity.
  • Wireless is 802.11b/g only.
  • The ISDN BRI interface can be used for normal WAN connections or can be configured as a backup connection for the ADSL WAN interface.
Return to Top

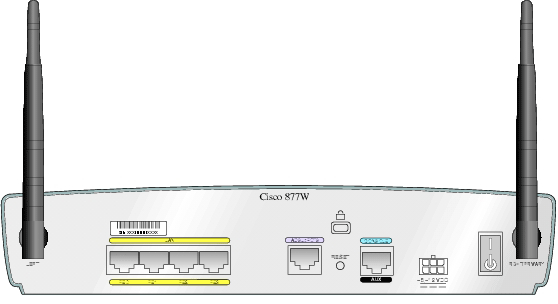

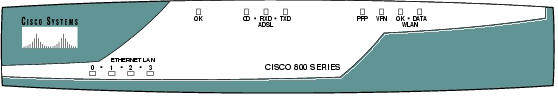

CISCO877 / CISCO877W

Front


Rear



Router Ports on the Cisco 877 (wireless model pictured):

  • Four 10/100BASE-T RJ-45 Fast Ethernet LAN ports with a built-in switch
  • One RJ-45 console port
  • One ADSL-over-POTS port

ADSL2/2+ support from IOS release 12.4(4)T and onwards

Notes:

  • The Cisco 877W wireless model comes with two RP-TNC connected 2.2dbi antennas for diversity.
  • Wireless is 802.11b/g only.
Return to Top

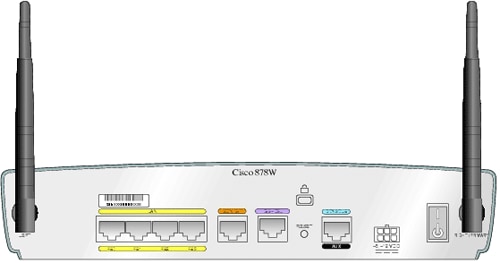

CISCO878 / CISCO878W


Front


Rear



Router Ports on the Cisco 878 (wireless model pictured):

  • Four 10/100BASE-T RJ-45 Fast Ethernet LAN ports with a built-in switch
  • One G.SHDSL port
  • One ISDN S/T port
  • One RJ-45 console port

Notes:

  • The Cisco 877W wireless model comes with two RP-TNC connected 2.2dbi antennas for diversity.
  • Wireless is 802.11b/g only.
