Cisco IOS Security Architecture
Abstract
Enterprise networks require systemwide security options that can provide
coverage to workgroup,
IBM internetworking, access,
and core
topologies (see Figure 1). These features must have the flexibility to
respond to new
security concerns as they arise and to upgrade as new technologies become
available and costeffective. This document describes how organizations can
fulfill their enterprise security requirements with the Cisco Internetwork
Operating System[tm] (Cisco IOS).

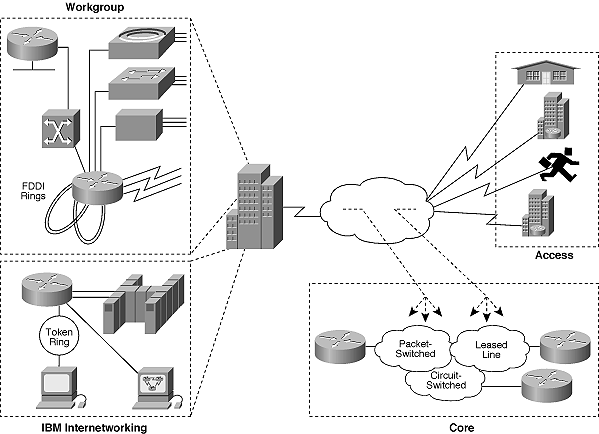

Figure 1: An Enterprise Network Topology
Introduction
Network security presents an organization with a challenging dilemma. To
ensure comprehensive security, an organization must address all hosts,
systems, applications, and networking devices with a policy that maximizes
user convenience and productivity, while at the same time limiting security
violations. For enterprise-wide security, no single technology will meet
all the requirements; in fact, intruders find it easier to penetrate a
network if security deployment is limited to any single method. Cisco
Systems strongly recommends that its customers take a systematic approach
to security by deploying multiple, overlapping security methods.
The Cisco IOS[tm] Security Architecture provides modular, scalable
security. Firewalling, access management, host security, and encryption
provide the foundation for security. Each of these security systems can be
tuned with its own policy options to meet an organization's requirements.
Cisco views security from several aspects. For corporate facilities,
physical security is frequently based upon security guards, closed circuit
television, and card-key entry systems. With these measures in place,
organizations feel confident that within their physical facilities, assets
are protected, and high user productivity is maintained. Cisco's approach
to security allows an organization to extend this model by using the
policy-based components of the Cisco IOS Security Architecture
(firewalling, access management, host security, and encryption). The Cisco
IOS Security Architecture as the basis for an organization's security
policy has evolved over more than ten years of technological innovation
(see Figure 2). The cornerstone of the Cisco IOS Security Architecture
bases security requirements on multiple, overlapping solutions to maintain
an organization's security integrity.
Figure 2: Security Policy Supported by the Cisco IOS Security
Architecture
Organizations must decide where to strike the balance between access and
productivity for users and security measures that may be perceived as
restrictive by the user community (see Figure 3).
Figure 3: The Security Balance
On one side of the balance beam shown in Figure 3 is access and
productivity, and on the other side is security. The goal of a good design
is to provide a balance while adding as few restrictions as possible from
the users' point of view. Some very sound security measures, such as
encryption, do not restrict access and productivity. On the other hand,
poor security planning can cause reduced productivity and performance among
users. How much access and productivity can a company stand to risk in the
effort to maintain security?
Cisco responds to this question by suggesting that customers first define
their security policies. Once they are defined, multiple security
components can be attached to address policy requirements. Among them are
the components of the Cisco IOS Security Architecture described earlier:
- Firewalling
- Access management
- Host security
- Encryption
All of these components can be used to support security policy requirements
with an eye on productivity. However, before discussing them in detail,
this document further explains the requirements for an effective security
policy.
Defining Policy
A security policy should not determine how a business operates; the nature
of the business should dictate the policy. Defining a company's security
policy can seem difficult, but by defining policy before choosing security
methods, organizations can avoid having to redesign security methodologies
after they are implemented.
A balanced security policy provides organizations with the following benefits:
- A course of action
- Guiding principles based on corporate policy
- Procedures that are considered expedient, prudent, advantageous, and
productive
Effective Security Policies
Security policies should consider the factors discussed in the following
sections.
Knowing Your Assets
It is impossible to know who might be an organization's potential enemies;
a better approach for the organization is to know itself. Companies must
understand what they want to protect, what access is needed, and how these
considerations work together. Some parts of an infrastructure can be left
more open because there is little cost involved if they are compromised.
Security measures cannot make it impossible for a user to perform
unauthorized tasks with a computer system; they can only make it harder.
Companies should be more concerned about their assets and their value than
about an attacker's motivation.
Counting the Cost
Some security measures will inevitably reduce convenience, especially for
sophisticated users. Security can delay work and create expensive
administrative and educational overhead, as well as use significant
computing resources and require dedicated hardware.
When designing security measures, companies should understand their costs
and weigh them against the potential benefits. If the security costs are
out of proportion to the actual dangers, it is a disservice to the
organization to implement them.
Identifying Assumptions
Every security system has underlying assumptions. For example, an
organization might assume that its network is not tapped, that intruders
are not very knowledgeable, that they are using standard software, or that
a locked room is safe. It is important to examine and justify assumptions;
any hidden assumption is a potential security hole.
Controlling Secrets
Most security is based on secrets. For example, passwords and encryption
keys are secrets. Too often, however, the secrets are not kept secret. The
most important part of keeping secrets is knowing which areas must be
protected. A company should jealously guard the knowledge that would enable
someone to circumvent its security and assume that its adversaries know
everything else. The more secrets there are, the harder it will be to keep
all of them. Security systems should be designed so that only a limited
number of secrets need to be kept.
Allowing for Human Factors
If security measures interfere with essential uses of the system, users
will resist them and sometimes even circumvent them. Many security
procedures fail because their designers do not take this fact into
consideration. For example, because automatically generated "nonsense"
passwords can be difficult to remember, they are often found written on the
undersides of keyboards. For convenience, a "secure" door that leads to a
system's only tape drive is sometimes propped open. For expediency,
unauthorized modems are often connected to a network to avoid onerous
dial-in security measures. To get compliance, users must be able to get
their work done, but they also must understand and accept the need for
security.
Any user can compromise system security, at least to some degree. For
example, an intruder can often learn passwords by simply calling legitimate
users on the telephone claiming to be a system administrator and asking for
them. If users understand security issues and understand the reasons for
them, they are far less likely to make an intruder's life easier.
At a minimum, users should be taught never to release passwords or other
secrets over unsecured telephone lines (especially through cordless or
cellular telephones) or electronic mail (e-mail). They should be wary of
questions asked by people who call them on the telephone. Some companies
have implemented formalized network security training for their employees;
that is, employees are not allowed access to the network until they have
completed a formal training program.
Limiting the Scope of Access
Companies must create appropriate barriers inside their systems so that if
intruders access one part of a system, they do not automatically have
access to the rest of it. They should consider partitioning the
infrastructure to provide as much protection as is necessary for that
component of the network (while incurring the associated cost). Although
maintaining a high level of security on the entire infrastructure is
difficult, it is often possible to do so for a smaller sensitive component.
Understanding the Environment
Understanding how a system normally functions, knowing what is expected and
unexpected behavior, and being familiar with how devices are usually used
will help the organization detect security problems. Noticing unusual
events can help catch intruders before they can damage the system. Software
auditing tools can help companies detect, log, and track those unusual
events. In addition, an organization should know exactly what software it
relies on, and the security system should not have to rely upon the
assumption that all software is bug-free.
Remembering Physical Security
Physical access to a computer (or router) usually gives a sufficiently
sophisticated user total control over that device. Physical access to a
network link usually allows a person to tap into that link, jam it, or
inject traffic into it. Software security measures can often be
circumvented when access to the hardware is not controlled.
Providing Pervasive Security
Almost any change that is made to a system can affect security. This is
especially true when new services are created. System administrators,
programmers, and users should consider the security implications of every
change they make. Understanding the security implications of a change takes
practice; it requires lateral thinking and a willingness to explore every
way that a service could potentially be manipulated. The goal of good
security design and policy is to create an environment that is not
susceptible to every minor change.
Focusing on Points of Attack
An organization must understand how potential intruders can enter its
network. Special areas of consideration are network connections, dial-up
access points, and misconfigured hosts. One point that is frequently
omitted are misconfigured hosts. These can be systems with unprotected
login accounts (guest accounts), extensive trust in remote "r" commands
(such as rlogin), illegal modems hanging off a networked host, and
easytobreak passwords.
Technical Considerations
It is important to understand the technological considerations of network
security. In some instances, organizations are bound by architectural,
technical, and protocol limitations. Some organizations do not have the
capacity or resources to replace legacy systems, and these technologies may
no longer be supported by original vendors. In these cases, it is not
possible to implement new technical options such as encryption.
Security policies are living documents. Because organizations are
constantly subject to change, security policies must be systematically
updated to reflect new business directions, technological changes, and
resource allocations.
The Importance of Firewall Routers
For the past several years, routers have typically functioned as the only
things standing between an organization's intellectual assets and its
network. Routers are uniquely positioned, designed, and technically
equipped to control and report packet flow at various levels of the Open
Systems Interconnection (OSI) reference model that describes the
various
network functions. As the networks of today become more accessible and
capable, and as more companies connect by way of cost-effective remote
access devices, the level of risk increases. A router positioned to provide
security on the periphery of the network is often referred to as a
"firewall router" (see Figure 4). The functionality within the router
providing firewalling is referred to as access control lists (ACLs). The
primary function of ACLs is to provide filtering.
Figure 4: Firewall Routers Form the First Line of Defense
However, providing robust filtering enhancements is not enough.
Organizations need tools for reporting access control list violations. How
can organizations know of attempts to intrude beyond firewall devices? The
Cisco IOS Security Architecture offers ACL violation accounting and
logging.
ACL Violation Accounting
Over time, an organization needs a historical perspective to ascertain
which ACLs have been tested. This knowledge provides network managers with
an understanding of how intruders are attempting to enter their enterprise
networks. ACL violation accounting provides source and destination address
information, source and destination port numbers, and packet counts.
ACL Violation Logging
Providing strong firewalling capabilities is not enough in today's world of
networking; network managers need an option for centralized reporting. In
the past, network managers did not know that they had been hit by a hacker
until the damage was done. At that time, the only available early warning
tool was to scan host log files. Although this is still an excellent method
for security diagnostics, it does not scale well. ACL reporting tools help
managers by providing violation information and prevention at the network
perimeter. With Cisco's ACL violation logging, network managers receive
periodic system logging when ACL violation occurs.
Access Management
Access management controls the means, approach, and release of resources,
while providing for supervision and control (see Figure 5). Organizations
are faced with the challenge of managing hosts and networking devices as
well as telecommuters. The key is to provide the network manager with
multiple methods for controlling access. Access management is an important
aspect of the Cisco IOS Security Architecture. To address the magnitude of
access requirements, the Cisco IOS Security Architecture provides customers
with a wide range of access management capabilities. These capabilities are
discussed in the sections that follow.
Figure 5: Access Management Protects against Intrusion
TACACS
Terminal Access Controller Access Control System (TACACS) provides a way to
centrally validate every user individually before they can gain access to a
router or access server. TACACS was derived from the United States
Department of Defense and is described in RFC 1492. The Cisco IOS
implements TACACS to allow centralized control over who can access routers
and access servers.
Authentication can also be provided for Cisco IOS administration tasks on
the router and access servers' user interfaces. With TACACS enabled, the
router and access server prompts the user for a user name and a password.
Then the router or access server queries a TACACS server to see if the user
provided the correct corresponding password. A TACACS server typically runs
on a UNIX workstation. TACACS can be augmented with token card access. (See
the section "Token Card Access" later in this
document.)
TACACS+
Cisco also supports TACACS+, a
completely new version of TACACS. TACACS+
provides for separate and modular authentication, authorization, and
accounting (referred to as triple A) facilities. Many network managers
are
concerned with these requirements for their network access servers (NASs).
In the past, the common approach has been through a unified protocol.
TACACS+ allows for a single access control server (the TACACS+ server) to
provide each service-authentication, authorization, and
accounting-independently. Each service can be tied into its own database to
take advantage of other services available on that server or on the
network.
The overall goal for TACACS+ is to provide a methodology for managing
dissimilar network access servers from a single set of management services.
The Cisco family of access servers and the Cisco IOS user interface (for
both routers and access servers) fall into this category. Access servers
provide communication facilities for traditional "dumb" terminals, terminal
emulators, workstations, personal computers (PCs), and routers, using a
serial line framing protocol such as Point-to-Point Protocol (PPP), Serial
Line Internet Protocol (SLIP), Compressed SLIP (CSLIP), or AppleTalk Remote
Access Protocol (ARAP). In other words, a NAS provides connections to a
single user, to a network or subnetwork, and to interconnected networks.
The entities that use the NAS to connect to a network are called network
access clients (NACs); for example, a PC running PPP over a voice-grade
circuit is a NAC.
Authentication
The authentication facility provides the ability to authenticate a user
beyond a login and password dialog. A user can be challenged by a number of
questions. Some examples are name, password, home address, mother's maiden
name, service request (SLIP, CSLIP, PPP, XRemote, TTY, ARAP, or TN3270),
and city of birth. This means that if a user's password is compromised,
authentication will not necessarily be granted. The TACACS+ administrator
can improve the dialog integrity by routinely changing the questions. The
TACACS+ authentication service is flexible enough to send messages to
users' screens. For example, a message might instruct users that their
passwords need to be changed because of the company's password aging
policy.
The TACACS+ protocol provides authentication between the access server and
the TACACS+ server and also ensures confidentiality of the packets. This is
done by never sending sensitive user information (such as passwords) over
the network in clear text.
Authorization
The authorization component in TACACS+ allows for greater levels of control
over user actions and can be used to create separate administrative groups
based on user functionality. For example, a network manager can restrict a
user to only perform certain functions on the access server's or router's
user interface.
Auto-commands are user interface commands tied to users' profiles. For
example, after certain users are authenticated, their profiles can
automatically create a Telnet session to a specific host. Within the access
server, a user's profile can be restricted to performing only auto-commands
and connecting only to a specific host address.
Accounting
Network managers can use the accounting component to track user activity
for a security audit or to provide information for user billing. A report
can be structured to provide user identities, start and stop times,
executed commands (such as PPP), number of packets, and number of bytes.
Cisco has provided a general-purpose TACACS+ protocol specification for
integrating TACACS+ servers with a third-party (such as token password
cards) or a customer's own authentication, authorization, and accounting
services. The intention is that services (such as a Kerberos
authentication) can be provided by a third party; this protocol
specification provides access to such future services. TACACS+ is not
constrained by a single mode of access; it is supported over SLIP, CSLIP,
XRemote, PPP, ARAP, TN3270, X.25, and dumb terminals (TTYs).
Token Card Access
Many organizations are concerned about proper password handling.
Individuals are frequently faced with remembering many passwords. People
tend to resist having to change their passwords periodically and often
resort to using common passwords and improper techniques to remember
passwords (such as writing them under the keyboard). Organizations are also
concerned with password "sniffing," whereby intruders detect passwords by
monitoring user logins. TACACS service on routers and access servers
supports physical card key devices or token cards. The token card system
relies on a physical card that must be in the user's possession to provide
authentication by use of one-time-only passwords. By using the interfaces
provided in the TACACS server software, third-party companies can offer
these enhanced TACACS services. Token card vendors such as
Enigma Logic Incorporated and Security Dynamics Incorporated support the TACACS and TACACS+ protocol.
Kerberos
Kerberos is a secret-key network authentication system developed at
Massachusetts Institute of Technology (MIT) that uses the Data Encryption
Standard (DES) cryptographic algorithm for encryption and authentication.
Kerberos was designed to authenticate requests for network resources.
Kerberos, like other secret-key systems, requires trust in a third party;
in this case, the Kerberos server. Cisco will integrate the client portion
of Kerberos within the Cisco IOS in Cisco access servers.
Cisco IOS Privilege Levels
Each customer has unique access management requirements. System
administrators can customize access to the Cisco IOS user interface,
enabling them to establish privilege levels for access to routers and
access servers. Up to 16 levels of access can be established. Incorporating
multiple privilege levels allows for finer granularity of access; for each
level of the Cisco IOS user interface, a stored encrypted password can be
established. For example, an access level can be designed for a network
controller that is required to perform various diagnostic commands such as
debugging. However, the security or network management policy might
prohibit configuration functions by users, and the Cisco IOS interface can
enforce the restrictions.
Simple Network Management Protocol Access
The Simple Network
Management Protocol (SNMP) is another method that can be
used to access network devices. SNMP can be used to gather statistics or
configure the router. The network manager may gather statistics with SNMP
get-request and get-next-request messages and change router
configurations
with set-request messages. Each of these SNMP messages has a
community
string that is a clear text password sent in every packet between a
management station and the router (which contains an SNMP agent). The SNMP
community string is used to authenticate messages sent between the manager
and agent. The agent will respond only when the manager sends a message
with the correct community string.
Unfortunately, SNMP community strings are sent on the network in clear
ASCII text. Thus, anyone who has the ability to capture a packet on the
network can discover the community string. This may allow unauthorized
users to query or modify routers via SNMP. The Internet community
recognizes this problem and has greatly enhanced the security in SNMP
version 2 (SNMPv2) as described in RFC 1446. SNMPv2 uses an algorithm
called MD5 to authenticate communications between an SNMP server and agent.
MD5 verifies the integrity of the communications, authenticates the origin,
and checks for timeliness. The Cisco IOS Security Architecture supports the
no snmpserver trap-authentication command. This command is designed to
prevent intruders from using trap messages (sent between SNMP managers and
agents) to discover community strings.
DNSIX/IPSO
Cisco Systems continues to support evolving government security
requirements. The Cisco IOS Security Architecture's extended Internet
Protocol Security Option (IPSO) support is compliant with the Department of
Defense Intelligence Information System Network Security for Information
Exchange (DNSIX) specification documents. Extended IPSO functionality can
unconditionally accept or reject network traffic that contains extended
security levels by comparing those levels to configured allowable values.
This support allows DNSIX networks to use additional security information
to achieve a higher level of security than that achievable with basic IPSO.
An audit trail facility supported by the User Datagram Protocol (UDP)
reports IPSO security violations. This facility allows the system to report
security failures on incoming and outgoing packets. The audit trail
facility sends DNSIX audit trail messages when a datagram is rejected
because of IPSO security violations. This feature permits administrators to
configure organization-specific security information.
Host Security
The goal of good network security and firewalling is to reduce the
dependence on host security. Networks commonly bear most of an
organization's security responsibilities, but good security practices on
hosts should be maintained as well (see Figure 6). Application and host
security are important components of overall security design. (For example,
a data processing department might want to provide different access models
for a data entry person and an auditor.) Host operating systems have a
history of security problems, much of which can be prevented with proper
planning. Individual hosts should be periodically audited to ensure
security compliance. A high level of synergy can be obtained by combining
host and network security practices.
Figure 6: Host Security Provides Additional Protection
Encryption
Traditionally, when network environments consisted primarily of a
centralized point-to-point architecture with predetermined information
paths, security was fairly straightforward. Securing the link itself
provided reasonable assurance of maintaining the integrity, access, and
privacy of the information.
Modern enterprise internetworks present a tremendous opportunity for
corporations to remain competitive while increasing overall efficiency.
This opportunity comes with a cost. Today's open networking technologies
pose a threat to the overall security of the enterprise. This openness can
mean that a corporation has little control over who has access to its
information resources and the path over which that information will flow.
Traditional security systems based on point-to-point, nonpacketized
transmission media simply were not designed to address the evolving WAN and
LAN technologies that are at the heart of today's enterprise network when
the data travels across public networks.
Cisco Systems has a long history of encryption support. Several years ago
Cisco added support for encryption through the United States government
Blacker Front End (BFE) program. The Defense Communications Agency (DCA)
certified Cisco Systems' DDN X.25 standard service implementation for
attachment to the Defense Data Network (DDN). Cisco's DDN implementation
includes Blacker front-end encryption and Blacker emergency mode operation.
Cisco's commercial and government customers understand that the best
available security technique is encryption, the process of transforming
intelligible information (clear text) into an unintelligible state, or
"cipher text." Cisco Systems and Cylink
Corporation have joined forces to
integrate Cylink's Enterprise Security Architecture, consisting of Cylink's
SecurePacket technology, into Cisco's family of routers and switches
through the Cisco IOS in the first half of 1996 (see Figure 7).
Figure 7: Encryption Protects Data Confidentiality
Conclusion
Network security embodies the modern organization's overall security
policy. The key to success is to consider security an evolving process.
This will allow organizations to change as new requirements and
technologies are brought forward. Over the past ten years, Cisco's approach
has been to provide customers with flexible and scalable security options.
Cisco offers and suggests a systematic approach to network security using
the Cisco IOS as the cornerstone.
Products That Support the Cisco IOS
The Cisco IOS is supported on a wide range of hardware platforms available
from Cisco Systems and Cisco partners. For a complete list of products that
support the Cisco IOS, see the Cisco
Systems Product Catalog, Cisco
Order Number DOC-CAT4, or call 800 326-1981 for additional information
about Cisco Systems products.
Posted: May 5 13:09:50 1995
