Introduction
This document provides instructions on how to configure your PIX 515
and PIX 515E security appliance with Adaptive Security Device Manager (ASDM).
This document is based on ASDM version 5.2 and PIX version 7.2.
Back to Top
Requirements
This section lists the items that you need, to use the Adaptive
Security Device Manager (ASDM) to access and configure your PIX:
Back to Top
Connect to the PIX
Follow these steps to connect to the PIX:
Change the IP Address on the PC
Your PC must have a compatible IP address in order to communicate with
the PIX Security Appliance. Before you change your TCP/IP settings, make a note
of your current settings.
-
In order to configure the IP address on your PC, select
Start > Settings > Control
Panel > Network and Dialup
Connections.
-
Right-click on your network connection icon and select
Properties from the shortcut menu.
-
Select Internet Protocol (TCP/IP) and click
Properties.
-
Enter the IP address between 92.168.10.50 through
192.168.10.250 with a subnet mask of
255.255.255.0.
-
Refer to
Configure
an IP Address on Your PC for more instructions.
Connect with ASDM
ASDM is a browser-based tool designed to help you set up, configure,
and monitor the PIX Security Appliance.
Follow these steps to connect to the PIX with ASDM:
-
Use a straight-over Ethernet cable to connect your PC to the inside
port (Ethernet 1) on the rear panel of the PIX Security Appliance.
-
Check the ACT LED on the PIX front panel to verify that your PC has
basic connectivity to the inside port-Ethernet 1. When connectivity occurs, the
ACT LED on the front of the PIX lights up solid green.
-
Open a browser window and type
https://192.168.10.1 in your browser address field. This IP
address is found on line R12 of the Security Appliance Worksheet.
Note: Ensure that you add the "s" to
"https" to launch the web browser. HTTPS (HTTP over SSL)
provides a secure connection between your browser and the PIX Security
Appliance.
-
If your browser displays a security alert, click
Yes to continue.
-
ASDM displays an authentication screen. Leave both the fields blank
and click Ok.
-

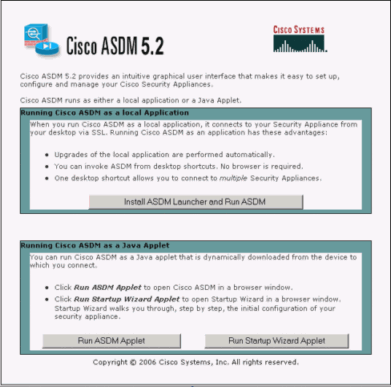

On the Cisco ASDM 5.2 screen, click Run ASDM
Applet.
-
If your browser displays a security alert, click
Yes to continue.
-
If your browser displays a second password prompt, click
Yes.
Verify License
Follow these steps to verify the license on your security
appliance:
-
Click Home, and click the License
tab.
-
If you have Unrestricted (UR) license in the Device information
screen, you have additional configuration options that this document does not
cover. Contact the
SMB
Technical Assistance Center (SMB TAC) for more information.
Note: Unrestricted (UR) license allows you to install and use the
maximum number of interfaces and RAM supported by the platform. Whereas, a
Restricted (R) license limits the number of interfaces supported and the amount
of RAM available within the system.
Proceed to the next section Configure the
PIX.
Back to Top
Configure the PIX
Follow these steps to configure the PIX:
Note: This procedure uses the public IP addresses 64.0.0.1 to 64.0.0.4 as
examples. Be sure to replace any examples that contain 64.0.0.x addresses with
public IP addresses that your ISP provides as entered in field B40 of the
Internet Worksheet.
Create an Administrative Account
To create an administrative account to manage the PIX, follow these
steps to enable login on the PIX:
-
Click Configuration.
-
Click Properties.
-
Click Device Administration > User
Accounts.
Note: If you use ASDM version 5.0, click Configuration
> Device Administration >
Administration > User Accounts to go to User
Accounts.
-
On the User Accounts screen, click Add.
-

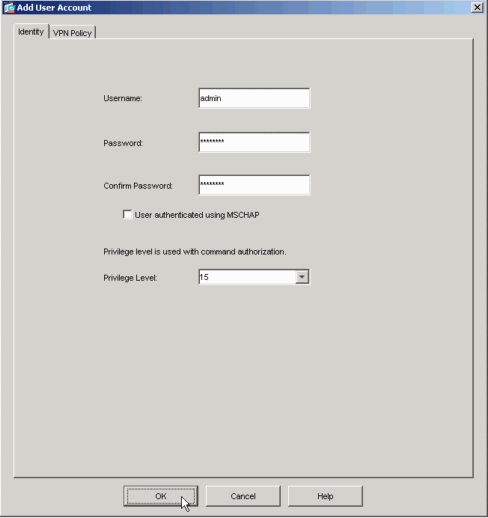

In the Add User Account window, enter these
values:
Click OK.
-
Click Apply.
Note: If the ASDM displays a login window, log in with the new username
and password.
Configure a Time Server
Follow these steps to configure a time server on the security
appliance:
-
Click Configuration.
-
Click Properties.
-

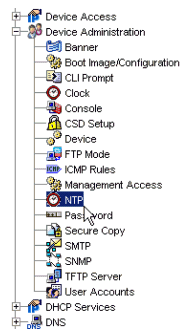

Click Device Administration >
NTP.
Note: If you use ASDM version 5.0, click Configuration
> Device Administration >
Administration > NTP to go to NTP.
-

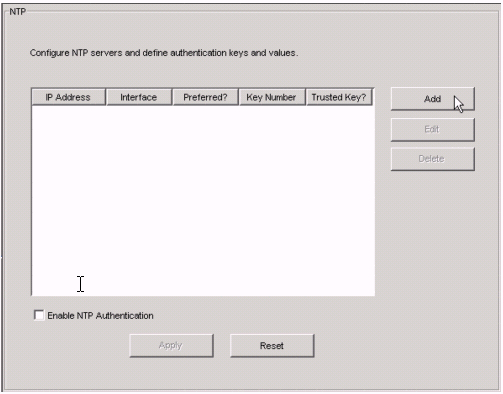

On the NTP screen, click Add.
-
In the Add NTP Server Configuration window, enter
these values:
-
IP Address: Enter the IP address of the router than you entered
in field L6A of the LAN Addressing Worksheet.
-
Interface: Inside
-
Check the Preferred check box.
-
Leave the remaining fields
blank.
Click Ok.
Click Apply.
Enable Access
Follow these steps to enable login to the PIX:
-
Click Configuration >
Properties > Device Access >
AAA Access.
Note: If you use ASDM version 5.0, click Configuration
> Device Administration >
Administration > AAA Access to go to AAA
Access.
-

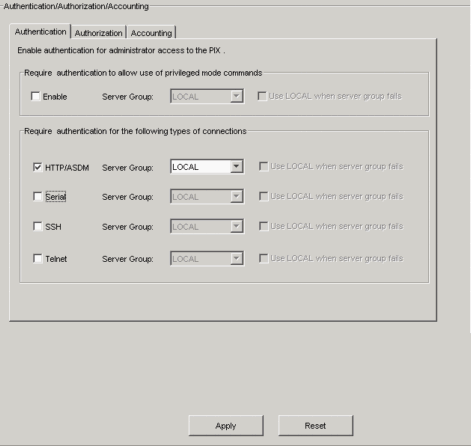

In the Authentication tab of the
Authentication/Authorization/Accounting screen, check the
HTTP/ASDM check box, and select LOCAL from
the Server Group list.
-
Click the Authorization tab, and check the Enable
check box.
Click Apply.
The ASDM Defined User Roles Setup screen appears. Click
No.
Complete the Startup Wizard
Follow these steps to complete the startup wizard in
ASDM:
-
Click Wizards > Startup
Wizard.
-

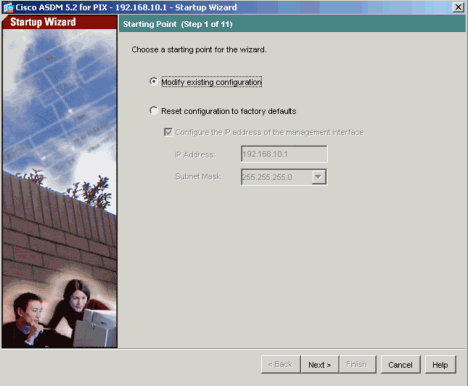

Select Modify existing configuration and click
Next.
-

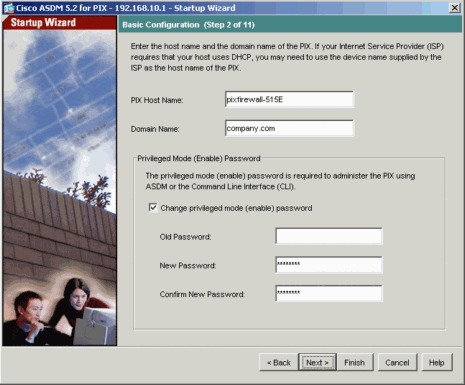

On the Basic Configuration screen, follow these steps:
-
In the PIX Host Name field, type the device name that you entered
in field R1 of the Security Appliance Worksheet.
-
In the Domain Name field, enter the domain name that you entered
in field B48 of the Internet Worksheet.
-
In the Privileged Mode (Enable) Password section, check
Change privileged mode (enable) password.
-
Leave the Old Password field blank.
-
In the New Password and Confirm New Password fields, type the
password from field R20 of the Security Appliance Worksheet.
Note: If you have already created a password for the PIX, type that
password in the Old Password field.
Click Next.
-

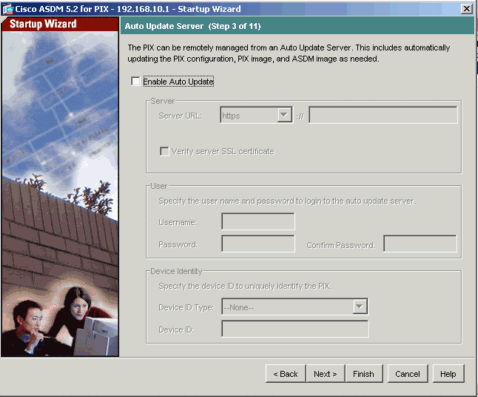

Ensure that the Enable Auto Update check box is
not checked.
Note: If you use ASDM 5.0 or 5.1, you are not allowed to perform step
4.
Click Next.
-
On the Outside Internet Configuration screen, follow these
steps:
-
Click the Enable Interface button, and select
Ethernet0 from the list.
-
In the IP Address section, select Use the following IP
address option.
-
In the IP Address field, type the IP address that you specified
in field R10 of the Security Appliance Worksheet.
-
In the Subnet mask field, select the mask associated with the IP
address that your ISP provides. Ensure that this value matches the value in
field B41 of the Internet
Worksheet.
Click Next.
-

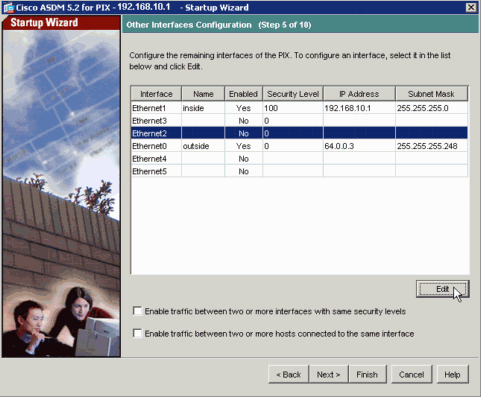

In the Other Interfaces Configuration screen, click
Next.
-

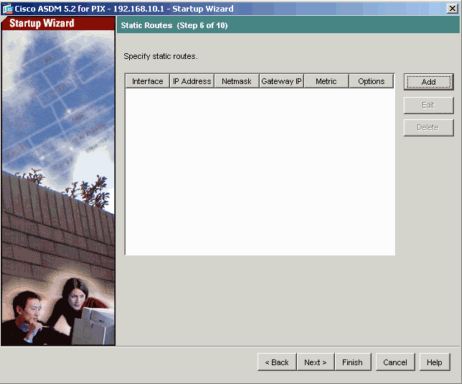

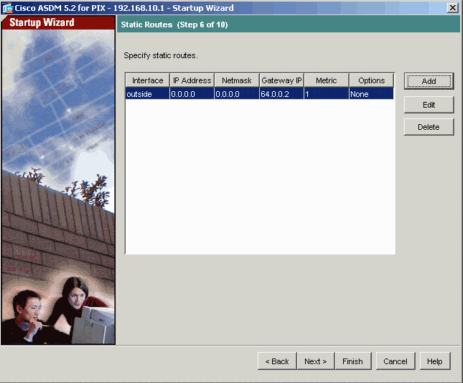

On the Static Routes screen, click
Add.
Note: If you use ASDM 5.0 or 5.1, you are not allowed to perform step
7,8 and 9.
-

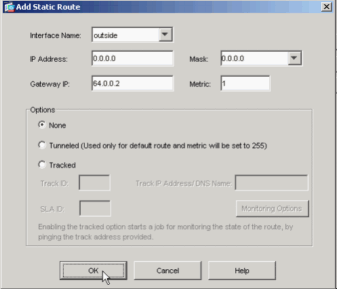

In the Add Static Route window, enter these
values:
Click OK.
Click Next.
-

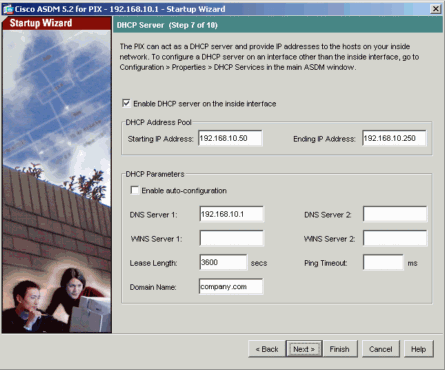

On the DHCP Server screen, follow these steps:
-
Check Enable DHCP Server on the inside
interface.
-
Under DHCP Address Pool:
-
Next to Starting IP Address field, enter the starting range of
the DHCP server pool from line L50A on the LAN Addressing
Worksheet.
-
Next to Ending IP Address field, enter the ending range of the
DHCP server pool from line L51A on the LAN Addressing
Worksheet.
-
Under DHCP Parameters:
-
Enter the IP address of the DNS server next to DNS Server 1
field, from line L4 on the LAN Addressing Worksheet.
-
Enter the IP address of the alternate DNS server next to DNS
Server 2 field, from line L5 on the LAN Addressing Worksheet.
-
Enter the value 3600 next to Lease Length
field.
-
Enter the domain name of the DNS server next to Domain Name
field, from line B48 of the Internet
Worksheet.
Click Next.
-

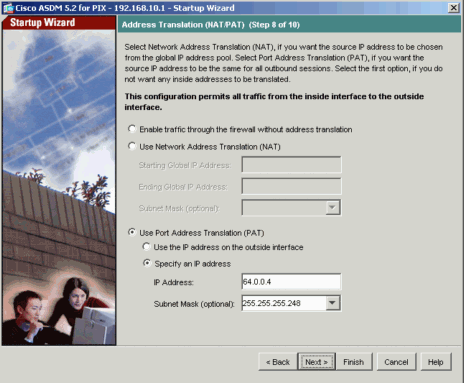

On the Address Translation (NAT/PAT) screen:
-
Click the Use Port Address Translation (PAT)
radio button.
-
Click Specify an IP address, and type the PAT IP
address that you entered in field R13 of the Security Appliance
Worksheet.
Click Next.
-

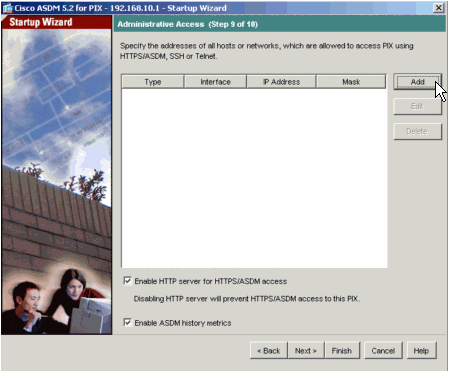

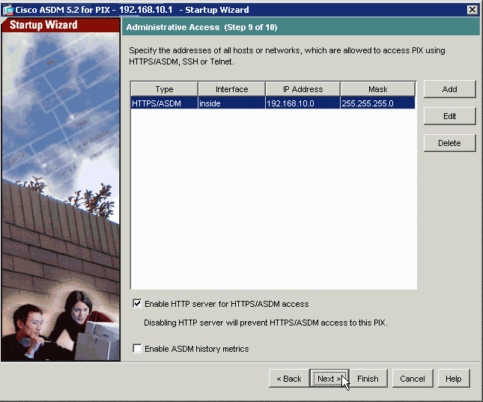

On the Administrative Access screen, Click
Add.
-
In the Add Administrative Access Entry window,
enter these values:
-
Access Type: HTTPS/ASDM
-
Interface Name: default_vlan
-
IP Address: Enter the subnet from field L1A of the LAN Addressing
Worksheet.
-
Subnet Mask: 255.255.255.0
Click OK.
-
Click Next.
-

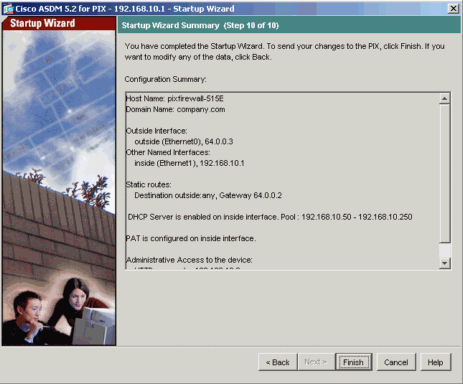

On the Startup Wizard Summary screen, click
Finish.
Add an ACL Rule
Follow these steps to add an ACL rule to the incoming LAN interface of
the PIX:
-
Click Security Policy.
-

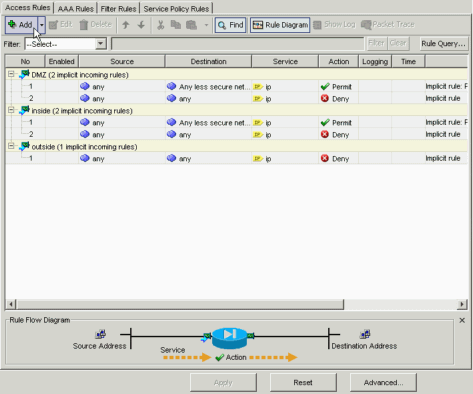

Click the Access Rules tab, and click
Add to add a new Access Rule.
-

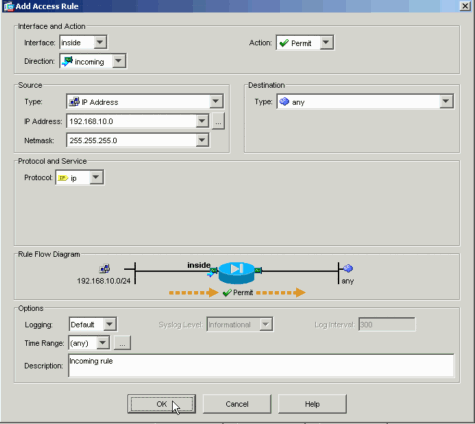

Follow these steps in the Add Access Rule
window:
-
In the Interface and Action section, enter these values:
-
Interface: Inside
-
Direction: incoming
-
Action: Permit
-
In the Source section, enter these values:
-
Type: Interface IP
-
Interface:
Inside
-
In the Destination section, select
Any.
-
In the Protocol and Service section, select
IP.
-
In the Description text box next to the Options section, enter a
descriptive name for this rule.
-
Use the default values in all other fields and click
OK.
-

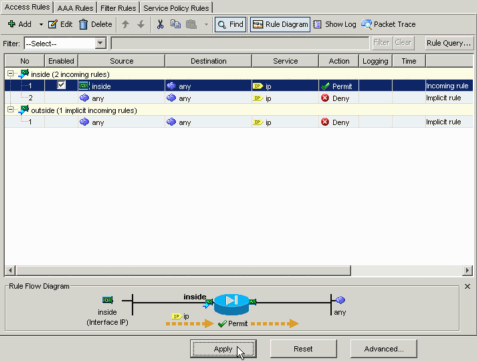

Click Apply.
-
Click Save to save your
configuration.
-
Click Yes to confirm.

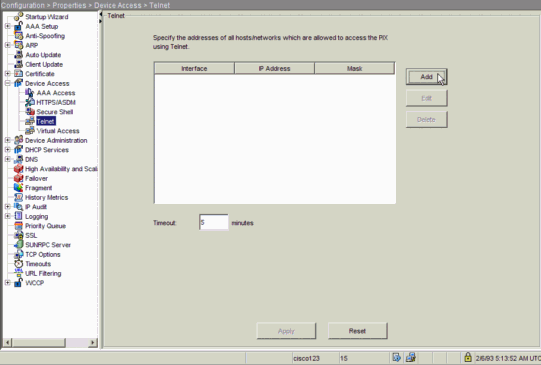

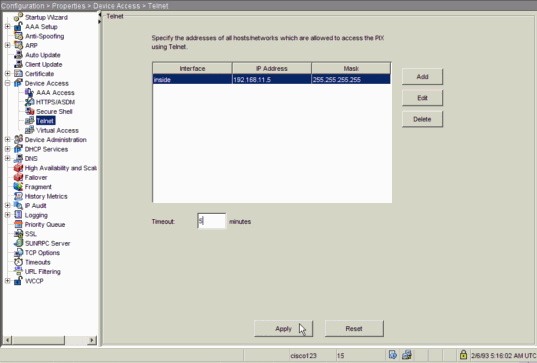

Configure for Telnet access
Follow these steps to configure for telnet:
-
Click Configuration.
-
Click Properties.
-

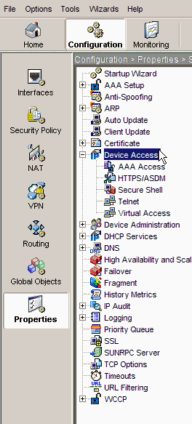

Click Device Access.
-

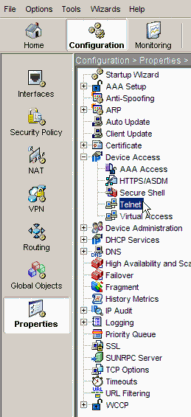

Click Telnet.
-
Click Add.
-
Select the interface and then type IP address and give subnet
mask.
Click OK.
-
Change the timeout from default 5 minutes if required and then
click Apply.

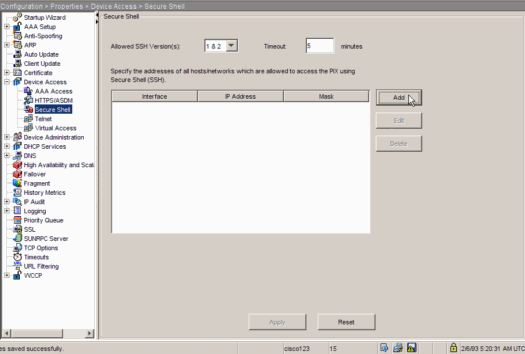

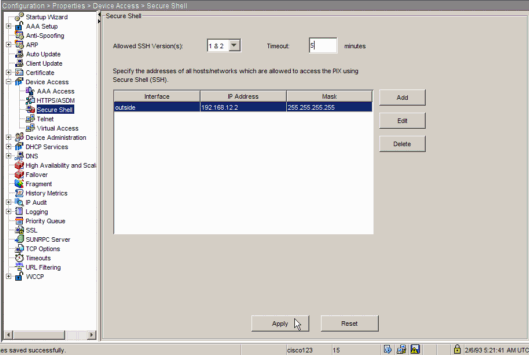

Configure for SSH access
Follow these steps to configure for SSH:
-
Click Configuration.
-
Click Properties.
-
Click Device Access.
-

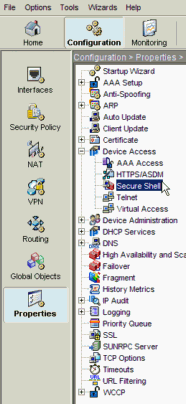

Click Secure Shell.
-
Click Add.
-
Select the interface and type IP address and give subnet
mask.
Click OK.
-
Change the timeout from default 5 minutes if required and then
click on Apply.
Disconnect from the PIX
Follow these steps to disconnect from the PIX:
-
Disconnect the PC from the inside port (Ethernet 1) of the
PIX.
-
Connect a straight-over Ethernet cable from inside port (Ethernet
1) of the PIX to port 4 of the Root Switch.
Back to Top
Next Step
You have now configured your PIX security appliance.
To make further changes to the PIX, refer to the
Security
Appliance Support Page.
To configure other devices in your network, refer to the
Configuration
Overview Page.
Back to Top
Troubleshoot the Procedure
This section provides information about common problems that you may
encounter. If this information does not solve your problem, contact the
SMB
Technical Assistance Center (SMB TAC) for assistance.
Problem
|
Cause(s) and Suggested Solution(s)
|
You are unable to connect to the PIX.
|
Follow these steps:
-
Ensure that you type https before the PIX IP
address in your browser.
-
Ensure that you are connected correctly to the PIX interface.
When you begin this procedure you need to connect to the inside port (Ethernet
1); at the end of the procedure, you need to reconnect to the PIX inside port
(Ethernet 1) to Root Switch.
-
For further assistance, contact the
SMB
Technical Assistance Center (SMB
TAC).
|
