Cisco SMB Support Assistant Site Survey
|
|
|
|
Introduction
The SMB Support Assistant Site Survey is a unique set of instructions
designed to help you set up and document your network.
The SMB Support Assistant Site Survey provides these benefits:
-
Network Address Translation (NAT) to control communication between
the LAN and the Internet
-
Unique internal IP addresses for up to 30 sites. These addresses are
compatible to allow you to easily implement VPNs at any time.
-
Firewall rules to block unauthorized traffic
-
Stateful firewall rules to dynamically permit authorized
traffic
-
Support for internal servers including email, web, and
VPN
-
Four Virtual LANs (VLANs) with specialized levels of security for LAN
users, network management devices, protected servers, and guest
users
-
Comprehensive documentation of your entire
network
Back to Top
Requirements
These items are required to complete the site survey:
Site Survey Overview
An accurate and detailed site survey is a critical component in
building a network. To complete a site survey, you need to obtain information
from these sources:
To help you with your site survey, we have provided
Site Survey
Worksheets that capture the required information. These worksheets are
used throughout the SMB Support Assistant documentation. The worksheets provide
documentation for effective ongoing network management and support, and can
help new administrators to quickly understand your network. You should complete
one set of worksheets for each site at your organization.
Note: The worksheets that you need to complete depend on the devices in
your network. All the worksheets are contained in the Adobe Acrobat
file.
Site Survey Worksheets
Download and print the
Site Survey
Worksheets and complete them in this order:
-
Overview Worksheet
-
Site IP Addressing Plan
-
LAN Addressing Worksheet
-
Router Worksheet
-
Integrated Services Router Worksheet
-
Internet Worksheet- ISDN
-
Internet Worksheet- DSL
-
Internet Worksheet- T1/E1
-
Internet Worksheet- Ethernet
-
Guest VLAN Worksheet
-
Network Management VLAN Worksheet
-
Secure Server VLAN Worksheet
-
Internet Services Worksheet
-
Switch Port Assignments Worksheets
-
Security Appliance Worksheet
-
Wireless Network Assignments Worksheet
Back to Top
Key Concepts
These are some concepts you need to be familiar with to complete the
site survey.
Site IP Addressing
This site survey is includes a site IP addressing plan designed to let
you use compatible configurations at up to 30 sites. This addressing ensures
similar configurations at each site and provides unique addressing so that you
can easily implement a Virtual Private Network
(VPN) between remote sites.
Note: If your network uses a Wireless LAN
Controller Module (WLCM), you must use a separate set of IP Addresses.
For an overview of these addresses, refer to
Configure Your Router for the Wireless
LAN Controller Module
Virtual LANs
Virtual Local Area Networks (VLANs) allow you to divide your network
into separate logical groups so that you can assign different levels of
security, priority, and access to each group. Devices in one VLAN behave as
though they were connected to the same network segment, even if they are
physically distant from each other. Because VLANs are based on logical instead
of physical connections, they are extremely flexible.
The table describes the recommended VLANs:
VLAN Name
|
VLAN ID
|
Description
|
Device Type
|
Default
|
20
|
Full access to the Internet and controlled access to other
VLANs. All devices are in this VLAN by default.
|
General purpose VLAN; LAN PCs and servers
|
Network Management
|
21
|
Controlled access to other LAN devices and no access to the
Internet
|
Network management devices
|
Secure Server
|
22
|
Controlled access to other VLANs and the
Internet
|
Database servers or other devices with sensitive
information
|
Guest
|
23
|
Full access to the Internet, no access to other
VLANs
|
Guest users
|
Note: If your network uses a Wireless LAN
Controller Module (WLCM), you must use a separate set of VLANs. For an
overview of these VLANs, refer to Configure Your Router for the Wireless LAN
Controller Module.

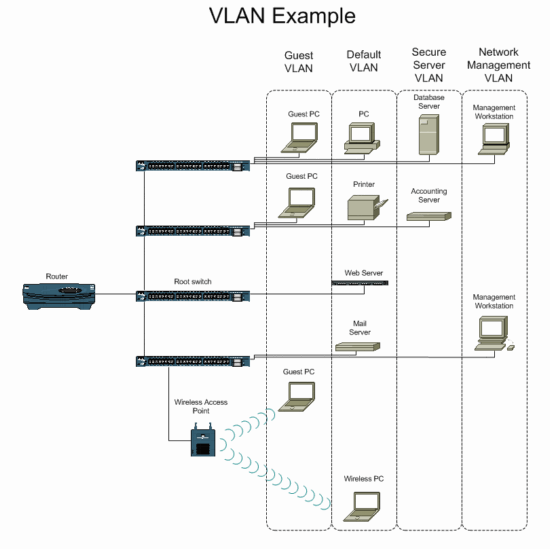

The diagram shows an example of a network that uses VLANs:
Router Type
Cisco provides two types of router: Modular Routers and and Integrated
Services Routers. Modular routers are designed to be stand-alone routing
devices, while Integrated Services Routers incorporate functions of a switch
and/or wireless access point. Review the table to determine your router
type:
Modular Router
|
Integrated Services Router
|
SB 100 series
|
|
800 series
|
850 series, 870 series
|
1700 series
|
1800 series
|
2600 series
|
2800 series
|
NAT
The recommended configuration uses Network Address Translation to ease
network configuration and add security.
The recommended configuration uses Network Address Translation (NAT) to
simplify network configuration and add security. NAT translates between a
single outside IP address and a set of internal IP addresses. NAT masks the IP
addresses of devices inside the network while allowing them to communicate with
the outside world.

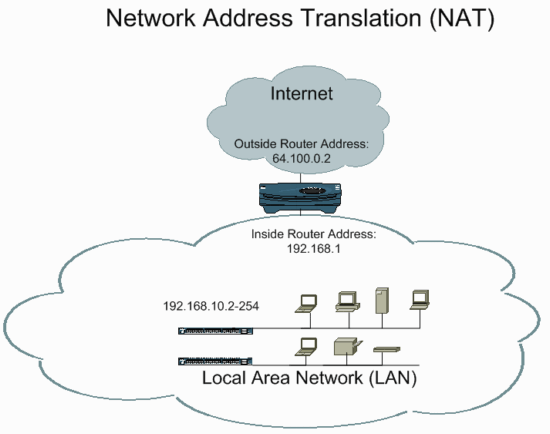

The diagram illustrates the function of NAT within a
network:
IP Address Assignments
There are two types of IP address assignment:
Static IP Address
A static IP address is an IP address that is permanently assigned to a
network device. Static IP addresses are appropriate for servers or other
network devices that require a known IP address.
The recommended configuration allows IP addresses .11 through .29 to be
assigned statically. For example, the static IP addresses for the subnet
192.168.10.0 are 192.168.10.11 through 192.168.10.29.
DHCP
DHCP, or Dynamic Host Configuration Protocol, automatically assigns IP
addresses to devices connected to the network. DHCP is appropriate for devices
such as workstations that do not require a known IP address.
The recommended configuration is to configure the server to assigns the
IP addresses from .50 to .250. For example, the DHCP pool for the subnet
192.168.10.0 is 192.168.10.50 through 192.168.10.250.
To set up DHCP, you can enable the DHCP server included in Cisco
routers or you can use an external non-Cisco DHCP server.
Note: Cisco does not support configurations with multiple VLANs on a
non-Cisco DHCP server.
Domain Name Service
DNS, or Domain Name Service, resolves domain names such as
www.cisco.com to a numeric IP address. DNS is required to access web sites and
other services on the Internet. You can use DNS servers provided by your ISP,
your own DNS servers, or a combination of both.
Device Passwords
To secure your site you need to create two types of access to your
devices: an administrative username and password for read-only access and an
enable password to modify configurations. It is important to use a strong
password policy for all network passwords. Refer to the
Password Security document
for more information about how to create a strong password.
Internet Connection
There are four common Internet connection types:
Complete the section of the Internet worksheet for your connection
type. The Internet worksheet contains a section for each Internet connection
type and the available methods of encapsulation.
To complete the Internet Worksheet, you need to work with your Internet
Service Provider (ISP), local telephone company, and building manager.
Note: Each type of Internet connection requires different equipment and
configuration information. Be sure that you have completed and understood the
information required for your Internet connection before you make any changes
to your network design or purchase additional network equipment.
Encapsulation
Internet connections often use encapsulation as a way for network
devices to communicate over disparate networks. Encapsulation places IP network
traffic inside another protocol, such as point-to-point protocol (PPP) or Frame
Relay, for delivery across a different kind of network.
These are the most common encapsulation types for T1 and E1
connections:
Channels
T1 and E1 connections use a certain number of the available channels on
the physical circuit. The table summarizes the most common channel settings for
T1 and E1 connections:
Circuit Type
|
Start Channel
|
End Channel
|
T1
|
1
|
24
|
E1
|
1
|
32
|
Encoding and Framing
T1 and E1 connections commonly utilize a line encoding method and data
framing standard to send traffic over the network. The table summarizes the
most common configurations for E1 and T1 connections:
Circuit Type
|
Encoding
|
Framing
|
Speed
|
T1
|
B8ZS
|
ESF
|
1.536 Mbps
|
E1
|
HDB3
|
CRC4
|
2.048 Mbps
|
Authentication
Your ISP may require authentication to verify your identity on the
network. Authentication consists of a hostname and password used to connect to
the ISP network. Authentication is common for ISDN links, and is used for some
PPPoE, T1/E1, and ADSL connections.
ISP Address Assignment Method
In addition to the ISP information, you need to obtain information
about your IP addresses from your ISP. These are the IP configuration
types:
-
Dynamically Assigned IP Address: The ISP
automatically assigns your equipment an IP address with DHCP, but that address
may change at any time without warning. Dynamic IP addresses are typical of
residential cable modem and ISDN services.
-
Static IP Address: The ISP assigns you a single
static IP address that never changes, but you must configure your equipment
with the IP address. Static IP addresses are often used for dedicated Internet
circuits.
Shared devices on the network such as servers, printers, and scanners
require a static IP address.
-
Range of IP Addresses: The ISP assigns you a range
or block of sequential IP addresses. You must configure your equipment with the
IP addresses. Blocks of IP addresses are commonly available for dedicated
Internet circuits. This documentation provides instructions on how to use the
first IP address of a range of IP addresses.
Wall Jacks
Buildings with internal network cabling often have network jacks that
are labeled with a number to identify each connection to the main telephone
closet. If you have labeled wall jacks in your building, use the fields in the
LAN addressing worksheet to document the wall jack number for each device in
your network. If you have a computer that is not connected to a wall jack or if
you do not have wall jacks in your building, leave these fields blank.
Power over Ethernet
Power over Ethernet (PoE) allows you to provide power to a network
device over an Ethernet cable. PoE is commonly used to power wireless access
points and IP phones. PoE requires a PoE-enabled device to run power over the
Ethernet cable, such as a PoE-compatible switch or power injector. If you want
to use PoE, refer to the documentation included with your PoE device for more
information.
Wireless Site Survey
When you implement a wireless network, you need to perform a site
survey to determine proper locations to mount each wireless access point to
ensure proper communication across the network. If you want to implement a
wireless network, refer to the documentation included with your wireless access
point for instructions on how to perform a wireless site survey.
Wireless Access Point Types
Cisco wireless access points can operate in two modes: autonomous mode
and lightweight mode. Autonomous access points have individual policies and
configurations, while Lightweight Access Points (LAPs) receive policies and
configurations from a centralized wireless LAN controller.
Note: The wireless access point module included on Cisco Integrated
Services Routers (ISR) cannot be converted to lightweight mode.
If you want to use LAPs on your network, you must have a wireless LAN
controller such as the Cisco Wireless LAN Controller Module (WLCM) and an
external RADIUS server for client authentication.
Wireless Security
SMB SA documentation provides instructions for these authentication
according to access point type:
If you use LAPs, two security options are available:
-
External RADIUS Server: The wireless network uses an external RADIUS
server to authenticate users. This option provides greater security and
requires that you provide an external RADIUS server.
-
WPA2 Pre-Shared Key: A pre-shared password or passphrase is used to
provide access to the wireless network. This option is less secure and requires
that you create a strong
password for the wireless network.
Wireless SSID
The Secure Session ID (SSID) is a name that identifies the wireless
network to your users. The SSID should be a non-descriptive single word that
does not identify the network, such as “zebra” or “kilo.” An SSID such as
“tsunami,” “AcmeInc,” or “123mainst” is a poor choice because it identifies the
network.
Internet Services
If you have servers inside your network, you need to modify the network
security configuration to allow incoming traffic to your servers.
Caution: If you change your security configuration, you can make your network
vulnerable to attacks which can damage devices in your network. Ensure that you
have properly secured and patched your servers before you make changes to your
security configuration.
Internal Email Server
If you have an internal email server, you can enable incoming SMTP
email traffic on ports 25 and 465 so that your email server can communicate
with devices on the Internet. You do not need to allow incoming email if your
email server is located at your ISP.
Internal Web Server
If you have an internal web server, you can enable incoming HTTP web
traffic on ports 80 and 443 so that your web server can communicate with
devices on the Internet. You do not need to allow incoming web traffic if your
web server is located at your ISP.
Internal VPN Server
If you have an internal VPN server, you can enable incoming VPN traffic
on so that your VPN server can communicate with external users. You do not need
to allow incoming VPN traffic if your web server is located at your ISP.
Virtual Private Networks
A Virtual Private Network (VPN) allows computers at remote locations to
communicate as though they were directly connected. A VPN creates an encrypted
"tunnel" through the Internet so that network can pass securely between two or
more locations.
The Site IP Addressing plan provides unique IP addresses at each
location to allow you to easily set up VPN connections.
Back to Top
Overview Worksheet
The overview worksheet is the first step in setting up a new device or
network. Follow these steps to complete the overview
worksheet:
-
If you have multiple sites in your organization, verify which site
you are working on and assign it a number from 1 to 30. If you have only one
site, use site number 1. Enter the site number in field A1 of the Overview
Worksheet.
-
Consult the Site IP Addressing Plan and locate the the Default VLAN
subnet for your site number. For example, the Default VLAN subnet for Site 1 is
192.168.10.0. Copy the Default VLAN subnet to field A2 of the Overview
Worksheet.
-
Determine which VLANs you want to use in your network. Review the
description of each VLAN to ensure that each device in the network is assigned
to the appropriate VLAN. For more information on VLANs, see
Virtual LANs.
Note: Cisco does not support a non-Cisco DHCP server for multiple
VLANs.
-
In field A3, check each VLAN you want to use, and copy the VLAN
subnets for your site number to field A3 of the Overview Worksheet. For
example, the Guest VLAN subnet for Site 1 is 192.168.13.1.
-
Determine whether you will run a Cisco or non-Cisco DHCP server.
Note that a non-Cisco DHCP server is not supported for multiple VLANs. Check
the DHCP server type you want to use in field A4.
-
Determine who is providing your DNS and check the appropriate box
in field A5. For more information about DNS, see Domain
Name Service.
-
Determine what type of Internet connection you have and check the
appropriate box in field A6. For more information about Internet connections,
see Internet Connection.
-
Verify what kind of router you have and check the appropriate box
in field A7. For more information about router types, see
Router Type.
Back to Top
LAN Addressing Worksheet
Use this table to complete the LAN Addressing Worksheet:
Field Number
|
Field Name
|
Description
|
L1A
|
Subnet
|
Copy the subnet from field A2 of the Overview Worksheet to
field L1A.
|
L2A
|
Subnet Mask
|
Enter 255.255.255.0 in field L2A.
|
L3A
|
DHCP Server
|
-
If you selected Cisco DHCP server in the Overview Worksheet,
copy the router IP address from field L6A to field L3A.
-
Otherwise, enter the IP address of your internal DHCP
server.
For more information on DHCP, see DHCP.
|
L4
|
DNS Server 1
|
-
If you have an internal DNS server, enter the IP address of
the DNS server.
-
If you use an ISP DNS server, copy the IP address in field
B50 of the Internet Worksheet.
For more information about DNS, see Domain
Name Service.
|
L5
|
DNS Server 2
|
-
If you have an internal DNS server, enter the IP address of
the DNS server in field L5.
-
If you use an ISP DNS server, copy the IP address in field
B51 of the Internet Worksheet to field L5.
For more information about DNS, see Domain
Name Service.
|
L6A
|
Router IP Address
|
Copy the subnet in field L1A to field L6A.
|
L7A
|
VLAN Number
|
The Default VLAN is VLAN 20
For more information about VLANs, seeVirtual LANs.
|
L8
|
Root-Switch IP Address
|
Copy the subnet in field L1A to field L8.
|
L9
|
Switch #2 IP Address
|
Copy the subnet in field L1A to field L9.
|
L10
|
Switch #3 IP Address
|
Copy the subnet in field L1A to field L10.
|
L11
|
Switch #4 IP Address
|
Copy the subnet in field L1A to field L11.
|
L12
|
Switch #5 IP Address
|
Copy the subnet in field L1A to field L12.
|
L13
|
Wireless Access Point
|
Copy the subnet in field L1A to field L13.
|
L14
|
Security Appliance- External
|
Copy the subnet in field L1A to field L14.
|
L15
|
Security Appliance- Internal
|
Copy the subnet in field L1A to field L14.
|
L16-L34
|
Static IP Assignments
|
For devices in the Default VLAN that you want to assign a
permanent IP address, follow these steps:
-
Enter a description of the computer in the first field
beginning with L16.
-
Copy the subnet in field L1A to the field next to the
description to complete the IP address.
-
Ensure that the device is configured with the correct IP
address.
Note: For more information about IP address assignment, see
IP Address Assignment.
|
L40A
|
VPN User Start Range
|
Copy the subnet in field L1A to field L40A.
The IP addresses in fields L40 and L41 are dynamically assigned
to incoming VPN connections.
For more information on VPNs, see Virtual
Private Networks.
|
L41A
|
VPN User End Range
|
Copy the subnet in field L1A to field L41A.
The IP addresses in fields L40 and L41 are dynamically assigned
to incoming VPN connections.
For more information on VPNs, see Virtual
Private Networks.
|
L50A
|
DHCP Start Range
|
Copy the subnet in field L1A to field L50A.
This is the first address in the pool of IP addresses that the
DHCP server automatically distributes.
Note: For more information about IP address assignment, see
IP Address Assignment.
|
L51A
|
DHCP End Range
|
Copy the subnet in field L1A to field L51A.
This is the last address in the pool of IP addresses that the
DHCP server automatically distributes.
Note: For more information about IP address assignment, see
IP Address Assignment.
|
Back to Top
Router Worksheet
Use this table to complete the Router Worksheet:
Note: If you have an Integrated Services Router, complete the
Integrated Services Router Worksheet.
Worksheet Field
|
Worksheet Field Name
|
Description
|
B9
|
Connection Type
|
Check the type of Internet connection in field B9.
For more information about Internet connections, see
Internet Connection.
|
B10
|
Administrative Account
|
Enter the administrative account for the router in field B10.
The recommended username is "admin".
For more information about administrative accounts, see
Device Passwords.
|
B11
|
Administrative Password
|
Create an administrative password for the router and enter it
in field B11.
For more information about administrative accounts, see
Device Passwords.
|
B12
|
Enable Password
|
Create an enable password for the router and enter it in field
B12.
For more information about passwords, see
Device Passwords.
|
B13
|
Hours from GMT
|
Enter the number of hours from Greenwich Mean Time at the site
in field B13.
|
B14
|
Time Zone
|
Enter the time zone for the site in field B14.
|
B15
|
Summer Time Zone
|
Enter the summer time zone for the site in field
B15.
|
B16
|
Cisco DHCP Server?
|
If you are using a Cisco router as the DHCP server for the
network, check Yes in field B16. Otherwise, check
No.
|
B30
|
Router Model
|
Enter the router model number in field B30.
Note: The model number is required to obtain support from the
SMB
Technical Assistance Center (SMB TAC). The model number is printed on
the back panel of the router.
|
B31
|
Router Serial Number
|
Enter the router serial number in field B31.
Note: The serial number is required to obtain support from the
SMB
Technical Assistance Center (SMB TAC). The serial number is printed on
the back panel of the router.
Note: If you cannot locate the serial number, try the
Cisco Product
Identification Tool.
|
B32
|
Router IOS Version
|
Enter the router Cisco IOS® version in field B32.
Note: If you do not have this information, you can retrieve it when
you configure the router.
|
B33
|
Router DRAM Memory
|
Enter the amount of router DRAM memory in field B33.
Note: If you do not have this information, you can retrieve it when
you configure the router.
|
B34
|
Router Flash Memory
|
Enter the amount of flash memory in the router in field
B34.
Note: If you do not have this information, you can retrieve it when
you configure the router.
|
B35
|
LAN Interfaces
|
LAN interfaces are router Ethernet ports that connect to LAN
users. Routers typically have two or more built-in Ethernet interfaces.
There are two types of Ethernet interfaces for LAN
connections:
-
FastEthernet
-
GigabitEthernet
Note: FastEthernet Interfaces are labeled 10/100 Ethernet ports in
SDM.
Interface numbers are often labeled on the router case. The
document
Configure
Your Router with Security Device Manager provides further instructions
on how to verify the interface numbers for your LAN interfaces.
|
B36
|
Switch Port Interfaces
|
Switch port interfaces act as a set of Ethernet ports and are
configured a group.
Switch port interfaces are labeled Ethernet Switch Ports in
SDM.
The document
Configure
Your Router with Security Device Manager provides instructions on how to
verify these interface numbers.
|
B37
|
Internet Interfaces
|
Internet Interfaces are network interfaces built to support an
Internet connection.
Note: Some routers have a FastEthernet interface used for an
Internet connection. This Interface is typically labeled WAN or
Internet.
The document
Configure
Your Router with Security Device Manager provides instructions on how to
verify these interface numbers.
|
B38
|
VLAN Interfaces
|
A VLAN interface is a virtual interface used to configure
built-in switch ports as a group. All routers with built-in switch port
interfaces include a VLAN interface.
The document
Configure
Your Router with Security Device Manager provides instructions on how to
verify these interface numbers.
|
Back to Top
Integrated Services Router Worksheet
Use this table to complete the Integrated Services Router
Worksheet:
Note: If you have a wireless access point module or Wireless LAN Controller
Module installed in your ISR, complete the wireless fields included in this
worksheet. If you have an external wireless Access Point (AP), complete
wireless fields in the Wireless Network Assignments
Worksheet.
Worksheet Field
|
Field Field Name
|
Description
|
B30
|
Router Model
|
Enter the router model number in field B30.
Note: The model number is required to obtain support from the
SMB
Technical Assistance Center (SMB TAC). The model number is printed on
the back panel of the router.
|
B31
|
Router Serial Number
|
Enter the router serial number in field B31.
Note: The serial number is required to obtain support from the
SMB
Technical Assistance Center (SMB TAC). The serial number is printed on
the back panel of the router.
Note: If you cannot locate the serial number, try the
Cisco Product
Identification Tool.
|
B32
|
Router IOS Version
|
Enter the router Cisco IOS® version in field B32.
Note: If you do not have this information, you can retrieve it when
you configure the router.
|
B33
|
Router DRAM Memory
|
Enter the amount of router DRAM memory in field B33.
Note: If you do not have this information, you can retrieve it when
you configure the router.
|
B34
|
Router Flash Memory
|
Enter the amount of flash memory in the router in field
B34.
Note: If you do not have this information, you can retrieve it when
you configure the router.
|
B9
|
Connection Type
|
Check the type of Internet connection in field B9.
For more information about Internet connections, see
Internet Connection.
|
B10
|
Administrative Account
|
Enter the administrative account for the router in field B10.
The recommended username is "admin".
For more information about administrative accounts, see
Device Passwords.
|
B11
|
Administrative Password
|
Create an administrative password for the router and enter it
in field B11.
For more information about administrative accounts, see
Device Passwords.
|
B12
|
Enable Password
|
Create an enable password for the router and enter it in field
B12.
For more information about passwords, see
Device Passwords.
|
B13
|
Hours from GMT
|
Enter the number of hours from Greenwich Mean Time at the site
in field B13.
|
B14
|
Time Zone
|
Enter the time zone for the site in field B14.
|
B15
|
Summer Time Zone
|
Enter the summer time zone for the site in field
B15.
|
B16
|
Cisco DHCP Server
|
If you are using a Cisco router as the DHCP server for the
network, check Yes in field B16. Otherwise, check
No.
|
W10
|
Router IP Address
|
Copy the IP address of the router from field L6A of the LAN
Addressing Worksheet to field W10.
|
W13
|
DNS Server
|
Copy the DNS server IP address from field L4 of the LAN
Addressing Worksheet to field W13.
|
W14
|
Wireless Network Name
|
Enter an SSID to identify the wireless network in field
W16.
For more information about SSIDs, see Wireless SSID.
Note: This field applies only to an integrated access point module.
If you have a wireless LAN Controller Module, complete field W26. For more
information, see Wireless Access Point
Types.
|
W15
|
RADIUS Key
|
Enter a password that you want users to use to log on to the
network in field W18.
Note: This field applies only to an integrated access point module.
If you have a wireless LAN Controller Module, complete field W28. For more
information, see Wireless Access Point
Types.
|
W34
|
Network
|
Default
Note: This field applies only to an integrated access point module.
If you have a wireless LAN Controller Module, complete field W30. For more
information, see Wireless Access Point
Types.
|
W36
|
Wireless Security
|
802.1x / WPA
Note: This field applies to autonomous access points only. If you
have a wireless LAN Controller Module, see field W31. For more information, see
Wireless Access Point Types.
|
B35
|
LAN Interfaces
|
LAN interfaces are router Ethernet ports that connect to LAN
users. Routers typically have two or more built-in Ethernet interfaces.
There are two types of Ethernet interfaces for LAN
connections:
-
FastEthernet
-
GigabitEthernet
Note: FastEthernet Interfaces are labeled 10/100 Ethernet ports in
SDM.
Interface numbers are often labeled on the router case. The
document Configure Your Router with
Security Device Manager provides further instructions on how to verify
the interface numbers for your LAN interfaces.
Enter the LAN interface numbers in field B35.
|
B36
|
Switch Port Interfaces
|
Switch port interfaces act as a set of Ethernet ports and are
configured a group.
Switch port interfaces are labeled Ethernet Switch Ports in
SDM.
The document Configure Your Router with Security Device
Manager provides instructions on how to verify these interface
numbers.
Enter the switch interface numbers in field B36.
|
B37
|
Internet Interfaces
|
Internet Interfaces are network interfaces built to support an
Internet connection.
Note: Some routers have a FastEthernet interface used for an
Internet connection. This Interface is typically labeled WAN or
Internet.
The document Configure Your Router with Security Device
Manager provides instructions on how to verify these interface
numbers.
Enter the Internet interface number(s) in field
B37.
|
B38
|
VLAN Interfaces
|
A VLAN interface is a virtual interface used to configure
built-in switch ports as a group. All routers with built-in switch port
interfaces include a VLAN interface.
The document Configure Your Router with Security Device
Manager provides instructions on how to verify these interface numbers.
Enter the VLAN interface numbers in field B38.
|
B39
|
Wireless LAN Controller
|
The Wireless LAN Controller (WLCM) is an optional module
centralizes management of policies and configurations for Lightweight Access
Points (LAPs) on the wireless network. For more information on LAPs, see
Wireless Access Point Types.
The document Configure Your Router with Security Device
Manager provides instructions on how to verify these interface numbers.
Enter the WLCM interface number in field B39.
|
W16
|
Controller Name
|
Enter the name for the WLCM in field W16.
|
W17
|
Controller Model
|
Enter the model number of the WLCM in field W17.
|
W18
|
Serial Number
|
Enter the serial number of the WLCM in field W18.
|
W19
|
Management IP Address
|
Enter the Management IP Address of the WLCM in field
W19.
|
W20
|
Controller Manager IP Address
|
Enter the Controller Manager IP Address of the WLCM in field
W20.
|
W21
|
Default Gateway
|
Enter the Default Gateway for the WLCM in field
W21.
|
W22
|
RADIUS Server IP Address
|
If your network uses a RADIUS server for wireless security,
enter the IP Address of the RADIUS server for the WLCM in field W22. For more
information about wireless security, see Wireless
Security.
|
W24
|
Admin Password
|
Enter the Admin Password for the WLCM in field W24.
|
W26
|
Wireless Network Name
|
Enter the names of your wireless networks, such as Default and
Guest, in field W26.
|
W27
|
WPA Pre-Shared Key
|
If your wireless network uses a WPA Pre-Shared Key, enter the
key in field W27. For more information about wireless security, see
Wireless Security.
|
W28
|
RADIUS Key
|
Enter the RADIUS key used to authenticate wireless users in
field W28.
|
W30
|
Network
|
Default
|
W31
|
Wireless Security
|
WPA2
|
W32
|
Lightweight APs
|
Complete these fields for each Lightweight Access Point (LAP)
in your wireless network:
-
AP Name
-
Location
-
Model
-
Serial Number
-
Ethernet Jack
-
Switch Port
|
W33
|
Wireless Users
|
Complete these fields for each wireless user in your wireless
network:
-
Create Date
-
Username
-
Full Name
-
Extension/Phone
-
Notes
|
S5-52
|
Switch Port Assignments
|
If your Integrated Services Router (ISR) has a switch port
module installed, use fields S5 through S52 to indicate this information about
each switch port:
-
Network: Indicate the VLAN for the
switchport.
-
Wall Jack: If the device attached to the switchport is
attached to a wall jack, indicate the wall jack number.
-
User: Provide a description of the device attached to the
switchport.
-
Notes: Provide any additional comments about the
user.
Note: If your network uses a Wireless LAN
Controller Module (WLCM), you must use a separate set of VLANs. For an
overview of these VLANs, refer to Configure Your Router for the Wireless LAN
Controller Module.
|
Back to Top
Internet Worksheet - ISDN
To complete the Internet Worksheet for ISDN, work with your Internet
Service Provider to obtain this information:
Worksheet Field
|
Field Name
|
Description
|
B1
|
ISP Name
|
Enter the name of the company that provides your Internet
service in field B1.
|
B2
|
ISP Support Number
|
Enter the number you call for ISP support in field
B2.
|
B3
|
ISP Circuit ID
|
Enter the ISP customer ID or circuit ID that identifies your
Internet connection in field B3.
|
B4
|
ISP Sales Contact
|
Enter the number for your ISP sales contact in field
B4.
|
B5
|
Local Phone Carrier (LEC)
|
Enter your local telephone company in field B5. The local phone
carrier is also known as the local exchange carrier (LEC).
|
B6
|
Local Phone Carrier (LEC) Circuit ID
|
If you have a T1 or E1 circuit, enter the local phone carrier
(LEC) circuit ID in field B6. If you have an ISDN line, enter the full
telephone number or circuit ID.
Note: If your ISP does not have the LEC circuit ID, you may be able
to locate the circuit ID at your site. The LEC Circuit ID is often on a sticker
on the telephone company jack where the circuit terminates. The telephone
company jack is sometimes known as a smart jack. The jack is commonly located
at the telephone company point of demarcation or demarc, which is typically in
the main telephone closet on the ground floor of a building. In some cases, the
telephone company extends the circuit inside the building to an office or
another telephone closet. If your jack is located in the main telephone closet,
you may need to contact your building management to gain access to the
closet.
|
B7
|
Demarc location
|
Enter the location in the network jack where your ISP
terminates your Internet connection in field B7. The demarc is commonly located
in the master telephone closet for the building, known as the minimum point of
entry (MPOE). In some cases the demarc is extended to another location past the
MPOE.
|
B8
|
Local Phone Carrier (LEC) Support Number
|
Enter the customer service number for your phone line in field
B8.
Note: This field is required ISDN and DSL connections only.
|
B40
|
Address Range
|
Enter the IP address range assigned by your ISP in field
B40.
For more information about ISP IP assignments, see
ISP Address Assignment Method.
Note: If your Internet connection uses a dynamically assigned IP
address, leave this field blank.
|
B41
|
Subnet Mask
|
Enter the subnet mask assigned by your ISP in field B41.
Note: If your Internet connection uses a dynamically assigned IP
address, leave this field blank.
|
B43
|
Router IP Address Method
|
Enter the router IP address method that your ISP uses in field
B43.
For more information about IP address assignment methods, see
ISP Address Assignment
Method.
|
B45
|
IP Assignment Protocol
|
If your Internet connection uses a dynamically assigned IP
address, check the IP Assignment Protocol in field B45.
For more information about IP address assignment methods, see
ISP Address Assignment Method.
|
B46
|
Router IP Address
|
Enter the router IP Address in field B46.
Note: If your Internet connection uses a dynamically assigned IP
address, leave this field blank.
Note: If you have an ASA Security Appliance, use a public address
from the pool in field B40.
|
B47
|
ISP Router IP Address
|
Enter the ISP router IP Address in field B47.
Note: If your Internet connection uses a dynamically assigned IP
address, leave this field blank.
|
B48
|
Domain Name
|
Enter the Internet connection domain name in field B48.
|
B50
|
DNS Server 1
|
Enter the IP address of the first Domain Name Service (DNS)
server in field B50.
For more information about DNS, see Domain
Name Service.
|
B51
|
DNS Server 2
|
Enter the IP address of the second Domain Name Service (DNS)
server in field B51.
For more information about DNS, see Domain
Name Service.
|
B52
|
Local Router Name
|
Enter your local router name in field B52.
|
A30
|
ISP Switch Type
|
Enter the ISDN switch type in field A30.
Note: You may need to contact your Local Phone Carrier (LEC) to
complete this field.
|
A31
|
Phone Number 1
|
Enter the ISDN phone numbers in fields A31 and A32.
Note: You may need to contact your Local Phone Carrier (LEC) to
complete this field.
|
A32
|
Phone Number 2
|
Enter the ISDN phone numbers in fields A31 and A32.
Note: You may need to contact your Local Phone Carrier (LEC) to
complete this field.
|
A33
|
SPID1
|
If you have a 5ESS switch, enter the service profile identifier
(SPID) numbers in fields A33 and A34.
Note: You may need to contact your Local Phone Carrier (LEC) to
complete this field.
|
A34
|
SPID2
|
If you have a 5ESS switch, enter the service profile identifier
(SPID) numbers in fields A33 and A34.
Note: You may need to contact your Local Phone Carrier (LEC) to
complete this field.
|
A35
|
ISP ISDN Access Number
|
Enter the ISDN access number in field A35.
|
A36
|
Call Data Rate
|
Enter the call speed for your connection in field A36, such as
56 Kbps.
|
A37
|
Authentication Type
|
If your connection uses authentication, enter the
authentication method for your connection in field A37.
For more information about authentication, see
Authentication.
|
A38
|
Remote Host Name
|
If your connection uses authentication, enter the remote host
name in field A38.
For more information about authentication, see
Authentication.
|
A39
|
Shared Secret
|
If your connection uses authentication, enter the shared secret
in field in A39.
For more information about authentication, see
Authentication.
|
R21
|
VPN Group Name
|
If your site has a VPN connection, enter the VPN group name in
field R21. This name should be a non-descriptive single word that does not
identify the network, such as “zebra” or “kilo.” SSIDs such as “tsunami,”
“AcmeInc,” or “123mainst” are poor choices because they identify the
network.
For more information on how to create strong passwords, refer
to Password
Security.
|
R22
|
VPN Group Password
|
If your site has a remote VPN connection, create strong
password for the VPN group and enter it in field R22. The group password should
differ from the admin and enable passwords because it is shared with end
users.
Refer to
Password
Security for information on how to create strong passwords.
|
R32
|
Security Method
|
If your site has a remote VPN connection, Cisco recommends 3DES
as the VPN Security Method.
|
R33
|
Remote VPN Address
|
If your site has a remote VPN connection, enter the remote VPN
address in field R33.
|
R40
|
Remote VPN Users
|
Enter information about each remote VPN user in the table
beginning with field R40.
Note: Do not record user passwords in this table.
|
Back to Top
Internet Worksheet - DSL
To complete the Internet Service Provider Information, you need to work
with your Internet Service Provider to obtain this information:
If you have an ADSL/G.SHDSL Internet connection, work with your ISP to
complete these fields in the ADSL/G.SHDSL section of the Internet
worksheet:
Worksheet Field
|
Field Name
|
Description
|
B1
|
ISP Name
|
Enter the name of the company that provides your Internet
service in field B1.
|
B2
|
ISP support number
|
Enter the number you call for ISP support in field
B2.
|
B3
|
ISP Circuit ID
|
Enter the ISP customer ID or circuit ID that identifies your
Internet connection in field B3.
|
B4
|
ISP Sales Contact
|
Enter the number for your ISP sales contact in field
B4.
|
B5
|
Local Phone Carrier (LEC)
|
Enter your local telephone company in field B5. The local phone
carrier is also known as the local exchange carrier (LEC).
|
B6
|
Local Phone Carrier (LEC) Circuit ID
|
If you have a T1 or E1 circuit, enter the local phone carrier
(LEC) circuit ID in field B6. If you have an ISDN line, enter the full
telephone number or circuit ID.
Note: If your ISP does not have the LEC circuit ID, you may be able
to locate the circuit ID at your site. The LEC Circuit ID is often on a sticker
on the telephone company jack where the circuit terminates. The telephone
company jack is sometimes known as a smart jack. The jack is commonly located
at the telephone company point of demarcation or demarc, which is typically in
the main telephone closet on the ground floor of a building. In some cases, the
telephone company extends the circuit inside the building to an office or
another telephone closet. If your jack is located in the main telephone closet,
you may need to contact your building management to gain access to the
closet.
|
B7
|
Local Phone Carrier (LEC) Support Number
|
Enter the location in the network jack where your ISP
terminates your Internet connection in field B7. The demarc is commonly located
in the master telephone closet for the building, known as the minimum point of
entry (MPOE). In some cases the demarc is extended to another location past the
MPOE.
|
B8
|
Local Phone Carrier (LEC) Support Number
|
Enter the customer service number for your phone line in field
B8.
Note: This field is required ISDN and DSL connections only.
|
B40
|
Address Range
|
Enter the IP address range assigned by your ISP in field
B40.
For more information about ISP IP assignments, see
ISP Address Assignment Method.
Note: If your Internet connection uses a dynamically assigned IP
address, leave this field blank.
|
B41
|
Subnet Mask
|
Enter the subnet mask assigned by your ISP in field B41.
Note: If your Internet connection uses a dynamically assigned IP
address, leave this field blank.
|
B43
|
Router IP Address Method
|
Enter the router IP address method that your ISP uses in field
B43.
For more information about IP address assignment methods, see
ISP Address Assignment
Method.
|
B45
|
IP Assignment Protocol
|
If your Internet connection uses a dynamically assigned IP
address, check the IP Assignment Protocol in field B45.
For more information about IP address assignment methods, see
ISP Address Assignment Method.
|
B46
|
Router IP Address
|
Enter the router IP Address in field B46.
Note: If your Internet connection uses a dynamically assigned IP
address, leave this field blank.
Note: If you have an ASA Security Appliance, use a public address
from the pool in field B40.
|
B47
|
ISP Router IP Address
|
Enter the ISP router IP Address in field B46.
Note: If your Internet connection uses a dynamically assigned IP
address, leave this field blank.
|
B48
|
Domain Name
|
Enter the Internet connection domain name in field
B48.
|
B50
|
DNS Server 1
|
Enter the IP address of the first Domain Name Service (DNS)
server in field B50.
For more information about DNS, see Domain
Name Service.
|
B51
|
DNS Server 2
|
Enter the IP address of the second Domain Name Service (DNS)
server in field B51.
For more information about DNS, see Domain
Name Service.
|
B52
|
Local Router Name
|
Enter your local router name in field B52.
|
A50
|
Circuit Speed
|
Enter the circuit speed in Kilobits per second (Kbps) in field
A50.
|
A51
|
Encapsulation
|
Enter the encapsulation for your connection in field A51. PPP
over ATM encapsulation is the most common protocol for ADSL and G.SHDSL
circuits.
For more information about encapsulation, see
Encapsulation.
|
A52
|
ATM ILMI
|
If your connection uses PPP over ATM encapsulation, enter the
Interim Local Management Interface (ILMI) number in field A52.
For more information about encapsulation, see
Encapsulation.
|
A53
|
ATM VC
|
If your connection uses PPP over ATM encapsulation, enter the
virtual path identifier/virtual channel identifier (VPI/VCI) for your
connection in field A53.
For more information about encapsulation, see
Encapsulation.
|
A54
|
Authentication Type
|
If your connection uses authentication, enter the
authentication method in field A54.
For more information about authentication, see
Authentication.
|
A55
|
Remote Host Name
|
If your connection uses authentication, enter the remote host
name in field A55.
For more information about authentication, see
Authentication.
|
A56
|
Shared Secret
|
If your connection uses authentication, enter the shared secret
in field in A56.
For more information about authentication, see
Authentication.
|
R21
|
VPN Group Name
|
If your site has a remote VPN connection, enter the VPN group
name in field R21. This name should be a non-descriptive single word that does
not identify the network, such as “zebra” or “kilo.” SSIDs such as “tsunami,”
“AcmeInc,” or “123mainst” are poor choices because they identify the
network.
For more information on how to create strong passwords, refer
to Password
Security.
|
R22
|
VPN Group Password
|
If your site has a remote VPN connection, create strong
password for the VPN group and enter it in field R22. The group password should
differ from the admin and enable passwords because it is shared with end
users.
Refer to
Password
Security for information on how to create strong passwords.
|
R32
|
Security Method
|
If your site has a remote VPN connection, Cisco recommends 3DES
as the VPN Security Method.
|
R33
|
Remote VPN Address
|
If your site has a remote VPN connection, enter the remote VPN
address in field R33.
|
R40
|
Remote VPN Users
|
Enter information about each remote VPN user in the table
beginning with field R40.
Note: Do not record user passwords in this table.
|
Back to Top
Internet Worksheet - T1/E1
To complete the Internet Service Provider Information, you need to work
with your Internet Service Provider to obtain this information:
Worksheet Field
|
Field Name
|
Description
|
B1
|
Internet Service Provider
|
Enter the name of the company that provides your Internet
service in field B1.
|
B2
|
Help Desk Phone
|
Enter the number you call for ISP support in field
B2.
|
B3
|
ISP Circuit ID
|
Enter the ISP customer ID or circuit ID that identifies your
Internet connection in field B3.
|
B4
|
Sales Contact
|
Enter the number for your ISP sales contact in field
B4.
|
B5
|
Local Phone Carrier (LEC)
|
Enter your local telephone company in field B5. The local phone
carrier is also known as the local exchange carrier (LEC).
|
B6
|
Local Phone Carrier (LEC) Circuit ID
|
If you have a T1 or E1 circuit, enter the local phone carrier
(LEC) circuit ID in field B6. If you have an ISDN line, enter the full
telephone number or circuit ID.
Note: If your ISP does not have the LEC circuit ID, you may be able
to locate the circuit ID at your site. The LEC Circuit ID is often on a sticker
on the telephone company jack where the circuit terminates. The telephone
company jack is sometimes known as a smart jack. The jack is commonly located
at the telephone company point of demarcation or demarc, which is typically in
the main telephone closet on the ground floor of a building. In some cases, the
telephone company extends the circuit inside the building to an office or
another telephone closet. If your jack is located in the main telephone closet,
you may need to contact your building management to gain access to the
closet.
|
B7
|
Circuit Demarc
|
Enter the location in the network jack where your ISP
terminates your Internet connection in field B7. The demarc is commonly located
in the master telephone closet for the building, known as the minimum point of
entry (MPOE). In some cases the demarc is extended to another location past the
MPOE.
|
B8
|
Local Phone Carrier (LEC) Support Number
|
Enter the customer service number for your phone line in field
B8.
Note: This field is required ISDN and DSL connections only.
|
B40
|
Address Range
|
Enter the IP address range assigned by your ISP in field
B40.
For more information about ISP IP assignments, see
ISP Address Assignment Method.
Note: If your Internet connection uses a dynamically assigned IP
address, leave this field blank.
|
B41
|
Subnet Mask
|
Enter the subnet mask assigned by your ISP in field B41.
Note: If your Internet connection uses a dynamically assigned IP
address, leave this field blank.
|
B43
|
Router IP Address Method
|
Enter the router IP address method that your ISP uses in field
B43.
For more information about IP address assignment methods, see
ISP Address Assignment
Method.
|
B45
|
IP Assignment Protocol
|
If your Internet connection uses a dynamically assigned IP
address, check the IP Assignment Protocol in field B45.
For more information about IP address assignment methods, see
ISP Address Assignment
Method.
|
B46
|
Router IP Address
|
Enter the router IP Address in field B46.
Note: If your Internet connection uses a dynamically assigned IP
address, leave this field blank.
Note: If you have an ASA Security Appliance, use a public address
from the pool in field B40.
|
B47
|
ISP Router IP Address
|
Enter the ISP router IP Address in field B46.
Note: If your Internet connection uses a dynamically assigned IP
address, leave this field blank.
|
B48
|
Domain Name
|
Enter the Internet connection domain name in field
B48.
|
B50
|
DNS Server 1
|
Enter the IP address of the first Domain Name Service (DNS)
server in field B50.
For more information about DNS, see Domain
Name Service.
|
B51
|
DNS Server 2
|
Enter the IP address of the second Domain Name Service (DNS)
server in field B51.
For more information about DNS, see Domain
Name Service.
|
B52
|
Local Router Name
|
Enter your local router name in field B52.
|
A20
|
Encoding
|
Check the encoding type for your connection in field
A20.
For more information about encoding, see Encoding and Framing.
|
A21
|
Framing
|
Check the framing type for your connection in field A21.
For more information about framing, see Encoding and Framing.
|
A22
|
Encapsulation
|
Check the encapsulation type for your connection in field
A22.
For more information about encapsulation, see
Encapsulation.
|
A23
|
Channel Assignments
|
For field A23, indicate the channels that your circuit uses for
data. If you have additional channels that carry another traffic type such as
voice, label the channels accordingly.
For more information about channels, see Channels.
|
A24
|
Frame Relay DLCI
|
Enter the data link connection identifier (DLCI) for your
connection in field A24.
Note: If your connection does not use Frame Relay encapsulation,
leave this field blank.
|
A25
|
Authentication Type
|
If your connection uses authentication, enter the
authentication method for your connection in field A25.
For more information about authentication, see
Authentication.
|
A26
|
Remote Host Name
|
If your connection uses authentication, enter the remote host
name in field A26.
For more information about authentication, see
Authentication.
|
A27
|
Shared Secret
|
If your connection uses authentication, enter the shared secret
in field in A27.
For more information about authentication, see
Authentication.
|
R21
|
VPN Group Name
|
If your site has a remote VPN connection, enter the VPN group
name in field R21. This name should be a non-descriptive single word that does
not identify the network, such as “zebra” or “kilo.” SSIDs such as “tsunami,”
“AcmeInc,” or “123mainst” are poor choices because they identify the
network.
For more information on how to create strong passwords, refer
to Password
Security.
|
R22
|
VPN Group Password
|
If your site has a remote VPN connection, create strong
password for the VPN group and enter it in field R22. The group password should
differ from the admin and enable passwords because it is shared with end
users.
Refer to
Password
Security for information on how to create strong passwords.
|
R32
|
Security Method
|
If your site has a remote VPN connection, Cisco recommends 3DES
as the VPN Security Method.
|
R33
|
Remote VPN Address
|
If your site has a remote VPN connection, enter the remote VPN
address in field R33.
|
R40
|
Remote VPN Users
|
Enter information about each remote VPN user in the table
beginning with field R40.
Note: Do not record user passwords in this table.
|
Back to Top
Internet Worksheet - Ethernet
To complete the Internet Service Provider Information, you need to work
with your Internet Service Provider to obtain this information:
Worksheet Field
|
Field Name
|
Description
|
B1
|
Internet Service Provider
|
Enter the name of the company that provides your Internet
service in field B1.
|
B2
|
Help Desk Phone
|
Enter the number you call for ISP support in field
B2.
|
B3
|
ISP Circuit ID
|
Enter the ISP customer ID or circuit ID that identifies your
Internet connection in field B3.
|
B4
|
Sales Contact
|
Enter the number for your ISP sales contact in field
B4.
|
B5
|
Local Phone Carrier (LEC)
|
Enter your local telephone company in field B5. The local phone
carrier is also known as the local exchange carrier (LEC).
|
B6
|
Local Phone Carrier (LEC) Circuit ID
|
If you have a T1 or E1 circuit, enter the local phone carrier
(LEC) circuit ID in field B6. If you have an ISDN line, enter the full
telephone number or circuit ID.
Note: If your ISP does not have the LEC circuit ID, you may be able
to locate the circuit ID at your site. The LEC Circuit ID is often on a sticker
on the telephone company jack where the circuit terminates. The telephone
company jack is sometimes known as a smart jack. The jack is commonly located
at the telephone company point of demarcation or demarc, which is typically in
the main telephone closet on the ground floor of a building. In some cases, the
telephone company extends the circuit inside the building to an office or
another telephone closet. If your jack is located in the main telephone closet,
you may need to contact your building management to gain access to the
closet.
|
B7
|
Circuit Demarc
|
Enter the location in the network jack where your ISP
terminates your Internet connection in field B7. The demarc is commonly located
in the master telephone closet for the building, known as the minimum point of
entry (MPOE). In some cases the demarc is extended to another location past the
MPOE.
|
B8
|
Local Phone Carrier (LEC) Support Number
|
Enter the customer service number for your phone line in field
B8.
Note: This field is required ISDN and DSL connections only.
|
B40
|
Address Range
|
Enter the IP address range assigned by your ISP in field
B40.
For more information about ISP IP assignments, see
ISP Address Assignment Method.
Note: If your Internet connection uses a dynamically assigned IP
address, leave this field blank.
|
B41
|
Subnet Mask
|
Enter the subnet mask assigned by your ISP in field B41.
Note: If your Internet connection uses a dynamically assigned IP
address, leave this field blank.
|
B43
|
Router IP Address Method
|
Enter the router IP address method that your ISP uses in field
B43.
For more information about IP address assignment methods, see
ISP Address Assignment
Method.
|
B45
|
IP Assignment Protocol
|
If your Internet connection uses a dynamically assigned IP
address, check the IP Assignment Protocol in field B45.
For more information about IP address assignment methods, see
ISP Address Assignment
Method.
|
B46
|
Router IP Address
|
Enter the router IP Address in field B46.
Note: If your Internet connection uses a dynamically assigned IP
address, leave this field blank.
Note: If you have an ASA Security Appliance, use a public address
from the pool in field B40.
|
B47
|
ISP Router IP Address
|
Enter the ISP router IP Address in field B46.
Note: If your Internet connection uses a dynamically assigned IP
address, leave this field blank.
|
B48
|
Domain Name
|
Enter the Internet connection domain name in field
B48.
|
B50
|
DNS Server 1
|
Enter the IP address of the first Domain Name Service (DNS)
server in field B50.
For more information about DNS, see Domain
Name Service.
|
B51
|
DNS Server 2
|
Enter the IP address of the second Domain Name Service (DNS)
server in field B51.
For more information about DNS, see Domain
Name Service.
|
B52
|
Local Router Name
|
Enter your local router name in field B52.
|
B60
|
Encapsulation
|
Check the encapsulation type for your connection in field
B60.
For more information about encapsulation, see
Encapsulation.
|
B62
|
Authentication Type
|
If your connection uses authentication, enter the
authentication method in field A62.
For more information about authentication, see
Authentication.
|
B63
|
Remote Host Name
|
If your connection uses authentication, enter the remote host
name in field B63.
For more information about authentication, see
Authentication.
|
B64
|
Shared Secret
|
If your connection uses authentication, enter the shared secret
in field in B64.
For more information about authentication, see
Authentication.
|
R21
|
VPN Group Name
|
If your site has a remote VPN connection, enter the VPN group
name in field R21. This name should be a non-descriptive single word that does
not identify the network, such as “zebra” or “kilo.” SSIDs such as “tsunami,”
“AcmeInc,” or “123mainst” are poor choices because they identify the
network.
For more information on how to create strong passwords, refer
to Password
Security.
|
R22
|
VPN Group Password
|
If your site has a remote VPN connection, create strong
password for the VPN group and enter it in field R22. The group password should
differ from the admin and enable passwords because it is shared with end
users.
Refer to
Password
Security for information on how to create strong passwords.
|
R32
|
Security Method
|
If your site has a remote VPN connection, Cisco recommends 3DES
as the VPN Security Method.
|
R33
|
Remote VPN Address
|
If your site has a remote VPN connection, enter the remote VPN
address in field R33.
|
R40
|
Remote VPN Users
|
Enter information about each remote VPN user in the table
beginning with field R40.
Note: Do not record user passwords in this table.
|
Back to Top
Switch Port Assignment Worksheets
The site survey provides Switch Port Assignment worksheets to document
up to five Ethernet switches with 48 ports each, or 200 total users. Worksheet
S1 is for the first switch in the network, the "root" switch in the network.
Additional worksheets are provided for additional, "non-root" switches. Use one
non-root switch worksheet for each additional switch. All non-root switches are
connected to the root switch.
The worksheets include this information for each port on the
switch:
-
Port number
-
VLAN (Default, Network Management, Secure Server, or Guest). For more
information about VLANs, see the VLANs
section.
-
Wall jack number
Note: If you have a computer that is not connected to a wall jack or if
you do not have wall jacks in your building, leave this field blank. For more
information about wall jacks, see Wall
Jacks.
-
User description
-
Additional notes
Complete one worksheet for each switch in your network. If you have a
switch with 24 or fewer ports, omit the second page of the Switch Port
Assignment worksheet.
Switch SW1 (Root Switch)
Worksheet Field
|
Field Field Name
|
Description
|
S1
|
Switch Name
|
The root switch is identified in field S1.
|
S2
|
Switch Model
|
Enter the switch model number and switch serial number in field
S2. The serial number is required to obtain support from the
SMB
Technical Assistance Center (SMB TAC). The serial number is printed on
the back panel of the switch.
Note: If you cannot locate the serial number, try the
Cisco Product
Identification Tool.
|
S3
|
Description
|
Enter a brief description of the switch in field
S3.
|
S4
|
Location
|
Enter the physical location of the switch in field
S4.
|
S5
|
Admin Password, Enable Password
|
Enter the Admin password and Enable password for the switch in
field S5.
|
S6
|
Port 1
|
If you have an external workstation or device to manage the
switch, connect it to port 1 of the switch. Enter the management device wall
jack number and any additional notes in field S6.
|
S7
|
Port 2
|
If you have a router, connect the router Ethernet interface to
port 2 of the root switch. Enter the router wall jack number and any additional
notes in field S6.
|
S8
|
Port 3
|
Field S7 is reserved for future use of VOIP devices.
Note: Cisco recommends that you reserve port 3 of the root switch
for future use of Voice over IP (VOIP) devices.
|
S9
|
Port 4
|
If you have a PIX Security Appliance, connect the inside
interface to port 4 of the root switch. Enter the wall jack number and any
additional notes in field S9.
|
S10
|
Port 5
|
If you have a PIX Security Appliance, connect the outside
interface to port 5 of the root switch. Enter the wall jack number and any
additional notes in field S10.
|
S11
|
Port 6
|
If you have a Wireless Access Point (AP) or Wireless
Controller, connect the Ethernet interface to port 6 of the root switch. Enter
the device IP address, wall jack number, and comments in field S11.
|
S12-S15
|
Ports 7-10
|
If you have non-root switches, connect them to ports 7-10 of
the root switch. Enter the wall jack numbers and any additional notes about
each non-root switch in fields S12 through S15.
Note: It is important to connect each non-root switch directly to
the root switch to maximize network performance and reliability.
|
S16-S53
|
Ports 11-48
|
Fields S16 through S53 list additional devices connected to the
root switch. Enter the VLAN (Default, Network Management, Secure Server, or
Guest), wall jack number, user description, and additional notes for each
device in fields S16 through S53.
|
Switch SW2-SW5
Complete these fields on worksheet SW2 to document the second
switch:
Worksheet Field
|
Field Field Name
|
Description
|
S60
|
Switch name
|
Enter the switch name in field S60.
|
S61
|
Switch model
|
Enter the switch model number and switch serial number in field
S61. The serial number is required to obtain support from the
SMB
Technical Assistance Center (SMB TAC). The serial number is printed on
the back panel of the switch.
Note: If you cannot locate the serial number, try the
Cisco Product
Identification Tool.
|
S62
|
Description
|
Enter a brief description of the switch in field
S62.
|
S63
|
Location
|
Enter the physical location of the switch in field
S63.
|
S64
|
Admin Password, Enable Password
|
Enter the Admin password and Enable password for the switch in
field S64.
|
S65
|
Port 1
|
Connect port 1 of the switch to port 6 of the root switch.
Enter the wall jack number of the root switch in field S65.
|
S66
|
Ports 2-48
|
Enter the VLAN (Default, Network Management, Secure Server, or
Guest), wall jack number, user description, and additional notes for each
device attached to the switch beginning at field S66.
|
Use the same instructions to complete the worksheets for switches SW3,
SW4, and SW5. Use one copy of the non-root worksheets for each non-root
switch.
Back to Top
Management VLAN Worksheet
Use this table to complete the Management VLAN Worksheet:
Field Number
|
Field Name
|
Explanation
|
L1B
|
Subnet
|
Copy the network management subnet from field A3 of the
Overview Worksheet to field L1B.
|
L2B
|
Subnet Mask
|
Enter 255.255.255.0 in field L2B.
|
L3B
|
DHCP Server
|
Copy the subnet from field L1B to field L3B.
Note: Cisco does not support multiple VLANs on a non-Cisco DHCP
server.
|
L4
|
DNS Server 1
|
Copy the IP address you entered in field L4 of the LAN
Addressing Worksheet to field L4.
|
L5
|
DNS Server 2
|
Copy the IP address you entered in field L5 of the LAN
Addressing Worksheet to field L5.
|
L6B
|
Router IP Address
|
Copy the subnet from field L1B to field L6B.
|
L7B
|
VLAN Number
|
The Management VLAN is VLAN 21.
|
L8-L35
|
Static IP Assignments
|
Complete address and enter a description of each device with a
static address in fields L8 through L35.
|
L50B
|
DHCP Start Range
|
Copy the subnet in field L1B to field L50B.
This is the first address in the pool of IP addresses that the
DHCP server automatically distributes.
For more information on DHCP, see DHCP.
|
L51B
|
DHCP End Range
|
Copy the subnet in field L1B to field L51B.
This is the last address in the pool of IP addresses that the
DHCP server automatically distributes.
For more information on DHCP, see DHCP.
|
Back to Top
Secure Server VLAN Worksheet
Use this table to complete the Secure Server VLAN Worksheet:
Field Number
|
Field Name
|
Explanation
|
L1C
|
Subnet
|
Copy the secure server subnet from field A3 of the Overview
Worksheet to field L1C.
|
L2C
|
Subnet Mask
|
Enter 255.255.255.0 in field L2C.
|
L3C
|
DHCP Server
|
Copy the subnet from field L1C to field L3C.
Note: Cisco does not support multiple VLANs on a non-Cisco DHCP
server.
|
L4
|
DNS Server 1
|
Copy the IP address you entered in field L4 of the LAN
Addressing Worksheet to field L4.
|
L5
|
DNS Server 2
|
Copy the IP address you entered in field L5 of the LAN
Addressing Worksheet to field L5.
|
L6C
|
Router IP Address
|
Copy the subnet from field L1C to field L6C.
|
L7C
|
VLAN Number
|
The Secure Server VLAN is VLAN 22.
|
L8-L35
|
Static IP Assignments
|
Complete address and enter a description of each device with a
static address in fields L8 through L35.
|
L50C
|
DHCP Start Range
|
Copy the subnet in field L1C to field L50C.
This is the first address in the pool of IP addresses that the
DHCP server automatically distributes.
For more information on DHCP, see DHCP.
|
L51C
|
DHCP End Range
|
Copy the subnet in field L1C to field L51C.
This is the last address in the pool of IP addresses that the
DHCP server automatically distributes.
For more information on DHCP, see DHCP.
|
Back to Top
Guest VLAN Worksheet
Use this table to complete the GuestVLAN Worksheet:
Field Number
|
Field Name
|
Explanation
|
L1D
|
Subnet
|
Copy the guest subnet from field A3 of the Overview Worksheet
to field L1D.
|
L2D
|
Subnet Mask
|
Enter 255.255.255.0 in field L2D.
|
L3D
|
DHCP Server
|
Copy the subnet from field L1D to field L3D.
Note: Cisco does not support multiple VLANs on a non-Cisco DHCP
server.
|
L4
|
DNS Server 1
|
Copy the IP address you entered in field L4 of the LAN
Addressing Worksheet to field L4.
|
L5
|
DNS Server 2
|
Copy the IP address you entered in field L5 of the LAN
Addressing Worksheet to field L5.
|
L6D
|
Router IP Address
|
Copy the subnet from field L1D to field L6D.
|
L7D
|
VLAN Number
|
The Guest VLAN is VLAN 23.
|
L8-L35
|
Static IP Assignments
|
Complete address and enter a description of each device with a
static address in fields L8 through L35.
|
L50D
|
DHCP Start Range
|
Copy the subnet in field L1D to field L50D.
This is the first address in the pool of IP addresses that the
DHCP server automatically distributes.
For more information on DHCP, see DHCP.
|
L51D
|
DHCP End Range
|
Copy the subnet in field L1D to field L51D.
This is the last address in the pool of IP addresses that the
DHCP server automatically distributes.
For more information on DHCP, see DHCP.
|
Back to Top
Internet Services Worksheet
The firewall blocks incoming email, web services, and Microsoft PPTP
VPN services by default. If you have internal servers within your network such
as email servers, web servers, or VPN servers, you can modify the firewall to
allow this traffic.
Caution: Do not enable the services in this section unless they are required.
If you open these services this can subject internal machines to attack. For
more information about Internet Services, see Internet Services.
Use this table to complete the Internet Services Worksheet:
Field Number
|
Field Name
|
Explanation
|
F1
|
Internal Email Server IP Address
|
If you have an internal email server, enter the IP address of
your email server in field F1.
Note: You do not need to make changes to the firewall if your email
server is located at your ISP.
|
F4
|
Internal Web Server IP Address
|
If you have an internal web server, enter the internal IP
address of the web server in field F4.
Note: You do not need to make changes to the firewall if your web
server is located at your ISP.
|
F5
|
Microsoft PPTP VPN Server IP Address
|
If you have remote users that use Microsoft PPTP VPN server to
access your network, enter the IP address of the PPTP VPN server in field
F5.
Note: You do not need to make changes to the firewall if your VPN
server is located at your ISP.
|
For more information about Internet Services, see
Internet Services.
Back to Top
Security Appliance Worksheet
Use this table to complete the Security Appliance Worksheet:
Field Number
|
Field Name
|
Explanation
|
R1
|
Device Name
|
Enter the device name in field R1.
|
R2
|
Device Model
|
Enter the device model in field R2.
|
R3
|
Location
|
Enter the physical location of the security appliance in field
R3.
|
R5
|
Serial Number
|
Enter the security appliance serial number in field R5. The
serial number is required to obtain support from the
SMB
Technical Assistance Center (SMB TAC). The serial number is printed on
the back panel of the device.
Note: If you cannot locate the serial number, try the
Cisco Product
Identification Tool.
|
R7
|
External Interface
|
If you have an ASA 5500 Security Appliance, indicate the
interface that is connected to the external network or the Internet. The
recommended interface is interface 0 (FastEthernet 0/0).
|
R8
|
Internal Interface
|
If you have an ASA 5500 Security Appliance, indicate the
interface that is connected to the internal network. The recommended interface
is interface 1 (FastEthernet 0/1).
|
R9
|
Management IP Address
|
If you have an ASA 5500 Security Appliance, use the subnet from
field L1A of the LAN Addressing Worksheet to complete the Management IP
Address. This address provides administrative access to manage the security
appliance.
This field does not apply to the PIX Security
Appliance.
|
R10
|
External IP Address
|
Enter the first available IP address in the IP Address range
that you entered in field B40 of the Internet Worksheet. For example, if you
are assigned the IP addresses 64.0.0.1-10 and 64.0.0.1 is assigned to your
router, use 64.0.0.2 for the External IP Address.
|
R12
|
Internal IP Address
|
Ener the first address in the subnet that you entered in field
L1A of the LAN Addressing Worksheet. For example, if the subnet in L1A is
192.168.10.0, enter 192.168.10.1.
Note: If you have a security appliance, it acts as the default
gateway for the network instead of the router.
|
R13
|
PAT IP Address
|
Enter an IP address from the IP Address range that you entered
in field B40 of the Internet Worksheet.
Note: The PAT IP address cannot be the same as the external or
internal IP address.
|
R14
|
Default Gateway
|
Copy the IP address from field B46 of the Internet Worksheet to
field R14.
|
R16
|
DNS Server
|
Copy the DNS server address from field L4 of the LAN worksheet
to field R16.
|
R19
|
Administrative Password
|
Copy the administrative password from field B11 of the Router
worksheet to field R19.
|
R20
|
Enable Password
|
Copy the enable password from field B12 of the Router worksheet
to field R20.
|
R21
|
VPN Group Name
|
Enter the VPN group name in field R21. This name should be a
non-descriptive single word that does not identify the network, such as “zebra”
or “kilo.” SSIDs such as “tsunami,” “AcmeInc,” or “123mainst” are poor choices
because they identify the network.
For more information on how to create strong passwords, refer
to Password
Security.
|
R22
|
VPN Group Password
|
Create strong password for the VPN group and enter it in field
R22. The group password should differ from the admin and enable passwords
because it is shared with end users.
Refer to
Password
Security for information on how to create strong passwords.
|
R30
|
Untrusted Port
|
If you have a PIX Security Appliance, connect the untrusted
port to your Internet connection.
|
R31
|
Switch Port
|
Enter the switch and port number connected to the security
appliance. Cisco recommends that you connect the security appliance to port 4
of the Root Switch.
|
R32
|
Security Method
|
3DES is the recommended encryption method.
|
R33
|
Remote VPN Address
|
Enter the remote VPN address in field R33.
|
R40
|
Remote Users
|
Enter information about each VPN user in the table beginning
with field R40.
Note: Do not record user passwords in this table.
|
Back to Top
Wireless Network Assignments Worksheet
Use this table to complete the Wireless Network Assignments
Worksheet:
Note: If your wireless network uses Lightweight Access Points (LAPs),
complete the wireless fields included in the Integrated
Services Router Worksheet. For more information, see
Wireless Access Point Types.
Field Number
|
Field Name
|
Explanation
|
W1
|
Access Point Name
|
Enter the access point name in field W1.
|
W2
|
Model
|
Enter the model number of the Wireless Access Point (AP) in
field W2.
|
W3
|
Location
|
Enter the installation location of the AP in field W3.
|
W4
|
Serial Number
|
Enter the AP serial number in field W4. The serial number is
required to obtain support from the
SMB
Technical Assistance Center (SMB TAC). The serial number is printed on
the bottom panel of the AP.
Note: If you cannot locate the serial number, try the
Cisco Product
Identification Tool.
|
W5
|
Access Point IP Address
|
Copy the IP address of the AP from field L13 of the LAN
Addressing Worksheet to field W5.
|
W6
|
Default Gateway
|
Copy the default gateway from field L6A of the LAN Addressing
Worksheet to field W6.
|
W7
|
DNS Server
|
Copy the DNS server IP address from field L4 of the LAN
Addressing Worksheet to field W7.
|
W8
|
Admin Password
|
Copy the admin password in field B11 of the Internet Worksheet
to field W8.
|
W9
|
Enable Password
|
Copy the enable password in field B12 of the Internet Worksheet
to field W9.
|
W10
|
Wireless Network Name
|
Enter an SSID to identify the wireless network in field
W10.
For more information about SSIDs, see Wireless SSID.
|
W11
|
RADIUS Key
|
Enter the RADIUS key used to authenticate wireless users in
field W11.
|
W12
|
Ethernet Jack
|
Enter the Ethernet wall jack number that the AP is attached to
in field W12.
|
W13
|
Switch Port
|
Enter the switch and port number connected to the AP.
If you have a single AP, Cisco recommends that you connect the
AP to Switch 1, Port 5.
|
W14
|
Network
|
Default
|
W15
|
Wireless Security
|
802.1x / WPA
|
W33
|
Wireless users
|
Enter contact information about each wireless user in field
W33.
Note: Do not record user passwords in this table.
|
Back to Top
Next Step
You have completed the site survey and worksheets. You can now begin
the equipment installation process.
Choose the appropriate link to begin configuring your network. If you
multiple devices in your network, configure the router and switch(es)
first.
Back to Top
Glossary
ADSL: Asymmetric Digital Subscriber Line. ADSL is a
type of DSL connection designed to deliver more bandwidth downstream to the
customer site than upstream.
Authentication: A way to verify the identity of a user
on a network.
B8ZS: Binary 8-zero substitution. A common encoding
type for T1 circuits.
CHAP: Challenge Handshake Authentication Protocol. A
security feature supported on lines with PPP encapsulation that prevents
unauthorized access.
Demarc: The point of demarcation between carrier
network equipment and customer network equipment. In an office building the
demarc is typically located in the ground floor or first floor telephone
closet.
DHCP: Dynamic Host Configuration Protocol. A protocol
that dynamically assigns IP addresses to devices on a network so that addresses
are reused when hosts no longer need them.
DLCI: Data Link Connection Identifier. A network
identifier used for Frame Relay connections.
DNS: Domain Name System. A system of servers that
resolve domain names such as www.yahoo.com to a numeric IP address. DNS is
required to access web sites and other services on the Internet.
ESF: Extended Super Frame. A common framing type for
T1 circuits.
G.SHDSL: A DSL standard that delivers speeds of 192
Kbps up to 2.3 Mbps for upload and download.
HDLC: High-level Data Link Control. An encapsulation
for serial network connections.
HTTP: HyperText Transfer Protocol. The protocol used
to transfer network traffic related to the World Wide Web (www).
ILMI: Interim Local Management Interface. A
configuration option for ADSL WAN connections
IP Address: A numeric address used to identify a
network device.
ISDN: Integrated Services Digital Network. A
communication protocol offered by telephone companies that permits telephone
networks to carry data, voice, and other source traffic.
ISP: Internet Service Provider. A company that
provides Internet access to other companies and individuals.
LAP: Lightweight Access Point. A wireless access point
that is connected to a wireless LAN controller that manages the configuration
for the wireless network.
LEC: Local Exchange Carrier. A telephone company that
provides customer access to the world-wide public switched network through one
of its central offices.
MPOE: Minimum Point of Entry. In a building with
multiple demarcs, the MPOE is the demarc the furthest distance inside the
building, typically the basement or first floor telephone closet.
PAP: Password Authentication Protocol. A security
feature supported on lines with PPP encapsulation that prevents unauthorized
access.
PPP: Point-to-Point Protocol. A network protocol used
to connect different types of networks together. PPP is often used for
high-speed Internet connections. PPP has an extension to dynamically assign an
IP address when a hosts connects, similar to DHCP.
PPPoA: PPP over ATM. A common encapsulation type used
for DSL connections.
PPPoE: PPP over Ethernet. A common encapsulation type
used for DSL connections.
PPTP: Point-to-Point Tunneling Protocol. A protocol
that creates a PPP tunnel to allow for transfer of other types of traffic such
as VPN.
RADIUS: Remote Authentication Dial-In User Service. A
method to verify the identity of users who remotely connect to a network.
RADIUS is commonly used for wireless users and dial-up Internet
connections.
SMTP: Secure Mail Transfer Protocol. A protocol for
sending email messages between servers.
SSID: Service Set Identifier. A unique name used to
identify a wireless network.
T1/E1: A high-speed network connection through the
telephone-switching network. T1 and E1 connections provide high-speed
connections to other networks or the Internet. T1 is a North American standard
that provides a 1.544 Mbps connection. E1 is a primarily European standard that
provides a 2.048 Mbps connection.
Wall Jack: Buildings with internal network cabling
often have network jacks that are labeled with a number to identify each
connection to the main telephone closet.
VPN: Virtual Private Network. A virtual network
connection that enables computers at remote locations to communicate as though
they were on the same physical network. A VPN can be encrypted with protocols
such as IPSEC to secure the connection. VPNs are often used to connect remote
users to a physical network or to connect networks in different physical
locations.
Back to Top
Related Information
