Step 2: Hardware Setup Procedure for the Catalyst 4500 Series Switch

Step 1:   Cisco SMB Support Assistant Site Survey     Step 2:  Hardware Setup Procedure for the Catalyst 4500 Series Switch                       Introduction                       Requirements                       Install the Switch                            Rack Installation                            Power Supplies                            Switch Modules                            Connect System Ground                            Connect Power to the Switch                       Next Step                       Troubleshoot the Procedure                       Related Information     Step 3:   Download and Install Cisco Network Assistant     Step 4:   Configure the Catalyst 4500 Switch with Cisco Network Assistant

Download PDF   Step 2: Hardware Setup Procedure for the Catalyst 4500 Series Switch    Set Up a Catalyst 4500 Switch

Introduction

This document explains how to use the Cisco Network Assistant (CNA) software to configure a Catalyst 4500 series switch for the first time.

Back to Top

Requirements

To perform the steps described in this document, you need to have these items:

• A switch with Cisco IOS® Software Release 12.0 - 12.2

• Your switch and power cord(s)

• An ESD prevention wrist strap

• A wire-stripping tool

• A crimping tool

• Access to local AC or DC power

• Review the regulatory compliance and safety information for your switch: Catalyst 4500 Series Regulatory Compliance and Safety Information

• You must have completed configuration of your router.

• Completed worksheets as instructed in the Site Survey:

  • LAN Addressing Worksheet

  • Switch Port Assignments Worksheet

  • Internet Worksheet

Back to Top

Install the Switch

Follow these steps to complete hardware installation of your switch:

Rack Installation

Catalyst 4500 switches can be mounted in a rack or set up on a flat surface. For instructions on how to install the switch in a rack, refer to Catalyst 4500 Series Installation Guide.

Power Supplies

Catalyst 4500 switches can operate a variety of power supplies. Before you begin installation, ensure that a power supply is installed in your switch and that the power supply matches the type of power available at your site.

For instructions about how to install a power supply, refer to Catalyst 4500 Series Installation Guide.

Switch Modules

The 4500 switches can accomodate supervisor modules and switch modules. Supervisor modules provide management functions for the switch, and switch modules provide additional switch ports. Verify that all needed modules are installed before you begin installation.

For instructions about how to install a supervisor or switch module, refer to Catalyst 4500 Series Supervisor Engines and Switching Modules Installation Note.

Connect System Ground

This section provides an overview of how to connect the Catalyst 4500 series switches to earth ground. The system ground connection is required if FXS modules are installed or if this equipment is installed in a US or European Central Office. For more detailed instructions on how to set up an earth ground, refer to Catalyst 4500 Series Installation Guide.

Caution: You must complete this procedure before you connect power to the switch.

Follow these steps to attach a grounding lug and cable to the grounding pad on your Catalyst 4500 series switch:

1. Use a wire-stripping tool to remove approximately 0.75 inches (19 mm) of the covering from the end of the grounding wire.

2. Insert the stripped end of the grounding wire into the open end of the grounding lug.

3. Use a crimping tool to secure the grounding wire in the grounding lug.

4. Locate the ground pad on the switch and remove the label that covers the grounding pad.



   Note: The model illustrated is a 4507R. Your switch may look slightly different.

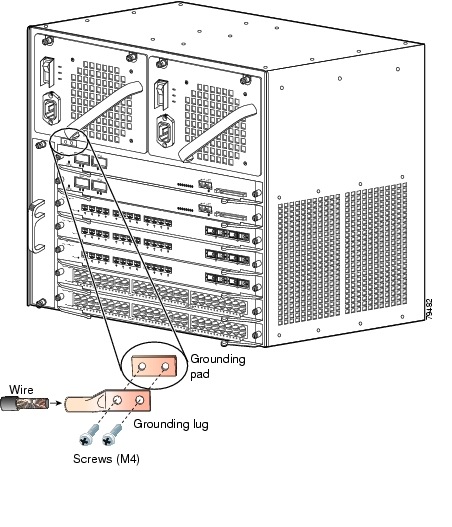

5. Place the grounding lug against the grounding pad, aligning the holes. Insert the two M4 screws through the holes in the grounding lug and grounding pad ( Figure 3-15 and Figure 3-17).

   Ensure that the grounding lug and the attached wire will not interfere with other switch hardware or rack equipment.

6. Tighten the screws to secure the grounding lug to the grounding pad.

7. Use a wire-stripping tool to remove approximately 0.75 inches (19 mm) of the covering from the opposite end of the grounding wire.

8. Connect the stripped end of the ground wire to the appropriate ground point at your site. If needed, use a crimping tool to secure the ground wire to the connector at the ground point.

Connect Power to the Switch

Follow these steps to connect power to the switch:

1. Connect the power supply cord to the power supply on the switch.

2. Connect the power supply cord to the local power source.

   Note: If your switch has multiple power supplies, ensure that you connect power to both power supplies.

3. Move the power switch to the on ( | ) position. The switch takes 2-3 minutes to boot.

Back to Top

Next Step

You have completed hardware setup of your Catalyst 4500 switch.

To configure your switch, refer to Configure a Catalyst 4500 Switch with Cisco Network Assistant.

To make other changes to your switch, refer to the Switch Support Page.

To configure other devices in your network, refer to the Configuration Overview Page.
