Configure Security for Cisco Catalyst Switch with Cisco Network Assistant
|
|
|
|
Introduction
This document explains how to configure security settings for Cisco
Catalyst Switch with Cisco Network Assistant (CNA). This procedure applies to
2900XL, 2940, 2950, 2960, 2970, 3500XL, 3550, 3560, and 3750 model Catalyst
switches.
Back to Top
Requirements
To perform the steps described in this document, you need to have these
items:
In addition, you must:
Back to Top
Configure Security for Cisco Catalyst Switch
This document explains how to configure security settings for a Cisco
Catalyst Switch.
Connect the PC to the Switch
Follow these steps to connect the PC to the Cisco catalyst
switch:
-
Connect a straight-through Ethernet cable from the PC to an
available port on the Cisco Catalyst Switch.
-
Ensure that your PC has an IP address that matches the switch IP
address. For example, if the IP address of the switch is 192.168.10.9,
configure the PC with an IP address between 192.168.10.10 and 192.168.10.254.
For more detailed instructions on how to configure an IP address on your PC,
refer to Configure an IP
Address on Your PC.
Connect to the Switch with CNA
Follow these steps to log in to the switch with CNA:
-
To launch CNA, go to Start >
Programs > Cisco Network Assistant >
Cisco Network Assistant.
-
When the Connect window opens, type
Switch IP address
in the Connect
To field, and click Connect. For
switch-IP-address
, use the switch IP
address that you entered in field L8-L12 of the LAN Addressing
Worksheet.
-
In the Authentication window, enter the
administrative user name and password information that you entered in fields
B10 and B11 of your Internet Worksheet respectively.
Click OK.
Note: If you are unable to connect to the switch with CNA, see
Troubleshoot the Procedure for help.
Back to Top
Configure Security Settings using a Security Wizard
CNA allows you, to configure security settings on your switch with a
security wizard.
The security wizard allows you to configure three different levels of
security:
-
Restrict Access to a Server
-
Restrict Access to a Network
-
Restrict Applications
Note: The instructions in the wizard demonstrate how to set up security
measures with the help of Access Control List (ACL) rules. To use this wizard,
you need to know how the network is designed and you must be able to identify
devices, servers, and networks to which the security restrictions
applies.
Restrict Access to a Server
Follow these steps to restrict unauthorized users from accessing a
specific server using the security wizard:
-
On the Features tab, click Configure >
Security > Security
Wizard.
-

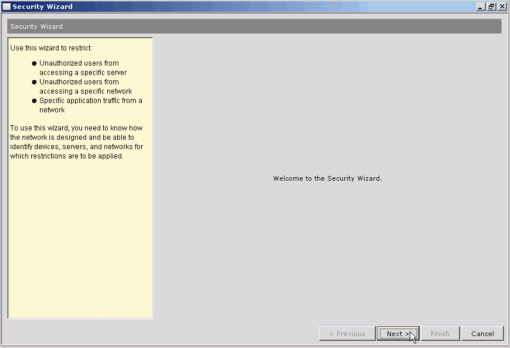

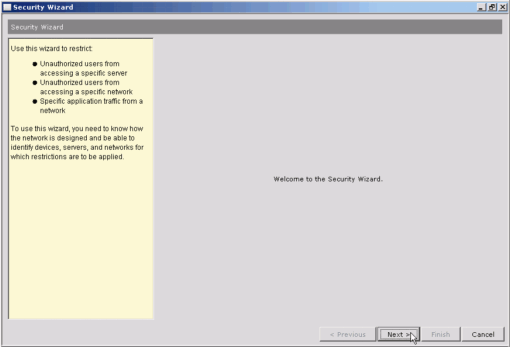

On the Security Wizard window, click
Next.
-

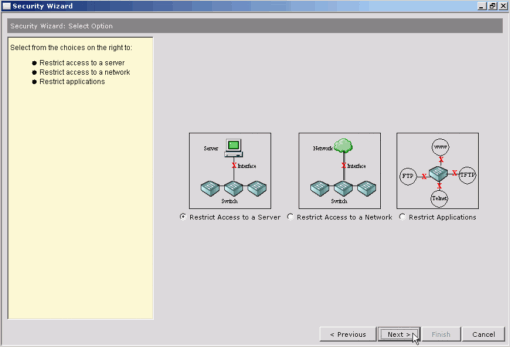

On the Security Wizard: Select Option window,
select Restrict Access to a Server and click
Next.
-
On the Security Wizard: Device Selector window,
select Hostname of the switch from the drop-down menu and
click Next.
-

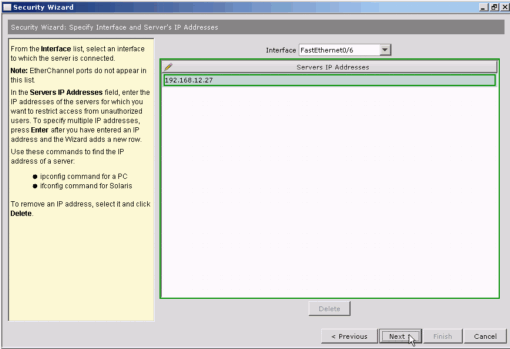

On the Security Wizard: Specify Interface and Servers IP
Addresses window, enter the Server IP addresses and the interface(s)
to which the server is connected.
-
From the Interface list, select an interface to
which the server is connected.
-
In the Servers IP Addresses field, enter the IP
addresses of the servers for which you want to restrict access from
unauthorized users. To specify multiple IP addresses, press
Enter after you have entered an IP address and the Wizard adds
a new row.
-
If you want to remove an IP address, select it from the Servers
IP Addresses list and click Delete.
Note: EtherChannel ports do not appear in the
interface drop-down menu list.
Click Next.
-

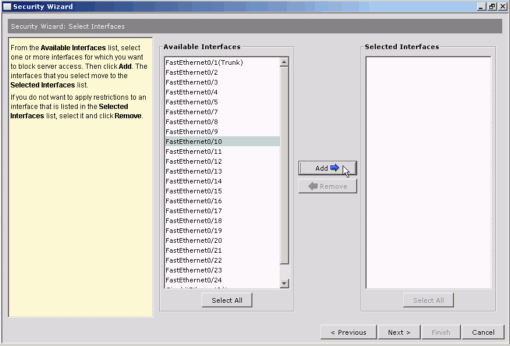

On the Security Wizard: Select Interfaces window,
select one or more interfaces from the Available Interfaces
list for which you want to block server access. Then click Add
button. The interfaces that you select, move them to the Selected
Interfaces list on the right. Click Next. If you do
not want to apply restrictions to an interface that is listed in the
Selected Interfaces list, select it and click
Remove.
Note: In this step, you have configured to restrict any user from
accessing the server specified in step 5 on a particular interface(s). If you
want to deny access to the server using specific Source IP address of the host
or network then, proceed to step 7 else go to step 8.
-

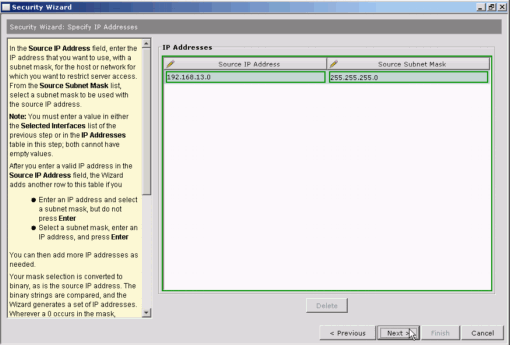

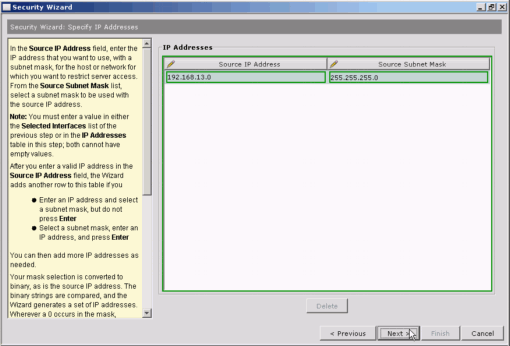

On the Security Wizard: Specify IP Addresses
window, In the Source IP Address field, enter the IP address
that you want to use, with a subnet mask, for the host or network for which you
want to restrict server access. From the Source Subnet Mask
list, select a subnet mask to be used with the source IP address. Click
Next.
For example if you want to restrict Guest Vlan users who can access
any of your servers use the IP address of the Guest VLAN that you entered in
field L6D of the Guest VLAN Addressing Worksheet.
Note: You must enter a value in either the Selected
Interfaces list of the previous step or in the IP
Addresses table in this step; both are not allowed to have empty
values.
-
In the Warning: Security Wizard window, click
OK.
-

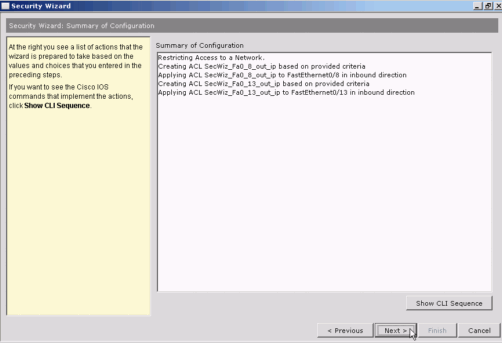

On the Security Wizard: Summary of Configuration
screen, click Next.
-

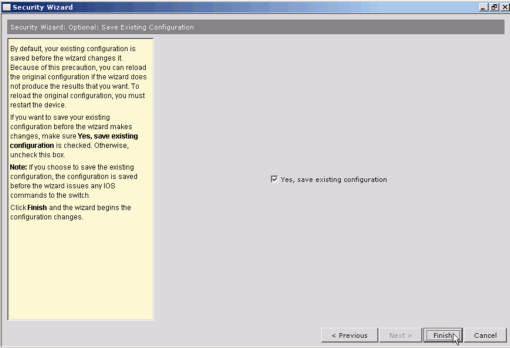

On the Security Wizard: Save Existing
Configuration screen, make sure you select the checkbox and then click
Finish button.
-
In the Info: Security Wizard window, click
OK.
Restrict Access to a Network
Follow these steps to restrict Network access using the security
wizard:
-
On the Features tab, click Configure >
Security > Security
Wizard.
-
On the Security Wizard window, click
Next.
-
On the Security Wizard: Select Option window,
select Restrict Access to a Network and click
Next.
-
On the Security Wizard: Device Selector window,
select Hostname of the switch from the drop-down menu and
click Next.
-

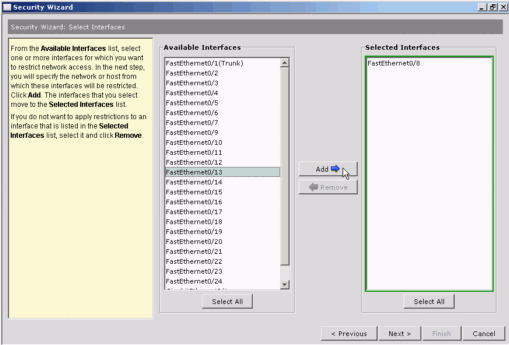

On the Security Wizard: Select Interfaces window,
select one or more interfaces from the Available Interfaces
list for which you want to restrict Network access. Then click the
Add button. The interfaces that you select, move them to the
Selected Interfaces list on the right. Click
Next. If you do not want to apply restrictions to an interface
that is listed in the Selected Interfaces list, select it and
click Remove.
Note: The ACLs created, applies to these interfaces to restrict the
network access which you can specify in next step.
-

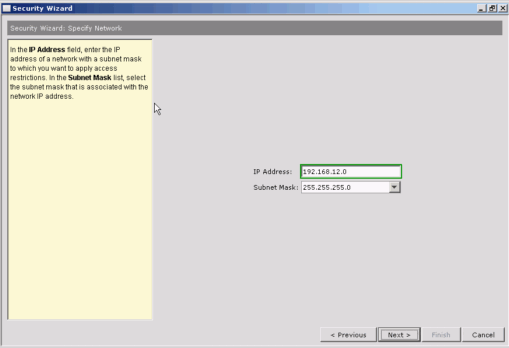

On the Security Wizard: Specify Network window
enter these values:
-
In the IP Address field, enter the IP address of a network with a
subnet mask to which you want to apply access restrictions. For example, if you
want to restrict Guest Vlan users from accessing servers in the Server Vlan,
use the IP address of the Secure Server VLAN that you entered in field L6C of
the Secure Server VLAN Addressing Worksheet.
-
In the Subnet Mask list, select the subnet mask
that is associated with the network IP
address.
-
On the Security Wizard: Specify Network window
enter these values:
-
In the Source IP Address field, enter the IP
address that you want to use, with a subnet mask, for the host or network for
which you want to restrict network access. For example, if you want to restrict
network access to Guest Vlan, use the IP address of the Guest VLAN that you
entered in field L6D of the Guest VLAN Addressing Worksheet.
-
From the Source Subnet Mask list, select a
subnet mask to be used with the source IP address. If the device you selected
is a Catalyst 2950 switch, you must use the source subnet mask that you
selected for the first row in any subsequent
rows.
Note: After you enter a valid IP address in the Source IP
Address field, the Wizard adds another row to this table if, you enter
an IP address and select a subnet mask. Do not press Enter.
Select a subnet mask, enter an IP address, and then press
Enter. You can then add more IP addresses as needed.
-
In the Warning: Security Wizard window, click
OK.
-
On the Security Wizard: Summary of Configuration
screen, click Next.
-
On the Security Wizard: Save Existing
Configuration screen, make sure you select the checkbox and then click
Finish button.
-
In the Info: Security Wizard window, click
OK.
Restrict Applications
Follow these steps to restrict or block applications in your network
using the security wizard:
-
On the Features tab, click Configure >
Security > Security
Wizard.
-
On the Security Wizard window, click
Next.
-
On the Security Wizard: Select Option window,
select Restrict Applications and click
Next.
-

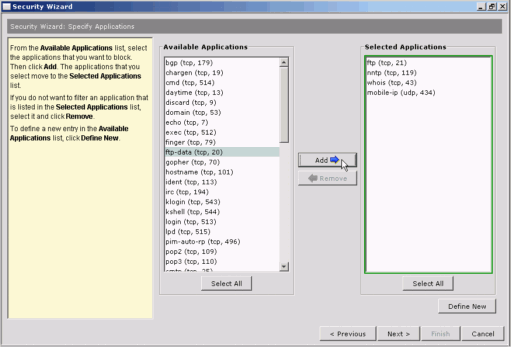

On the Security Wizard: Specify Applications
window, select the applications that you want to block from the
Available Applications list. Then click Add.
The applications that you select, move them to the Selected
Applications list.
Note: To define a new entry in the Available
Applications list, click Define New button and enter
the name and port number of the application you want to block.
-
On the Security Wizard: Device Selector window,
select Hostname of the switch from the drop-down menu and
click Next.
-

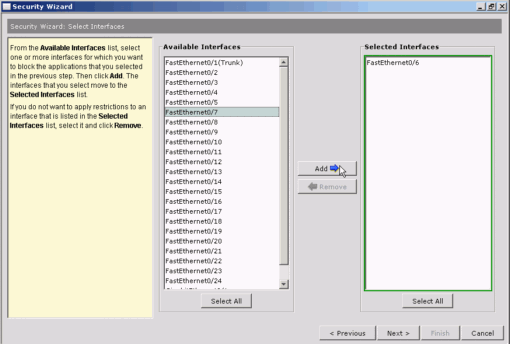

On the Security Wizard: Select Interfaces window,
select one or more interfaces from the Available Interfaces
list, for which you want to block the applications that you have already
selected in the previous step. Then click Add. The interfaces
that you select, move them to the Selected Interfaces list.
Click Next.
Note: : If you do not want to apply restrictions to an interface that
is listed in the Selected Interfaces list, select it and click
Remove.
-
In the Warning: Security Wizard window, click
OK.
-

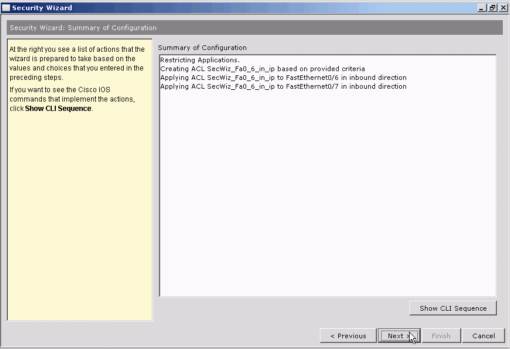

On the Security Wizard: Summary of Configuration
screen, click Next.
-
On the Security Wizard: Save Existing
Configuration screen, make sure you select the checkbox and then click
Finish button.
-
In the Info: Security Wizard window, click
OK.
Back to Top
Configure Port Security
You can use the port security feature to restrict input to an interface
by limiting and identifying MAC addresses of the stations allowed to access the
port. You can also secure a port for which a user-specified action occurs
whenever an address-security violation occurs. If a security violation occurs,
you can configure the port to go either into shutdown mode or restrictive
mode.
Follow these steps to configure Port Security:
-
On the Features tab, click Configure >
Security > Port
Security.
-

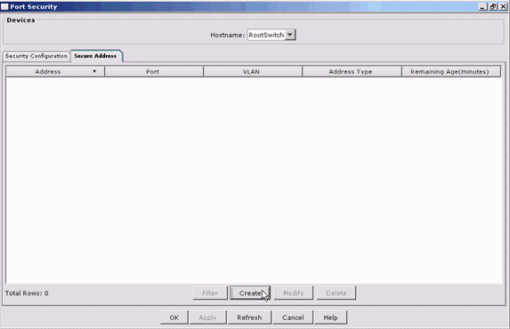

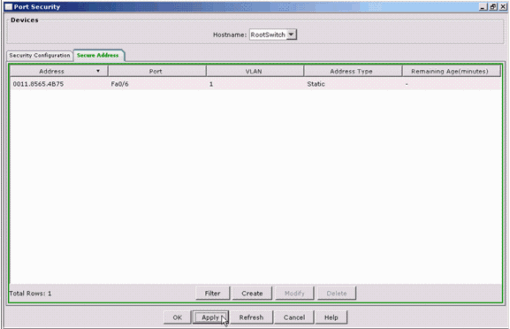

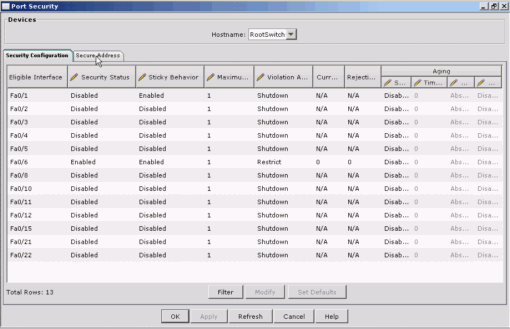

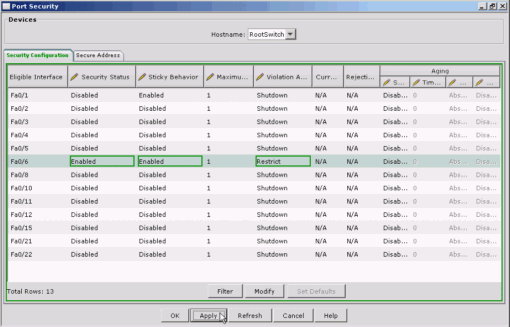

On the Port Security window, select the device
from the Hostname drop down menu and then click on the Security
Configuration tab. The window shows the list of Eligible ports and
shows whether port security is enabled or not. To enable port security on a
particular switch port, click the Security Status field for
the respective port and select Enabled from the drop-down
list.
For example to enable security on port Fa0/6,
click on Security Status field for Fa0/6 and select Enabled
from the drop-down list.
-
To enable Sticky Behavior on the switch port, click the
Sticky Behavior field for the respective port and select
Enabled drop-down list. For example to enable security on port
Fa0/6, click on Security Status field for Fa0/6 and select
Enabled from drop-down list.
Sticky behavior: Sticky behavior shows whether a
sticky MAC address is enabled or not. A sticky MAC address is a secure MAC
address , either dynamic or static, that can be saved in the configuration
file. If saved, it still exists when the switch reloads. The port sticky-learns
the source address of the incoming packets and automatically assigns them as
secure addresses. This continues until the table contains the maximum number of
secure addresses allowed for the port. If a secure address is deleted from the
address table, the port begins sticky learning again. See also
Secure address.
-
The Maximum address Count filed by default,
displays the maximum number of secure addresses that can be associated with
this port. Change the setting by clicking in the cell and entering a new value
range from 1-5120. By default the value is 1 which means, that one station has
the full bandwidth of the port.
-
The Violation Acton field by default displays that the switch port
is in Shutdown mode. You can configure the port to one of these
settings.
-
Shutdown. After a security violation, the port is immediately
shut down.
-
Restrict. After a security violation, a trap is sent to the
network management station.
-
Protect. When the number of secure addresses reaches the maximum
allowed on the port, all packets with unknown addresses are dropped.
Click inside the cell to change the setting and choose
Shutdown, Restrict, or
Protect.
-
Click Apply.
-
On the Port Security window, click Secure
Address tab.
Secure address: A secure address is a manually
entered unicast address that does not age and also it is retained when the
switch reloads. There is only one destination port for a secure address, but
more than one secure addresses can be associated with the port. The switch does
not forward packets to a secure port if the destination address is not a secure
address associated with the port. The number of devices on a secured port can
range from 1 to 132. You can assign the addresses for the devices on the port
or the switch can sticky-learn them. Sticky-learning is when the address table
for a secured port does not contain a full complement of secure addresses. See
also Sticky behavior.
-
Click Create.
-
In the Create Secure Address window enter this
information:
-
In the Address field, enter the MAC address in
the format hhhh.hhhh.hhhh. Use hexadecimal numbers.
-
In the Address type field, select either
Static or Sticky from the drop-down list. If
you select Static, you return the port to the default setting of not secure. If
you select Sticky, you enable sticky learning on the interface.
-
In the Port list, select the interface that you
want to make secure.
-
In the VLAN ID field, enter a VLAN ID if the
selected interface is a trunk port.
Note: This field is available only if the Cisco IOS image running on
the device permits a VLAN assignment.
Click OK.
-
Click Apply.
Back to Top
Next Step
You have completed this procedure.
To make other changes to your switch, refer to
Switch
Support Page.
To configure other devices in your network, refer to the
Configuration
Overview Page.
Back to Top
Troubleshoot the Procedure
This section provides information about common problems that you may
encounter. If this information does not solve your problem, contact the
SMB
Technical Assistance Center (SMB TAC) for assistance.
Problem
|
Cause(s) and Suggested Solution(s)
|
You connected a PC directly to the switch, but you are unable
to launch CNA.
|
Ensure that the power-on self test (POST) is completed
successfully. The SYSTEM LED must be solid green.
After you connect the switch to the PC, you must wait for 30
seconds before you can try to connect. Wait for 30 seconds, and then try to
connect again.
Make sure you type the correct IP address for the switch into
the CNA Connect window.
Ensure that you use the correct cable. You must use a
straight-through cable, not a crossover cable. Refer to
Cable
Descriptions for more information.
|
Back to Top
Related Information
|
|
