Configure Security for Catalyst Express 500 Switch with Cisco Network Assistant




Introduction

This document explains how to configure security settings for a Catalyst Express 500 switch with Cisco Network Assistant (CNA).


Back to Top



Requirements

To perform the steps described in this document, you need to have these items:


Back to Top



Configure Security for Catalyst Express 500 Switch

This document explains how to configure security settings for a Catalyst Express 500 switch.

Configure the Catalyst Express 500 switch

Follow these steps to configure the Catalyst Express 500 switch:

  1. Connect a straight-through Ethernet cable from the PC to an available port on the Catalyst Express 500 switch.

  2. Ensure that your PC has an IP address that matches the switch IP address from field W19 of the Wireless Worksheet. For example, if the IP address of the switch is 192.168.10.9, configure the PC with an IP address between 192.168.10.10 and 192.168.10.254. For more detailed instructions on how to configure an IP address on your PC, refer to Configure an IP Address on Your PC.

Connect to the Switch with CNA

Follow these steps to log in to the switch with CNA:

  1. To launch CNA, go to Start > Programs > Cisco Network Assistant > Cisco Network Assistant.

  2. When the Connect window opens, type Switch IP address in the Connect To field, and click Connect. For switch-IP-address , use the switch IP address that you entered in field L8 of the LAN Addressing Worksheet.


  3. In the Authentication window, enter the administrative user name and password information that you entered in fields B10 and B11 of your Internet Worksheet respectively.


    Click Ok.

    Note: If you are unable to connect to the switch with CNA, see Troubleshoot the Procedure for help.

Configure Network Security

CNA allows you, to set the host access security level to Low, Medium, or High.

  • The Low level adds some security features by default: hence no modifications can be done. The features include:

    1. Enable broadcast storm control for all Catalyst Express 500 devices in the community

    2. Enable port security control for all Catalyst Express 500 devices in the community

  • The Medium level adds a security feature called MAC authentication. This means that a desktop, server, printer, IP phone, access point, switch, or router is connected to the community through a Catalyst Express 500 port. The MAC address must be explicitly added to the MAC authentication table before the MAC address is allowed to access the community.

    Note: You must configure Smartports feature before you configure Medium level security. To configure Smartports, refer to Configure the Catalyst Express 500 Switch.

  • The High level configures 802.1x on Catalyst Express 500 switches. 802.1x is an authentication protocol that requires hosts to provide their usernames and passwords to access the network. The usernames and passwords are forwarded to a RADIUS server, which stores the approved usernames and passwords.

    Note: It is not possible to configure both Medium and High security level at the same time.

Configure Low Level Security

Follow these steps to configure Low level security:

  1. On the Features tab, click Configure > Security > Network Security Settings.

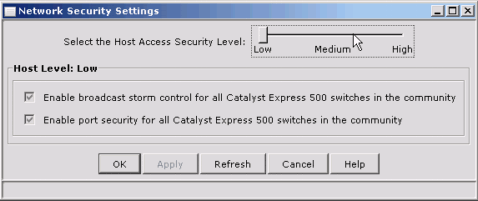

  2. The Network Security Settings window comes up, and both broadcast storm control and port security are enabled by default.


Configure Medium level Security

Follow these steps to configure medium level security:

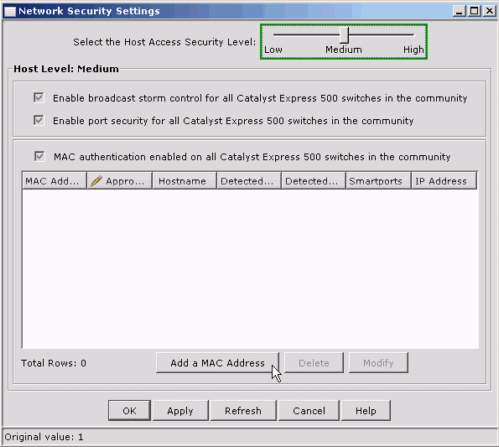

  1. In the Network Security Settings window, next to Select the Host Access Security Level, click and drag the security slider to Medium.


  2. Click Add a MAC Address.


  3. In the Add a MAC Address window, enter the MAC address of the devices that are allowed to access the network.

    Note: The MAC address is the 6- byte physical address of the host device. Enter the MAC Address in this format 0011.8565.4B75 :


    Click Ok.

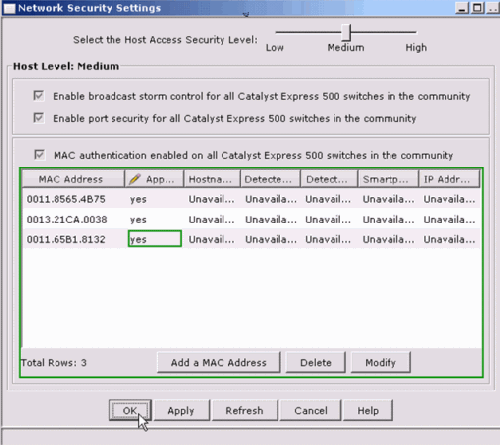

  4. Repeat steps 2 and 3 to add multiple MAC addresses.


    Click OK.

Configure High level Security

Follow these steps to configure high level security:

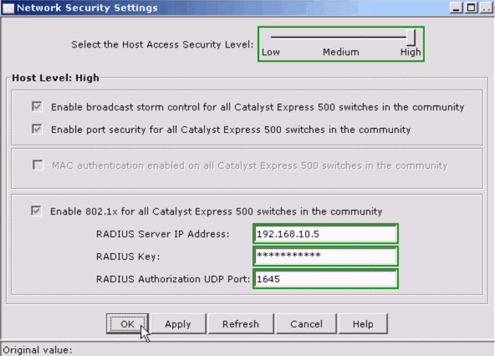

  1. In the Network Security Settings window, next to Select the Host Access Security Level, click and drag the security slider to High.


  2. Configure the high level security with these values:

    1. RADIUS Server IP Address: Enter the IP address of your RADIUS server.

    2. RADIUS Key: Enter the RADIUS key that Catalyst Express 500 switch uses to communicate with the RADIUS server.

    3. RADIUS Authorization UDP Port: Enter a UDP port from 0 to 65535 for RADIUS authorization. If you run Cisco Secure ACS version 4.0 or later, 1645 is the default UDP port. For earlier versions, 1812 is the default UDP port.

    Note: Cisco provides the parameters required to set up the RADIUS server, but does not provide full instructions for any particular RADIUS implementation.


    Click OK.


Back to Top



Next Step

You have completed the configuration of your Catalyst Express 500 switch.

To make other changes to your switch, refer to Switch Support Page.


Back to Top



Troubleshoot the Procedure

This section provides information about common problems that you may encounter. If this information does not solve your problem, contact the SMB Technical Assistance Center (SMB TAC) for assistance.

Problem

Cause(s) and Suggested Solution(s)

You connected a PC directly to the switch, but you are unable to launch CNA

  • Ensure that the power-on self test (POST) is completed successfully. The SYSTEM LED must be solid green.

  • After you connect the switch to the PC, you must wait for 30 seconds before you can try to connect. Wait for 30 seconds, and then try to connect again.

  • Make sure you type the correct IP address for the switch into the CNA Connect window.

  • Ensure that you use the correct cable. You must use a straight-through cable, not a crossover cable. Refer to Cable Descriptions for more information.
