Manually Reset the Password on a Catalyst Switch
|
|
|
|
Introduction
If you have lost or forgotten the password for your Catalyst switch,
you cannot retrieve your original password. Instead, you must connect to the
switch and create a new password.
The SMB Support Assistant Client can help you reset the password and
assign new passwords on the switch. For more information on the Client, refer
to Download the
SMB Support Assistant Client.
If you prefer to reset your password through the command-line
interface, this document describes how to reset your password manually. This
document applies to Catalyst 2940, 2950, 2960, 2970, 3500, 3550, 3560, and 3750
model Catalyst switches.
Note: This document uses a Catalyst 2950 for illustration purposes. The
procedure is the same on all Catalyst switches unless otherwise noted.
Back to Top
Requirements
To perform the steps described in this document, you need to have this
equipment:
-
Physical access to the switch
-
A Windows PC with terminal-emulation software, such as
HyperTerminal
-
A console cable or a rolled cable with an adapter. Refer to
Cable
Descriptions for further information.
-
Approximately 1 hour of network
downtime
Back to Top
Connect to the Switch
You will need console access to your switch in order to reset the
password. To set up console access to the switch, follow these
steps:
-
Connect the RJ-45 connector of the console cable into the console
port on the rear panel of the switch. Connect the DB-9 connector to the PC
serial port. On your PC choose Start > Programs > Accessories
> Communications > HyperTerminal to open HyperTerminal. For
additional information on how to connect a terminal to the console port, refer
to Create a
HyperTerminal Connection.
-

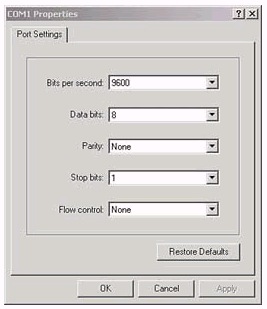

Create a connection with these terminal settings.
-
Unplug the switch's power cable.
-

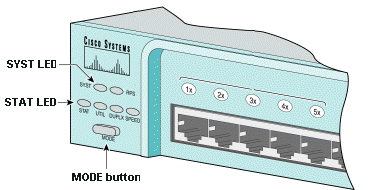

Hold down the Mode button on the left side of the front panel and
reconnect the power cable.
Review this table to determine when to release the Mode button for
your switch.
Model Number
|
LED Behavior
|
2940, 2950
|
Release the Mode button after approximately 5 seconds when
the Status (STAT) LED goes out. When you release the Mode button, the SYST LED
blinks amber.
|
2960, 2970
|
Release the Mode button when the SYST LED blinks amber and
then turns solid green. When you release the Mode button, the SYST LED blinks
green.
|
3550
|
Release the Mode button when the LED above Port1x goes
out.
|
3560, 3750
|
Release the Mode button after approximately 15 seconds
when the SYST LED turns solid green. When you release the Mode button, the SYST
LED blinks green.
|
-
As part of the boot process, the switch displays a message that
indicates whether password recovery is enabled.
Back to Top
Reset the Switch Password
Most switches allow you to reset the password and retain the current
configuration. The Catalyst 3560 does not have password recovery enabled, so
you must reconfigure the switch after you reset the password.
Reset the Password with Password Recovery Enabled
To reset the switch password with password recovery enabled, follow
these steps:
-
As part of the boot process, the switch displays this
message:
The system has been interrupted prior to initializing the
flash filesystem. The following commands will initialize
the flash filesystem, and finish loading the operating
system software:
flash_init
load_helper
boot
-
When the switch: prompt appears,
type flash_init and press Enter.
The switch output indicates whether or not the flash has been
initialized.
-
If the flash has been initialized, you will see output similar to
this example:
switch: flash_init
Initializing Flash...
...The flash is already initialized.
switch:
-
If the flash has not been initialized, you will see output
similar to this example:
switch: flash_init
Initializing Flash...
flashfs[0]: 90 files, 3 directories
flashfs[0]: 0 orphaned files, 0 orphaned directories
flashfs[0]: Total bytes: 7741440
flashfs[0]: Bytes used: 6514176
flashfs[0]: Bytes available: 1227264
flashfs[0]: flashfs fsck took 8 seconds.
...done initializing flash.
Boot Sector Filesystem (bs:) installed, fsid: 3
Parameter Block Filesystem (pb:) installed, fsid: 4
-
Type load_helper and press Enter
to load any boot helper images.
switch: load_helper
switch:
-
Type dir flash: and press Enter
to view the contents of the flash file system.
Note: The dir flash command must end with a colon
(:).
The contents of the switch file system should look similar to this
example.
switch: dir flash:
Directory of flash:/
2 -rwx 109 <date> info
3 -rwx 57 <date> env_vars
4 -rwx 1228 <date> config.text.renamed
5 -rwx 5 <date> private-config.text.renamed
82 -rwx 109 <date> info.ver
6 -rwx 141 <date> a.cli
7 -rwx 3081999 <date> c2950-i6q4l2-mz.121-22.EA1.bin
8 drwx 2688 <date> html
91 -rwx 1376 <date> vlan.dat.renamed
92 -rwx 1275 <date> config.text
93 -rwx 5 <date> private-config.text
1227264 bytes available (6514176 bytes used)
-
Type rename flash:config.text flash:config.old and
press Enter to rename the configuration file. The
configuration file contains the password.
switch: rename flash:config.text flash:config.old
switch:
-
Type boot and press Enter to boot
the system.
This example shows the first few lines of the output.
switch: boot
Loading "flash:c2950-i6q4l2-mz.121-19.EA1.bin"...###############################
################################################################################
############################################################################
File "flash:/c2950-i6q4l2-mz.121-22.EA1.bin" uncompressed and installed, entry
point: 0x80010000
executing...
-
If you have a 3750 switch, type y and press
Enter at the autoinstall prompt.
Would you like to terminate autoinstall? [yes]: y
-
When you are prompted to enter the initial configuration dialog
(setup program), type n to abort. Press Enter
when the switch prompt "Press Return to get started" appears.
Would you like to enter the initial configuration dialog? [yes/no]: n
Press Return to get started.
switch>
-
At the switch> prompt, type
enable and press Enter to enter enable
mode.
switch> enable
switch#
-
Type rename flash:config.old flash:config.text to
rename the configuration file with its original name. Press
Enter in response to the confirmation prompts.
Switch#rename flash:config.old flash:config.text
Destination filename [config.text]?
Switch#
-
Type copy flash:config.text run to copy the
configuration file into memory. Press Enter in response to the
confirmation prompts.
Switch#copy flash:config.text run
Destination filename [running-config]?
1275 bytes copied in 1.048 secs (1217 bytes/sec)
switch#
The configuration file is now reloaded.
-
At the switch# prompt, type
configure terminal and press Enter
to enter configuration mode.
switch#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
switch#(config)
-
Type no enable secret and press
Enter.
switch#(config)#no enable secret
-
Type enable secret
password to change the switch password (field B12 on your
Internet worksheet). Press Enter.
switch#(config)#enable secret
password
-
Type exit to return to enable mode.
switch#(config)#exit
-
Type write memory and press Enter
to write the running configuration to the startup configuration.
switch#write memory
Building configuration...
[OK]
switch#
Reset the Password with Password Recovery Disabled (Catalyst 3560 only)
Password recovery is disabled on the Catalyst 3560, so you must reset
the switch to its default configuration. You can then reconfigure the switch
and set a new password. To reset the switch password with password recovery
disabled, follow these steps:
Warning: This procedure will delete your current switch configuration.
-
As part of the boot process, the switch displays this
message:
The password-recovery mechanism has been triggered, but
is currently disabled. Access to the boot loader prompt
through the password-recovery mechanism is disallowed at
this point. However, if you agree to let the system be
reset back to the default system configuration, access
to the boot loader prompt can still be allowed.
Would you like to reset the system back to the default configuration (y/n)?
Warning: This will cause you to lose your current configuration
-
Enter y (yes) to reset the switch to the default
configuration.
This means that the configuration file in Flash memory and the VLAN
database file will be deleted. When the default configuration loads, you will
be able to reset the password.
Note: If you enter n (no) the normal boot process will
continue as if the Mode button had not been pressed.
-
Type load_helper and press Enter
to load any boot helper images.
switch: load_helper
switch:
-
Type boot and press Enter to boot
the system.
This example shows the first few lines of the output.
The system has been interrupted, and the config file
has been deleted. The following command will finish
loading the operating system software:
boot
switch: boot
-
When you are prompted to start the setup program, enter
n at the prompt.
Continue with the configuration dialog? [yes/no]: n
-
You have completed setting your Catalyst 3560 switch to the default
configuration. Please refer to
Configure
a Catalyst Switch with Cisco Network Assistant for instructions on how
to reconfigure the switch and create a new password.
Back to Top
Next Step
You have completed password recovery for your Catalyst switch.
To make further changes to your switch, refer to the
Switch
Support Page.
To configure other devices in your network, refer to the
Configuration
Overview Page.
Back to Top
