Back up and Recover your Catalyst Switch Configuration with Cisco Network Assistant
|
|
|
|
Introduction
This document explains how to back up and recover the configuration of
your Cisco Catalyst Switch with Cisco Network Assistant (CNA). If the
configuration file on your switch is altered or corrupted, you can use a back
up copy of your configuration to restore your settings. This procedure applies
to the 2900XL, 2940, 2950, 2960, 2970, 3500XL, 3550, 3560, 3750 and CE 500
models of Cisco Catalyst switches.
Back to Top
Requirements
To perform the steps described in this document, you need to have these
items:
-
A
straight-through
Ethernet cable to connect your PC to the switch
-
A Cisco Catalyst switch with Cisco IOS® Software Release 12.0 - 12.2
that is installed and powered on. For Catalyst Express 500 switch you must have
Cisco IOS® Software Release 12.2(25)FY or the later release
Note: For more information on Hardware Setup Procedure for the Catalyst
Switch, refer to the
Switch
Support Page.
-
A PC with CNA installed on it
Note: This document is based on CNA 4.0. If the CNA is not installed in
your PC, or if you need to upgrade your software, refer to
Download and
Install Cisco Network Assistant.
In addition you must:
Back to Top
Back up and Recover your Catalyst Switch Configuration with CNA
This document explains how to back up and recover the configuration of
your Cisco Catalyst Switch.
Connect your PC to the Switch
Follow these steps to prepare for the Back up and to Restore your
switch configuration to your PC:
-
Change the IP address of your PC to match the IP address of the
switch. Refer to the LAN Addressing Worksheet if you do not know the IP address
of the switch. For example, if the IP address of the switch is 192.168.10.2,
change the IP address of the PC to 192.168.10.50. To change the IP address of
your PC, go to Control Panel > Network and Dial-Up
Connections > TCP/IP Properties. For more
information on how to configure an IP address on your PC, refer to
Configure
an IP Address on Your PC.
-
Connect the Ethernet interface of your PC to port 1 of the switch
with a straight-through Ethernet cable.
Note: To connect your PC to the Catalyst Express 500 switch, refer to
the
Configure
Security for Catalyst Express 500 Switch with Cisco Network Assistant on
how.
Back Up your switch configuration
Follow these steps to back up your switch to startup the configuration
file with CNA:
-
To launch CNA, go to Start >
Programs > Cisco Network Assistant >
Cisco Network Assistant.
-
Type the IP address of the switch in the Connect To field.
Click Connect.
Note: You can see the switch in the Front Panel view. Close this
window.
-
On the Features tab, click Maintenance
>Configuration Archive.
-

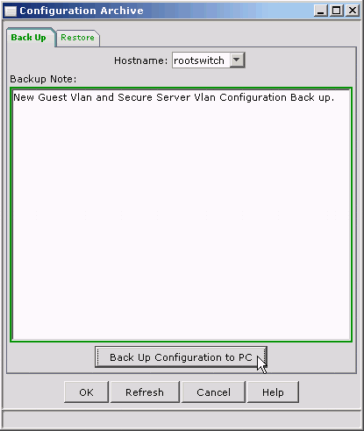

Click Back Up tab in the Configuration Archive
window. Make these changes to the default values:
Click the Back Up Configuration to PC to start the
back up process.
-
If you have not saved your previous configuration of the switch,
you get a Confirmation dialog box. This conformation states whether you want to
save the configuration of the switch to NVRAM or not.
Click Yes to save the configuration.
-

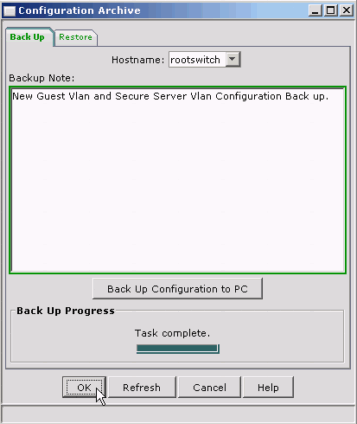

On successful completion of the Back up, this Task complete message
appears:
Click OK to exit the Configuration
Archive window.
Note: The Back up configuration file is stored in this location on your
PC. C:\Documents and Settings\<login-id>\.networkassistant\backups. The
<login-id> is the workstation/network login ID.
Recover your switch configuration
If the configuration file on your switch is altered or corrupted, you
can use a back up copy of your configuration to restore your settings quickly.
You can restore the switch configuration from your PC only, if the switch
configuration back up is done already with CNA.
Follow these steps to recover your startup configuration
file:
-
Type the IP address of the switch in the Connect To field.
Click Connect.
-
On the Features tab, click Maintenance
>Configuration Archive.
-
In the Configuration Archive window, click
Restore. Enter these default values:
-
Select rootswitch from the Hostname
list.
-

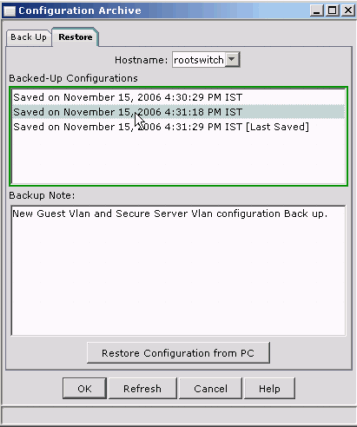

Select the configuration file that you want to restore to the
switch from the Backed-Up Configurations list. Make sure you select the correct
configuration file by verifying the Backup Note that you entered while taking
the backup.
Click Restore Configuration from PC.
-

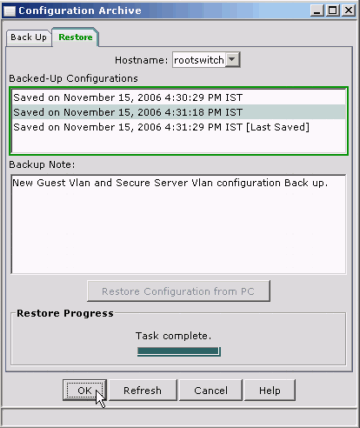

On successful restoration of the Configuration file to the switch,
this Task Complete message appears:
Click OK to exit the Configuration Archive
window.
-
In the Info: Configuration Archive window, click
Reload Device Now.
Click OK. The switch boots with the new
configuration file.
-
Close the CNA Application and launch it again to reconnect to the
switch.
Note: If the new configuration has a different IP address configured
for the switch, you lose your connection to the switch. To reconnect to the
switch with CNA, change the IP address of your PC to match the IP address of
the switch in the new configuration.
Back to Top
Next Step
You have upgraded the software on your Catalyst switch.
If you want to perform other tasks, go to the
Switch
Support Page.
Back to Top
Troubleshoot the Procedure
This section provides information about common problems that you may
encounter. If this information does not solve your problem, contact the
SMB
Technical Assistance Center (SMB TAC) for assistance.
Problem
|
Cause(s) and Suggested Solution(s)
|
You are unable to connect to the switch with
CNA.
|
-
Make sure you type the correct IP address of the switch in
the Connect window.
-
Ensure that the IP address of your PC matches the IP address
of the switch. See Connect the Switch to the PC
for instructions.
|
You receive an error message that configuration Back up
failed.
|
Cisco Network Assistant uses an embedded TFTP server for back
up. The back up can possibly fail, if you use TFTP server in another instance
of Network Assistant or if a third party TFTP server is already running in your
PC.
If you are connected to the switch, close the TFTP server and
repeat the Back up procedure.
If you are still unable to complete the procedure successfully,
contact the
SMB
TAC for assistance.
|
