Introduction

This document describes how to configure wireless security on a Cisco Integrated Services Router (ISR).

Back to Top

Requirements

• You must have completed the steps in Configure Your Router with Security Device Manager

To perform the steps described in this document, you need to have these items:

• Completed ISR Router Worksheet as instructed in the Site Survey

• An Wireless ISR that is powered on and connected to a PC with a straight-through Ethernet cable

• Cisco IOS® Software Release 12.2 installed on the ISR

Back to Top

Overview

Any wireless networking device within range of an AP can receive its radio transmissions. Therefore, you need to configure security settings to prevent unauthorized access to your network. This document explains how to configure security settings to ensure that unauthorized users cannot connect to your AP.

Cisco recommends LEAP for security, an implementation of the EAP/802.1x protocol.

Back to Top

Configure Security Settings

Follow these steps to configure security on the ISR:

Access the Router

Follow these steps to access the ISR:

1. Open your browser and type http://isr-ip-address and press Enter. For isr-ip-address, use the IP address in field W10 of the ISR Router Worksheet.

2. Enter the ISR username and password that you entered in fields B10 and B11 of the Integrated Services Router worksheet and press Enter.

   Note: If you cannot log into the router, see Troubleshoot the Procedure.

3. Click Configure.

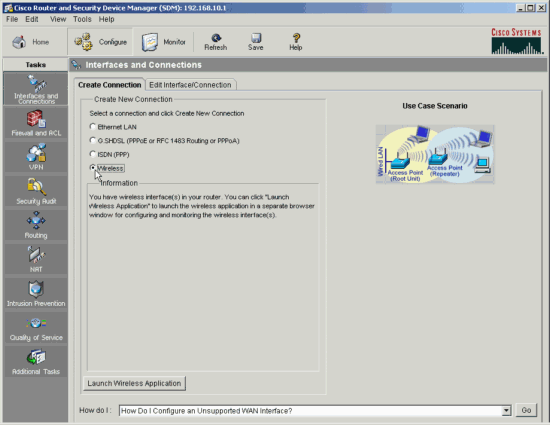

4. In the Create Connection tab, select Wireless and click Launch Wireless Application.



5. The wireless application launches in a separate window.



Local RADIUS Server

Follow these steps to enable a local RADIUS server:

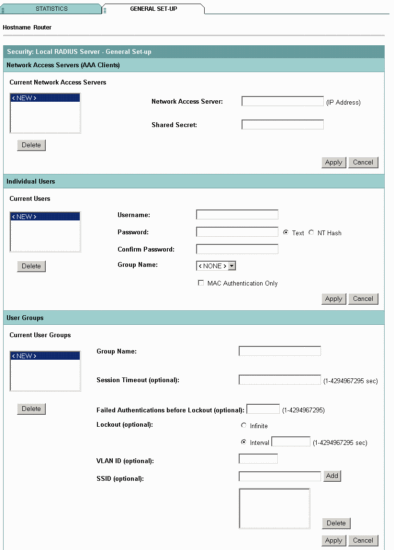

1. Click Wireless Security > Local Radius Server.



2. Click the General Set-Up tab.

3. Scroll to the User Groups area of the Security: Local RADIUS Server screen.

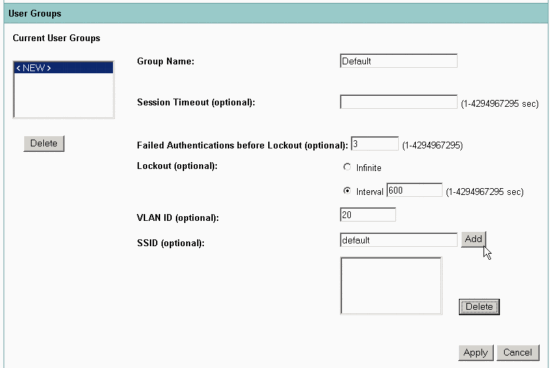

4. Enter these values under User Groups:

   Field	Value
   Group Name	Default
   Session Timeout	(Leave this field blank)
   Failed Authentication before Lockout	3
   Lockout	Interval, 600
   VLAN ID	20
   SSID	(Enter the Wireless Network Name from field W14 of the ISR Router Worksheet)

   Click Add to add the SSID number.



5. Click Apply to save the changes.

Express Security

Follow these steps to set up Express Security:

1. Click Wireless Express Security > Bridging.



2. Enter these values in the Express Security Bridging screen:

   Field	Value
   SSID	(Enter the Wireless Network Name from field W14 of the ISR Router Worksheet)
   VLAN	Enable VLAN ID, 20 Check Native VLAN
   Bridge	1
   Security	EAP Authentication
   RADIUS Server	Enter the router IP address from field W10 of the ISR Router Worksheet.
   RADIUS Server Secret	Enter the RADIUS Password from field W15 of the ISR Router Worksheet.



3. Click Apply to save the changes. If a warning message appears to indicate that you are about to update your settings, click OK to continue.



Encryption Manager

Follow these steps to complete the Encryption Manager:

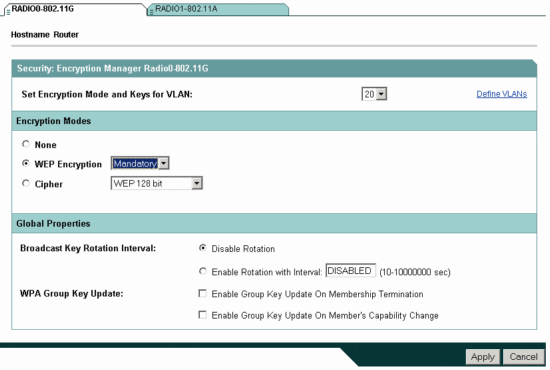

1. Click Wireless Security > Encryption Manager.



2. In the Encryption Modes area, choose WEP Encryption and Mandatory.



3. Click Apply to save the changes. When a warning message appears to indicate that you are about to update your settings, click OK to continue.



Back to Top

Next Step

You have completed basic configuration of the wireless module of your router.

To add additional users to your wireless network, refer to Add or Remove a Wireless User.

If you want to configure an Internet connection, refer to the appropriate document for your connection. If you are not sure what connection type you have, refer to your Internet Worksheet.

• Set Up an Ethernet Connection
• Set Up an ADSL Connection
• Set up a T1/E1/Serial Connection
• Set up an ISDN Connection

Note: If your router is already connected to the Internet, refer to Set Up Internet Security on a Cisco Router.

Back to Top

Troubleshoot the Procedure

This section provides information about common problems that you may encounter. If this information does not solve your problem, contact the SMB Technical Assistance Center (SMB TAC) for assistance.
