Introduction

This document explains how to set up a T1, E1, or serial WAN connection on your router.

Back to Top

Requirements

• You must have completed the Configure Your Router with Security Device Manager document.

• You must have completed the Site Survey, which includes the Internet worksheet for the router.

• A WAN Interface Card (WIC). If you do not have a WIC card or need assistance to install a new WIC, contact the SMB Technical Assistance Center (SMB TAC).

Back to Top

Verify Encapsulation Type

In order to configure your WAN Connection, you need to verify the encapsulation that the connection uses.

Consult the Internet Worksheet to determine the encapsulation type that your WAN connection will use (A22). Then select the appropriate section to configure your connection:

• If your connection uses HDLC encapsulation, see Set Up a Connection with HDLC Encapsulation.

• If your connection uses PPP encapsulation, see Set Up a Connection with PPP Encapsulation.

• If your connection uses Frame Relay encapsulation, see Set Up a Connection with Frame Relay Encapsulation.

Note: If you have a Fractional T1 connection that uses fewer than 24 channels, contact SMB Technical Assistance Center (SMB TAC) for assistance.

Back to Top

Configure Your WAN Connection

To configure your WAN connection, follow these steps:

Set Up a Connection with HDLC Encapsulation

To set up a T1 connection with HDLC encapsulation, follow these steps:

1. Enter the IP address of your router in a browser window to open Security Device Manager (SDM). For more information about how to launch SDM, refer to the Configure your Router with Security Device Manager document.

2. Click Configure > Interfaces and Connections.

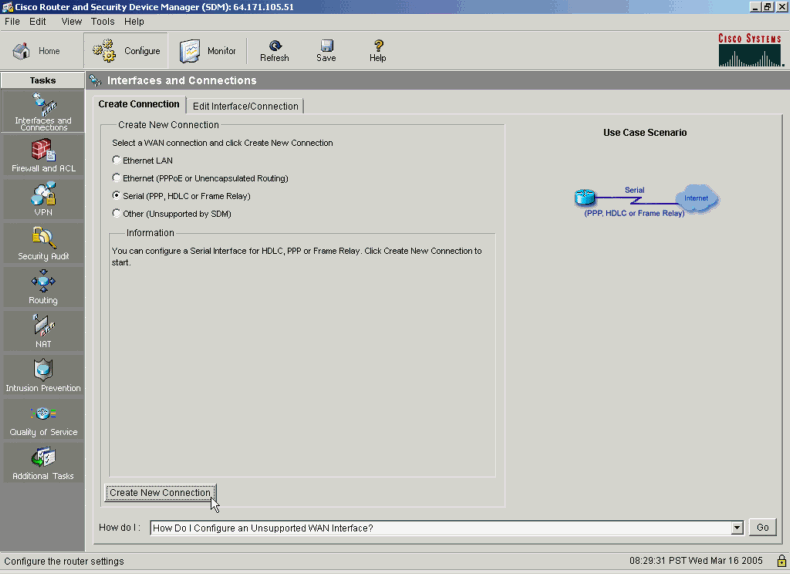

3. Choose Serial (PPP, HDLC, or Frame Relay) and click Create New Connection.



4. Click Next at the Welcome to the Serial WAN Configuration Wizard screen.

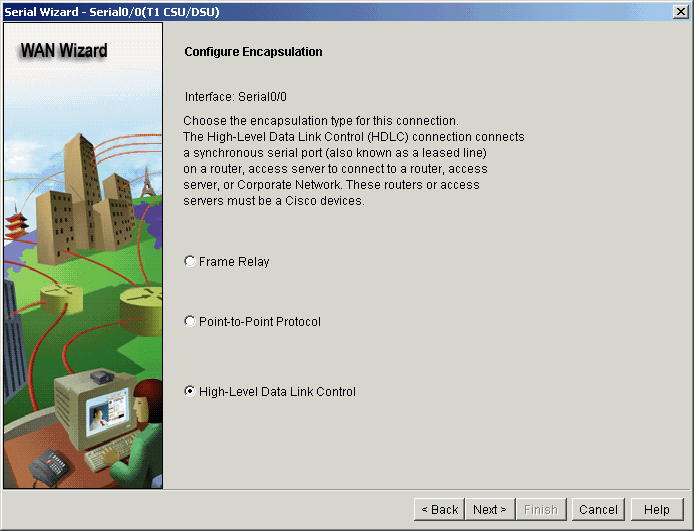

5. Choose High-Level Data Link Control and click Next.

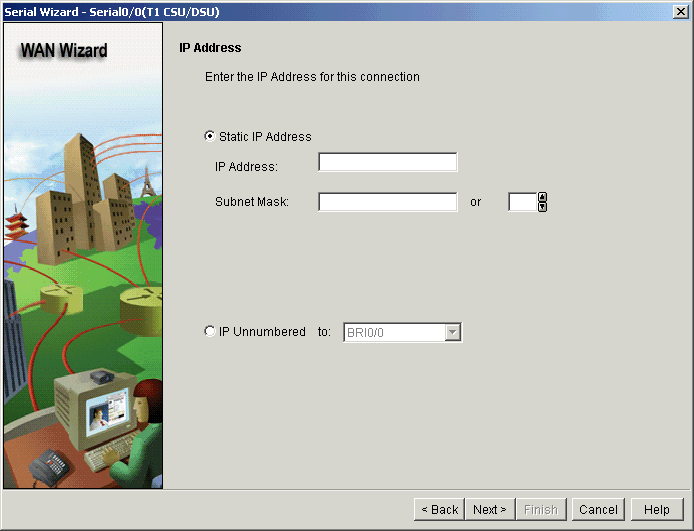

6. If you have an WAN connection with a static IP address, enter the router IP address and subnet mask that you entered in the Internet Worksheet (B46, B41). If you have WAN connection that is unnumbered, choose IP Unnumbered and select the first available LAN interface such as Ethernet0, FastEthernet0 or FastEthernet0/0.



7. Choose these clock settings:

   • Clock Source: Choose line unless your Internet Service Provider (ISP) recommends a different setting.

   • T1 Framing: Enter the value you entered in the Internet Worksheet (A21).

   • Linecode: Enter the value you entered in the Internet Worksheet (A20).

   • Data Coding: Choose normal unless your ISP recommends a different setting.

   • Facilities Data Link(FDL): Choose none unless your ISP recommends a different setting.

   • Line Build Out(LBO): Choose none unless your ISP recommends a different setting.

   • Remote-loopback Request: Choose full unless your ISP recommends a different setting.



8. Review the configuration in the Summary screen and click Finish.

9. The Commands Delivery Status screen appears. Click OK to confirm.

10. Click Save to save your new configuration.



11. Click File > Exit to exit SDM.



Set Up a Connection with PPP Encapsulation

To set up a T1 connection with HDLC encapsulation, follow these steps:

• Encapsulation (Y/N)

• Encapsulation type

  (A22)

1. Enter the IP address of your router in a browser window to open Security Device Manager (SDM). For more information about how to launch SDM, refer to the Configure your Router with Security Device Manager document.

2. Click Configure > Interfaces and Connections.

3. Choose Serial (PPP, HDLC, or Frame Relay) and click Create New Connection.



4. Click Next at the Welcome to the Serial WAN Configuration Wizard screen.

5. Choose Point-to-Point Protocol and click Next.



6. Enter the router IP address and subnet mask that you entered in the Internet Worksheet (B46, B41).

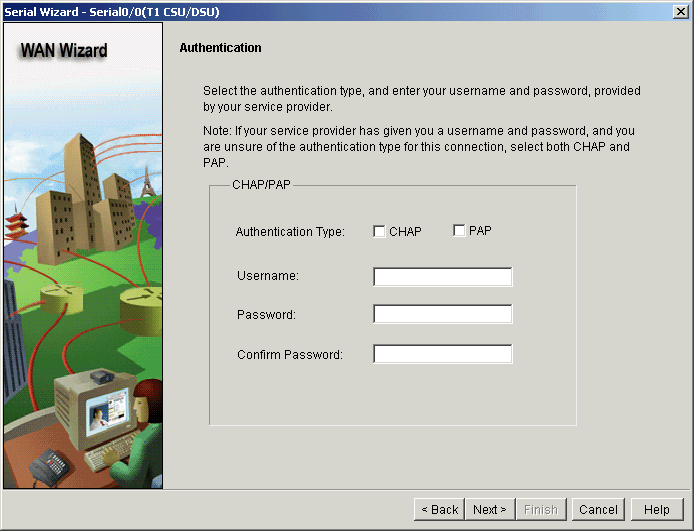

7. Choose the Authentication Type and authentication Username and Password that you entered in the Internet Worksheet (A25, A26, A27).



8. Choose these clock settings:

   • Clock Source: Choose line unless your Internet Service Provider (ISP) recommends a different setting.

   • T1 Framing: Enter the value you entered in the Internet Worksheet (A21).

   • Linecode: Enter the value you entered in the Internet Worksheet (A20).

   • Data Coding: Choose normal unless your ISP recommends a different setting.

   • Facilities Data Link(FDL): Choose none unless your ISP recommends a different setting.

   • Line Build Out(LBO): Choose none unless your ISP recommends a different setting.

   • Remote-loopback Request: Choose full unless your ISP recommends a different setting.



9. Review the configuration in the Summary screen and click Finish.

10. The Commands Delivery Status screen appears. Click OK to confirm.

11. Click Save to save your new configuration.



12. Click File > Exit to exit SDM.



Set Up a Connection with Frame Relay Encapsulation

To set up a T1 connection with HDLC encapsulation, follow these steps:

1. Enter the IP address of your router in a browser window to open Security Device Manager (SDM). For more information about how to launch SDM, refer to the Configure your Router with Security Device Manager document.

2. Click Configure > Interfaces and Connections.

3. Choose Serial (PPP, HDLC, or Frame Relay) and click Create New Connection.



4. Click Next at the Welcome to the Serial WAN Configuration Wizard screen.

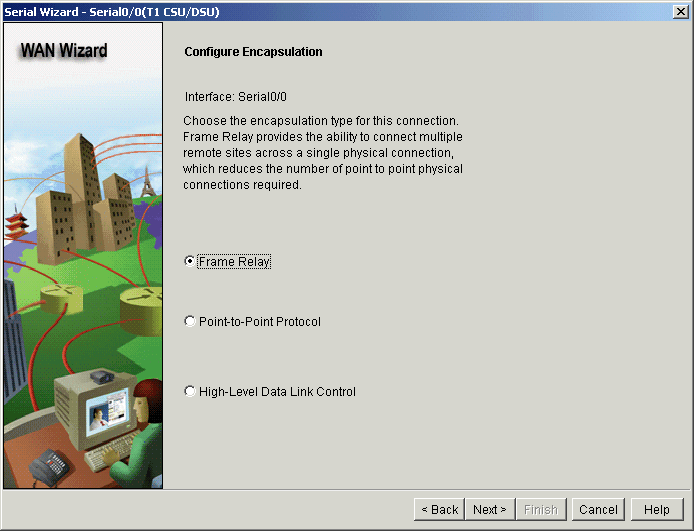

5. Choose Frame Relay encapsulation and click Next.



6. Enter the router IP address and subnet mask that you entered in the Internet Worksheet (B46, B41).

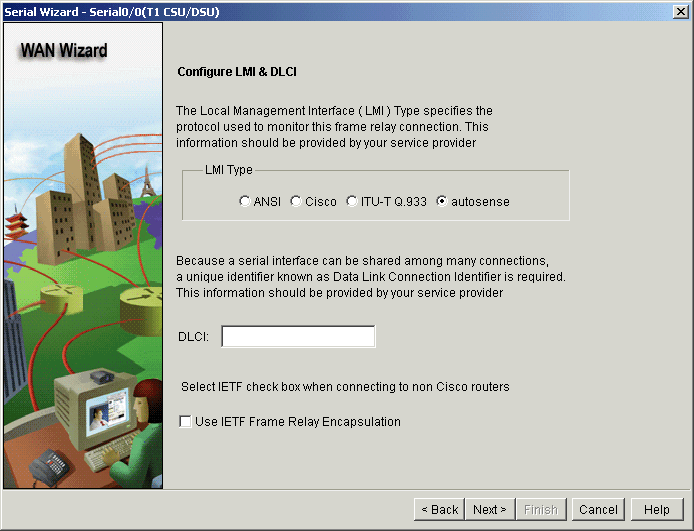

7. Choose autosense in the LMI Type field unless your ISP recommends a different setting. Enter the DLCI value that you entered in the Internet Worksheet in the DLCI field (A24). Check the Use IETF Frame Relay Encapsulation box if you are connecting to a Frame Relay network with non-Cisco equipment. For more information, consult your Internet Service Provider (ISP).



8. Choose these clock settings:

   • Clock Source: Choose line unless your Internet Service Provider (ISP) recommends a different setting.

   • T1 Framing: Enter the value you entered in the Internet Worksheet (A21).

   • Linecode: Enter the value you entered in the Internet Worksheet (A20).

   • Data Coding: Choose normal unless your ISP recommends a different setting.

   • Facilities Data Link(FDL): Choose none unless your ISP recommends a different setting.

   • Line Build Out(LBO): Choose none unless your ISP recommends a different setting.

   • Remote-loopback Request: Choose full unless your ISP recommends a different setting.



9. Review the configuration in the Summary screen and click Finish.

10. The Commands Delivery Status screen appears. Click OK to confirm.

11. Click Save to save your new configuration.



Back to Top

Verify WAN Connection

To verify your WAN connection, follow these steps:

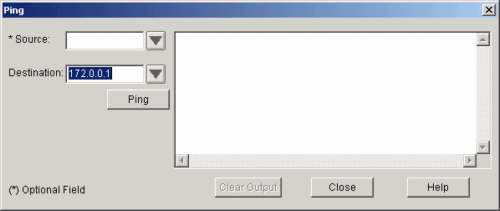

1. Click Tools > Ping



2. Enter the ISP router address in the Destination Field. Use the value that you entered in the Internet Worksheet (B47).



3. Click Ping.

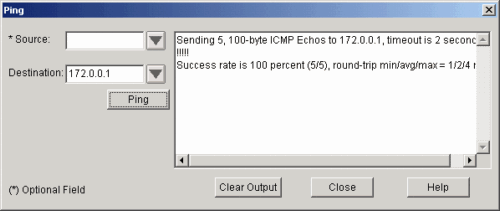

4. Review the results. If the ping success rate was 100%, proceed to the next step. If the ping success rate was less than 100%, see the Troubleshoot WAN Connection section.



5. Click File > Exit to exit SDM.



Back to Top

Next Step

You have now set up a T1 WAN connection.

You can now set up firewall and security options on your router. For instructions, refer to the Set Up Internet Security on a Cisco Router document.

Back to Top

Troubleshoot the Procedure

This section provides information about common problems that you may encounter. If this information does not solve your problem, contact the SMB Technical Assistance Center (SMB TAC) for assistance.

Troubleshoot WAN Connection

To troubleshoot your WAN connection, follow these steps:

1. If you are using SDM, click File > Exit to exit SDM.

2. Create a terminal connection to the router. For more information, refer to the Create a HyperTerminal Connection document.

3. Log into the router. The default login is username cisco, password cisco. Otherwise, use the administrator login and password that you entered in the Internet Worksheet (B10, B11).

   Username: cisco
   Password:

4. Type show interface serial0/0 and press Enter.

   Router#show interface serial0/0
   FastEthernet0/0 is up, line protocol is down !--- Interface state

     Hardware is Gt96k FE, address is 0011.21a8.5ca2 (bia 0011.21a8.5ca2)
   !--- Output truncated



   Note: If the router displays an error, try the commands show interface serial0 or show interface serial0/1.

5. The router displays the interface state on the first line of output. Note the interface state and use the table to determine your problem and the appropriate solution.

   Interface physical status:	Line Protocol Status	Action
   Up	Up	This interface status indicates that the interface functions properly and the router can communicate with the remote device on the WAN.
   Administratively Down	Down	This interface status indicates that the interface is disabled in the router configuration. To enable your interface, follow these steps: Type interface serial0/0 and press Enter. Type no shutdown and press Enter. Type end to exit configuration mode. Type write memory to save the new configuration.
   Down	Down	This interface status indicates that the WAN interface is unable to communicate with a remote device. Your router configurations do not match the configurations used by your Internet Service Provider (ISP). Contact your ISP to verify that you have the correct settings. Physical WAN connection is not in place. Ensure that the router is properly plugged into the WAN connection and that your ISP has completed installation of the WAN connection. Verify with your Internet Service Provider (ISP) that service is ready for use. Make a note of your current interface state and your current configuration before you contact your ISP.
   Up	Down	This interface status indicates that the interface is enabled and the router is physically connected to a remote WAN device but the interface cannot communicate properly with the remote WAN device. Your configuration partially matches the settings used in the ISP network. Contact your ISP to verify that you have the correct settings. Check to ensure that you have the proper cable type attached to your WAN connection. Make a note of your current interface state and your current configuration before you contact your ISP. For more information about cable types refer to the Cable Descriptions document.
   Up	Up (looped)	This interface status indicates that a device on the Internet Service Provider (ISP) network is in loopback mode. Contact your ISP for further assistance.
