Step 2: Hardware Setup Procedure for Cisco 2800 Series Routers
|
|
|
|
Introduction
This document describes how to install your Cisco 2800 series router.
The Cisco 2800 series features integrated service routers (ISR) that offer
high-speed data, security, and voice features.
Back to Top
Requirements
To install the 2800 series router, you need to have these items:
-
Completed worksheets as instructed in the
Site
Survey, which includes the Internet Worksheet for the
router
-
The router and power cord
-
Access to local AC power
-
A PC with an Ethernet card
-
A
crossover
Ethernet cable
Back to Top
Install the Router
Follow these steps to install your 2800 series router:
Review Safety Information
Before you install your router, read the
Cisco
2800 Series Regulatory Compliance and Safety Information.
As advised in this document, the router should be connected to a
reliable earth ground when in use.
Set Up the Chassis
If you want to install the router on a desktop or shelf, follow these
steps:
-
Place the router upside-down on a smooth, flat
surface.
-
Peel the rubber feet from the black adhesive strip and attach them
to the four corners of the bottom of the chassis.
-
Place the router top-side up on a flat, smooth, secure surface.
Position the router where you have access to both front and back panels.
Caution: Do not place anything on top of the router that weighs more than
10 pounds (4.5 kg). Excessive weight on top could damage the chassis.
Connect Power to the Router
Follow these steps to connect power to the router:
-
Connect the power cord to the power socket on the front panel of
the router.

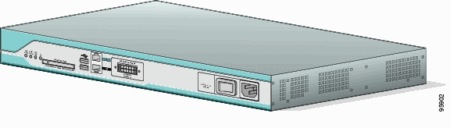

Note: This illustration shows the 2811 model. The 2801 model has the
power socket on the back panel.
-
Connect the other end of the power cord to a standard AC power
outlet.
-
Press the power switch to the on ( | )
position.
-
To confirm that the router has power, verify that the SYS PWR LED
on the front panel is on. The SYS PWR LED blinks slowly until the router has
finished the boot process.
Connect the Router to a PC
To configure the router, you must connect the router to a PC with a
crossover Ethernet cable. Follow these steps:
-
Connect one end of the Ethernet cable to the 10/100 BaseT Fast
Ethernet port on the router.
Caution: Always connect the Ethernet cable to the yellow Ethernet port on
the router. If you connect the cable to the wrong port, you may damage your
router.
-
Connect the other end of the Ethernet cable to the RJ-45 port on
the Ethernet card installed in the PC.
Back to Top
Verify Your Installation
To verify your installation, check for normal LED activity, as
described in this table. All lights are green when activity is normal. If you
do not see normal LED activity, contact the
SMB
Technical Assistance Center (SMB TAC) for assistance.
LED
|
Meaning
|
SYS PWR
|
-
Solid green when the system operates
normally.
-
Blinks green when system is booting or in the ROM
monitor.
-
Amber when there is a system error.
-
Off when there is no power or system board is
faulty.
|
AUX PWR
|
|
SYS ACT
|
Blinks to indicate network or system activity.
|
CF
|
On when flash memory is busy. Do not remove the CompactFlash
memory card when this light is on.
|
Back to Top
Next Step
You have completed hardware installation and are ready to configure
your router using Security Device Manager (SDM). SDM is a configuration tool
that allows you to configure LAN and WAN interfaces, routing, Network Address
Translation (NAT), firewalls, VPNs, and other features on your router.
For further instructions, refer to
Configure
Your Router with Security Device Manager.
Note: If you have an ASA Security Appliance in your network, refer to
Configure
Your Router with Security Device Manager for ASA.
Back to Top
