Configure Cisco Easy VPN Remote on a Router
|
|
|
|
Introduction
Cisco Easy VPN Remote allows Cisco routers to receive security
policies upon connection to a Cisco Easy VPN Server, minimizing configuration
requirements at the remote location. This document explains how to configure
Cisco Easy VPN Remote on your router.
Note: This document uses examples from SDM version 2.0. Other versions of
SDM can display different output.
Back to Top
Requirements
You need the following items to use this document:
Back to Top
Configure Cisco Easy VPN Remote on a Router
Follow these steps to set up a Cisco Easy VPN Server on your
router:
Configure Easy VPN Remote
Follow these steps to configure an Easy VPN Remote:
-
Open a web browser and type
http://
router-IP-address
in the Address
field. Use the IP address that you entered in field L6A of the LAN Addressing
Worksheet. Press Enter to launch SDM. For more information
about how to launch SDM, refer to
Configure
your Router with Security Device Manager.
-
Click Configure.
-
Click VPN.
-
On the VPN Screen, click Easy VPN
Remote.
-

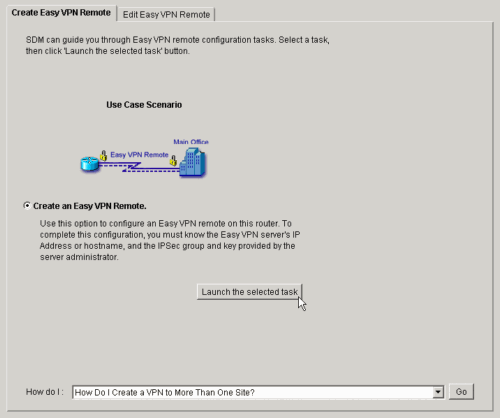

On the Create Easy VPN Remote Screen, click Launch the
selected task.
-

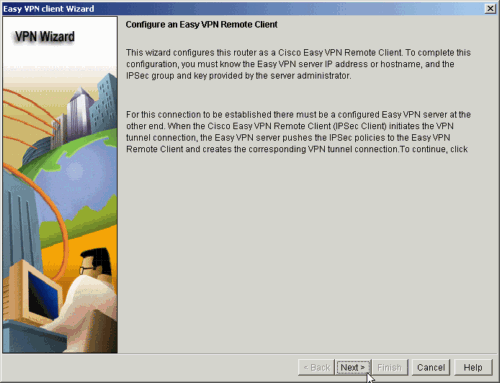

On the Configure a Primary Easy VPN Remote Connection screen, click
Next.
-

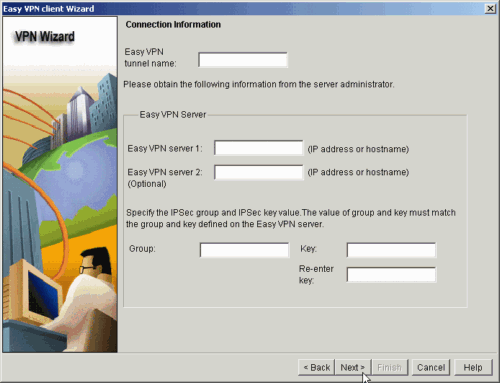

On the Connection Information screen, enter these settings:
-
In the Easy VPN tunnel name field, enter the tunnel name for this
connection that you entered in field R21 of the Internet
worksheet.
-
In the Easy VPN Server 1 field, enter the IP address or Hostname
of the Easy VPN Server that you entered in field R33 of the Internet
Worksheet.
-
In the Group field, enter the Group name that you entered in
field R21 of the Internet Worksheet.
-
For Key, enter the Key from field R22 of the Internet Worksheet.
Enter the key again in the Re-enter Key
field.
-
Click Next.
-

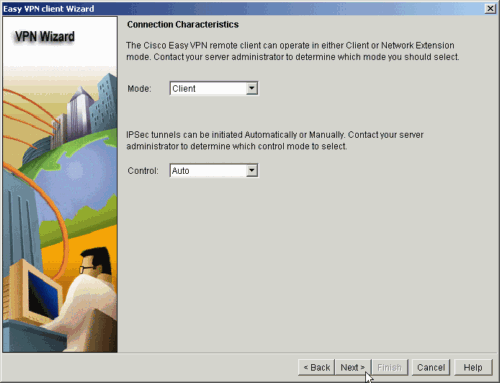

On Connection Characteristics screen, choose these values:
-
In the Mode field, choose
Client.
-
In the Control field, choose
Auto.
Click Next.
-

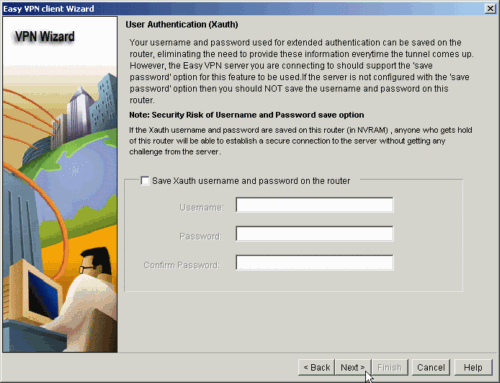

On the User Authentication (XAuth) screen, check Save Xauth
username and password on the router and enter these values:
-
Next to Username, enter the Remote VPN User name that you entered
in field R40 of the Internet Worksheet.
-
Next to Password, enter the Remote VPN User
password.
-
Next to Confirm Password, re-enter the Remote VPN User
password.
-

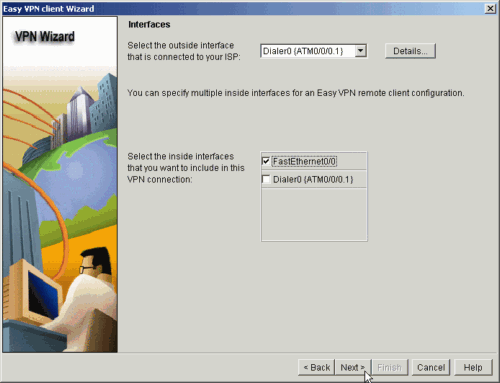

On the Interfaces screen, enter these values:
-
For outside interface, choose the interface of your WAN
connection that you entered in field B37 of the Router
Worksheet.
-
For inside interface, check the LAN interface that you entered in
field B35 of the Router
Worksheet.
-
On the summary screen, click Finish to complete
the VPN wizard. Click OK to confirm.
-
Click the Save icon to save the new
configuration.
