Step 3: Download and Install Security Device Manager
|
|
|
|
Introduction
Security Device Manager (SDM) allows you to manage your Cisco router
with a graphical web interface. This document explains how to install SDM on
your router if SDM is not already installed on your router.
Back to Top
Requirements
To perform the steps described in this document, you need to have these
items:
Back to Top
Prepare Your Router to Support SDM
Before you download SDM, you need to make changes to your router to
support SDM. To prepare your router to support SDM, follow these steps:
Connect to the Router
To connect to your router, follow these steps:
-
Create a HyperTerminal connection to your router. For more
information about how to create a HyperTerminal connection refer to the
Create a
HyperTerminal Connection document.
-
Log into the router. The default login is username cisco, password
cisco. Otherwise, use the administrator login and password you entered in the
Internet Worksheet (B10 and B11).
Username: cisco
Password:
Note: If you do not know the password for your router, refer to
Reset
the Password on the Router.
-
Type enable to access the privileged
mode. If you have set an enable password, use the password that you entered in
the Internet Worksheet (B12).
Router> enable
Router#
Verify the Software Image on the Router
To confirm the version of Cisco IOS® software on your router, follow
these steps:
Type show version to view your software
version.
The command-line output looks similar to this example:
Router# show version
Cisco IOS Software, C831 Software (C831-K9O3Y6-M), Version 12.3(8)YG, RELEASE SOFTWARE (fc1)
Synched to technology version 12.3(10.3)T2
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2004 by Cisco Systems, Inc.
Compiled Thu 16-Dec-04 23:46 by ealyon
If your Cisco IOS software version is earlier than 12.3, you must
upgrade your software. For detailed instructions, refer to
Upgrade
the Software Image on a Cisco Router.
Verify Router Flash Memory
To verify the amount of space available in flash memory, type
show flash to display details about flash memory
usage.
Router#show flash
System flash directory:
File Length Name/status
1 5638936 c831-k9o3y6-mz.123-2.XC2.bin
[5639000 bytes used, 19264680 available, 24903680 total]
24576K bytes of processor board System flash (Read/Write)
If you have at least 8 MB (8000000 bytes) available in flash memory,
you do not need to remove files from flash memory in order to install
SDM.
Note: If you have a wireless router, you need 9.7 MB available in flash
memory to install Security Device Manager (SDM) with the wireless configuration
module.
If you have less than 8 MB available in flash memory, you need to
delete files before you install SDM. See Reclaim Flash
Memory for instructions. If you have less than 8 MB of total flash
memory, contact the
SMB
Technical Assistance Center (SMB TAC) for assistance.
Erase Webflash Memory
If you have an 830 series router, you need to remove Cisco Router Web
Setup Tool (CRWS) files from from webflash memory in order to access SDM. To
remove the files from webflash memory, follow these steps:
-
Type erase webflash and press
Enter, and press Enter again to
confirm.
Router#erase webflash
Erasing the webflash filesystem will remove all files! Continue? [confirm]
-
The router displays this message during the
erase.
Erasing device... eeeeeeeeeeeeeeee ...erased
Erase of webflash: complete
Router#
Configure Your Router to Support SDM
To configure your router to support SDM, follow these steps:
-
Type configure terminal and press
Enter to enter configuration mode.
Router# configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#
-
Type ip http server and press
Enter to enable HTTP server.
Router(config)#ip http server
-
Type ip http secure-server and press
Enter to enable Secure HTTP server.
Router(config)#ip http secure-server
-
Type ip http authentication local to enable local
authentication.
Router(config)#ip http authentication local
-
Type ip http timeout-policy idle 600 life 86400 requests
10000 and press Enter.
Router(config)#ip http timeout-policy idle 600 life 86400 requests 10000
-
Type username username
privilege 15 password 0 password
to create
a user account with configuration privileges. Use the username and password
that you entered in the LAN Addressing Worksheet (B10 and B11).
Router(config)#username username privilege 15 password 0 password
Note: You will use this username and password to access SDM.
-
Enter these commands to enable telnet and SSH:
-
Type line vty 0 4 and press
Enter.
Router(config)#line vty 0 4
-
Type privilege level 15 and press
Enter.
Router(config-line)#privilege level 15
-
Type login local and press
Enter.
Router(config-line)#login local
-
Type transport input telnet ssh and press
Enter.
Router(config-line)#transport input telnet ssh
-
Type exit and press
Enter.
Router(config-line)#exit
Router(config)#
-
Type interface FastEthernet0 and press
Enter to configure the Ethernet interface.
Note: The name of the Ethernet interface varies with some router
models. Review this table to confirm the name for the Ethernet interface on
your router. For example, if your router interface lists Ethernet0, you need to
enter the command interface Ethernet0.
Router Model
|
First Ethernet Interface
|
SOHO
|
Ethernet0
|
800 Series
|
Ethernet0
|
1760
|
FastEthernet0/0
|
1700 Series
|
FastEthernet0
|
1800
|
FastEthernet0/0
|
2600 Series
|
FastEthernet0/0
|
2800
|
FastEthernet0/0
|
Router(config-if)#interface FastEthernet0
Router(config-if)#
-
Type ip address ip-address
subnet-mask
with the IP address and subnet mask from
the LAN Addressing Worksheet (L6A and L2A). Press
Enter.
Router(config-if)#ip address 192.168.10.1 255.255.255.0
-
Type no shutdown and press
Enter to make the interface active.
Router(config-if)# no shutdown
-
Type end to leave configuration
mode.
Router(config)#end
Router
-
Type write memory to save the
configuration.
Router(config)#write memory
Building configuration...
[OK]
-
Click File > Exit to exit
HyperTerminal.
Back to Top
Download SDM
To download the SDM files, follow these steps:
Note: SDM is provided on the CD included with your router. However, Cisco
recommends that you download the software from Cisco.com to ensure that you
have the most recent version.
-
Open http://www.cisco.com/pcgi-bin/tablebuild.pl/sdm.
-
Click the SDM-Vnn.zip file for the SDM version
you want download.
-
Review the End User License Agreement and click
Accept.
-
Click the SDM-Vnn.zip file to download the
file.
-
Log in with your Cisco.com user ID and password to begin the
download.
-
Extract the SDM-Vnn.zip file to your PC
desktop. For more information about how to extract the files from .zip format,
review the documentation for your zip utility.
Confirm Connectivity to the Router
To confirm connectivity between your PC and the router, follow these
steps:
-
Change your PC IP address to an address that matches the router
Ethernet IP address you entered in the LAN Addressing Worksheet (fields
L6A and L2A). For example, if your router has
IP address 192.168.10.1, change your PC to 192.168.10.2. To change your PC IP
address, go to Control Panel > Network and Dial-Up Connections >
TCP/IP Properties. For more information on how to configure an IP
address on your PC, refer to
Configure
an IP Address on Your PC.
-

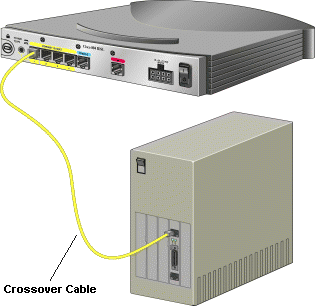

Connect the crossover cable to the RJ-45 Ethernet port of your PC
and the yellow Ethernet port of the router.
-

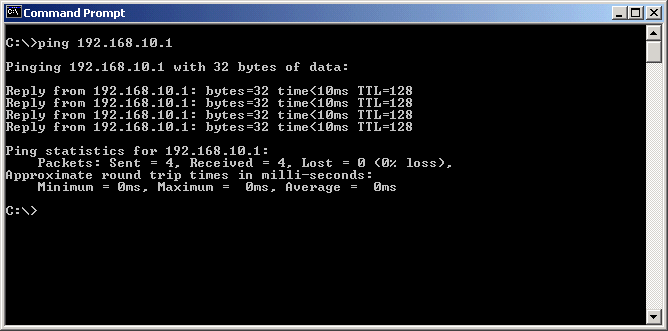

Verify that your PC can send traffic to the router with a ping
test.
-
Click Start > Run
-
Type command or cmd to launch
a DOS prompt.
-
Type ping
router-IP-address
and press
Enter.
For more information on how to do a ping test, refer to
Troubleshoot
Ethernet Connectivity.
-
Type exit and press Enter to
close the window.
Install Security Device Manager
To install Security Device Manager, follow these
steps:
-

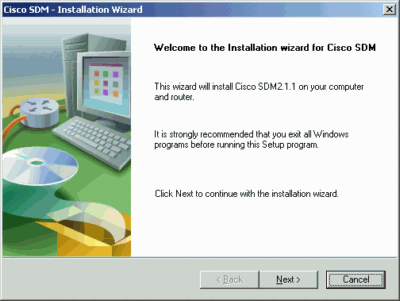

Open the SDM folder on the desktop and double click the
setup.exe file.
-
Click Next.
-

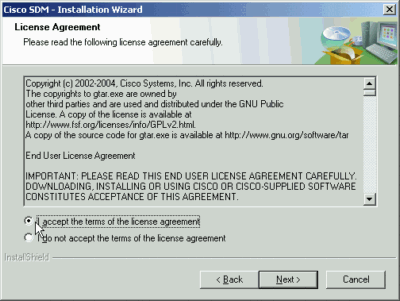

Choose I accept the terms of the license agreement
and click Next.
-

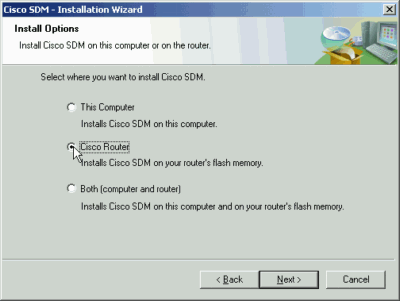

Choose Cisco Router and click
Next to install SDM on the router.
-

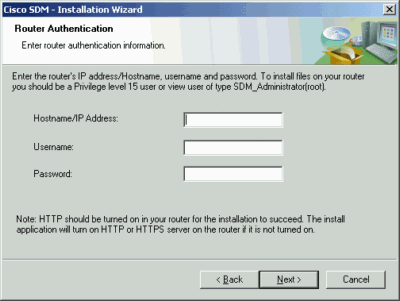

In the Hostname/IP Address field, enter the IP
address from the LAN Addressing Worksheet (L6A). In the
Username field, enter the username that you entered in the LAN
Addressing Worksheet (B10). In the Password field, enter the password that you
entered in the LAN Addressing Worksheet (B11).
-

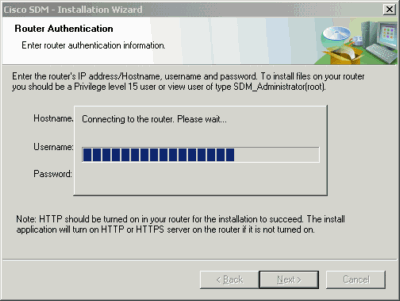

SDM accesses the router with your login information. If SDM cannot
access the router, see Troubleshoot the
Procedure.
-

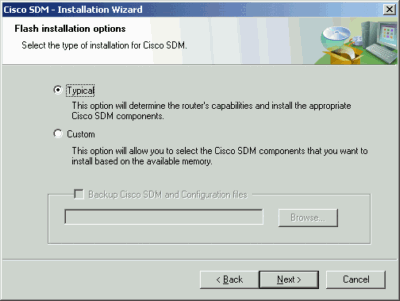

Choose Typical and click
Next.
-

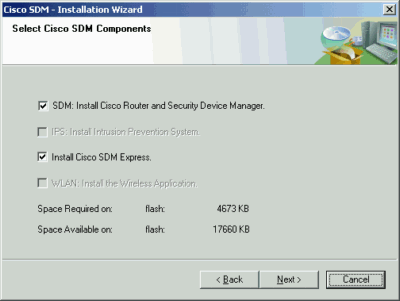

Check SDM: Install Cisco Router and Security Device
Manager and Install Cisco SDM Express. If you have a
wireless router, check WLAN: Install the Wireless Application.
Click Next.
Note: If you want to use Intrusion Prevention System (IPS), you need to
upgrade your IOS image to Release 12.3(8)T4 or later. For more information,
contact the
SMB
Technical Assistance Center (SMB TAC).
-

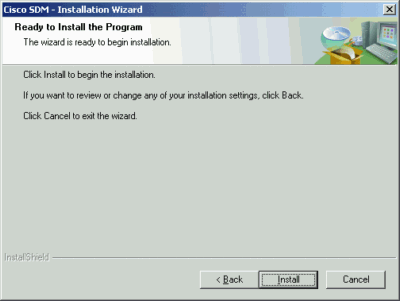

Click Install to begin
installation.
-
The Installation Wizard copies the SDM files to the
router.
-
Click Finish to complete the
installation.
Back to Top
Next Step
You have now installed SDM on your router.
Refer to
Configure
your Router with Security Device Manager to configure your router with
SDM.
Note: If you have an ASA Security Appliance in your network, refer to
Configure
Your Router with Security Device Manager for ASA.
Back to Top
Troubleshoot the Procedure
This section provides information about common problems that you may
encounter. If this information does not solve your problem, contact the
SMB
Technical Assistance Center (SMB TAC) for assistance.
Problem
|
Cause(s) and Suggested Solution(s)
|
SDM cannot access my router when I enter my login
information.
|
|
Reclaim Flash Memory
If there is insufficient space to copy the new software image into
flash, the router displays an error message. To resolve this problem, you need
to delete files from Flash memory and reclaim flash memory space. To reclaim
flash memory, follow these steps:
-
Type show flash and press
Enter to show the files in flash memory.
System flash directory:
File Length Name/status
1 5877460 c1700-y-mz.123-12.bin
2 3885056 sdm.tar
3 1545 sdmconfig-1721.cfg
[9764061 bytes used, 23528223 available, 33292284 total]
32768K bytes of processor board System flash (Read/Write)
-
Review the files to determine what files you can delete. You can
delete unused .cfg configuration files or .bin software image files.
Caution: Ensure that you do not delete a .cfg configuration file or a .bin
software image file that is in use.
-
Type del
filename.ext
to remove unnecessary files.
Press Enter to confirm.
Router# del filename.ext
Router# Delete filename [filename.ext]?
Router# Delete flash:filename.ext [confirm]
Router#
-
Type squeeze flash to reclaim flash
memory. Press Enter.
Router# squeeze flash
Squeeze operation may take a while. Continue? [confirm]
squeeze in progress... eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee
Rebuild file system directory...
Squeeze of flash complete
Router#
