Configure Zone Based Firewall on Cisco Routers
|
|
|
|
Introduction
This document describes how to configure Zone based firewall on Cisco
Routers. Cisco IOS Classic Firewall stateful inspection (formerly known as
Context-Based Access Control, or CBAC) employed an interface-based
configuration model, in which a stateful inspection policy was applied to an
interface. All traffic passing through that interface received the same
inspection policy. This configuration model limited the granularity of the
firewall policies, and caused confusion of the proper application of firewall
policies, particularly in scenarios when firewall policies must be applied
between multiple interfaces.
Zone-Based Policy Firewall (also known as Zone-Policy Firewall, or ZFW)
changes the firewall configuration from the older interface-based model to a
more flexible, more easily understood zone-based model. Interfaces are assigned
to zones, and inspection policy is applied to traffic moving between the zones.
Inter-zone policies offer considerable flexibility and granularity, so
different inspection policies can be applied to multiple host groups connected
to the same router interface.
Back to Top
Requirements
To perform the steps described in this document, you need to have these
items:
Back to Top
Overview of Zone-Based Policy Network Security
A security zone must be configured for each region of relative security
within the network, so that all interfaces that are assigned to the same zone
are protected with a similar level of security. For example, consider an access
router with three interfaces:
-
One interface connected to the public Internet
-
One interface connected to a private LAN that must not be accessible
from the public Internet
-
One interface connected to an Internet service demilitarized zone
(DMZ), where a Web server, Domain Name System (DNS) server, and e-mail server
must be accessible to the public Internet
Each interface in this network are assigned to its own zone. Although
you might want to allow varied access from the public Internet to specific
hosts in the DMZ and varied application use policies for hosts in the protected
LAN.
Figure 1: Basic Security Zone Topology:
In this example, each zone holds only one interface. If an additional
interface is added to the private zone, the hosts connected to the new
interface in the zone can pass traffic to all hosts on the existing interface
in the same zone. Additionally, the hosts’ traffic to hosts in other zones is
similarly affected by existing policies.
Typically, the example network has three main policies:
-
Private zone connectivity to the Internet
-
Private zone connectivity to DMZ hosts
-
Internet zone connectivity to DMZ
hosts
Zone based firewall imposes a prohibitive default security posture.
Therefore, unless the DMZ hosts are specifically provided access to other
networks, other networks are safeguarded against any connections from the DMZ
hosts. Similarly, no access is provided for Internet hosts to access the
private zone hosts, so private zone hosts are safe from unwanted access by
Internet hosts.
Zone based firewall works on concept of policies created for traffic
moving between the zones. To create firewall policies, you must complete these
tasks:
-
Define match criteria (class map)
-
Associate actions to the match criteria (policy
map)
-
Attach the policy map to a zone pair (service
policy)
A class is a way of identifying a set of packets based on its contents.
Normally you define a class so that you can apply an action on the identified
traffic that reflects a policy. A class is designated via class maps. The
class-map command creates a class map to be used for matching
packets to a specified class.
An action is a specific functionality, for example,
inspect, drop, pass, and
police are actions. An action is defined for a class using
policy map. Use the policy-map command to specify the name of
the policy map to be created, added to, or modified before you can configure
policies for classes whose match criteria are defined in a class map.
Back to Top
Zone based firewall Configuration Examples
In this configuration example the router is separated into five
zones:
-
The public Internet is connected to FastEthernet 0 (Internet
zone)
-
Two Internet servers are connected to FastEthernet 1 (DMZ
zone)
-
The Ethernet switch is configured with two VLANs:
-
Workstations are connected to VLAN1 (client
zone).
-
Servers are connected to VLAN2 (server
zone).
-
The client and server zones are in the same subnet. A transparent
firewall is applied between the zones, so the inter-zone policies on those two
interfaces would only affect traffic between the client and server
zones.
-
The VLAN1 and VLAN2 interfaces communicate with other networks
through the bridge virtual interface (BVI1). This interface is assigned to the
private zone. (See Figure 2.)

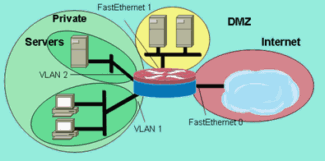

Figure 2: Zone Topology Detail
These policies are applied, using the network zones defined
earlier:
-
Hosts in Internet zone can reach DNS, SMTP, and SSH services on one
server in the DMZ. The other server offers SMTP, HTTP, and HTTPS services. The
firewall policy restricts access to the specific services available on each
host.
-
The DMZ hosts could not connect to hosts in any other
zone.
-
Hosts in the client zone can connect to hosts in the server zone on
all TCP, UDP, and ICMP services.
-
Hosts in the server zone cannot connect to hosts in the client zone,
except a UNIX-based application server can open X Windows client sessions to X
Windows servers on desktop PCs in the client zone on ports 6900 to
6910.
-
All hosts in the private zone (combination of clients and servers)
can access hosts in the DMZ on SSH, FTP, POP, IMAP, ESMTP, and HTTP services,
and in the Internet zone on HTTP, HTTPS, and DNS services and ICMP.
Furthermore, application inspection will be applied on HTTP connections from
the private zone to the Internet zone in order to assure that supported instant
messaging and P2P applications are not carried on port 80. (See Figure
3.)
Figure 3: Zone-Pair service permissions to be applied in the
configuration example
These firewall policies are configured in order of complexity:
-
Clients-Servers TCP/UDP/ICMP inspection
-
Private-DMZ SSH/FTP/POP/IMAP/ESMTP/HTTP inspection
-
Internet -DMZ SMTP/HTTP/DNS inspection restricted by host
address
-
Servers-Clients X Windows inspection with a port-application mapping
(PAM)-specified service
-
Private-Internet HTTP/HTTPS/DNS/ICMP with HTTP application
inspection
Because you apply portions of the configuration to different network
segments at different times, it is important to remember that a network segment
loses connectivity to other segments when it is placed in a zone. For instance,
when the private zone is configured, hosts in the private zone loses
connectivity to the DMZ and Internet zones until their respective policies are
defined.
Stateful Inspection Routing Firewall
Configure Private Internet Policy

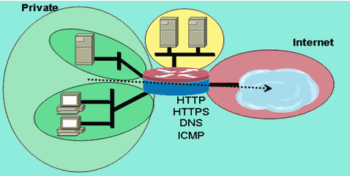

Figure 4 illustrates the configuration of private Internet
policy.
The private Internet policy applies Layer 4 inspection to HTTP, HTTPS,
DNS, and Layer 4 inspection for ICMP from the private zone to the Internet
zone. This allows connections from the private zone to the Internet zone, and
allows the return traffic. Layer 7 inspection carries the advantages of tighter
application control, better security, and support for applications requiring
fixup. However, Layer 7 inspection, as mentioned, requires a better
understanding of network activity, as Layer 7 protocols that are not configured
for inspection would not be allowed between zones.
-
Define class-maps that describe the traffic that you want to permit
between zones, according to policies described earlier.
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#class-map type inspect match-any internet-traffic-class
Router(config-cmap)#match protocol http
Router(config-cmap)#match protocol https
Router(config-cmap)#match protocol dns
Router(config-cmap)#match protocol icmp
-
Configure a policy-map to inspect traffic on the class-maps you just
defined.
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#policy-map type inspect private-internet-policy
Router(config-pmap)#class type inspect internet-traffic-class
Router(config-pmap-c)#inspect
-
Configure the private and internet zones and assign router interfaces
to their respective zones.
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)# zone security private
Router(config-sec-zone)#zone security internet
Router(config-sec-zone)#int bvi1
Router(config-if)#zone-member security private
Router(config-if)#int fastethernet 0
Router(config-if)#zone-member security internet
-
Configure the zone-pair and apply the appropriate policy-map.
Note: You only need to configure the private Internet zone pair at
present in order to inspect connections sourced in the private zone traveling
to the Internet zone.
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#zone-pair security private-internet source
private destination internet
Router(config-sec-zone-pair)#service-policy type
inspect private-internet-policy
This completes the configuration of the Layer 7 inspection policy on
the private Internet zone-pair to allow HTTP, HTTPS, DNS, and ICMP connections
from the clients zone to the servers zone and to apply application inspection
to HTTP traffic to assure that unwanted traffic is not allowed to pass on TCP
80, HTTP’s service port.
Configure Private DMZ Policy
Figure 5 illustrates the configuration of private DMZ policy.
The private DMZ policy adds complexity because it requires a better
understanding of the network traffic between zones. This policy applies Layer 7
inspection from the private zone to the DMZ. This allows connections from the
private zone to the DMZ, and allows the return traffic. Layer 7 inspection
carries the advantages of tighter application control, better security, and
support for applications requiring fixup. However, Layer 7 inspection, as
mentioned, requires a better understanding of network activity, as Layer 7
protocols that are not configured for inspection would not be allowed between
zones.
-
Define class-maps that describe the traffic that you want to permit
between zones, according to policies described earlier.
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#class-map type inspect match-any L7-inspect-class
Router(config-cmap)#match protocol ssh
Router(config-cmap)#match protocol ftp
Router(config-cmap)#match protocol pop3
Router(config-cmap)#match protocol imap
Router(config-cmap)#match protocol esmtp
Router(config-cmap)#match protocol http
-
Configure policy-maps to inspect traffic on the class-maps you just
defined.
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#policy-map type inspect private-dmz-policy
Router(config-pmap)#class type inspect L7-inspect-class
Router(config-pmap-c)#inspect
-
Configure the private and DMZ zones and assign router interfaces to
their respective zones.
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)# zone security private
Router(config-sec-zone)#zone security dmz
Router(config-sec-zone)#int bvi1
Router(config-if)#zone-member security private
Router(config-if)#int fastethernet 1
Router(config-if)#zone-member security dmz
-
Configure the zone-pair and apply the appropriate policy-map.
Note: You only need to configure the private DMZ zone-pair at present in
order to inspect connections sourced in the private zone traveling to the
DMZ.
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#zone-pair security private-dmz source
private destination dmz
Router(config-sec-zone-pair)#service-policy type
inspect private-dmz-policy
This completes the configuration of the Layer 7 inspection policy on
the private DMZ to allow all TCP, UDP, and ICMP connections from the clients
zone to the servers zone. The policy does not apply fixup for subordinate
channels, but provides an example of simple policy to accommodate most
application connections.
Configure Internet DMZ Policy
Figure 6 illustrates the configuration of Internet DMZ policy.
This policy applies Layer 7 inspection from the Internet zone to the
DMZ. This allows connections from the Internet zone to the DMZ, and allows the
return traffic from the DMZ hosts to the Internet hosts that originated the
connection. The Internet DMZ policy combines Layer 7 inspection with address
groups defined by ACLs to restrict access to specific services on specific
hosts, groups of hosts, or subnets. This is accomplished by nesting a class-map
specifying services within another class-map referencing an ACL to specify IP
addresses.
-
Define class-maps and ACLs that describe the traffic that you want to
permit between zones, according to policies described earlier.
Multiple class-maps for services must be used, as differing access
policies are applied for access to two different servers. Internet hosts are
allowed DNS and HTTP connections to 172.16.2.2, and SMTP connections are
allowed to 172.16.2.3. Note the difference in the class-maps. The class-maps
specifying services use the match-any keyword to allow any of the listed
services. The class-maps associating ACLs with the service class-maps use the
match-all keyword to require that both conditions in the class map must be met
to allow traffic.
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#access-list 110 permit ip any host 172.16.2.2
Router(config)#access-list 111 permit ip any host 172.16.2.3
Router(config)#class-map type inspect match-any dns-http-class
Router(config-cmap)#match protocol dns
Router(config-cmap)#match protocol http
Router(config-cmap)#class-map type inspect match-any smtp-class
Router(config-cmap)#match protocol smtp
Router(config-cmap)#class-map type inspect match-all dns-http-acl-class
Router(config-cmap)# match access-group 110
Router(config-cmap)#match class-map dns-http-class
Router(config-cmap)#class-map type inspect match-all smtp-acl-class
Router(config-cmap)#match access-group 111
Router(config-cmap)#match class-map smtp-class
-
Configure policy-maps to inspect traffic on the class-maps you just
defined.
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#policy-map type inspect internet-dmz-policy
Router(config-pmap)#class type inspect dns-http-acl-class
Router(config-pmap-c)#inspect
Router(config-pmap-c)#class type inspect smtp-acl-class
Router(config-pmap-c)#inspect
-
Configure the Internet and DMZ zones and assign router interfaces to
their respective zones. Skip the DMZ configuration if you set it up in the
previous section.
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#zone security internet
Router(config-sec-zone)#zone security dmz
Router(config-sec-zone)#int fastethernet 0
Router(config-if)#zone-member security internet
Router(config-if)#int fastethernet 1
Router(config-if)#zone-member security dmz
-
Configure the zone-pair and apply the appropriate policy-map.
Note: You only need to configure the Internet DMZ zone pair at present,
to inspect connections sourced in the Internet zone traveling to the DMZ
zone.
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#zone-pair security internet-dmz source internet
destination dmz
Router(config-sec-zone-pair)#service-policy type
inspect internet-dmz-policy
This completes the configuration of the address-specific Layer 7
inspection policy on the Internet DMZ
zone-pair.
Stateful Inspection Transparent Firewall
Configure Servers-Clients Policy
Figure 7 illustrates the configuration of server-client policy.
The servers-clients policy applies inspection using a user-defined
service. Layer 7 inspection is applied from the servers zone to the clients
zone. This allows X Windows connections to a specific port range from the
servers zone to the clients zone, and allows the return traffic. X Windows is
not a natively supported protocol in PAM, so a user-configured service in PAM
must be defined so the ZFW can recognize and inspect the appropriate
traffic.
Two or more router interfaces are configured in an IEEE bridge-group to
provide Integrated Routing and Bridging (IRB) to provide bridging between the
interfaces in the bridge-group and routing to other subnets via the Bridge
Virtual Interface (BVI). The transparent firewall policy will offer apply
firewall inspection for traffic “crossing the bridge”, but not for traffic that
leaves the bridge-group via the BVI. The inspection policy only applies to
traffic crossing the bridge-group. Therefore, in this scenario, the inspection
would only be applied to traffic that moves between the clients and servers
zones, which are nested inside the private zone. The policy applied between the
private zone, and public and DMZ zones, only comes into play when traffic
leaves the bridge-group via the BVI. When traffic leaves via the BVI from
either the clients or servers zones, the transparent firewall policy would not
be invoked.
-
Configure PAM with a user-defined entry for X Windows.
X Windows clients (where applications are hosted) open connections
for display information to clients (where user is working) in a range starting
at port 6900.
Each additional connection uses successive ports, so if a client
displays 10 different sessions on one host, the server uses ports 6900-6909.
Therefore, if you inspect the port range from 6900 to 6909, connections opened
to ports beyond 6909 would fail:
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ip port-map user-Xwindows port tcp from 6900 to 6910
-
Review PAM documents to address additional PAM questions or check
granular protocol inspection documentation for information about the details of
interoperability between PAM and Cisco IOS Firewall stateful
inspection.
-
Define class-maps that describe the traffic that you want to permit
between zones, according to policies described earlier.
Router#Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#class-map type inspect match-any Xwindows-class
Router(config-cmap)#match protocol user-Xwindows
-
Configure policy-maps to inspect traffic on the class-maps you just
defined.
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#policy-map type inspect servers-clients-policy
Router(config-pmap)# class type inspect Xwindows-class
Router(config-pmap-c)#inspect
-
Configure the client and server zones and assign router interfaces to
their respective zones.
If you configured these zones and assigned interfaces in the
Clients-Servers Policy Configuration section, you can skip to the zone-pair
definition. Bridging IRB configuration is provided for completeness.
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#bridge irb
Router(config)#bridge 1 protocol ieee
Router(config)#bridge 1 route ip
Router(config)#zone security clients
Router(config-sec-zone)#zone security servers
Router(config-sec-zone)#int vlan 1
Router(config-if)#bridge-group 1
Router(config-if)#zone-member security clients
Router(config-if)#int vlan 2
Router(config-if)#bridge-group 1
Router(config-if)#zone-member security servers
-
Configure the zone-pair and apply the appropriate policy-map.
Note: You only need to configure the servers-clients zone pair at present
in order to inspect connections sourced in the servers zone traveling to the
clients zone.
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#zone-pair security servers-clients
source servers destination clients
Router(config-sec-zone-pair)#service-policy type inspect
servers-clients-policy
This completes the configuration of the user-defined inspection
policy in the servers-clients zone-pair to allow X Windows connections from the
server zone to the client zone.
Configure Clients-Servers Policy
Figure 8 illustrates the configuration of client-server policy.
The client-servers policy is less complex than the others. Layer 4
inspection is applied from the clients zone to the servers zone. This allows
connections from the clients zone to the servers zone, and allows return
traffic. Layer 4 inspection carries the advantage of simplicity in the firewall
configuration, in that only a few rules are required to allow most application
traffic. However, Layer 4 inspection also carries two major
disadvantages.
-
Applications such as FTP or streaming media services frequently
negotiate an additional subordinate channel from the server to the client. This
functionality is usually accommodated in a service fixup that monitors the
control channel dialog and allows the subordinate channel. This capability is
not available in Layer 4 inspection.
-
Layer 4 inspection allows nearly all application-layer traffic. If
network use must be controlled so only a few applications are permitted through
the firewall, an ACL must be configured on outbound traffic to limit the
services allowed through the firewall.
Both router interfaces are configured in an IEEE bridge group, so this
firewall policy applies transparent firewall inspection. This policy is applied
on two interfaces in an IEEE IP bridge group. The inspection policy only
applies to traffic crossing the bridge group. This explains why the clients and
servers zones are nested inside the private zone.
-
Define class-maps that describe the traffic that you want to permit
between zones, according to policies described earlier.
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#class-map type inspect match-any L4-inspect-class
Router(config-cmap)#match protocol tcp
Router(config-cmap)#match protocol udp
Router(config-cmap)#match protocol icmp
-
Configure policy-maps to inspect traffic on the class-maps you just
defined.
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#policy-map type inspect clients-servers-policy
Router(config-pmap)#class type inspect L4-inspect-class
Router(config-pmap-c)#inspect
-
Configure the clients and servers zones and assign router interfaces
to their respective zones.
Router#conf t
Enter configuration commands, one per line. End with C
Router(config)#zone security clients
Router(config-sec-zone)#zone security servers
Router(config-sec-zone)#int vlan 1
Router(config-if)#zone-member security clients
Router(config-if)#int vlan 2
Router(config-if)#zone-member security servers
-
Configure the zone-pair and apply the appropriate policy-map.
Note: You only need to configure the clients-servers zone-pair at
present, to inspect connections sourced in the clients zone traveling to the
servers zone.
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)# zone-pair security clients-servers
source clients destination servers
Router(config-sec-zone-pair)# service-policy type
inspect clients-servers-policy
This completes the configuration of the Layer 4 inspection policy for
the clients-servers zone-pair to allow all TCP, UDP, and ICMP connections from
the client zone to the server zone. The policy does not apply fixup for
subordinate channels, but provides an example of simple policy to accommodate
most application connections.
Back to Top
Next Step
You have now configured Zone based Firewall on your router.
Refer to
Router Support
Page to make further changes to your router.
Refer to
Configuration
Overview Page to configure other devices in your network.
Back to Top
Troubleshoot the Procedure
This section provides information about common problems that you may
encounter. If this information does not solve your problem, contact the
SMB
Technical Assistance Center (SMB TAC) for assistance.
Back to Top
Related Information
