	Step 6: Add or Remove a Wireless User on an Integrated Services Router
	Set Up Your Cisco Router

Introduction

This document describes how to add or remove a wireless user on a Cisco Integrated Services Router.

Requirements

To perform the steps described in this document, you need to have these items:

Completed ISR Router Worksheet as instructed in the Site Survey
A crossover Ethernet cable to connect the router to a PC
You must have completed Configure Wireless Security on an Integrated Services Router

Connect to the Router

To connect to the ISR wireless management interface, follow these steps:

Connect your PC to the router with a crossover Ethernet cable.
Configure your PC with an IP address that is on the same subnet as the AP. For instructions on how to change your PC Internet settings, refer to Configure an IP Address on Your PC.
Open a web browser and enter the router IP address that you entered in field W10 of the Integrated Services Router Worksheet.
At the login prompt, enter the router password that you entered in field B11 of the Integrated Services Router Worksheet.
Click Configure.

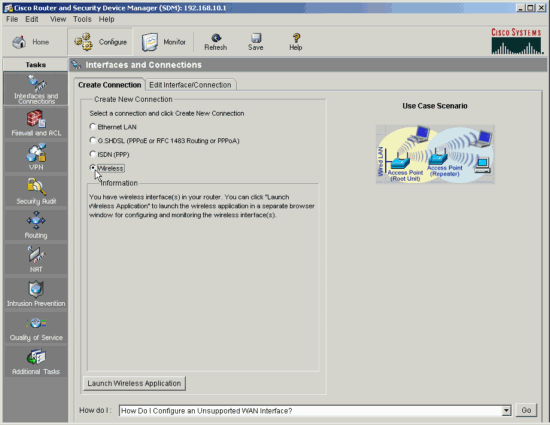

In the Create Connection tab, select Wireless and click Launch Wireless Application.
The wireless application launches in a separate window.
Click Wireless Security > Local RADIUS Server.
Click the General Setup tab.
Scroll to the Individual Users area of the screen.
To add or remove a user, see add a user or remove a user.

Add a New Wireless User

To add a new user to your wireless network, follow these steps:

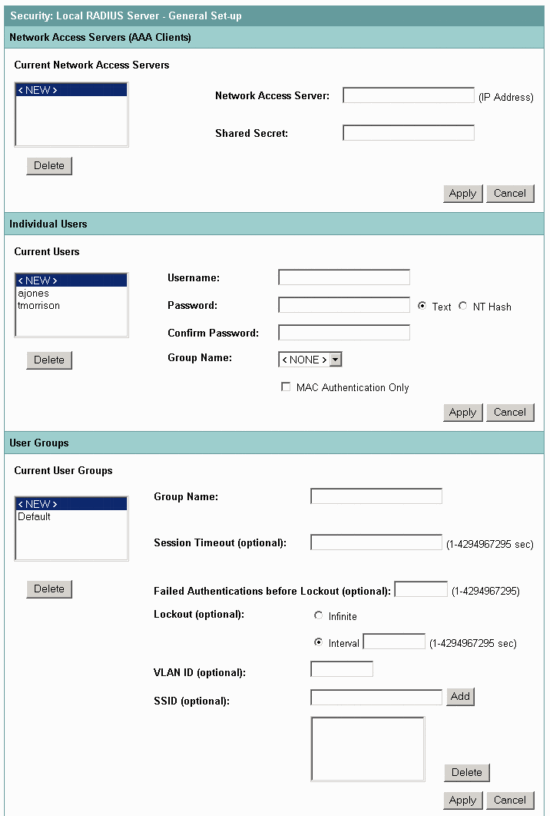

Scroll to the Individual Users area of the General Setup screen.
Ensure that <NEW> is selected under Current Users.
In the Username field, enter the username that you entered in field W33 of the Integrated Services Router Worksheet.
Next to Password, choose Text.
Enter the user password in the Password field. Enter the password again in the Confirm Password field.

Note: Refer to Password Security for information about how to create strong passwords.
Click Apply.

Remove a Wireless User

To remove a user from your wireless network, follow these steps:

Scroll to the Individual Users area of the General Setup screen.
Under Current Users, select the user that you want to delete.
Click Delete to remove the user.

Next Step

You have completed this procedure.

To configure an Internet connection, refer to the appropriate link for your connection type. If you are not sure what connection type you have, refer to your Internet Worksheet.

Note: If your router is already connected to the Internet, refer to Set Up Internet Security on a Cisco Router.

Troubleshoot the Procedure

This section provides information about common problems that you may encounter. If this information does not solve your problem, contact the SMB Technical Assistance Center (SMB TAC) for assistance.
