| The goal of
this process is for you to do the following:
- Understand the tasks required
to configure and provision your application.
- Configure Cisco EGW with
your preferences.
- Provision your selected applications.
Provisioning includes configuring all required
network components to communicate with Cisco
EGW. Depending on your selected application,
this may include provisioning Cisco CallManager
and PBX access gateways (media gateways configured
for DPNSS), an H.323 gatekeeper, or a PRI gateway.
- Verify that the network is
successfully configured and provisioned.
Before You Begin: Complete
the Installation
process for all components required in your application.
If you are installing Cisco EGW as a redundant
pair, install
both Cisco EGWs
and determine which will be the initial active
system and which will be the standby. Also make
sure you have completed planning
for provisioning and have the
Cisco
EGW Provisioning Worksheet available.
When You Are Done:
After you verify communication among components,
your network is ready to place in service. Go
on to the Operating
process for information on ongoing management
of your network.
Major Tasks
Tip
For Cisco EGW provisioning tasks,
be sure to use Cisco EGW Administration online
help, which provides component details and assistance
on overall provisioning. Cisco IPT Platform Administration
also has online help for platform functions.

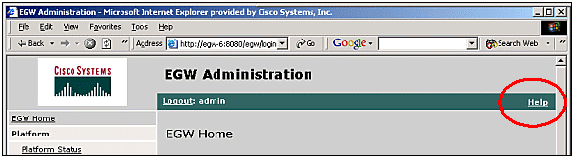

To open Cisco EGW Administration
help, click the Help link at the right of the
window:

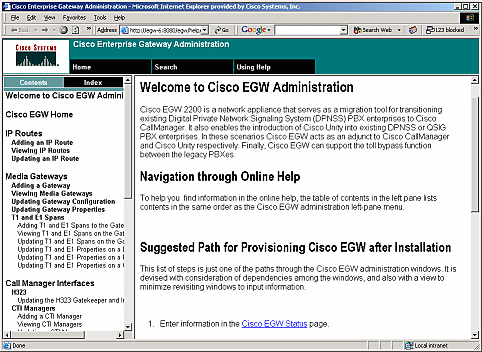

Help opens to the welcome page,
at the right, and the Contents and Index panes
at the left. The organization matches that of
Cisco EGW Administration. If you do not know where
to look for a component or property, you can search
for it by clicking Search.
Return
to top
|
Configuring and Provisioning
