Cisco ONS 15800 Series DWDM Platforms

Revised June 4, 2008
December 15, 2003

NOTICE:

THIS FIELD NOTICE HAS BEEN EXPIRED AND IS NO LONGER MAINTAINED OR UPDATED BY CISCO.

THIS FIELD NOTICE IS PROVIDED ON AN "AS IS" BASIS AND DOES NOT IMPLY ANY KIND OF GUARANTEE, WARRANTY OR SUPPORT. USE OF THE INFORMATION ON THIS FIELD NOTICE OR MATERIALS LINKED FROM THIS FIELD NOTICE IS AT YOUR OWN RISK. CISCO RESERVES THE RIGHT TO CHANGE OR UPDATE THIS FIELD NOTICE AT ANY TIME.

Products Affected

Problem Description

The CMP-W-2E , Control and Monitoring Processor (CMP) double ethernet, board may be incorrectly programmed and incorrectly report its name as a CMP-W when running TL1 agent 2.x with Cisco Photonics Tool Kit (CPTK).

Background

When viewing a CMP-W-2E modules running TL1 agent 2.x with CPTK the module may be incorrectly listed as a CMP-W.

Problem Symptoms

The CMP-W-2E module running TL1 agent 2.x may incorrectly report its name as a CMP-W when viewed from CPTK

Workaround/Solution

1. Connect to the CMP using the Cisco Photonics Local Terminal (CPLT) application

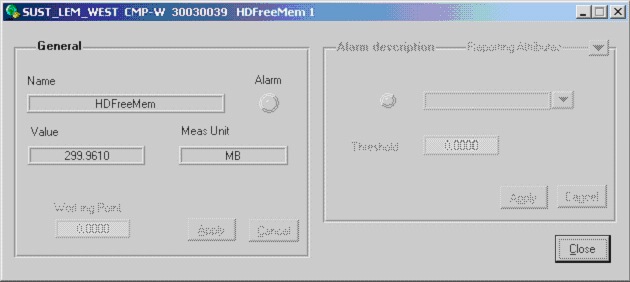

2. Select the CMP-W board and look in the Analog I/O tab for the value of the IOGEN HDFreeMem1 . If this value is less than 64MBytes then no further action is required, otherwise proceed to the next step



3. Connect to the CMP with the latest CPTK application compatible with ONS 15800/1 TL1 Agents 2.x, currently 3.0.1.

4. On the View window select the CMP board with the left mouse button

5. Press the buttons Ctrl and b

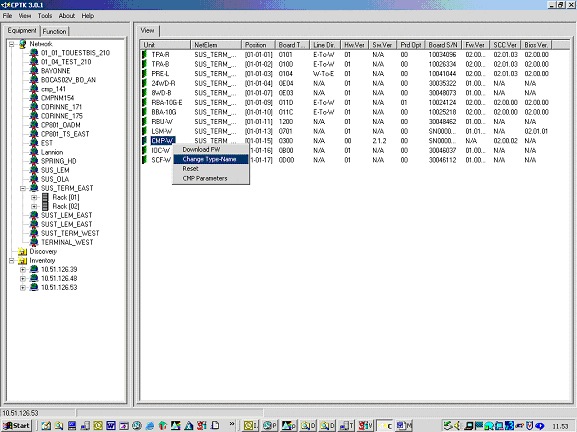

6. On the View window select the CMP board with the right mouse button

7. Select Change Type-Name in the pop-up menu that will appear



8. Press the pull-down menu of the field New Board Name and select CMP-W-2E. If you press c when the list of options is visible, the selections moves immediately on CMPs subset.



9. The field New Board Type will change automatically based on the Board Name.



10. Press the button Apply

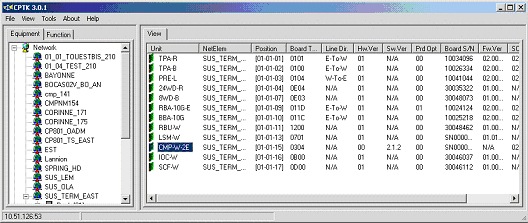

11. On the View window verify that the name of the CMP is changed into CMP-W-2E.
