Cisco Catalyst 6000 Series Switches

Revised July 3, 2008
March 6, 2003

NOTICE:

THIS FIELD NOTICE HAS BEEN EXPIRED AND IS NO LONGER MAINTAINED OR UPDATED BY CISCO.

THIS FIELD NOTICE IS PROVIDED ON AN "AS IS" BASIS AND DOES NOT IMPLY ANY KIND OF GUARANTEE, WARRANTY OR SUPPORT. USE OF THE INFORMATION ON THIS FIELD NOTICE OR MATERIALS LINKED FROM THIS FIELD NOTICE IS AT YOUR OWN RISK. CISCO RESERVES THE RIGHT TO CHANGE OR UPDATE THIS FIELD NOTICE AT ANY TIME.

Products Affected

• WS-C6K-6SLOT-FAN=

• WS-C6506-2GE

• WS-C6506-PFC2

• WS-C6506-IPSEC-K9

• WS-C6006-1300AC=

• WS-C6006=

• WS-C6506-1000AC=

• WS-C6506=

• WS-C6006-1000AC=

• WS-C6506-1300AC=

• WS-C6006

• WS-C6506

Serial Numbers

Problem Description

Incorrectly assembled fan trays on the Catalyst 6500 six-slot chassis have the fans installed in the fan tray bracket in a reversed orientation.

Background

An error in a supplier's process caused a few units to be assembled incorrectly. These units have the fan blades in the reversed orientation. The airflow direction through the chassis is reversed when using the affected fan trays. The correct airflow is evacuating the chassis. Good units should have the air pulled through the chassis and blowing out the left side when facing the card cage and fan tray access side of the chassis.

Problem Symptoms

Although the airflow direction is reversed when using an affected fan trays, there is no immediate impact to the functionality of the system. However, continued use of this affected fan tray may cause overheating in some configurations resulting in unscheduled system shutdowns.

Workaround/Solution

Affected units can be identified by serial number of chassis or by visual inspection. The affected units need to have the Fan Tray replaced.

Please confirm the serial number is within the ranges specified above. Also verify by visual inspection that the blades are reversed. Once that is confirmed, please use the standard RMA process to obtain an unaffected fan blade.

How to Identify Serial Numbers

Affected units can be identified through the chassis serial numbers listed above. To identify the serial number of your chassis, use the following commands:

When using CatOS, use the show version command.

Console> (enable) show version
WS-C6506 Software, Version NmpSW: 6.4(0.15-Eng)
Copyright (c) 1995-2003 by Cisco Systems
NMP S/W compiled on Jan 9 2003, 04:01:04

System Bootstrap Version: 5.3(1)

Hardware Version: 2.0 Model: WS-C6506 Serial #: TBA04501415 <<====== Serial Number Here

PS1 Module: WS-CAC-1300W Serial #: SON04373422

Mod Port Model               Serial #    Versions
--- ---- ------------------- ----------- --------------------------------------
1   2    WS-X6K-SUP1A-2GE    SAD05010MT2 Hw : 7.0
                                         Fw : 5.3(1)
                                         Fw1: 5.4(2)
                                         Sw : 6.4(0.15-Eng)
                                         Sw1: 6.4(0.15)
         WS-F6K-PFC          SAD050201N0 Hw : 1.1
6   48   WS-X6348-RJ-45      SAL05052WYD Hw : 1.4
                                         Fw : 5.4(2)
                                         Sw : 6.4(0.15)
15  1    WS-F6K-MSFC         SAD05010KH3 Hw : 2.1
                                         Fw : 12.1(20030109:202654
                                         Sw : 12.1(20030109:202654

       DRAM                    FLASH                   NVRAM
Module Total   Used    Free    Total   Used    Free    Total Used  Free
------ ------- ------- ------- ------- ------- ------- ----- ----- -----
1      130944K 50454K  80490K  16384K  9740K   6644K   512K  269K  243K

Uptime is 19 days, 9 hours, 50 minutes

When using Cisco IOS? Software, use the show idprom backplane command.

Router# show idprom backplane
IDPROM for backplane #0
(FRU is 'Catalyst 6500 6-slot backplane')
OEM String = 'Cisco Systems'
Product Number = 'WS-C6506'
Serial Number = 'TBA04010594' <===== Serial Number Here
Manufacturing Assembly Number = '73-3436-02'
Manufacturing Assembly Revision = 'B0'
Hardware Revision = 2.0
Current supplied (+) or consumed (-) = -A

How To Identify Hardware

You can identify affected hardware though visual inspection.

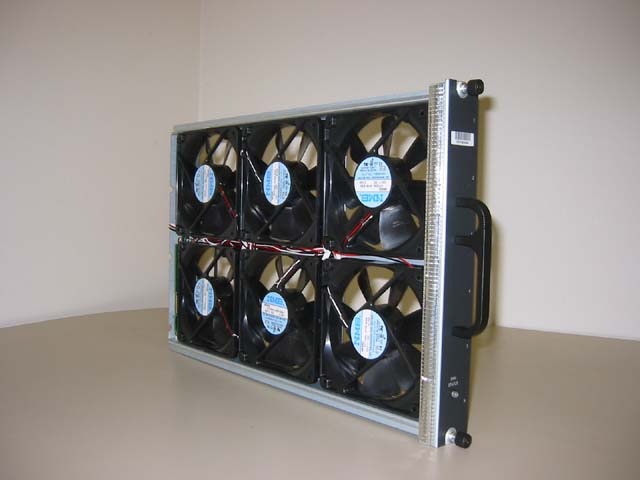

Good fan tray.

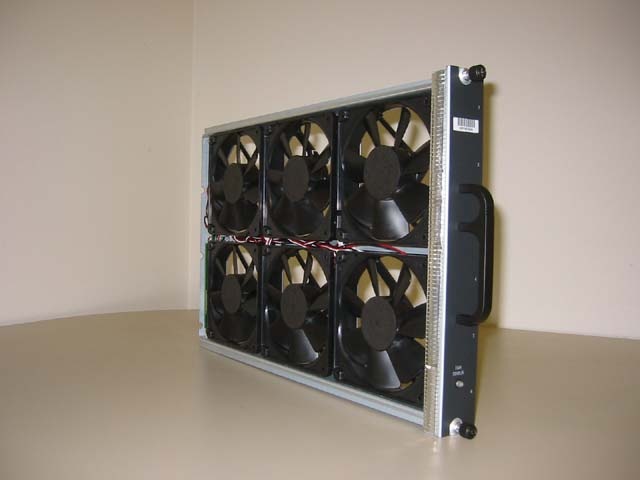

Bad fan tray.

To verify correct fan orientation, check for labels on fan rotor. The white or silver round labels located on each fan rotor hub should be visible when viewed through the ventilation perforation on the left side (fan tray side) of the chassis.

Please see the photos below for the differences between Good and Bad units partially inserted, you can see the labels through the ventilation performations on good units.

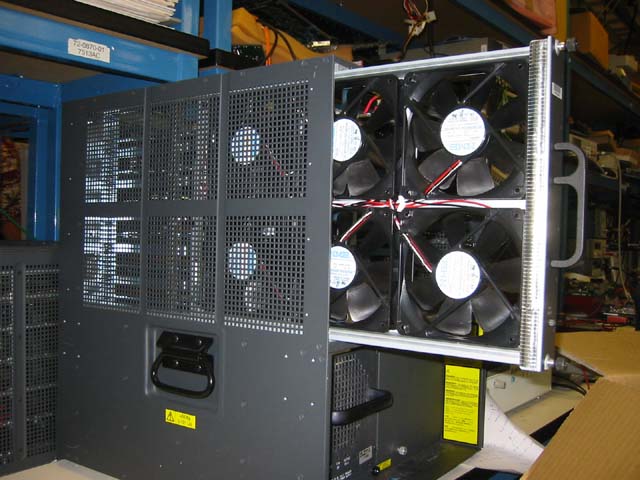

Good fan tray.

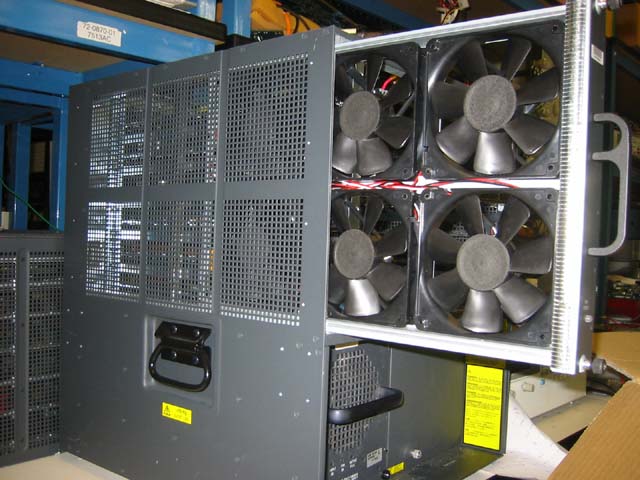

Bad fan tray.
