Extending Performance, Versatility, and Reliability at the Optical Edge
CISCO 7603 ROUTER
The Cisco® 7603 Router is a small-form-factor, high-performance router designed for deployment at the network edge, where a combination of performance and services is necessary to meet the requirements of both enterprises and service providers. The Cisco 7603 delivers high performance with a forwarding rate of 15 Mpps, and 32 Gbps of bandwidth across the backplane while delivering high-touch, hardware-accelerated IP services via Cisco Parallel Express Forwarding (PXF) IP services processor technology.

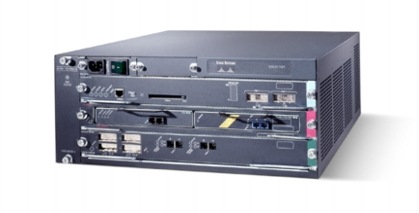

Cisco 7603 Chassis
One of the Cisco 7600 Series Routers, the Cisco 7603 delivers optical LAN, WAN, and metropolitan-area network (MAN) networking with high-touch IP services at the network edge, enabling service providers and enterprises to "service enable" their networks at optical speeds. This creates opportunities for service providers to offer high-value, differentiated services, and for enterprises to develop the advanced network infrastructure necessary to succeed in the modern business environment.
The Cisco 7603 delivers performance in a compact (four-rack unit [RU]) three-slot chassis. The Cisco 7603 may be configured with a single route processor and two slots available for line cards or for high-availability and redundancy, with dual route processors and a single open line-card slot. The Cisco 7603 also supports redundant power supplies for increased reliability.
The inclusion of Gigabit Ethernet ports on the Cisco Supervisor 2 or Supervisor Engine 720 route processors eliminates the need to use a line-card slot for uplink ports. The result of this design is more efficient use of available line-card slots and increased deployment flexibility. Four Gigabit Ethernet ports are available for use in dual-route processor configurations.
Optical Services Modules for the Cisco 7600 Series are available with interface speeds ranging from OC-3 to OC-48, and the Cisco 7603 can also utilize the Cisco FlexWAN module (WS-X6182-2PA) to take advantage of the majority of Cisco 7200 and 7500 port adapters for terminating DS0 to OC-3 speeds. Along with the Cisco Catalyst® 6000 Series of Ethernet line cards, the Cisco 7600 can scale WAN connectivity from DS0 to OC-48 and LAN connectivity from 10-Mbps Ethernet through Gigabit Ethernet.
Understanding the need to use rack space efficiently, the Cisco 7603 was designed to be a compact 7-inch-tall (four RU) unit, with single-side connection management for both interface and power terminations. This setup allows placement of up to 11 Cisco 7603 units per standard 7-foot rack.
With a powerful combination of speed and services in a compact form factor, the Cisco 7603 is an outstanding choice for deployment in applications such as peering where a small number of interfaces is needed, in a Tier 2 or Tier 3 point of presence (POP) where space is critical but high-speed aggregation is necessary, or in the metropolitan area to provide high-performance Ethernet aggregation and uplink.
QUICK-LOOK FEATURE SUMMARY
Cisco 7603 Chassis Features
• Four RU (7-inch) compact chassis, up to 11 chassis per 7-foot rack
• Two interface slots plus two supervisor-mounted Gigabit Ethernet ports (gigabit interface converters [GBICs])
• Network Equipment Building Systems (NEBS) Level 3 compliance
• 1+1 route processor protection capability
• 1+1 power supply protection option, AC or DC
• Single-side connection management for both interface and power terminations
• Side-to-side airflow
Cisco 7603 System Features
• Hardware-based Cisco Express Forwarding (CEF) at 15 Mpps (CEF, access control lists [ACLs]), classification, shaping, filtering, marking, etc.)
• 32-Gbps total throughput
• Up to 16-Gbps capacity per slot
• Interface flexibility for packet over SONET (POS), Channelized optical, Ethernet, and ATM connectivity
Cisco 7603, 3-slot chassis (includes fan module, mounting kit, cable guide) with Supervisor 2 with MSFC-2, single AC power supply, power entry module, and Border Gateway Protocol 4 (BGP4) license (AC bundles include power cord)
Cisco 7603, 3-slot chassis (includes fan module, mounting kit, cable guide) with Supervisor 2 with MSFC-2, single DC power supply, power entry module, and BGP4 license (AC bundles include power cord)
This bundle includes a Cisco 7603 chassis, equipped with high-speed fan, 1 Supervisor Engine 720, 1 950W AC power supply and AC PEM. The 950W AC power supply may be changed to DC or the 1400W AC for a nominal fee. Additional memory and Cisco IOS® are optional.
This bundle includes a Cisco 7603 chassis, equipped with high-speed fan, 1 Supervisor Engine 720-3B, 1 950W AC power supply and AC PEM. The 950W AC power supply may be changed to DC or the 1400W AC for a nominal fee. Additional memory and IOS are optional.
This bundle includes a Cisco 7603 chassis, equipped with high-speed fan, 1 Supervisor Engine 720-3BXL, 1 950W AC power supply and AC PEM. The 950W AC power supply may be changed to DC or the 1400W AC for a nominal fee. Additional memory and IOS are optional.
Note that "=" denotes a spare order
Cisco 7603 chassis, mounting kit, and cable guide
950W AC power supply for Cisco 7603
AC power entry module for Cisco 7603
950W DC power supply for Cisco 7603
DC power entry module for Cisco 7603
AC Power Cords for 950W Power Supply
AC power cord (United States)
AC power cord (Europe)
AC power cord (United Kingdom)
AC power cord (Italy)
AC power cord (Australia)
1400W AC Power Supply of Cisco 7603 (requires PEM-20AC+)
AC power entry module for PWR-1400-AC/Cisco 7603 (PWR-1400-AC requires a 20A circuit input)
AC Power Cords for 1400W Power Supply
AC POWER CORD NORTH AMERICA (110V)
AC POWER CORD (AUSTRALIA)
AC POWER CORD (EUROPE)
AC POWER CORD (ITALY)
AC POWER CORD (UK)
AC POWER CORD (ARGENTINA)
AC Power Cord (South Africa)
AC Power Cord (Swiss) 10A
Power Cord, 250 VAC 20A, straight blade NEMA 6-20 plug, US
Power Cord, 250 VAC 16A, twist lock NEMA L6-20 plug, US
Power Cord, 250 VAC 16A, Europe
Power Cord, 250 VAC 16A, INTL
Power Cord, (Swiss) 16A
Fan module for Cisco 7603
High-speed fan module for Cisco 7603 (required for Sup720 configurations)
