This product bulletin details changes to the Cisco IOS® Software packaging for the Cisco® 3700 series routers It introduces four new cross-platform feature sets in Cisco IOS Software releases 12.4 Mainline and 12.4T. In addition, this is an end-of-sales notification for numerous feature sets.
Note: This product bulletin covers the packaging of functions into feature sets. It does not cover individual new features. For information about new features in Cisco IOS Software releases 12.4 Mainline and 12.4T, refer to the Cisco IOS Software pages at Cisco.com.
OVERVIEW
During the course of Cisco IOS Software releases 12.3 Mainline and 12.3T, the Cisco 3700 Series migrated to the eight new Cisco cross-platform feature sets. They were introduced as an alternative to classic feature sets in Cisco IOS Software Release 12.3 Mainline. Similar to 12.3T, Cisco IOS Software releases 12.4 Mainline and 12.4T consist exclusively of the cross-platform feature.
Table 1. Type of Feature Sets by Release Train
Cisco IOS Software Release 12.3 Mainline
Cisco IOS Software Release 12.3T
Cisco IOS Software Releases 12.4 Mainline and 12.4T
Classic Feature Sets
Cross-platform feature sets
Cross-platform feature sets
Cross-platform feature sets
Special-purpose feature sets
Special-purpose feature sets
Special-purpose feature sets
In addition to the eight cross-platform feature sets that were released with Cisco IOS Software releases 12.3T and 12.3 Mainline, four additional cross-platform feature sets will be added starting with 12.4 Mainline and 12.4T. Derivatives of the existing eight feature sets, these four new feature sets were created to address router management capabilities. The new feature sets are described in Table 2.
Table 2. New Feature Sets for Cisco IOS Software Releases 12.4 and 12.4T
Image Name
Cisco IOS Software Release 12.3 and Prior
Image Name
Cisco IOS Software Release 12.4 and Forward
IP Base
New
IP Base
X
IP Base without Crypto
Renamed
Enterprise Base
New
Enterprise Base
X
Enterprise Base without Crypto
Renamed
IP Voice
New
IP Voice
X
IP Voice without Crypto
Renamed
Advanced Security
X
Advanced Security
X
SP Services
X
SP Services
X
Advanced IP Services
X
Advanced IP Services
X
Enterprise Services without Crypto
New
Enterprise Services
X
Enterprise Services
X
Advanced Enterprise Services
X
Advanced Enterprise Services
X
Note that there is a name change for the feature sets that previously had no cryptography technology, and this fact is now noted in their titles. Going forward, the new feature sets that have cryptography technology will have the basic title without any cryptography designator.

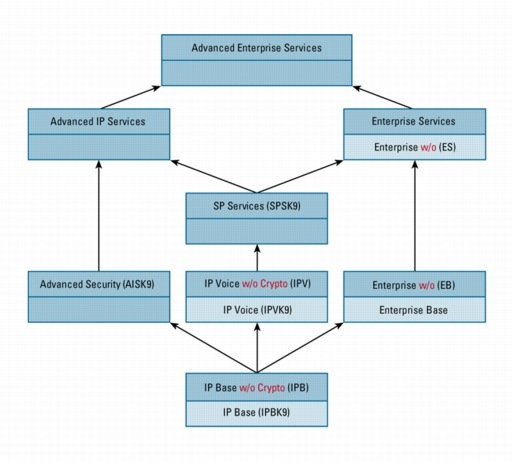

Figure 1. Reformation Feature Map
The remainder of this product bulletin provides details of feature set availability in Cisco IOS Software releases 12.4 Mainline and 12.4T.
CISCO IOS SOFTWARE RELEASE 12.4 MAINLINE
Overview of Available Feature Sets in Cisco IOS Software Release 12.4 Mainline
Table 3 lists the Cisco IOS Software Release 12.4 Mainline feature sets that are available for the Cisco 3700 Series routers.
Note that the flash memory recommendations in the table are calculated without added management tools such as Cisco Security Device Manager (SDM).
Cisco 3745 IOS ADVANCED ENTERPRISE SERVICES WITH SNA SWITCHING
c3745-adventerprisek9_sna-mz
64
192
S374AISK9
Cisco 3745 IOS ADVANCED IP SERVICES
c3745-advipservicesk9-mz
64
192
S374ASK9
Cisco 3745 IOS ADVANCED SECURITY
c3745-advsecurityk9-mz
32
128
S374EB
Cisco 3745 IOS ENTERPRISE BASE WITHOUT CRYPTO
c3745-entbase-mz
32
128
S374EBK9
Cisco 3745 IOS ENTERPRISE BASE
c3745-entbasek9-mz
32
128
S374ES
Cisco 3745 IOS ENTERPRISE SERVICES WITHOUT CRYPTO
c3745-entservices-mz
64
128
S374ESK9
Cisco 3745 IOS ENTERPRISE SERVICES
c3745-entservicesk9-mz
64
128
S374IPB
Cisco 3745 IOS IP BASE WITHOUT CRYPTO
c3745-ipbase-mz
32
128
S374IPBK9
Cisco 3745 IOS IP BASE
c3745-ipbasek9-mz
32
128
S374IPV
Cisco 3745 IOS IP VOICE WITHOUT CRYPTO
c3745-ipvoice-mz
32
128
S374IVS
Cisco 3745 IOS IP VOICE WITH INTEGRATED VOICE/VIDEO GATEKEEPER, IP-IP GATEWAY, TDM-IP GATEWAY
c3745-ipvoice_ivs-mz
32
256
S374IPVK9
Cisco 3745 IOS IP VOICE
c3745-ipvoicek9-mz
32
128
S374SPSK9
Cisco 3745 IOS SP SERVICES
c3745-spservicesk9-mz
64
128
End-of-Sales Feature Sets in Cisco IOS Software Release 12.4 Mainline and Suggested Migration Paths
Table 5 lists Cisco IOS Software feature sets that will be discontinued in Cisco IOS Software Release 12.4 Mainline, and suggested migration paths. It should be noted that other active release trains continue to issue maintenance releases of these feature sets. The end of sales applies only to Cisco IOS Software Release 12.4 Mainline and subsequent 12.4T release trains.
Cisco SMARTnet® and other support contracts are transferable from an end-of-sale image to any image suggested as a migration path.
Table 5. Cisco 3725-12.4M End of Sale Feature Sets
End of Sale Software Product Description
Product ID
Product Description
Image Filename
Suggested Migration Path
Product ID
Product Description
Image Filename
S372AR1K9
Cisco 3725 IOS ENTERPRISE/SNASW PLUS IPSEC 3DES
c3725-a3jk9s-mz
S372SNAK9
Cisco 3725 IOS ADVANCED ENTERPRISE SERVICES WITH SNA SWITCHING
c3725-adventerprisek9_sna-mz
S372AR1P
Cisco 3725 IOS ENTERPRISE/SNASW PLUS
c3725-a3js-mz
S372SNAK9
Cisco 3725 IOS ADVANCED ENTERPRISE SERVICES WITH SNA SWITCHING
c3725-adventerprisek9_sna-mz
S372CU
Cisco 3725 IOS IP/H323
c3725-ix-mz
S372IVS
Cisco 3725 IOS IP VOICE WITH INTEGRATED VOICE/VIDEO GATEKEEPER, IP-IP GATEWAY, TDM-IP GATEWAY
c3725-ipvoice_ivs-mz
S372AK9G
Cisco 3725 IOS VOICE IP TO IP VOICE GATEWAY IPSEC 3DES
Cisco 3745 IOS ADVANCED ENTERPRISE SERVICES WITH SNA SWITCHING
c3745-adventerprisek9_sna-mz
64
256
S374AISK9
Cisco 3745 IOS ADVANCED IP SERVICES
c3745-advipservicesk9-mz
64
256
S374ASK9
Cisco 3745 IOS ADVANCED SECURITY
c3745-advsecurityk9-mz
64
256
S374EB
Cisco 3745 IOS ENTERPRISE BASE WITHOUT CRYPTO
c3745-entbase-mz
64
256
S374EBK9
Cisco 3745 IOS ENTERPRISE BASE
c3745-entbasek9-mz
64
256
S374ES
Cisco 3745 IOS ENTERPRISE SERVICES WITHOUT CRYPTO
c3745-entservices-mz
64
256
S374ESK9
Cisco 3745 IOS ENTERPRISE SERVICES
c3745-entservicesk9-mz
64
256
S374IPB
Cisco 3745 IOS IP BASE WITHOUT CRYPTO
c3745-ipbase-mz
32
128
S374IPBK9
Cisco 3745 IOS IP BASE
c3745-ipbasek9-mz
32
128
S374IPV
Cisco 3745 IOS IP VOICE WITHOUT CRYPTO
c3745-ipvoice-mz
64
256
S374IVS
Cisco 3745 IOS IP VOICE WITH INTEGRATED VOICE/VIDEO GATEKEEPER, IP-IP GATEWAY, TDM-IP GATEWAY
c3745-ipvoice_ivs-mz
64
256
S374IPVK9
Cisco 3745 IOS IP VOICE
c3745-ipvoicek9-mz
64
256
S374SPSK9
Cisco 3745 IOS SP SERVICES
c3745-spservicesk9-mz
64
256
S374AESK9
Cisco 3745 IOS ADVANCED ENTERPRISE SERVICES
c3745-adventerprisek9-mz
64
256
End-of-Sales Feature Sets in Cisco IOS Software Release 12.4T and Suggested Migration Paths
Table 9 lists Cisco IOS Software feature sets that will be discontinued in Cisco IOS Software Release 12.3T, and suggested migration paths. It should be noted that other active release trains continue to issue maintenance releases of these feature sets. The end of sales applies only to Cisco IOS Software Release 12.3T.
Cisco SMARTnet and other support contracts are transferable from an end-of-sale image to any image suggested as a migration path.
The suggested migration paths are high-level directions for customers migrating from classic feature sets to the cross-platform feature sets introduced in Cisco IOS Software Release 12.3 Mainline. Cisco provides several tools to perform detailed analysis of feature content. To find out which Cisco IOS Software best supports your needs, Cisco recommends using the Cisco Software Advisor, Cisco IOS Software Upgrade Planner, and Cisco IOS Software Feature Navigator, allowing registered customers and partners to search by feature(s) or by release and compare different releases and feature sets.
Table 9. Cisco 3725-12.4T End of Sale Feature Sets
End of Sale Software Product Description
Product ID
Product Description
Image Filename
Suggested Migration Path
Product ID
Product Description
Image Filename
S372AR1K9
Cisco 3725 IOS ENTERPRISE/SNASW PLUS IPSEC 3DES
c3725-a3jk9s-mz
S372SNAK9
Cisco 3725 IOS ADVANCED ENTERPRISE SERVICES WITH SNA SWITCHING
c3725-adventerprisek9_sna-mz
S372AR1P
Cisco 3725 IOS ENTERPRISE/SNASW PLUS
c3725-a3js-mz
S372SNAK9
Cisco 3725 IOS ADVANCED ENTERPRISE SERVICES WITH SNA SWITCHING
c3725-adventerprisek9_sna-mz
S372CU
Cisco 3725 IOS IP/H323
c3725-ix-mz
S372IVS
Cisco 3725 IOS IP VOICE WITH INTEGRATED VOICE/VIDEO GATEKEEPER, IP-IP GATEWAY, TDM-IP GATEWAY
c3725-ipvoice_ivs-mz
S372AK9G
Cisco 3725 IOS VOICE IP TO IP VOICE GATEWAY IPSEC 3DES
Feature Area Map for Cisco IOS Software Release 12.4 Cross-Platform Feature Sets
The cross-platform feature sets are tailored to ease the choice of feature sets in a multiplatform environment. They were initially available for Cisco 1700, 2600XM, 3725, and 3745 series routers and the Cisco 2691 Multiservice Platform and are now also available for the Cisco 1800, 2800, and 3800 series routers. The cross-platform feature sets simplify the image selection process by providing similar functions across platform boundaries.
